Views: 10 Author: Site Editor Publish Time: 2026-04-29 Origin: Site
TFT display technology—thin-film transistor LCD—powers the vast majority of digital screens encountered in daily life, from smartphones and tablets to industrial equipment interfaces, automotive instrument clusters, medical monitoring devices, and outdoor digital signage. As a display technology, TFT LCD combines the energy efficiency and manufacturing scalability of liquid crystal displays with active matrix addressing through thin-film transistors, creating screens that deliver sharp images, fast response times, and versatile form factors across an extraordinary range of applications spanning 1-inch smartwatches to 100-inch video wall displays.
For product designers, embedded systems engineers, and procurement specialists evaluating display solutions, understanding TFT display technology enables informed decisions about resolution requirements, interface compatibility, environmental robustness, optical performance specifications, and total cost of ownership across product lifecycles that can span 5 to 15 years for industrial and automotive applications.
TFT display technology is a type of active matrix liquid crystal display that uses an array of thin-film transistors deposited on a glass substrate to control each individual pixel on the screen. Each pixel is addressed by one or more TFTs that switch the voltage applied to the pixel's liquid crystal cell, determining how much light passes through at that location. The thin-film transistor layer acts as a precision switching matrix that enables fast, accurate pixel addressing at resolutions up to 8K and refresh rates up to 240Hz.
Unlike passive matrix LCD displays that use simpler row-column addressing and suffer from limited refresh rates and ghosting artifacts, TFT displays refresh each pixel independently and rapidly, supporting full-motion video, complex graphics, and high-resolution imagery without visible image lag or blurring. This active matrix architecture is the fundamental technological enabler for virtually all modern flat panel displays across all size categories.
Fannal has developed comprehensive TFT display capabilities spanning custom configurations, industrial-grade products, and automotive-qualified displays, addressing the full spectrum of application requirements from consumer electronics to mission-critical industrial systems.Fannal custom TFT display modules are engineered to meet specific application requirements, providing optimized optical performance, mechanical integration, and environmental qualification for demanding deployment scenarios including industrial automation, medical equipment, automotive infotainment, and outdoor digital signage.Fannal automotive display products meet AEC-Q100 qualification standards for automotive electronics reliability, and Fannal industrial display products operate across extended temperature ranges from −30°C to +85°C, providing the durability and consistency required by demanding commercial applications.
TFT displays are categorized by multiple technical parameters that determine their suitability for specific applications. Understanding these categories helps product designers select the most appropriate display technology for their requirements.
In-Plane Switching (IPS) panels orient liquid crystal molecules parallel to the glass substrates, rotating them collectively to control light transmission when voltage is applied. IPS technology delivers superior viewing angles—typically 178 degrees in all directions—consistent color reproduction across the viewing cone, and accurate color representation. These characteristics make IPS the preferred choice for applications where color accuracy is critical including medical imaging displays, professional photography monitors, automotive center information displays, and design workstations.
Twisted Nematic (TN) panels orient liquid crystal molecules in a helical structure that twists between perpendicular orientations, rotating polarization to control light transmission. TN panels offer faster response times—critical for gaming monitors and high-speed video applications—and lower manufacturing costs than IPS alternatives. The trade-off includes narrower viewing angles and color shifting when viewed from off-center positions, which limits their suitability for applications requiring consistent color from multiple viewing angles.
Vertical Alignment (VA) panels offer a compromise between IPS and TN characteristics, providing better viewing angles than TN with faster response than standard IPS and higher native contrast ratios that make them popular for television applications. Advanced Multi-Domain Vertical Alignment (MVA or PVA) variants divide each pixel into multiple domains with different liquid crystal orientations, improving viewing angle and color consistency compared to basic VA technology.
Standard LED Backlight uses white LED arrays positioned behind the panel to illuminate the liquid crystal layer. Edge-lit configurations position LEDs along the panel edges, directing light across the display surface through a light guide plate—a configuration that enables slim form factors and is common in laptops and slim monitors. Direct-lit configurations position LEDs directly behind the panel in a grid pattern, providing more uniform illumination and higher brightness capability suitable for larger displays.
Mini-LED Backlight technology uses thousands of smaller LED chips (typically 100 to 500 micrometers) to provide more precise local dimming zones, dramatically improving contrast ratios and HDR performance. By selectively dimming LEDs behind dark areas of the image, mini-LED backlights can achieve contrast ratios approaching OLED levels while maintaining the higher brightness capabilities of LCD technology.
RGB LED Backlight uses separate red, green, and blue LED arrays for more precise color temperature control and wider color gamut coverage, important for applications requiring accurate color reproduction including medical imaging, professional video production, and automotive displays.
LVDS (Low-Voltage Differential Signaling) and eDP (embedded DisplayPort) are common interfaces for medium and large TFT panels in industrial, automotive, and consumer applications. These differential signaling interfaces provide superior signal integrity, lower electromagnetic radiation, and longer cable distances compared to single-ended parallel interfaces.
MIPI DSI (Mobile Industry Processor Interface – Display Serial Interface) is the dominant interface for small to medium TFT panels in smartphones, tablets, and embedded applications, offering reduced pin count, lower power consumption, and standardized interface protocols widely supported by application processors.
RGB Interface (TTL/LVDS/Parallel RGB) transmits pixel data in parallel format, suitable for short connections and high-bandwidth applications. SPI (Serial Peripheral Interface) serves very small, low-resolution TFT displays in embedded and IoT applications where frame rate requirements are modest.
TFT displays deliver pixel-perfect image quality with resolution options ranging from QVGA (320×240) for simple industrial instruments to 8K UHD (7680×4320) for premium display applications. The active matrix architecture ensures each pixel maintains its correct voltage throughout the frame time, eliminating the ghosting and smearing associated with passive matrix displays. Resolution density measured in pixels per inch (PPI) determines the sharpness of text and detail rendering—for applications requiring fine text legibility, higher PPI displays provide meaningful usability improvements.
Modern TFT panels achieve response times of 5 milliseconds or less for standard applications, with premium gaming-oriented and automotive displays reaching 1 millisecond effective response times through overdrive technologies that apply higher drive voltages during transitions to accelerate liquid crystal rotation. Fast response eliminates visible motion blur during video playback, supports smooth animations, and enables responsive touch feedback in interactive applications.
TFT display manufacturing accommodates virtually any diagonal size from under 1 inch for wearable devices to over 100 inches for commercial video walls and digital signage. Aspect ratios range from square 1:1 displays for industrial instruments to ultra-wide 32:9 configurations for automotive dashboards and trading terminals. Custom sizes and shapes including round displays for industrial instruments, bar-type displays for automotive instrument clusters, and curved displays for specialty applications expand the design space for product engineers.
TFT LCD technology benefits from decades of manufacturing investment and continuous process improvements. The enormous installed base of TFT LCD manufacturing equipment, refined processes, and experienced workforce delivers exceptional cost efficiency at high production volumes. Economies of scale make TFT displays the most cost-effective choice for virtually all applications where their performance characteristics are adequate.
Liquid crystal materials exist in a mesophase between solid crystalline and liquid phases, with molecules that can be oriented by applied electric fields while maintaining some degree of molecular order. In a twisted nematic (TN) LCD cell, the liquid crystal layer is sandwiched between two polarizers oriented at 90 degrees to each other.
Without applied voltage, liquid crystal molecules twist the polarization of backlight passing through the first polarizer by 90 degrees, allowing it to pass through the second polarizer. When voltage is applied across the liquid crystal layer, molecules align with the electric field, reducing the twist effect and blocking light transmission. By varying the voltage applied to each pixel, the display controls light transmission independently at each location, creating images through selective light blocking.

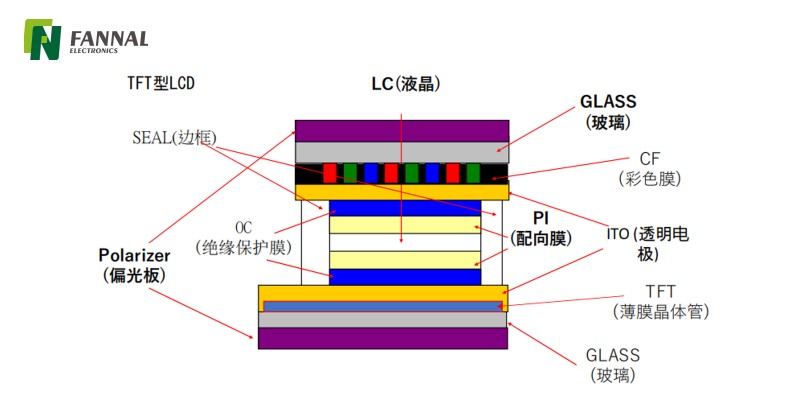

The TFT array is fabricated on a glass substrate using semiconductor processes adapted for large-area deposition. A typical process sequence deposits gate metal, gate dielectric, semiconductor layers (typically amorphous silicon, low-temperature polysilicon, or IGZO), and source/drain metal using physical vapor deposition and chemical vapor deposition techniques.
Photolithography patterns each layer into the precise transistor structures that address individual pixels. The resulting array contains millions of transistors—one TFT and pixel electrode per sub-pixel—fabricated across display diagonals that can exceed 100 inches. Yield management and defect control at this scale represent significant manufacturing challenges that differentiate quality manufacturers from commodity producers.
Color TFT displays incorporate a color filter layer between the TFT substrate and liquid crystal layer. The color filter contains red, green, and blue sub-pixel filter elements corresponding to each TFT pixel location. Light passing through each sub-pixel filter is tinted to the appropriate color, and the combination of RGB sub-pixel intensities perceived by the human eye creates full-color images.
Optical bonding fills the air gap between the cover glass and display surface with transparent adhesive, eliminating internal reflections and improving contrast by 10% to 50% depending on ambient lighting conditions. LOCA (Liquid Optically Clear Adhesive) bonding uses liquid adhesive that fills irregularities on bonding surfaces, while OCA (Optically Clear Adhesive) film bonding uses pre-cut adhesive sheets that simplify process control.Fannal custom TFT display modules incorporate optical bonding, custom cover glass, and integrated touch sensing to create complete display solutions optimized for specific application requirements.
Industrial environments demand displays that operate reliably across wide temperature ranges from −30°C to +85°C, resist dust and moisture ingress to IP65 standards, and maintain readability under high ambient lighting conditions up to 1,000 lux or direct sunlight.Fannal industrial display products serve factory automation systems, process control interfaces, and machine vision monitoring displays with ratings validated through extended temperature and humidity testing.
The automotive industry has become one of the largest consumers of high-performance TFT displays, deploying them in instrument clusters, center information displays, rear-seat entertainment screens, and head-up display projection units. Automotive displays must meet stringent qualification requirements including AEC-Q100 component stress test standards, extended temperature range from −40°C to +105°C, vibration resistance to ISO 16750 standards, and 10-year+ reliability at continuous operation.
Medical imaging equipment, patient monitoring systems, and surgical displays require TFT panels with exceptional brightness uniformity, precise gamma correction calibrated to DICOM GSDF standards, and accurate color reproduction across the grayscale range from black to white.
Smartphones, tablets, laptops, and monitors represent the highest-volume application segment for TFT displays. Consumer electronics prioritize thin bezels, low power consumption, high resolution, and competitive pricing.
Specification | Fannal Custom TFT | Standard Industrial TFT | Consumer Grade TFT | Industry Average |
|---|---|---|---|---|
Resolution Range | QVGA to 4K UHD | QVGA to Full HD | HD to 4K | QVGA to 2K |
Operating Temperature | −40°C to +85°C | −30°C to +80°C | −20°C to +70°C | −25°C to +75°C |
Brightness | 300–2000 nits | 300–1500 nits | 250–800 nits | 280–1000 nits |
Viewing Angle | Up to 178°/178° (IPS) | 170°/170° (typical) | 150°/130° (TN) | 160°/160° |
Panel Life (hrs) | 50,000–80,000 | 40,000–60,000 | 30,000–50,000 | 35,000–55,000 |
Customization | Full customization | Limited options | None | Limited |
Optical Bonding | Available | Optional | Rare | Optional |
Automotive Qualified | Yes (AEC-Q) | Optional | No | No |
EMI Hardened | Available | Optional | No | Optional |
Warranty | 2–3 years | 1–2 years | 1 year | 1–2 years |
Display resolution continues climbing across all application segments, with 4K displays becoming standard in premium industrial and consumer applications and 8K displays emerging for large-format displays. Refresh rates are increasing beyond traditional 60Hz, with 90Hz, 120Hz, and 144Hz panels becoming common in gaming, automotive, and medical applications.
Mini-LED backlight technology enables thousands of individually controlled dimming zones that dramatically improve contrast ratios and HDR performance.Fannal high-brightness TFT display options incorporating mini-LED technology address demanding outdoor and automotive applications.
While flexible OLED technology dominates the foldable display category, TFT LCD manufacturers are exploring flexible substrate technologies. Curved TFT displays are already deployed in automotive instrument clusters and architectural installations.
Select display resolution based on the information density and viewing distance requirements. For simple numeric displays viewed at arm's length, WVGA may be adequate. For detailed imaging, Full HD or higher resolution provides necessary detail.
Accurately assess the operating temperature range, humidity exposure, vibration levels, and ambient lighting conditions.Fannal industrial and automotive display products offer qualification levels appropriate for demanding deployment scenarios.
Confirm that the display interface (MIPI DSI, LVDS, RGB, eDP) is compatible with the host processor.Fannal provides comprehensive interface support and compatibility verification for common controller platforms.
Determine whether capacitive touch, resistive touch, or non-touch operation best suits the application.Fannal offers touch-integrated display solutions combining TFT displays with projected capacitive touch sensors.
Custom optical enhancement films can improve sunlight readability and contrast in high-ambient-light environments.Fannal provides optical consulting services for applications with demanding ambient lighting requirements.
Thermal management design must ensure that the display and surrounding components remain within rated temperature ranges.Fannal offers thermal design consultation for enclosed equipment enclosures.
Fannal provides long-term supply commitments and last-time-buy notices to support product lifecycle planning for customers with multi-year production programs.
TFT LCD uses a backlight to illuminate liquid crystal pixels that modulate light transmission. AMOLED uses self-emissive organic compounds. AMOLED provides true blacks, superior contrast, and instantaneous response. TFT LCD offers lower cost, higher maximum brightness, and longer lifetimes without burn-in risk.
Transflective displays combine transmissive backlight capability with reflective ambient light enhancement. A partially reflective layer reflects ambient light to enhance outdoor visibility while the backlight enables low-light operation.
Brightness is measured in nits (cd/m²). Standard indoor displays typically range from 200 to 500 nits. High-brightness industrial displays produce 1000 to 2500 nits for outdoor and sunlight-readable applications.
TFT LCD displays are generally resistant to burn-in. Temporary image persistence can occur from prolonged static images but typically resolves.
LED backlight lifetimes range from 30,000 to 80,000 hours depending on operating temperature and drive current, translating to 10 to 27 years at 8 hours daily use.
Yes, TFT displays designed for outdoor use feature high-brightness backlights (1000–2500 nits), anti-reflective coatings, and wide-temperature components.Fannal outdoor TFT display solutions address demanding environmental requirements.
TFT display technology provides the visual interface layer for an enormous range of electronic products across consumer, industrial, automotive, medical, and commercial applications. The versatility of the technology platform makes TFT LCD the default choice for most display applications. Understanding the technical parameters, application requirements, and quality differentiators among TFT display suppliers enables product teams to select optimal display solutions.Fannal TFT display capabilities span the full range from standard catalog products to fully customized display solutions engineered for specific application requirements.
