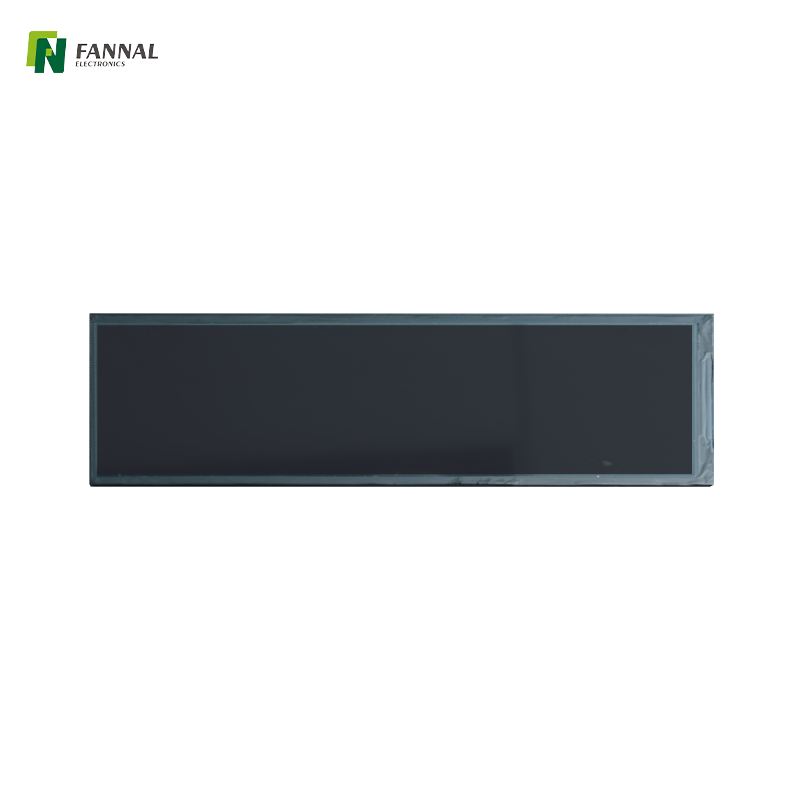

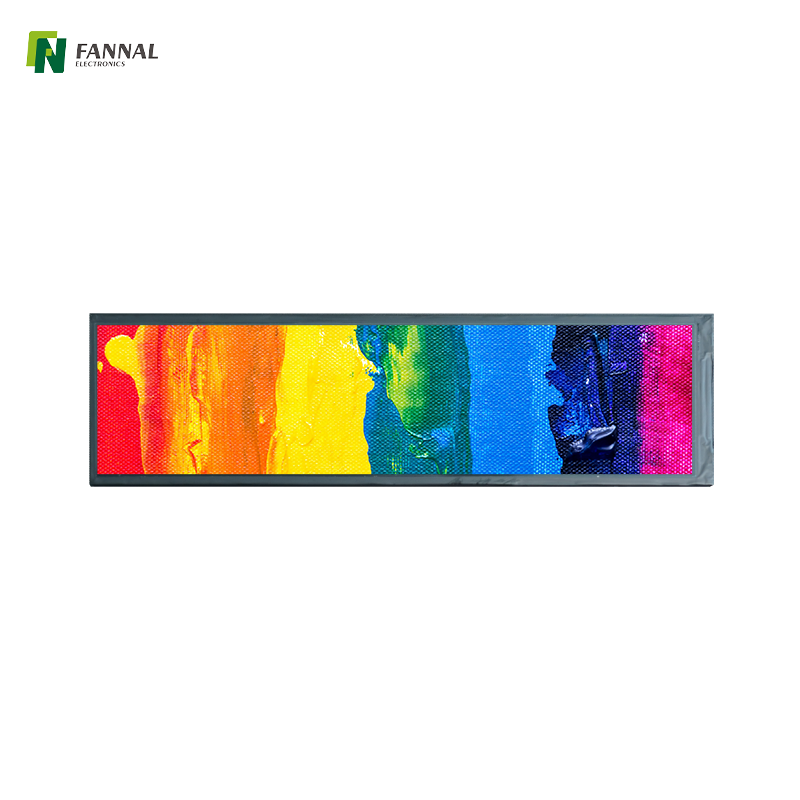

8.8-Inch TFT Bar Type Display – An Essential for Modern Applications

Model:
FN0880001A
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
Resolution:
480×1920
Direction:
ALL
Interface:
MIPI
Brightness(cd/m²):
600
Touch Screen:
Customizable

Quantity:
Availability:





Inquiry Add to Basket Download

8.8 inch TFT Bar Type display MIPI interface high-resolution 8.8 inch TFT Bar Type display industrial 8.8 inch TFT Bar Type display home appliance 8.8 inch TFT Bar Type display

Product Features

Product Drawing

Specification

Add Ons

Product Application

详情页IPS工控

Discover the 8.8-Inch TFT Display – An Essential for Modern Applications

Are you searching for a compact, high-performance display solution? Look no further than our 8.8-inch TFT LCD display, designed to meet the demands of modern industries with exceptional clarity and versatility.

Performance Insights

Interface: MIPI – Ensures fast and reliable data transmission.
View Direction: ALL – Wide viewing angles for unmatched user convenience.
Power Supply: 3.3V – Energy-efficient design.
Power Consumption: 3.5W – Low power consumption for prolonged use.
Luminance: 600 cd/m² (TYP.) – Bright and vibrant visuals even in challenging lighting conditions.
Weight: Only 100g – Lightweight structure for versatile applications.

Why Choose This Display?

Versatility: Perfect for industrial control systems, automotive dashboards, medical devices, and more.
High Efficiency: Combines low power consumption with high luminance for optimal performance.
Durable Design: Slim, lightweight, and reliable for long-term usage.
Wide Viewing Angles: Ensures uniform clarity from any direction, making it user-friendly in all scenarios.

Elevate Your Products Today

With its cutting-edge technology and compact design, the 8.8-inch TFT display is the ultimate choice for businesses seeking to enhance their product offerings. Whether for industrial, automotive, or consumer applications, this display delivers reliable performance and stunning visuals.

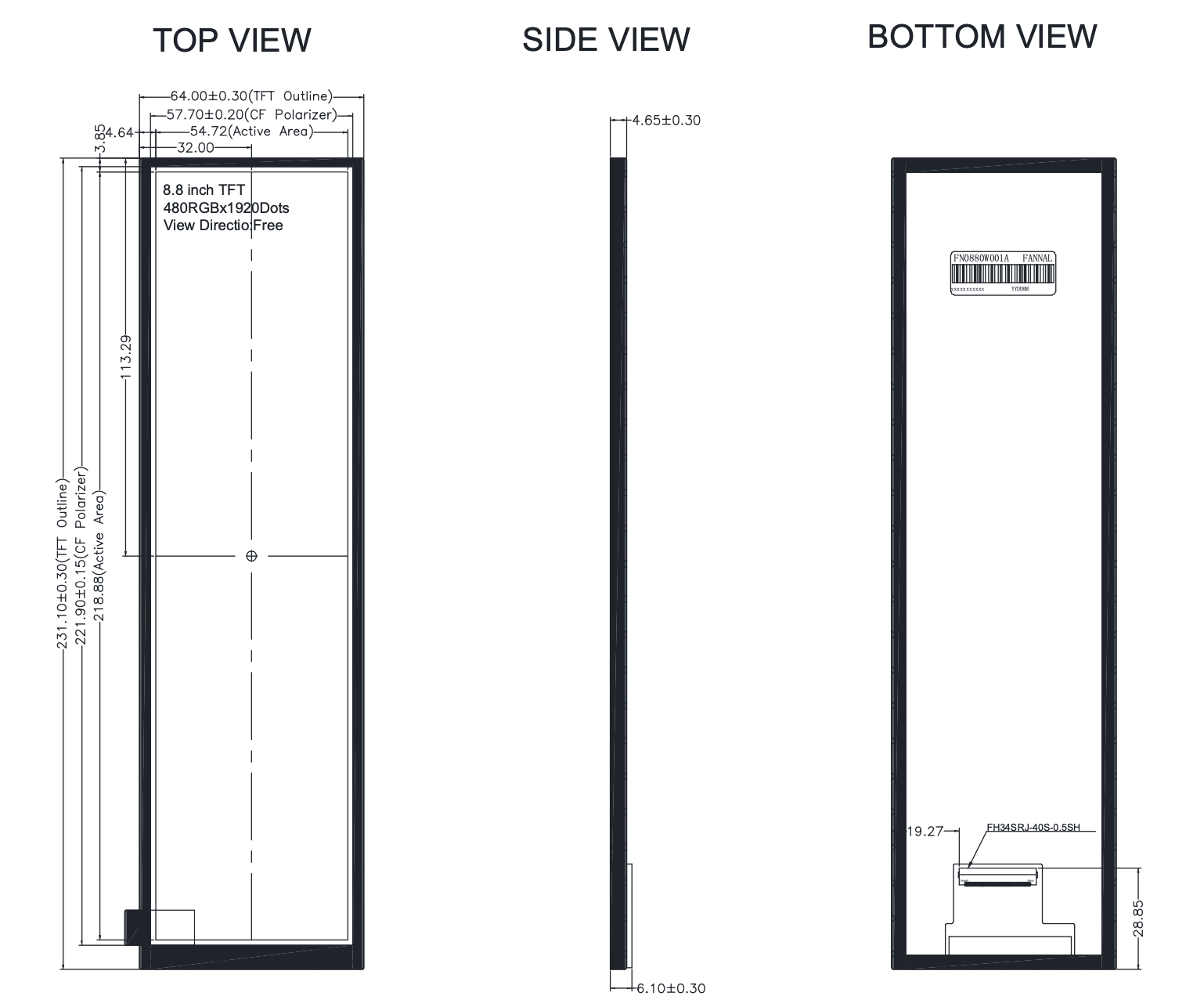

088

General Specifications：

LCD size(inch):	8.8 (Diagonal)
Resolution:	480(H)×1920(V)
Pixel Pitch:	0.114x0.114(V)
Active Area(mm):	54.72(H)×218.88(V)
Module Size(mm):	64.0(W)×231.1(H)×4.65(D)
Display Mode(mm):	Normally Black
Interface:	MIPI
Pixel arrangement:	RGB-Vertical Stripe
View Direction:	ALL
Luminance(cd/m2):	600 (TYP.)
Operating Temperature(°C):	-20~+70
Storage Temperature(°C):	-30~+80

Interface:

Pin No.	Symbol	Description

1	GND	Ground

2	NC	No connection

3-4	LEDA	LED Anode

5	NC	No connection

6-7	LEDK	LED Cathode

8	NC	No connection

9	GND	Ground

10	NC	No connection

11	AVDD	Power supply for analog circuit

12	NC	No connection

13	VGH	Power supply for analog circuit

14	NC	No connection

15	VGL	Power supply for analog circuit

16	NC	No connection

17	GND	Ground

18	VCOM	Power supply for common voltage

19-20	GND	Ground

21	RESET	Global reset

22	VDD	Power supply for digital circuits

23	STBYB	Standby mode

24	TP_Sync	Sync signal for touch panel

25	GND	Ground

26	DP0	MIPI Data Input Lane0 positive-end

27	DN0	MIPI Data Input Lane0 negative-end

28	GND	Ground

29	DP1	MIPI Data Input Lane1 positive-end

30	DN1	MIPI Data Input Lane1 negative-end

31	GND	Ground

32	CLKP	MIPI Clock Input positive-end

33	CLKN	MIPI Clock Input negative-end

34	GND	Ground

35	DP2	MIPI Data Input Lane2 positive-end

36	DN2	MIPI Data Input Lane2 negative-end

37	GND	Ground

38	DP3	MIPI Data Input Lane3 positive-end

39	DN3	MIPI Data Input Lane3 negative-end

40	GND	Ground

Electrical Characteristics:

Parameter	Symbol	Min.	Max.	Unit
Parameter	Symbol	Min.	Max.	Unit
Power Supply Voltage	VDD	-0.5	4	V
	VGH	15	26	V
	VGL	-11.5	-4	V
	AVDD	7	12.5	V

CTP

Structure: GG, GFF,Size:1.8* ~ 55",Touch with Water/Salt Water/Sweat,Meet EMI/RFI Standards,Linux/Windows/IOS and Android,Customization on Cover: AG/AR/AF Meet IK Standards,Multi-touch Solution,True Touch with Gesture and Palm Rejection,Finger/Glove and Passive Pen Input

AD Board

We can provide complete accessories, including backlight board, AD Board and wire sets.

As the demand for custom projects continues to rise, the bar-type TFT market is expanding rapidly. Our bar-type TFT solution is ideally suited for a variety of applications, including industrial, automotive, medical, home appliances, and maritime sectors.
