LCD display devices are widely used in industrial equipment, medical systems, automotive interfaces, outdoor equipment, and embedded products. However, terms such as TFT, IPS, VA, Mini-LED, and LTPS describe different parts of a display rather than competing technologies at the same level.
Understanding how these technologies fit together makes it easier to specify an LCD display device based on actual system requirements rather than a single parameter such as resolution or brightness.
How Are Display Technologies Classified?
At the highest level, display devices can be divided into several major display technologies:
Display technology | Examples | Basic principle |
LCD | TFT LCD, passive-matrix LCD, active-matrix LCD | Controls light from a backlight |
OLED | PMOLED, AMOLED | Self-emissive organic pixels |
MicroLED | MicroLED displays | Self-emissive inorganic LED pixels |
This article focuses primarily on LCD display devices. Within LCD, several additional technology layers determine how the display operates and how it is integrated into a finished module.
LCD technology layer | Examples | What it describes |
Addressing architecture | Passive Matrix, Active Matrix | How pixels are addressed |
Liquid-crystal mode | TN, IPS, FFS, VA | How the liquid-crystal layer controls light |
TFT backplane | a-Si, LTPS, Oxide, IGZO, LTPO | How active pixels are controlled |
Backlight | LED, Mini-LED | How the LCD is illuminated |
Display electronics | Driver IC, TCON, COG, FPC, PCBA | How the panel is driven and integrated |
Interface | LVDS, MIPI DSI, eDP | How image data is transferred |
Touch integration | PCAP, On-Cell, In-Cell | How touch sensing is integrated |
These technologies describe different layers of a display system and are not direct alternatives to each other.
For example, a display can be an active-matrix TFT LCD with an IPS mode, an a-Si TFT backplane, a Mini-LED backlight, a MIPI DSI interface, and PCAP touch.
LCD Display Device Architecture
How Does an LCD Create an Image?
An LCD does not generate light by itself. Instead, the liquid-crystal layer controls how much light from the backlight passes through each pixel.
A simplified LCD image-forming process is:
Backlight → Liquid-crystal layer → Color filter → Visible image
The liquid-crystal layer changes light transmission according to the electrical signal applied to each pixel. RGB subpixels then produce the colors required to form the image.
This is why LCD performance depends on more than the liquid-crystal material itself. The backlight, optical stack, TFT backplane, driving electronics, and mechanical integration all contribute to the final display performance.

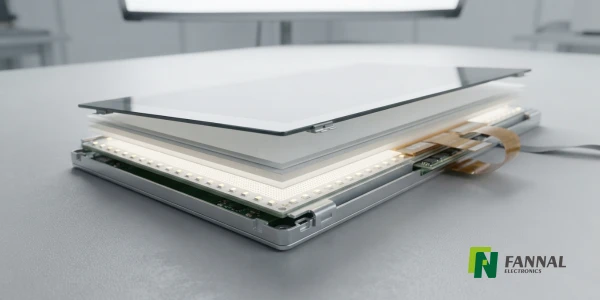

LCD Panel vs. Complete Display Module
An LCD panel is only one part of a finished display assembly.
A complete display module may include:
LCD panel and backlight
Driver IC and timing electronics
FPC and connectors
Touch sensor and controller
Cover glass
Optical bonding
Mechanical frame or mounting structure
For industrial applications, these integration layers can be just as important as the LCD panel specification because they affect touch response, optical performance, thermal behavior, mechanical compatibility, and system integration.
Passive-Matrix and Active-Matrix LCD
Passive-Matrix LCD
In a passive-matrix LCD, rows and columns are used to address pixels without an individual switching element for every pixel.
This architecture is relatively simple and remains useful for applications with less demanding graphical requirements, including some character, segment, monochrome, and simple graphical displays.
Common passive-matrix LCD technologies include TN, STN, FSTN, and passive VA variants.
Passive-matrix displays can offer a straightforward and cost-effective architecture, but they are generally less suitable for high-resolution graphical interfaces with large numbers of independently controlled pixels.
Active-Matrix TFT LCD
Active-matrix LCDs use a switching element for each pixel, allowing pixels to be controlled more independently.
TFT, or thin-film transistor, is the switching structure used in most active-matrix LCDs. It supports higher-resolution graphical displays, faster pixel control, and more complex image content.
This distinction is important:
TFT describes the pixel switching architecture; IPS, TN, VA, and FFS describe liquid-crystal modes.
Therefore, saying that a display is a “TFT display” does not specify whether it uses IPS, VA, or another liquid-crystal mode.
LCD Liquid-Crystal Modes
Different liquid-crystal modes change how the liquid-crystal molecules and electrodes control light. This affects viewing angle, contrast, response characteristics, optical performance, and other display properties.
LCD mode | Typical characteristics | Common considerations |
TN | Mature architecture and potentially fast response | Viewing angle and color consistency |
IPS | Wide viewing angle and stable image appearance | Power consumption and implementation details |
FFS | In-plane/fringe-field electrode structure with wide viewing angles | Optical and touch integration |
VA | High native contrast | Viewing angle and response depend on implementation |

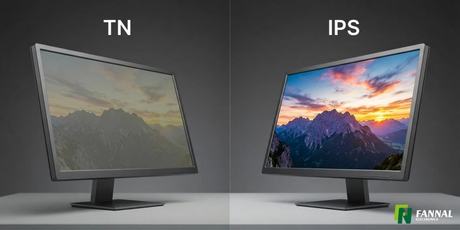

TN
Twisted Nematic (TN) is a mature LCD mode with a relatively simple structure. It can provide fast response characteristics and remains suitable for applications where viewing angle and high-end image performance are not the primary requirements.
IPS
In-Plane Switching (IPS) controls the liquid crystal primarily within the plane of the panel. It is commonly selected when wide viewing angles and consistent image appearance across different viewing directions are important.
FFS
Fringe Field Switching (FFS) uses an electrode structure that generates an electric field near the panel plane. It can provide wide viewing angles and is used in applications where optical performance and touch integration need to be considered together.
VA
Vertical Alignment (VA) aligns liquid-crystal molecules differently from IPS-type structures and can provide high native contrast. Actual viewing-angle performance, response behavior, and optical characteristics vary with the specific implementation.
What About MVA, PVA, ADS, HVA and PSVA?
Names such as MVA, PVA, ADS, HVA, and PSVA generally refer to specific implementations or variants developed around broader liquid-crystal structures.
For an engineering project, the actual panel specifications and test conditions are more useful than choosing a display based only on the technology name.
TFT Backplane Technologies
The TFT backplane determines how the active pixels are electrically controlled. Different semiconductor materials and structures affect mobility, leakage, resolution, power consumption, and manufacturing characteristics.
TFT backplane | Typical characteristics | Typical use considerations |
a-Si | Mature and widely established | Broad TFT LCD applications |
LTPS | High carrier mobility | High-resolution, high-density displays |
Oxide TFT | Higher mobility and low leakage potential | High-resolution and power-conscious designs |
IGZO | Oxide semiconductor technology | High-resolution and low-leakage applications |
LTPO | Combines LTPS and oxide TFT characteristics | Low-power and variable-refresh applications |
a-Si TFT
Amorphous silicon (a-Si) is a mature TFT technology widely used in LCD manufacturing. Its established production processes make it suitable for a broad range of industrial and commercial displays.
LTPS TFT
Low-Temperature Polycrystalline Silicon (LTPS) provides higher carrier mobility than conventional a-Si. This makes it useful for high-resolution and high-pixel-density displays.
Oxide TFT and IGZO
Oxide TFT technologies can provide higher mobility and lower leakage characteristics than conventional a-Si. IGZO, or indium gallium zinc oxide, is one type of oxide semiconductor technology.
LTPO
Low-Temperature Polycrystalline Oxide (LTPO) combines characteristics of LTPS and oxide TFT structures. It is particularly relevant to displays that require low-power operation and variable refresh behavior.
These are TFT backplane technologies, not LCD liquid-crystal modes.
LCD Backlight: LED and Mini-LED
Because LCD pixels do not emit their own light, the backlight is a fundamental part of the display system.
LED Backlight
LEDs are the dominant light source for modern LCD backlights. Depending on the module design, the LEDs can be arranged in an edge-lit or direct-lit configuration.
Backlight design affects:
Brightness
Uniformity
Power consumption
Heat generation
Module thickness
Therefore, specifying a high-brightness LCD also requires considering the backlight structure and thermal design.
Mini-LED Backlight
Mini-LED uses a much larger number of smaller LEDs than conventional LCD backlights. When combined with local dimming, it can provide higher brightness and improved contrast control.
However, Mini-LED adds complexity to the backlight system. Power consumption, thermal management, optical uniformity, cost, and halo or blooming effects need to be considered.
Importantly:
Mini-LED does not turn LCD into a different display technology. It is a backlight architecture used with LCD.
LCD Display Electronics and Interfaces
The LCD panel also relies on electronic components to convert incoming image data into signals that control the pixels.
Driver IC and TCON
The driver IC generates the electrical signals required to control the display. A timing controller (TCON) manages timing and image data distribution within the display system.
COG, FPC and PCBA
COG (Chip-on-Glass) integrates driver ICs directly onto the glass substrate.
FPC (Flexible Printed Circuit) provides electrical connections between the display and the host system or other electronics.
A PCBA may be used for display-related driving or interface conversion depending on the module architecture. It should not be confused with the customer's main system board.
Display Interfaces
Common display interfaces include:
LVDS — widely used for industrial and embedded TFT displays
MIPI DSI — common in compact and embedded display systems
eDP — widely used for higher-resolution digital display connections
These interfaces define how image data is transferred. They do not define whether the display is IPS, VA, a-Si, LTPS, or Mini-LED.
Touch and Optical Integration
For a complete touch display device, the LCD panel is only part of the system.
Touch Integration
Common touch configurations include:
The appropriate structure depends on the display architecture, cover glass, touch controller, mechanical design, and application environment.
Industrial touch performance can also be affected by glove operation, water or condensation, EMI, cover-glass thickness, and mechanical integration.
Touch performance therefore needs to be evaluated as a complete touch stack rather than from the LCD panel specification alone.
Optical Bonding
Optical bonding removes or reduces the air gap between display layers by using an optical adhesive.
It can improve optical readability by reducing internal reflections and can also improve mechanical integration. The bonding material, process, display structure, and environmental requirements all influence the final result.
For industrial displays, optical bonding is often considered together with cover glass, brightness, touch performance, and outdoor readability.

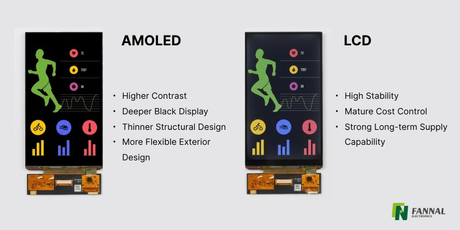

LCD vs. OLED, AMOLED, Mini-LED and MicroLED
These technologies should be compared at the correct technical level.
Technology | Self-emissive | Backlight | Main characteristic | Key considerations |
LCD | No | Yes | Mature and highly configurable | Brightness, contrast, temperature, integration |
Mini-LED LCD | No | Mini-LED | High brightness and local dimming | Power, heat, blooming, cost |
OLED | Yes | No | High contrast and thin structure | Lifetime, static content, thermal conditions |
AMOLED | Yes | No | Active-matrix OLED | Lifetime, brightness, static content, integration |
MicroLED | Yes | No | Inorganic self-emissive pixels | Manufacturing complexity, yield, scalability |
AMOLED is a type of OLED, while Mini-LED is a backlight technology used with LCD.
For an engineering project, the choice depends on the system requirements. Conventional TFT LCD may be suitable when brightness, temperature range, customization, and long-term availability are important. Mini-LED can be considered when high brightness and local dimming justify additional power, thermal, optical, and cost requirements.
OLED and AMOLED may be appropriate when self-emissive operation, high contrast, or thin construction is important, but static content, operating conditions, lifetime, and thermal behavior should be evaluated.
MicroLED is another self-emissive approach, but its manufacturing complexity remains an important consideration for many applications.
How to Choose an LCD Display Device
The display should be selected from the requirements of the complete system rather than from one specification.
System requirement | Engineering considerations |
Wide viewing angle | IPS, FFS, VA and specific optical implementations |
High contrast | LCD mode, optical stack and backlight design |
Outdoor readability | Brightness, reflection control, bonding and thermal design |
High resolution | Pixel architecture, TFT backplane and interface bandwidth |
Low power | Backplane, backlight, refresh rate and driving electronics |
Touch operation | Touch sensor, controller, cover glass, bonding and environment |
Wide temperature range | LCD, backlight, ICs, touch materials and adhesives |
High brightness | LED/Mini-LED structure and thermal management |
Mechanical integration | Dimensions, FPC, connector, cover glass and mounting |
Host compatibility | LVDS, MIPI DSI, eDP and required timing/controller configuration |
For example, an outdoor industrial HMI cannot be specified correctly by choosing a “1000-nit LCD” alone. The system may also require optical bonding, reflection control, appropriate touch performance, thermal management, and a suitable operating-temperature range.
The key principle is:
The display specification should be derived from the system requirement, not selected from a single parameter such as resolution or brightness.
Developments in LCD Technology
LCD technology continues to develop, but most changes are evolutionary rather than a replacement of the entire LCD architecture.
Recent development areas include:
Oxide TFT technologies for improved mobility and lower leakage characteristics
Mini-LED backlights and local dimming for higher brightness and improved contrast control
Higher and variable refresh rates through improvements in driving and backplane technologies
More integrated touch structures such as advanced On-Cell and In-Cell implementations
Field-sequential color LCD, which can reduce dependence on conventional RGB color filters in specific designs
These developments show that LCD performance is increasingly determined by the combination of its backplane, liquid-crystal mode, backlight, driving electronics, touch system, and optical structure, rather than by the LCD panel alone.
FAQ
What is the difference between LCD and TFT?
LCD is the display technology, while TFT describes the active switching structure used in most active-matrix LCDs. A TFT LCD can use different liquid-crystal modes such as IPS, VA, or TN.
Is IPS a type of TFT LCD?
Yes. IPS describes the liquid-crystal mode, while TFT describes the pixel switching architecture. An IPS display can therefore be an active-matrix TFT LCD.
Is Mini-LED an LCD technology?
Mini-LED is a backlight technology used with LCD. It does not replace the LCD panel or make the display a self-emissive technology.
Is AMOLED the same as OLED?
AMOLED means Active-Matrix Organic Light-Emitting Diode. It is a type of OLED that uses an active-matrix backplane to control individual pixels.
What is the difference between a-Si, LTPS and IGZO?
They are different TFT backplane technologies. a-Si is mature and widely used, LTPS provides higher carrier mobility, and IGZO is an oxide semiconductor technology with characteristics such as lower leakage that can be useful in high-resolution and power-conscious designs.
Can LCD display devices be customized for industrial applications?
Yes. Industrial LCD display devices can be customized around requirements such as size, resolution, brightness, interface, temperature range, touch performance, cover glass, optical bonding, FPC configuration, and mechanical integration.
Conclusion
An LCD display device is a combination of several technologies rather than a single specification. Its performance depends on the interaction between the LCD architecture, liquid-crystal mode, TFT backplane, backlight, driving electronics, interface, touch system, optical bonding, and mechanical design.
For industrial, medical, automotive, outdoor, and embedded equipment, selecting the appropriate configuration often requires customization around both the display and the complete system.
