Home » Products » Touch Displays » 10.1 Inch 1280 × 800 High Brightness Touch Display

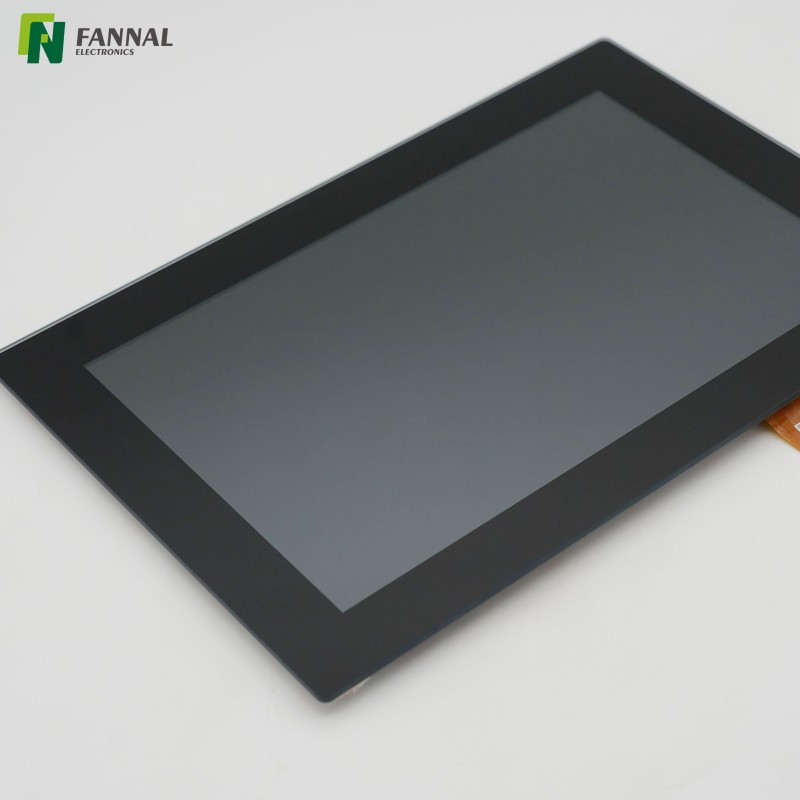

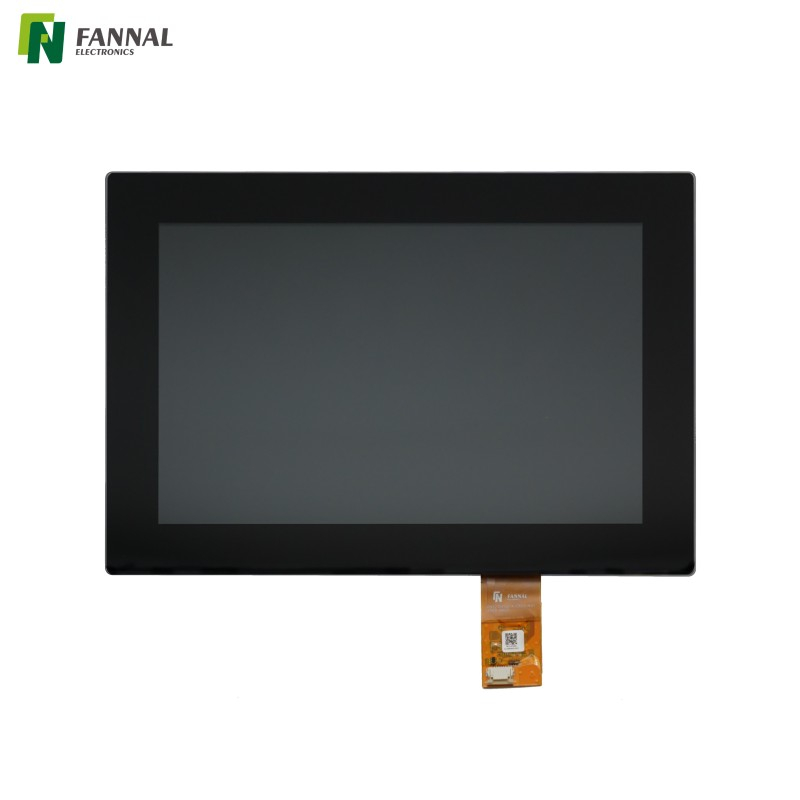

10.1 Inch 1280 × 800 High Brightness Touch Display

Name: 10.1 Inch 1280 × 800 High Brightness Touch Display
Brand: FANNAL
Rating: 5.0 (45 reviews)

10.1 Inch WXGA Capacitive Touch Display | 850 Nits

Model:
FN1010T008A
Brand:
FANNAL
Size(inch):
10.1
Cover OD (mm):
264.28(H) x 181.08(V) x 9.05(T)
Display AA(mm):
216.96*135.6
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
TP VA (mm):
217.96(H) x 136.6(V)
Structure:
G+G
Resolution:
1280x800
Display Interface:
LVDS
TP Interface:
IIC
Brightness(cd/m²):
850

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

The FN1010T008A is a 10.1 inch WXGA capacitive touch display integrating a 1280 × 800 TFT LCD with a projected capacitive touch panel. Delivering 850 cd/m² typical TPM brightness and driven by a Microchip® maXTouch controller, it is designed for embedded HMI systems that require good visibility, reliable touch performance, and straightforward system integration.

Features

High-Brightness Touch Display

The display provides 850 cd/m² typical brightness after touch integration (TPM), rather than the brightness of the bare LCD panel. This makes the specification more representative of the luminance available in the final product.

The brightness level is suitable for equipment installed near windows, factory floors, transportation terminals, and other environments with relatively high ambient light. For continuous direct sunlight, optical bonding or a higher-brightness configuration may still be considered depending on the application.

WXGA Resolution for More Information on Screen

The 1280 × 800 resolution provides noticeably more workspace than traditional 1024 × 600 or 800 × 480 displays. It allows more operating information, graphics, and control elements to be presented simultaneously, reducing the need for frequent page switching in HMI applications.

maXTouch Touch Controller

The touch panel is driven by the Microchip maXTouch mXT1066D controller and supports 5-point capacitive touch. The controller is widely adopted in embedded and industrial applications due to its mature firmware ecosystem and reliable touch performance.

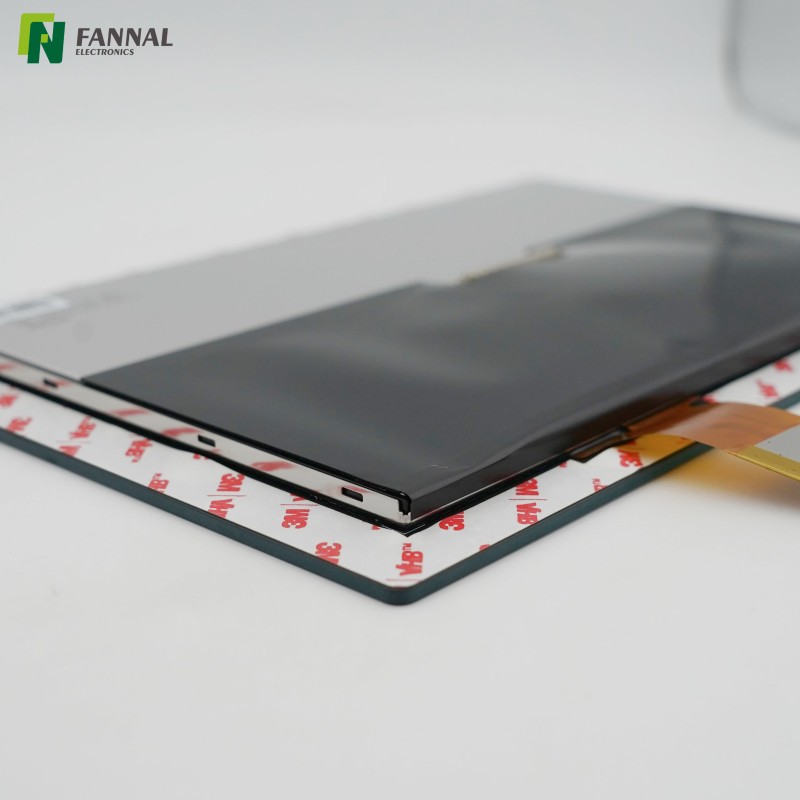

Chemically Strengthened Glass Construction

A 3.0 mm chemically strengthened cover glass offers improved durability for equipment subjected to frequent user interaction. The G+G structure also provides stable optical characteristics and supports further customization when required.

Designed for Embedded Integration

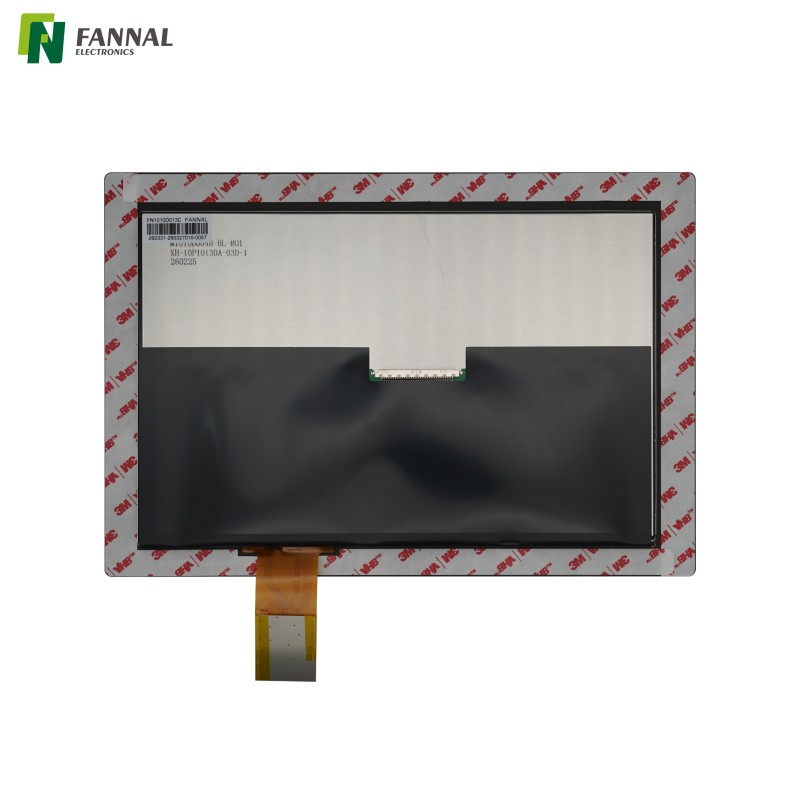

The TFT communicates through an LVDS interface, while the touch controller uses I²C, making the module suitable for embedded Linux systems, ARM-based platforms, industrial controllers, and other custom hardware.

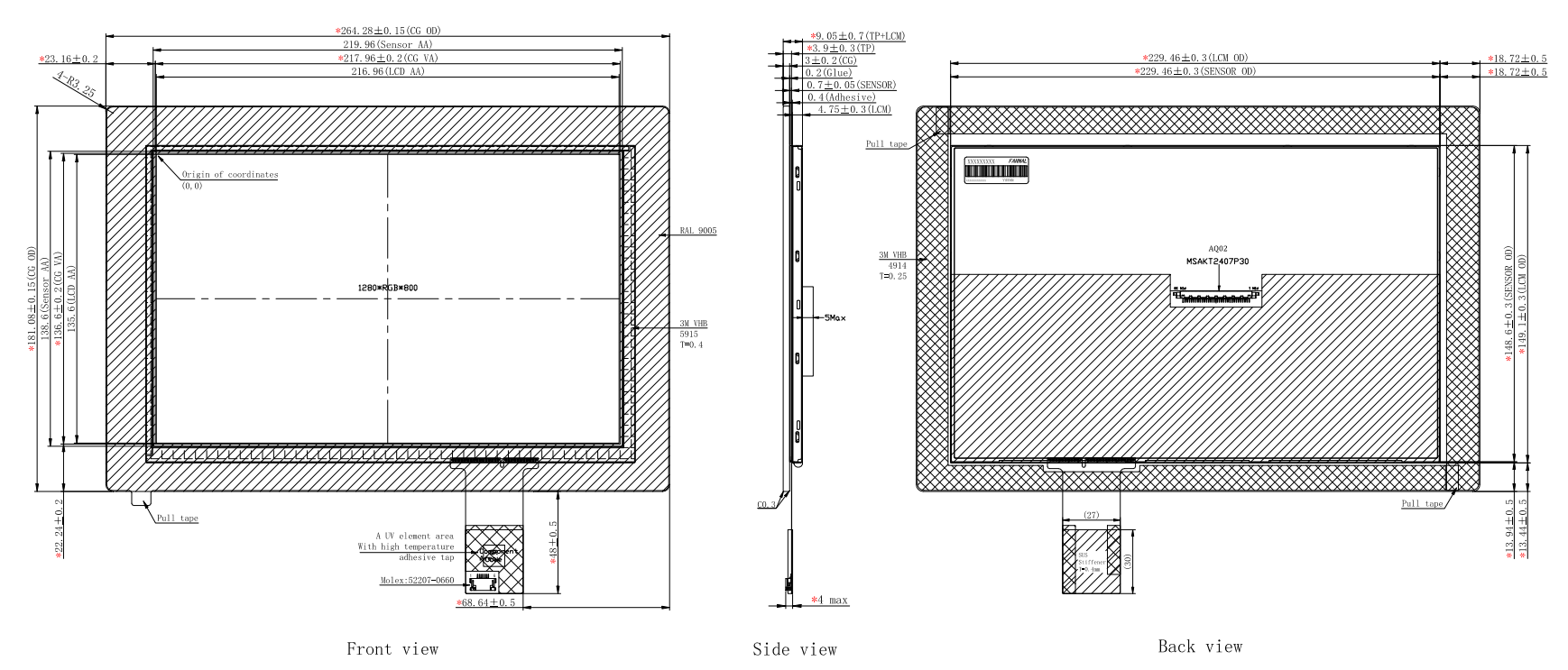

Drawing

Specifications

Item / Property	Specification	Unit	Remark
Structure	G+G	-
Bonding Type	Air bonding	-
TPM Active Size	10.1 (Diagonal)	Inch
TPM Outline Size	264.28(H) x 181.08(V) x 9.05(T)	mm
View Area	217.96(H) x 136.6(V)	mm
Touch IC / Driver IC	mxT1066D	-
Touch Points / No. of Touch	5	-
Touch Mode	Finger	-
Touch Interface	IIC	-
IIC Address	0x4A	-
Cover Lens Thickness	3.0	mm	Chemically strengthen
ITO Glass Thickness	0.7	mm
Surface Hardness	≥ 6H	-
Light Transmittance	85 Min	%
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
TFT Part Number	FN1010D013C	Pcs	Follow Spec
TPM Surface Luminance / Brightness	680 (min.) / 850 (typ.)	cd/m²
TFT Interface	LVDS	-
TFT Resolution	1280 x 800	-

Applications

Industrial Operator Interfaces

Suitable for production equipment, machine control panels, and factory automation systems where a larger display area and reliable touch operation are required.

Medical Equipment

Can be integrated into diagnostic instruments, laboratory analyzers, and healthcare devices operating in controlled indoor environments where image clarity and responsive touch are important.

EV Charging and Smart Energy Systems

The higher TPM brightness improves readability for charging stations, energy management terminals, and outdoor cabinets installed under shaded or partially exposed conditions.

Marine and Transportation Equipment

Suitable for navigation terminals, onboard monitoring systems, and transportation equipment that require stable touch input and good visibility under changing lighting conditions.

OEM Embedded Products

Designed for manufacturers developing customized HMI solutions, kiosks, instrumentation, and application-specific electronic equipment.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

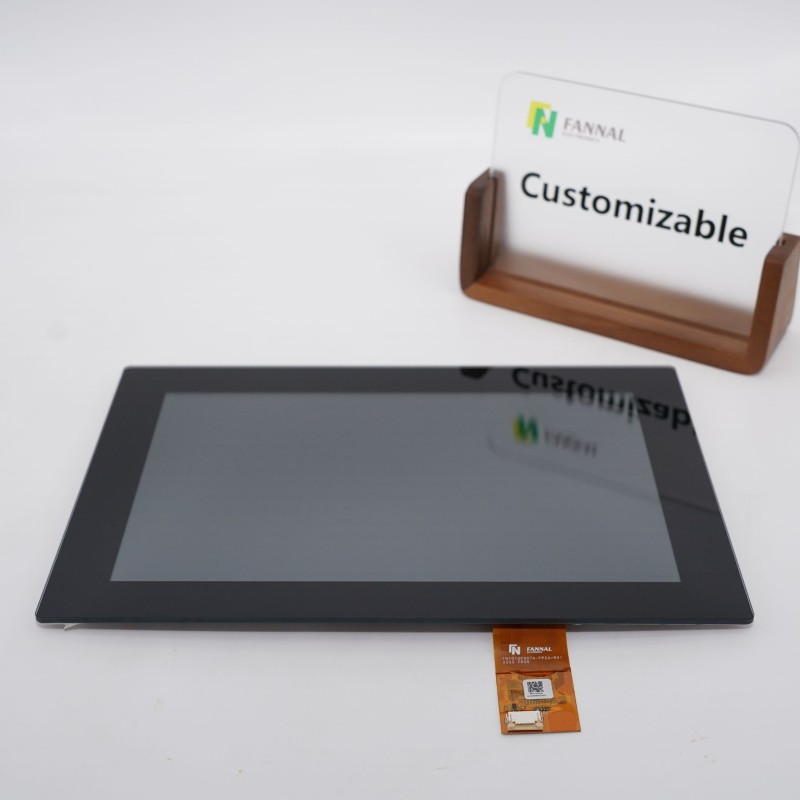

Customizations

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

Does the 850 cd/m² brightness refer to the LCD panel or the complete touch display?

The specified 850 cd/m² is the TPM brightness, representing the luminance of the complete touch display after the touch panel has been integrated with the LCD. This value better reflects the brightness users experience in the finished product.

Is 850 cd/m² sufficient for outdoor applications?

It depends on the installation environment. Around 850 cd/m² is suitable for many bright indoor locations and semi-outdoor applications. Equipment exposed to continuous direct sunlight may require optical bonding, anti-reflective treatments, or even higher brightness depending on ambient conditions.

Why is LVDS still commonly used in industrial displays?

LVDS remains widely used because it offers stable signal transmission, good electromagnetic compatibility, and broad compatibility with industrial computing platforms. Many embedded systems continue to use LVDS for long product life cycles.

Can the touch display be customized?

Yes. Customization options typically include cover glass thickness, surface treatments, silk-screen printing, touch controller configuration, FPC design, mechanical dimensions, and optical bonding, depending on project requirements.

What applications benefit from a 10.1-inch WXGA display?

A 10.1-inch 1280 × 800 display provides additional screen space for graphical user interfaces, making it suitable for industrial HMIs, medical equipment, charging terminals, transportation systems, and other embedded devices that display multiple controls or real-time information simultaneously.
