15.6 Inch Full HD PCAP Touch Display | 690 nits LVDS HMI

Name: 15.6 Inch Full HD PCAP Touch Display | 690 nits LVDS HMI
Brand: FANNAL
Rating: 5.0 (97 reviews)

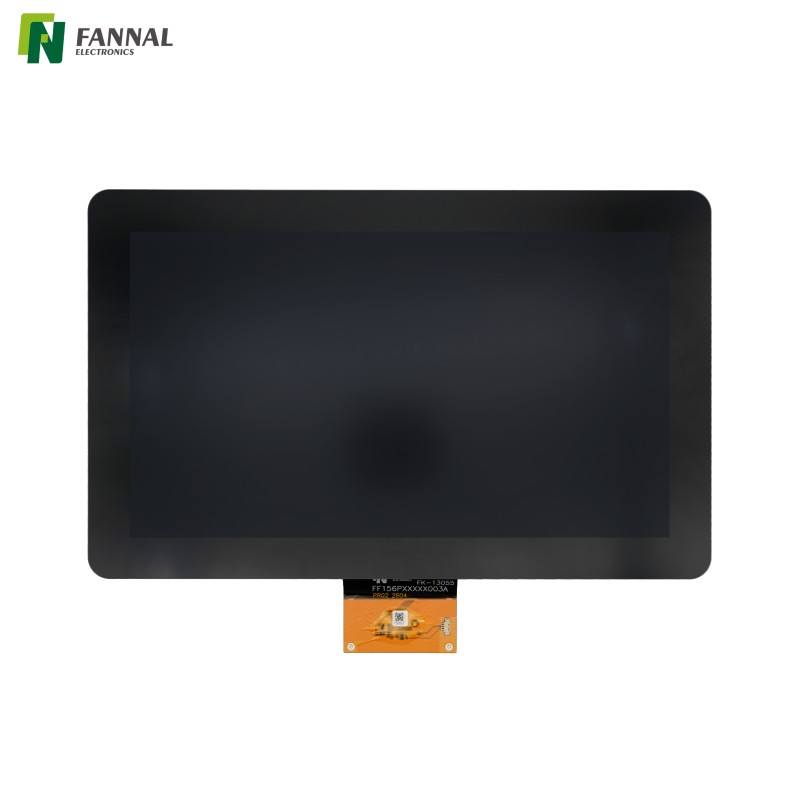

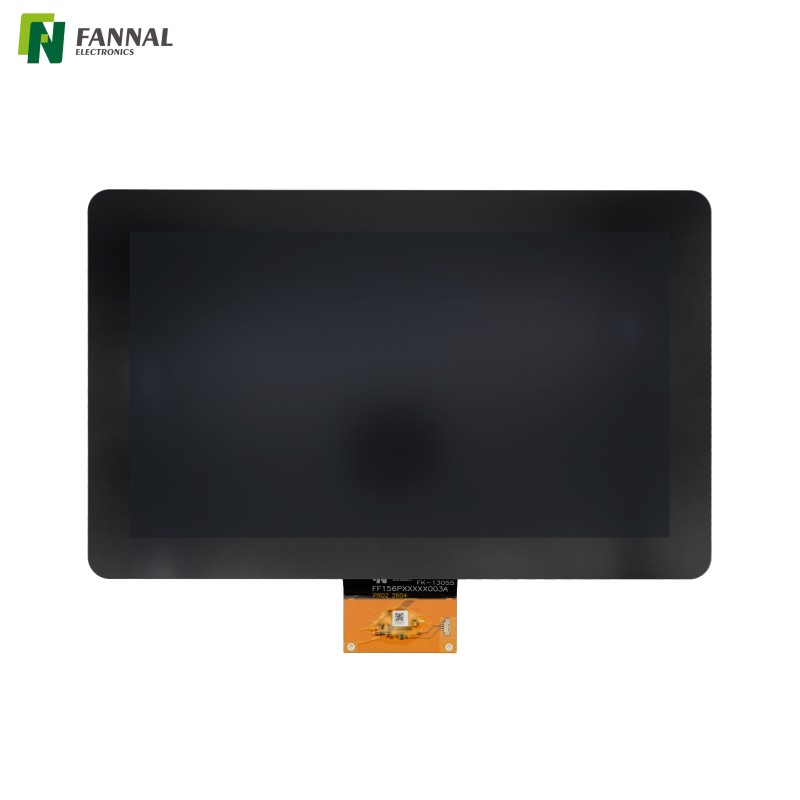

15.6 Inch Industrial Full HD Touch Display for HMI Applications

Model:
FN156PGRGAL015D
Brand:
FANNAL
Size(inch):
15.6
Cover OD (mm):
397.16(H) x 246.59(V) x 13.05(T)
Display AA(mm):
344.16*193.59
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
TP VA (mm):
345.16(H) x 194.59(V)
Resolution:
1920 x 1080
Display Interface:
LVDS
TP Interface:
USB
Brightness(cd/m²):
690

Quantity:
Availability:





Inquiry Add to Basket

Features

Drawing & Specifications

Applications

Customizations

FAQ

Features

Full HD Resolution for Information-Dense Interfaces

The 1920 × 1080 resolution provides additional screen space for applications displaying multiple controls, status indicators, trend graphs, or diagnostic information simultaneously. Compared with lower-resolution panels, more information can be presented without increasing physical display size.

690 Nits TPM Brightness for Improved Visibility

The completed touch display delivers 690 nits typical TPM brightness, providing improved readability compared with standard indoor displays.

Brightness requirements vary depending on installation conditions. In many HMI systems, higher brightness can help compensate for strong ambient lighting from factory floors, windows, or overhead illumination.

Anti-Glare Surface to Reduce Reflections

The touch surface includes anti-glare treatment to reduce reflected light from surrounding environments. Rather than relying solely on backlight output, reducing reflections can improve viewing comfort in practical operating conditions.

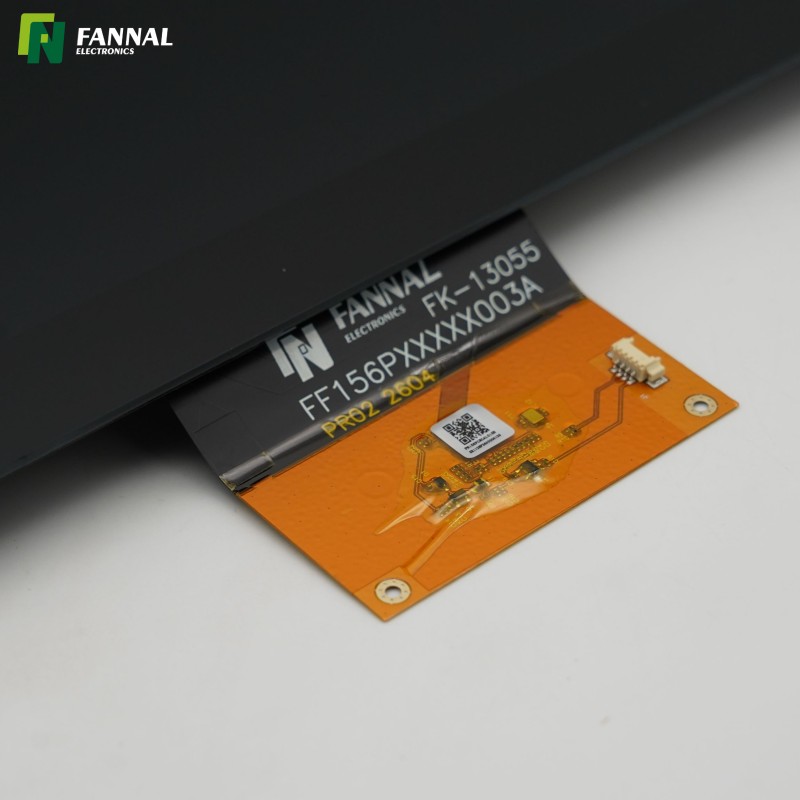

10-Point Projected Capacitive Touch

Using the Microchip mXT1664T3 touch controller, the display supports up to 10 simultaneous touch points. Although many industrial interfaces use single-touch interaction, additional touch capability can support gesture-based operation and future interface expansion.

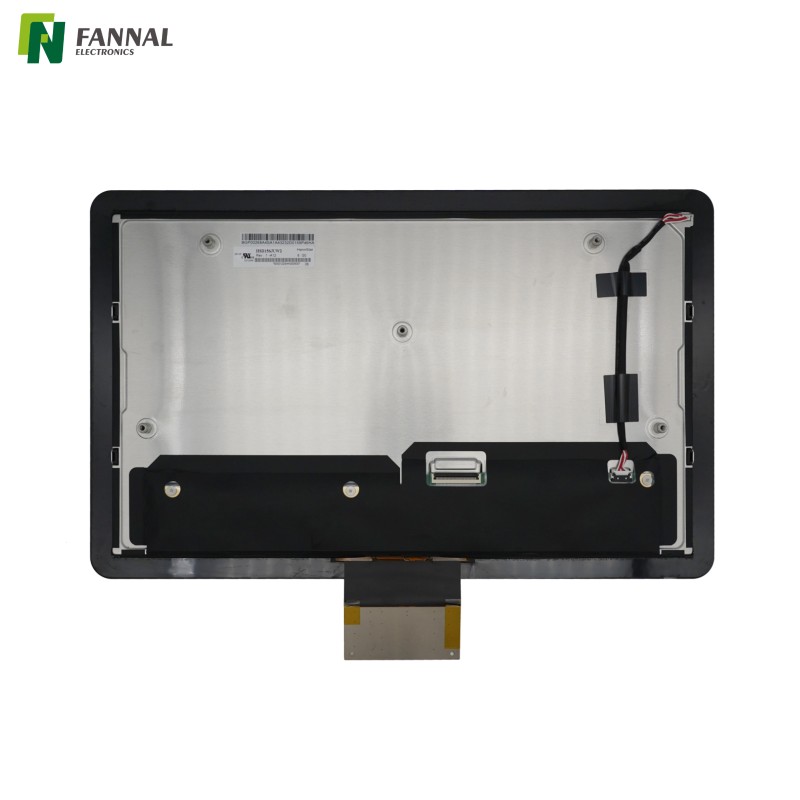

LVDS Interface for Embedded Systems

The display uses LVDS, which remains widely used across industrial computers, embedded controllers, and HMI platforms due to its stability and broad hardware compatibility.

Designed for Extended Temperature Conditions

Supporting -20°C to +70°C operating temperature and -30°C to +80°C storage temperature, the display can be integrated into equipment operating outside standard office environments.

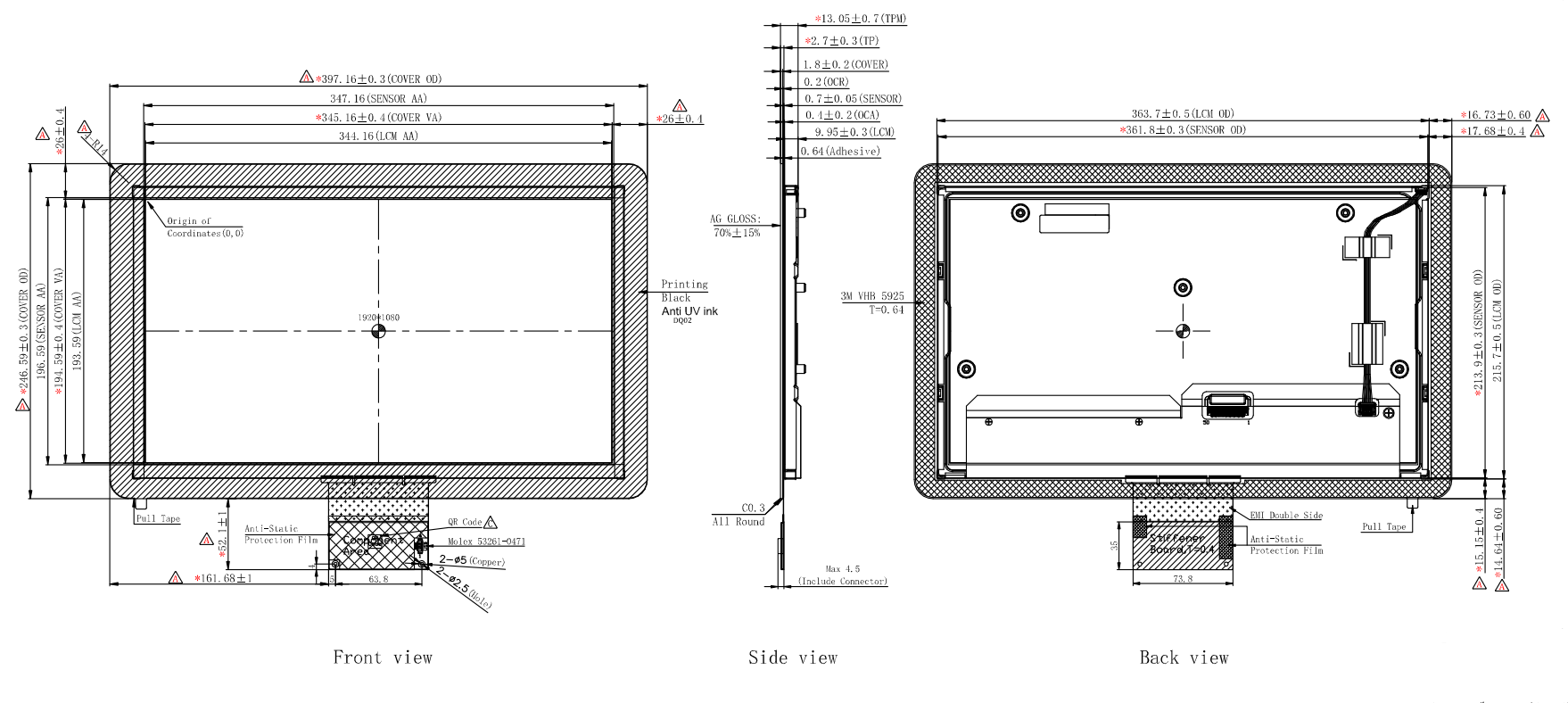

Drawing

Specifications

Item	Specification	Unit
TPM Active Size	15.6(Diagonal)	Inch
TPM Outline Size	397.16(H) x 246.59(V) x 13.05(T)	mm
View Area	345.16(H) x 194.59(V)	mm
Surface hardness	≥7H	-
Surface treatment	AG	-
Touch Transmittance	82% Min	-
Touch Driver IC	mxT1664T3	-
Touch Points	10/(Desiccation)	-
Touch Mode	Finger	-
Touch Interface	USB	-
IIC address	-	-
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
TFT Part Number	HSD156JUW2-A12	Pcs
TPM Surface Luminance	690(typ.)	cd/cm2
TFT interface	LVDS
TFT resolution	1920 x 1080

Applications

Industrial HMI Systems

Suitable for operator interfaces in manufacturing equipment, process control systems, and automation platforms where screen space and touch interaction are both important.

Embedded Panel PCs

Can be integrated into embedded computing platforms used in machine control, data monitoring, and equipment management systems.

Self-Service Equipment

Applicable to kiosks, check-in systems, and interactive terminals requiring larger display areas and responsive touch functionality.

Medical and Laboratory Equipment

Useful for systems displaying multiple parameters, diagnostic information, and user interfaces that benefit from Full HD resolution.

Smart Equipment Control Panels

Can be used in professional equipment requiring graphical user interfaces and touch interaction.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

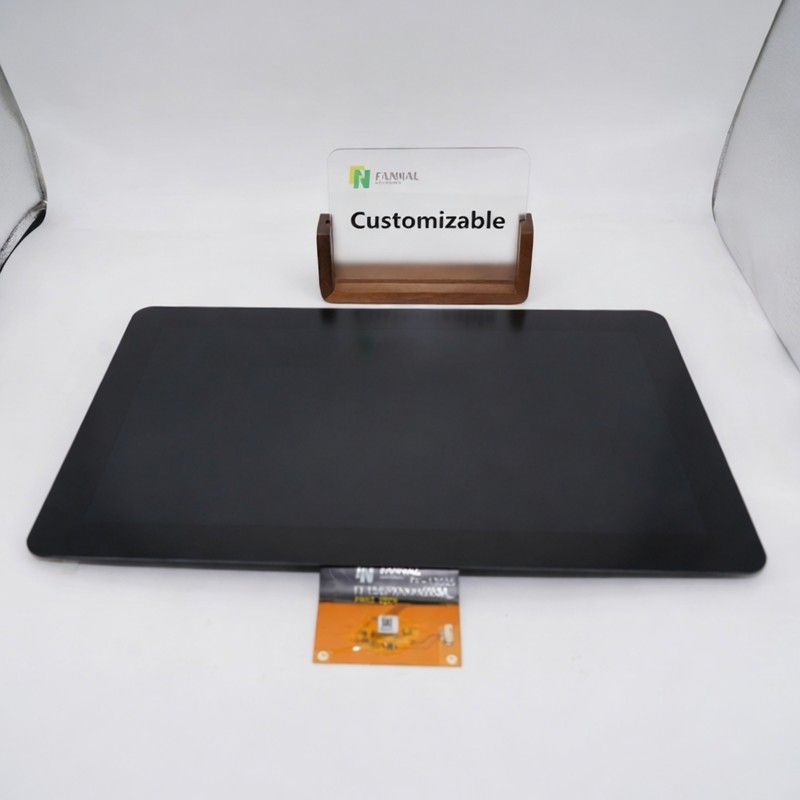

Customizations

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

Is 690 nits considered a high-brightness display?

Compared with standard indoor displays in the 250–350 nits range, yes. However, brightness requirements depend on installation conditions. Applications exposed to direct sunlight may require additional optical enhancement or higher brightness levels.

Why use anti-glare treatment if the display already has higher brightness?

Brightness and anti-glare treatment solve different problems. Higher brightness increases light output, while anti-glare treatment helps reduce reflected ambient light.

Why is LVDS still used in industrial equipment?

LVDS remains common because of its stable signal transmission, broad platform compatibility, and long-term availability across industrial hardware.

Are 10 touch points necessary in industrial systems?

Many industrial systems operate with single-touch input only. Multi-touch support mainly provides flexibility for future software development and more complex interaction methods.

How does TPM brightness differ from TFT brightness?

TPM brightness represents the completed touch display assembly after adding cover glass, touch sensors, and optical layers. It reflects the brightness users actually experience in the final product.
