How Optical Bonding Improves IPS Display Readability and Durability

Standard displays fail constantly in high-reliability environments. Glare washes out critical data during outdoor operations. Condensation fogs up the screen from the inside. Vulnerability to physical impact puts field operators at risk. For engineers and product managers, choosing between standard air-gap screens and an optical bonding IPS display remains a vital calculation. You need hardware balancing upfront expenses against field reliability.

Applying an optical bonding solution completely eliminates the refractive air gap. This process dramatically improves contrast ratios. It enhances structural integrity. It also perfects touch accuracy without increasing backlight power consumption. In this guide, you will learn the exact mechanics of optical adhesion. We will explore how it maximizes readability and ruggedness. You will also discover how to evaluate these upgrades for various screen sizes, ensuring optimal performance for your specific project.

Key Takeaways

• Glare Reduction: Eliminates internal reflections, reducing light loss by up to 90% for superior outdoor readability.

• Structural Ruggedness: Replaces the vulnerable air gap with optical-grade resin, absorbing shock and preventing dust or moisture ingress.

• Parallax Elimination: Ensures the touch sensor perfectly aligns with the IPS panel, crucial for precision input.

• Strategic ROI: While carrying a higher initial unit cost, bonding reduces long-term expenses in industrial, medical, and marine applications by extending hardware lifespan.

The Mechanics: Standard Air Gap vs. an Optical Bonding Solution

Standard LCDs leave a millimeter-scale air gap between the cover glass and the IPS panel. This design creates a major business problem for outdoor or industrial equipment. Light must travel through the cover glass, enter the air gap, and finally hit the display surface. Glass and air possess heavily mismatched refractive indices. Glass measures around 1.5, while air sits at 1.0. This abrupt transition causes internal reflections. Users see their own reflection instead of the critical data they need.

The technical fix removes the air entirely. Manufacturers inject optical adhesives between the layers. We typically use LOCA (Liquid Optically Clear Adhesive), OCA (Optically Clear Adhesive tape), or industrial silicone. These adhesives carry a refractive index matching the glass and the IPS panel. They fill the void perfectly. The display becomes one continuous optical path. Light travels straight through without bouncing back.

However, implementation reality dictates a premium manufacturing cost. Bonding requires a strict Class 100 cleanroom environment. A single speck of dust ruins the entire panel. Curing processes demand exact temperature and UV controls. Mistakes cause mura, leaving yellow or cloudy patches across the screen. Poor curing also traps micro-bubbles. These rigorous factory requirements justify the higher unit price.

Maximizing Readability Without Increasing Backlight Power

Engineers often mistakenly chase higher nits to fix readability issues. Contrast ratio actually matters much more than raw brightness. A display outputting 1000 nits looks terrible if ambient sunlight bounces off the inner glass layer. High brightness simply competes against high reflection. High contrast ensures deep blacks and crisp colors remain distinct.

An unbonded display actively fights against the user. It reflects ambient light internally, washing out the image completely. You can turn the backlight up to maximum capacity. The screen still looks hazy under direct sunlight. This reflection problem plagues standard hardware in outdoor environments.

An optical bonding IPS display changes the efficiency equation completely. It blocks light from bouncing between internal layers. Sunlight readability improves drastically. You achieve clear visibility without cranking up the backlight. This approach provides several secondary evidence-oriented benefits:

• Lower thermal output: Running backlights at 50% instead of 100% generates significantly less heat.

• Reduced battery consumption: Mobile industrial tablets operate hours longer on a single charge.

• Extended LED lifespan: Backlight components degrade slower when they run at lower intensities.

• Zero backlight bleeding: The optical resin seals the edges, preventing light from escaping around the bezel.

Engineering Extreme Durability for Industrial Touch Displays

Standard glass breaks under heavy impact. We must avoid exaggerating claims here. Optical adhesives do not make glass indestructible. However, the cured resin acts as an incredibly effective shock absorber. Rigid air-gap screens transfer blunt force directly to the fragile LCD matrix. Bonded screens spread this impact energy across the flexible resin layer. Furthermore, the resin contains shattered glass shards safely. This shatter-proofing mechanism protects operators from flying debris during severe accidents.

Air-gap displays also suffer from the greenhouse effect. Rapid temperature fluctuations cause immediate problems. Imagine moving a cold device into a humid manufacturing plant. Condensation forms instantly inside the air gap. The screen fogs up from the inside out. You cannot wipe it away. Bonding completely eliminates the space where moisture and dust can accumulate. The internal components remain pristine.

We align this durability specifically with harsh environments. This upgrade acts as a mandatory requirement for any industrial touch display deployed in the field. You must specify it for:

1. Maritime navigation systems: They face constant salt fog and extreme sunlight.

2. Military operations gear: Devices endure heavy vibrations inside armored vehicles.

3. Heavy manufacturing equipment: Terminals sit in unconditioned factories filled with metallic dust.

Elimating Parallax for Precision Touch Interfaces

Parallax creates a frustrating optical illusion. You press a specific on-screen button. The machine registers your touch a few millimeters away. This happens because the touch sensor sits physically above the display image. The air gap creates a visual disconnect. It becomes especially obvious when users view the screen from an angle.

IPS panels naturally offer incredible 178-degree viewing angles. Unfortunately, an air gap wastes this massive advantage. The display colors might look great from the side. However, touch accuracy completely fails unless the user looks dead-center. The UX impact frustrates operators and slows down workflows.

Connecting parallax elimination to conversion-critical use cases reveals its true value. Medical diagnostics require absolute precision. A nurse cannot accidentally misread a chart or press the wrong vital toggle. Heavy machinery operators wear thick protective gloves. They rely on accurate, immediate touch responses to prevent accidents. Precise data entry stops costly operational errors. Aligning the sensor perfectly to the IPS panel solves these issues instantly.

Scalability and Sizing: 7-Inch to 13.3-Inch Bonded IPS Touch Displays

Manufacturing realities dictate hardware strategies. Optical bonding becomes exponentially more difficult as screen size increases. A larger surface area traps bubbles much easier. Curing defects increase. Yield rates drop significantly at the factory level. This scaling challenge makes large bonded displays notably more expensive.

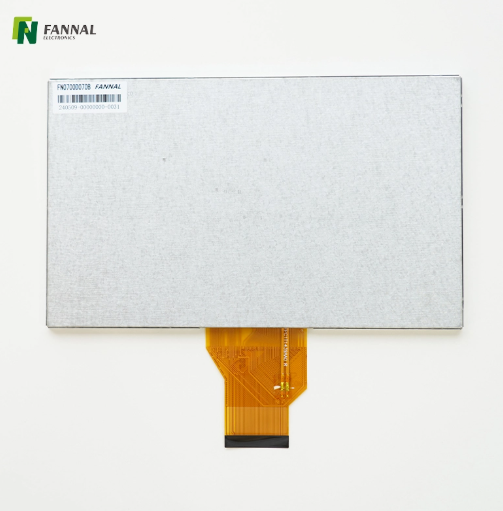

Compact integrations represent the manufacturing sweet spot. A 7 inch bonded IPS touch display balances costs and performance perfectly. Factory yield rates remain exceptionally high. Engineers integrate these panels into handheld industrial scanners seamlessly. Smart home control panels utilize them for premium aesthetics. Automotive instrument clusters rely on them for glare-free dashboard visibility.

Mid-size complexity requires different engineering materials. A 13.3 inch bonded IPS touch display demands stricter controls. They power retail point-of-sale systems. They act as the primary interface for rugged laptops and mobile medical carts. Engineers must evaluate specific adhesive considerations here. Glass cover lenses and IPS panels expand at different rates under heat. Rigid adhesives like standard LOCA crack under this thermal expansion stress. Engineers specify silicone adhesives for larger surfaces. Silicone stays flexible. It absorbs thermal shear stress without tearing the IPS panel apart.

Evaluation Criteria: Is the ROI Justified for Your Project?

Provide a transparent assessment of your project before committing. Bonding costs money. You do not always need it. Climate-controlled, benign indoor environments rarely justify the premium. If you design a self-checkout kiosk for a comfortable retail store, an air-gap screen works fine. Cost serves as the primary driver there.

Use this shortlisting logic matrix to map your features to outcomes:

Take the next step logically. Map your exact environmental IP requirements against bonding material specs. Do not guess. Schedule a consultation with a specialized display engineering team. Ask them to review your CAD designs. Have them audit your environmental spec sheets to recommend the exact adhesive formulation required.

Conclusion

An optical bonding IPS display is not merely a cosmetic upgrade. It serves as a functional necessity for rugged, high-stakes environments. It merges the cover glass and LCD into a single unified block. This eliminates internal reflections, prevents internal fogging, and stops touch parallax dead in its tracks.

Maintain a skeptical mindset when sourcing these components. Always vet your manufacturers thoroughly. Verify their cleanroom standards. Demand clear adhesive warranties, specifically covering long-term UV yellowing. Poor materials degrade fast under harsh sunlight.

Take action on your hardware designs today. Request a bonded sample unit to test under your actual lighting conditions. Download technical datasheets to compare optical performance. Contact an engineering specialist to secure a custom integration quote tailored perfectly to your housing designs.

FAQ

Q: What is the difference between OCA, LOCA, and Silicone optical bonding?

A: OCA is an optically clear tape used for small, flat screens. LOCA is a liquid adhesive cured by UV light, ideal for filling uneven bezels in medium displays. Silicone is a flexible, highly UV-resistant gel. We use silicone for large industrial screens because it absorbs thermal expansion stress effectively without cracking.

Q: Does optical bonding prevent the display glass from breaking?

A: No, it does not render standard glass indestructible. However, it heavily increases overall impact resistance by absorbing shock. If the glass does break, the adhesive securely contains the sharp shards. This shatter-proofing effect protects users from injury during accidents.

Q: Can optical bonding be applied to existing non-bonded displays?

A: Technically yes, but we highly discourage it. Applying bonding aftermarket introduces massive risks of dust contamination and micro-bubbles. We strongly recommend performing optical bonding at the factory level prior to final assembly. This ensures cleanroom standards and controls yield rates.

Q: How does optical bonding affect the viewing angles of an IPS panel?

A: It preserves and enhances the inherent 178-degree viewing angles of the IPS panel. Standard air gaps create edge-glare and parallax distortion when viewed from the side. Bonding removes this refractive distortion entirely. You get perfect color clarity and touch accuracy from any viewing angle.
