10.1 Inch Optical Bonding Touch Display | 1280 × 800 TFT

Name: 10.1 Inch Optical Bonding Touch Display | 1280 × 800 TFT
Brand: FANNAL
Rating: 5.0 (4 reviews)

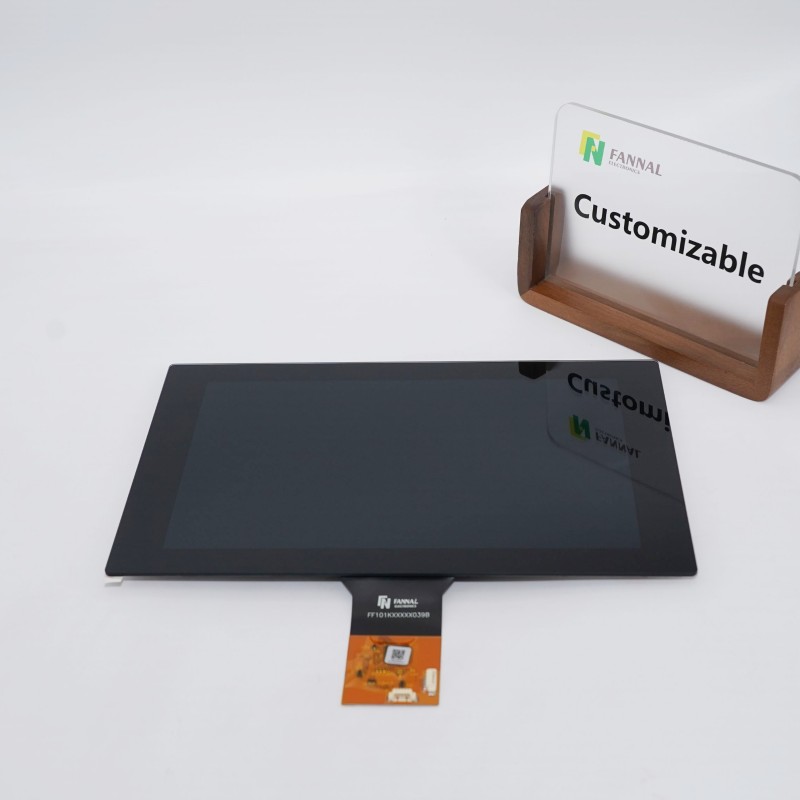

10.1 Inch 1280 × 800 PCAP Touch Display with Optical Bonding

Model:
FN1010T027A
Brand:
FANNAL
Size(inch):
10.1
Cover OD (mm):
264.00 (H) × 169.50 (V) × 7.65 (T)
Display AA(mm):
216.96*135.6
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
TP VA (mm):
217.96 (H) × 136.60 (V)
Resolution:
1280 × 800
Display Interface:
LVDS
TP Interface:
IIC & USB
Brightness(cd/m²):
420

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

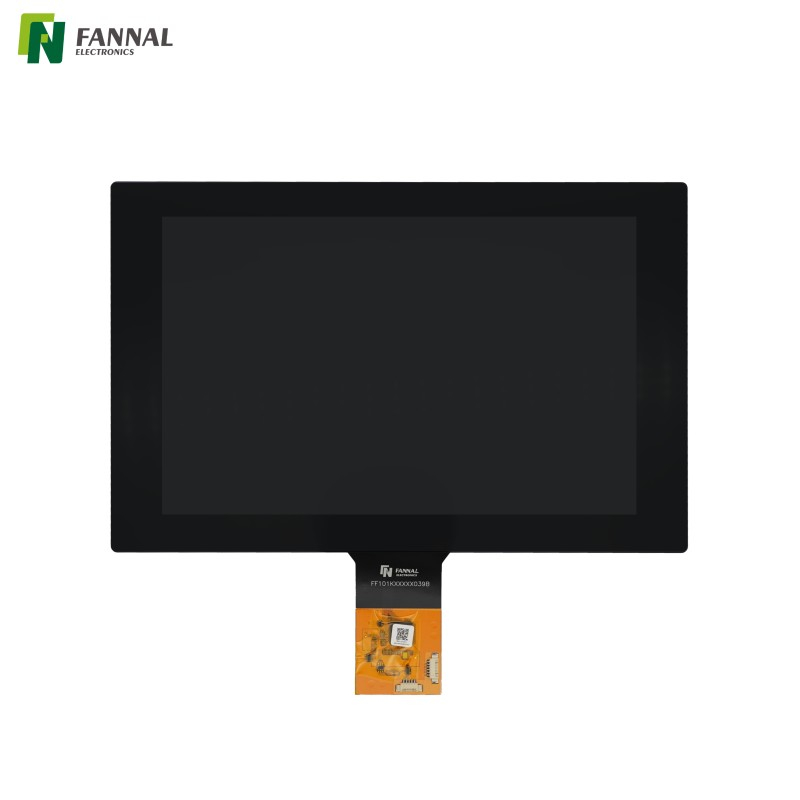

The FN1010T027A is a 10.1-inch capacitive touch display that combines a 1280 × 800 TFT LCD with a projected capacitive touch panel via an optical bonding process. Designed for embedded HMI and industrial equipment, it delivers improved optical clarity, stable touch performance, and a durable glass front for long-term operation.

Features

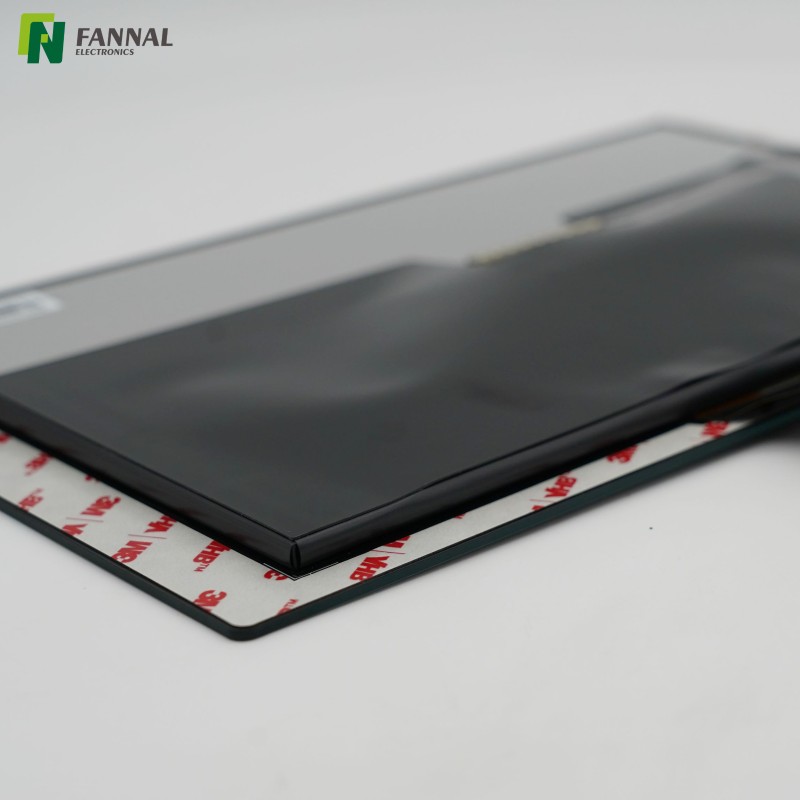

Optical Bonding for Improved Display Readability

The touch panel is optically bonded to the TFT LCD, eliminating the air gap between the two layers. This construction helps reduce internal reflections, improve perceived image contrast, and minimize condensation inside the display assembly.

For equipment installed in environments with varying ambient light, optical bonding can provide a noticeably clearer viewing experience than a conventional air-bonded structure.

10.1 Inch WXGA Display

The 1280 × 800 resolution offers more usable screen space than lower-resolution displays of similar size. It is well suited to graphical user interfaces that display process information, control buttons, trend charts, or system status simultaneously.

Reliable Projected Capacitive Touch

The display supports 5-point projected capacitive touch using an industrial-grade touch controller platform. It is designed for responsive finger operation while maintaining stable performance during long-term use in embedded equipment.

Chemically Strengthened Cover Glass

A 1.8 mm chemically strengthened cover glass improves resistance to everyday mechanical wear while maintaining a relatively slim front structure. Depending on project requirements, the cover glass can also be customized with printed borders, logos, or functional openings.

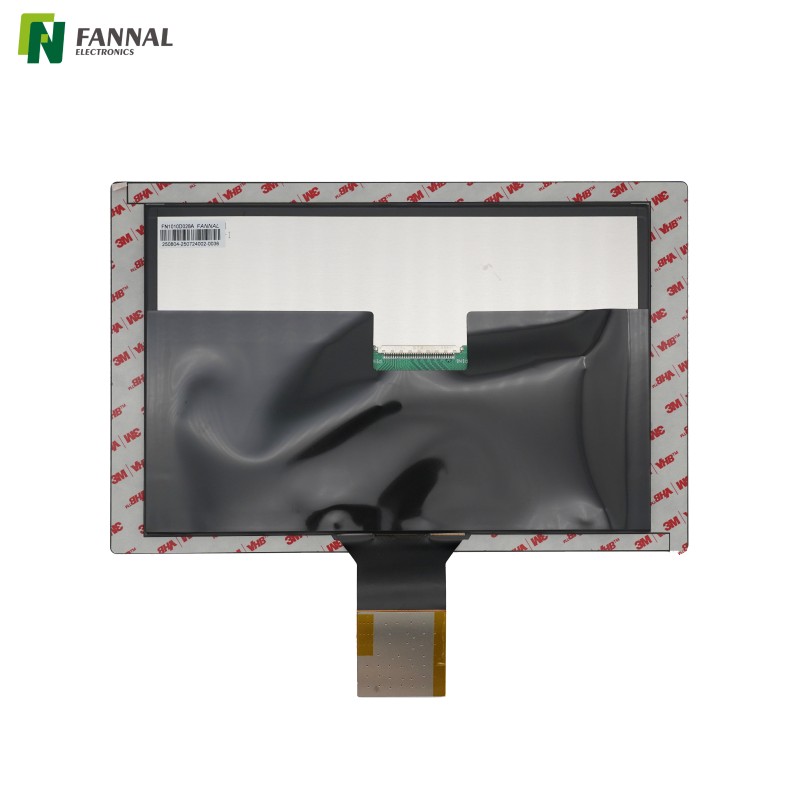

Integrated for OEM Equipment

The module combines the touch panel and TFT display into a complete touch display assembly, simplifying integration into embedded products. Standard display and touch interfaces make it suitable for a wide range of industrial computing platforms and custom hardware designs.

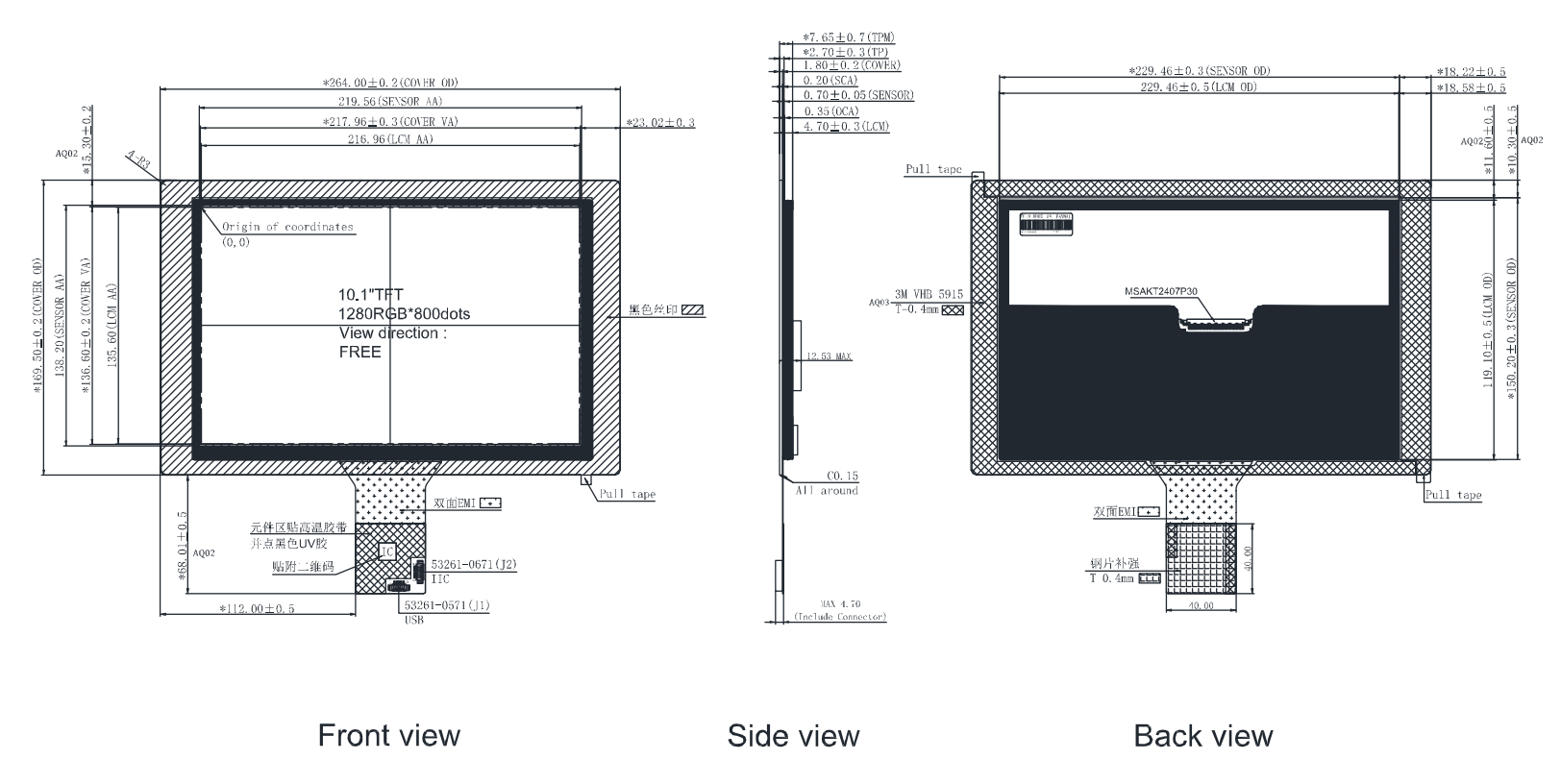

Drawing

Specifications

Item / Property	Specification	Unit / Remark
Product Structure	G+G+LCM
TP & LCM Bonding Type	Optical Bonding / Air Bonding (G+G+LCM)
TFT Part Number	FN1010D28A	Follow Spec
TPM Active Size	10.1 (Diagonal)	Inch
TPM Outline Size	264.00 (H) × 169.50 (V) × 7.65 (T)	mm
View Area (VA)	217.96 (H) × 136.60 (V)	mm
Cover Material	Sodalime Glass
Cover Thickness	1.8	mm
Strengthening Method	Chemically Strengthened
Surface Hardness	≥ 6H	750g
Surface Treatment	-
Sensor Material	ITO Glass
Sensor Thickness	0.7	mm
Touch Driver IC	ILITEK
Touch Points	5
Touch Mode	Finger
Touch Interface	IIC & USB
LCM Type	TFT
TFT Resolution	1280 × 800
TFT Interface	LVDS
TP / Touch Transmittance	85% Min.
TP+LCM Surface Luminance	340 (Min.) / 420 (Typ.)	cd/m^2
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
Operating Humidity	10% ~ 90%	RH

Applications

Industrial Human-Machine Interfaces

Suitable for machine control panels, production equipment, and factory automation systems where display clarity and reliable touch input are important.

Medical Instruments

Applicable to diagnostic equipment, laboratory analyzers, and healthcare devices that benefit from a durable glass surface and an optically bonded display structure.

Smart Building and Access Control

Can be integrated into building automation systems, access terminals, room controllers, and interactive control panels.

Commercial Embedded Equipment

Suitable for self-service terminals, information kiosks, and intelligent control systems that operate under changing indoor lighting conditions.

OEM Display Integration

Designed for manufacturers developing customized embedded products where mechanical dimensions, cover glass appearance, and display integration can be adapted to specific project requirements.

Customizations

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

Why is optical bonding used in this touch display?

Optical bonding removes the air gap between the touch panel and the LCD by using a transparent adhesive. Compared with an air-bonded assembly, it can reduce internal reflections, improve perceived image quality, and help prevent condensation inside the display.

Does optical bonding make the display brighter?

Optical bonding does not increase the light output of the LCD itself. Instead, it improves the efficiency of light passing through the display assembly by reducing reflections, making the screen appear clearer in bright environments.

Is this display suitable for outdoor applications?

The display provides 420 cd/m² typical TPM brightness, making it suitable for many indoor environments and some shaded outdoor installations. For continuous direct sunlight, the required brightness depends on ambient light conditions, installation angle, and enclosure design.

Can the cover glass be customized?

Yes. Cover glass thickness, decorative printing, logos, edge profiles, cut-outs, and surface treatments can all be customized to meet different product requirements.

What kinds of products typically use a 10.1-inch touch display?

A 10.1-inch touch display is commonly integrated into industrial HMIs, medical equipment, smart building controllers, self-service terminals, EV charging systems, and other embedded devices that require a balance between screen area and installation size.
