What Are The Benefits of Optical Bonding?

Modern touch displays are expected to perform flawlessly in even the harshest environments, from outdoor kiosks to industrial control panels. Touchscreen optical bonding has emerged as a transformative solution that enhances visibility, durability, and user experience, making screens more reliable and cost-effective over their lifecycle. In this article, we will explore how optical bonding improves performance across multiple dimensions, providing measurable benefits for businesses and end-users alike.

FANNAL, founded in 2011 and a leading provider of touch display solutions, leverages in-house engineering to deliver high-quality optical bonding services. By eliminating the air gap between the display and the touchscreen, FANNAL ensures that displays achieve superior clarity, touch accuracy, and resistance to environmental challenges. Our solutions are widely applied in outdoor kiosks, industrial HMIs, medical devices, and vehicle displays where reliability and performance are critical.

Optical Benefits: Visibility and Image Quality

The first and most noticeable advantage of touchscreen optical bonding is the improvement in image quality and screen visibility. This enhancement is especially critical for outdoor and industrial applications, where displays are often exposed to bright sunlight, reflections, and high-glare environments.

How Removing the Air Gap Reduces Internal Reflections and Glare

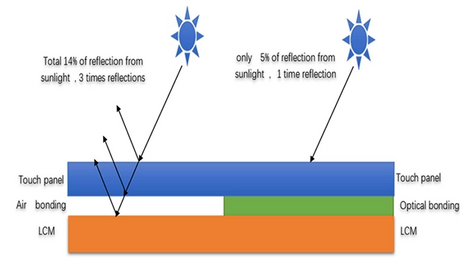

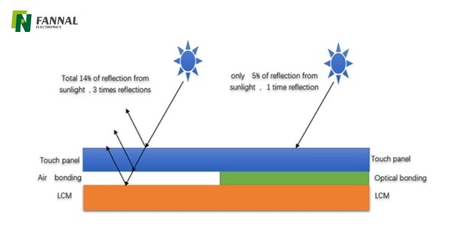

Traditional displays have an air gap between the touchscreen panel and the LCD or OLED layer. This gap creates multiple interfaces where light reflects internally, producing glare and reducing screen readability. Optical bonding eliminates this air gap by using a high-clarity adhesive to bond the touchscreen directly to the display. This not only reduces internal reflections but also enhances viewing angles and ensures that the screen can be read clearly from various positions without distortion.

The reduction of glare has practical implications: users can interact with screens without straining their eyes, which is especially important in high-traffic public areas like ticketing kiosks, ATMs, and self-service terminals. Industrial operators in bright factory environments can also rely on precise data visualization without being hindered by ambient lighting.

Contrast, Perceived Brightness, and Color Fidelity Gains

Optical bonding improves contrast by minimizing the loss of light through reflection. The effective brightness of a display increases because more light is transmitted directly to the user’s eyes, which reduces the need to increase backlight intensity. This has direct energy-saving benefits while simultaneously improving readability in bright conditions.

In practical applications, an outdoor wayfinding kiosk equipped with optical bonding maintains vibrant colors and sharp graphics even under midday sun. Vehicle infotainment systems benefit as well: drivers can see navigation maps clearly without needing to tilt the display or shield it from sunlight. Similarly, medical touchscreens in examination rooms or operating theaters display more accurate colors, which can be crucial when precise visual information is required for diagnostics or patient care.

Touch and User Experience Improvements

Beyond visual improvements, optical bonding enhances tactile interaction, which is particularly valuable for professional or commercial touch applications where accuracy and reliability are essential.

Improved Touch Accuracy and Responsiveness

Eliminating the air gap reduces parallax, the visual offset between where a user touches and where the screen registers the input. Reduced parallax translates to precise touch detection, which is critical for industrial controls, vehicle displays, and point-of-sale systems. For instance, in a manufacturing control panel, a bonded display ensures that operators can select small interface buttons accurately, reducing errors and improving overall workflow efficiency.

HMI Aesthetics — Why ‘Flat’ Bonded Surfaces Feel Premium

Optically bonded screens offer a seamless flat surface that enhances the perceived quality of the device. This smooth interface feels premium to users and simplifies maintenance because dust and liquids cannot accumulate between the display and touchscreen. For public-facing kiosks, flat surfaces not only look more modern and professional but also contribute to hygiene by making cleaning easier and more effective. This aesthetic improvement can directly influence user satisfaction and brand perception.

Durability, Environmental Resistance, and Safety

Optical bonding significantly strengthens screens against physical and environmental stresses, which reduces operational downtime, maintenance costs, and device replacement rates.

Shock/Impact Resistance and Vandalism Protection

The adhesive used in optical bonding reinforces the structural integrity of the touchscreen, increasing resistance to impact and reducing the risk of cracks or delamination. Public touchscreens, industrial panels, and vehicle-mounted displays are particularly prone to physical stress, and bonded screens can withstand everyday use and occasional abuse more reliably. This robustness also makes optical bonding suitable for environments where safety and operational continuity are critical.

Moisture/Condensation Prevention and IP Rating Improvements

Bonding creates a seal that prevents moisture ingress, condensation, and particle accumulation, improving the Ingress Protection (IP) rating of devices. Outdoor digital signage, marine equipment, and industrial displays operating in humid or wet conditions benefit from significantly lower risk of environmental damage. This protection extends device lifespan and ensures consistent performance in locations that would otherwise compromise conventional displays.

Reduced Damage & Maintenance Frequency — Cost Implications

The combination of enhanced impact resistance and moisture protection leads to a reduction in maintenance frequency and service interruptions. Fewer repairs and replacements translate to significant cost savings for businesses. For operators of large-scale digital signage networks, industrial HMIs, or medical equipment, the lower total cost of ownership and longer lifespan make optical bonding a highly valuable investment.

Power, Performance, and Operational Advantages

Optical bonding not only improves durability and usability but also offers operational efficiencies that contribute to energy savings and system reliability.

Lower Backlight Demands and Energy Savings

By improving light transmission and reducing reflection, optical bonding increases effective screen brightness. Devices can achieve desired luminosity while using lower backlight power, reducing electricity consumption and heat generation. In large-scale installations such as airport displays or outdoor billboards, these energy savings become substantial over time.

Thermal Performance and Broader Operating Temperature Windows

Bonded displays exhibit improved thermal performance due to the adhesive layer acting as a thermal buffer. Devices can function effectively across a broader range of temperatures, from freezing outdoor conditions to extreme heat in industrial environments. This ensures consistent operation without the risk of display degradation caused by temperature fluctuations.

Lifecycle and Warranty Considerations

Improved durability, energy efficiency, and environmental resistance extend the operational life of optically bonded screens. Devices can sustain peak performance over several years with fewer failures, allowing manufacturers and users to offer extended warranties confidently. Longer lifecycles also reduce environmental waste by minimizing the frequency of device replacement.

Business Case and ROI: Justifying Optical Bonding

When Bonding Makes Sense

Optical bonding is particularly advantageous in environments that demand high visibility, robust durability, and accurate touch performance. Outdoor displays, medical devices, public transit panels, and industrial HMIs all benefit from reduced glare, improved readability, and resistance to environmental stressors. For businesses deploying such devices, bonding ensures operational reliability, enhances user experience, and reduces long-term costs.

Simple ROI Model: Reduced Returns, Repairs, and Improved User Experience

The ROI of optical bonding can be calculated by factoring in lower replacement and repair costs, reduced energy consumption, and improved user satisfaction. For example, point-of-sale displays with bonded touchscreens deliver a more engaging and responsive user experience, which can boost conversion rates. Similarly, industrial and medical users experience fewer operational interruptions, reducing downtime costs and ensuring that critical information is always available.

By investing in optical bonding, businesses not only protect their equipment but also enhance operational efficiency, user engagement, and brand reputation. Over time, these benefits translate to measurable financial gains, making bonding a smart long-term investment for organizations that rely heavily on touchscreen interfaces.

Conclusion

In summary, touchscreen optical bonding provides significant improvements in visibility, touch accuracy, durability, and operational efficiency. FANNAL’s in-house expertise ensures that displays achieve superior performance in outdoor, industrial, and medical applications, offering benefits like reduced glare, enhanced contrast, better touch response, and resistance to environmental stressors. Organizations adopting bonded touchscreens experience lower maintenance costs, improved energy efficiency, and extended device lifecycles, creating a compelling business case for this technology.

For more details, product specifications, or to experience the advantages firsthand, contact us to request a demo unit and download a case summary demonstrating performance in sunlight readability, durability, and long-term operational reliability.
