Is the anti-fingerprint coating the same as anti-glare treatment?

No. An anti-fingerprint coating reduces fingerprint residue and makes the glass easier to clean, while anti-glare treatment reduces reflected light. Depending on the application, one or both surface treatments may be used.

Is FN0840P007A supplied with an LCD module?

No. FN0840P007A is a standalone projected capacitive touch panel designed to be integrated with a compatible TFT LCD or a custom display assembly.

Can this touch panel be modified for OEM projects?

Yes. FANNAL supports customization of the cover glass, FPC layout, controller configuration, optical bonding process, mechanical dimensions, and other design details according to project requirements.

Home » Products » Capacitive Touchscreens » 8.4 Inch Optical Bonded Capacitive Touch Panel

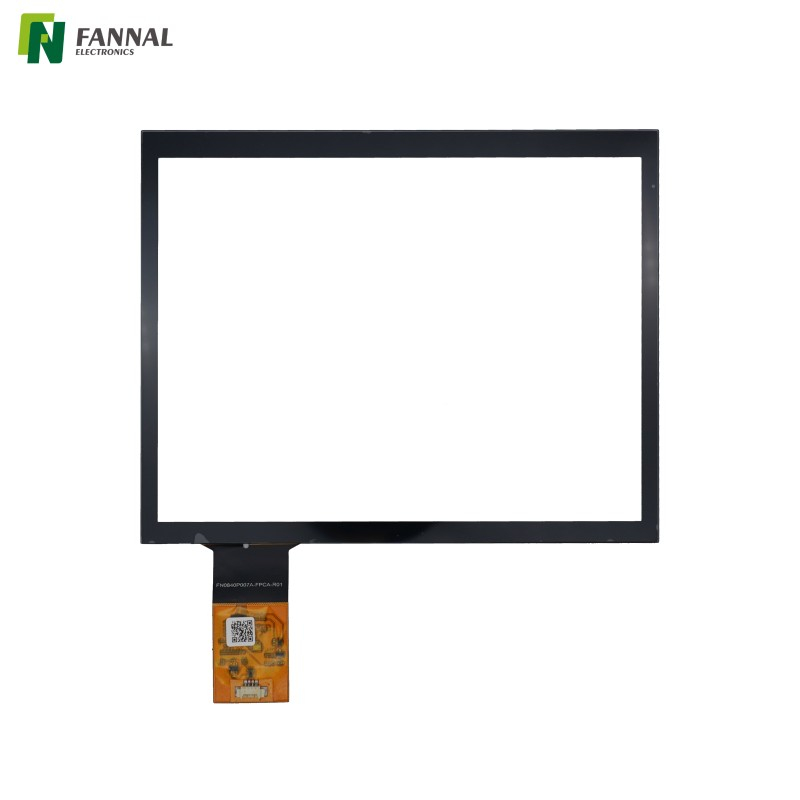

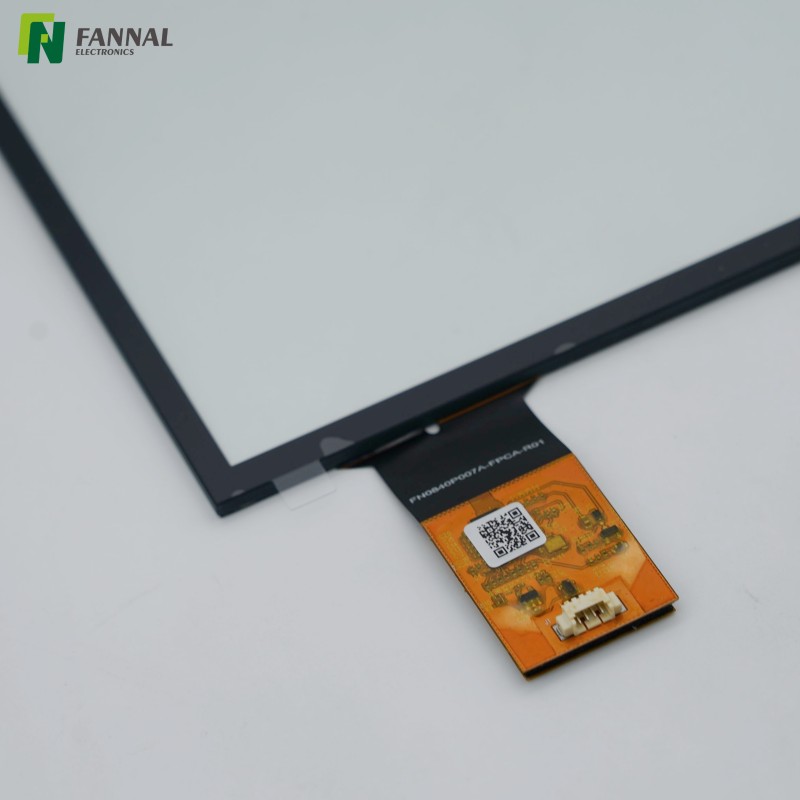

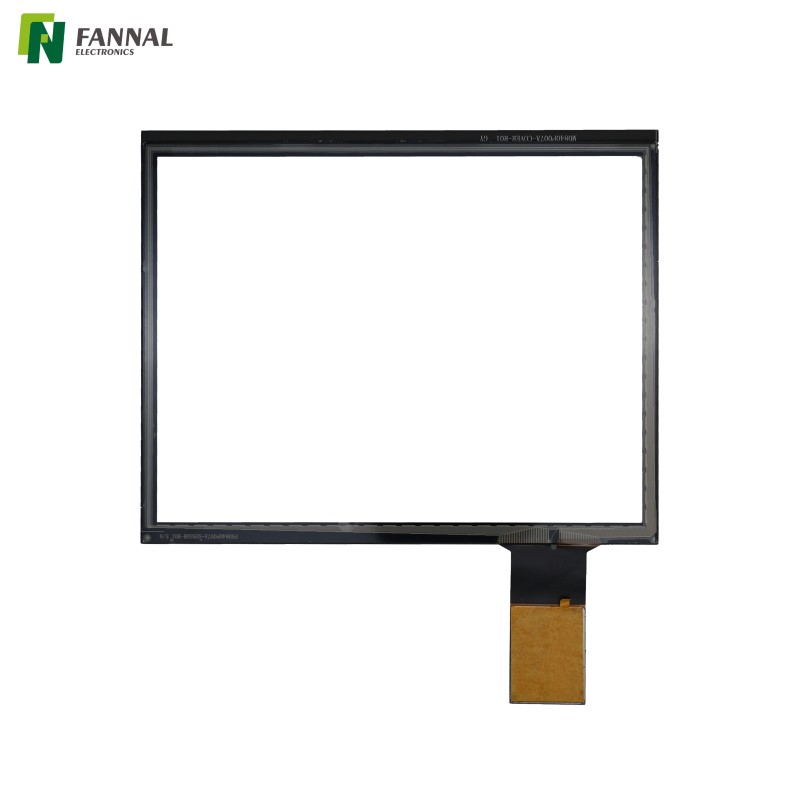

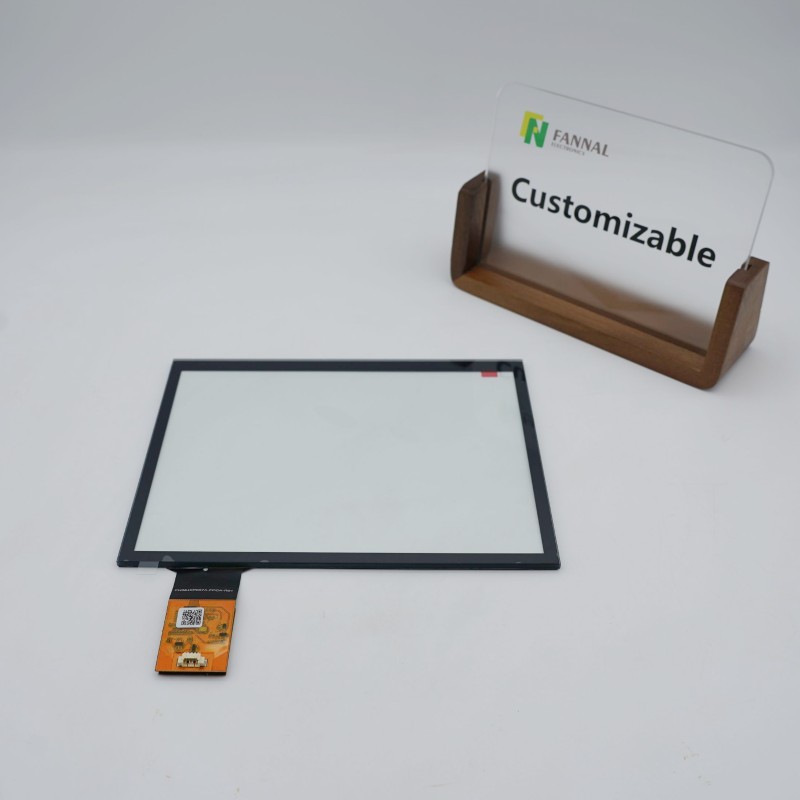

8.4 Inch Optical Bonded Capacitive Touch Panel

Name: 8.4 Inch Optical Bonded Capacitive Touch Panel
Brand: FANNAL
Rating: 5.0 (10 reviews)

8.4 Inch Industrial Capacitive Touch Panel with AF Glass

Model:
FN0840P007A
Brand:
FANNAL
Size(inch):
8.4
Cover OD (mm):
183.7*146.4*3.9
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
TP VA (mm):
171.88*129.16
Structure:
G+G

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

The FN0840P007A is an 8.4 inch G+G projected capacitive touch panel featuring optical bonding, a 3.0 mm chemically strengthened cover glass, and a Microchip maXTouch® mXT2952TD touch controller. Designed for custom embedded systems, it supports 10-point touch and can be integrated into industrial HMI, medical, and commercial equipment where durability and optical performance are important.

Features

Optical Bonding Construction

The touch panel is manufactured with optical bonding, reducing internal reflections between layers and improving display clarity compared with conventional air-bonded assemblies. Optical bonding can also help minimize condensation inside the display stack in demanding environments.

3.0 mm Chemically Strengthened Cover Glass

The 3.0 mm cover glass provides increased mechanical strength for applications where the touch surface may be exposed to frequent operation or accidental impact. Depending on project requirements, cover glass dimensions and edge treatments can be customized.

Anti-Fingerprint Surface

An AF (Anti-Fingerprint) coating helps reduce visible fingerprints and makes routine cleaning easier. It is particularly useful for equipment operated throughout the day, such as control panels and self-service terminals.

maXTouch Touch Controller

The panel integrates the Microchip maXTouch mXT2952TD controller and supports 10-point projected capacitive touch, making it suitable for modern graphical user interfaces and gesture-based interaction.

Designed for Integration Projects

Rather than being a standard retail component, the touch panel is intended for integration into OEM equipment. Mechanical dimensions, cover glass printing, logos, and other details can be customized according to the application.

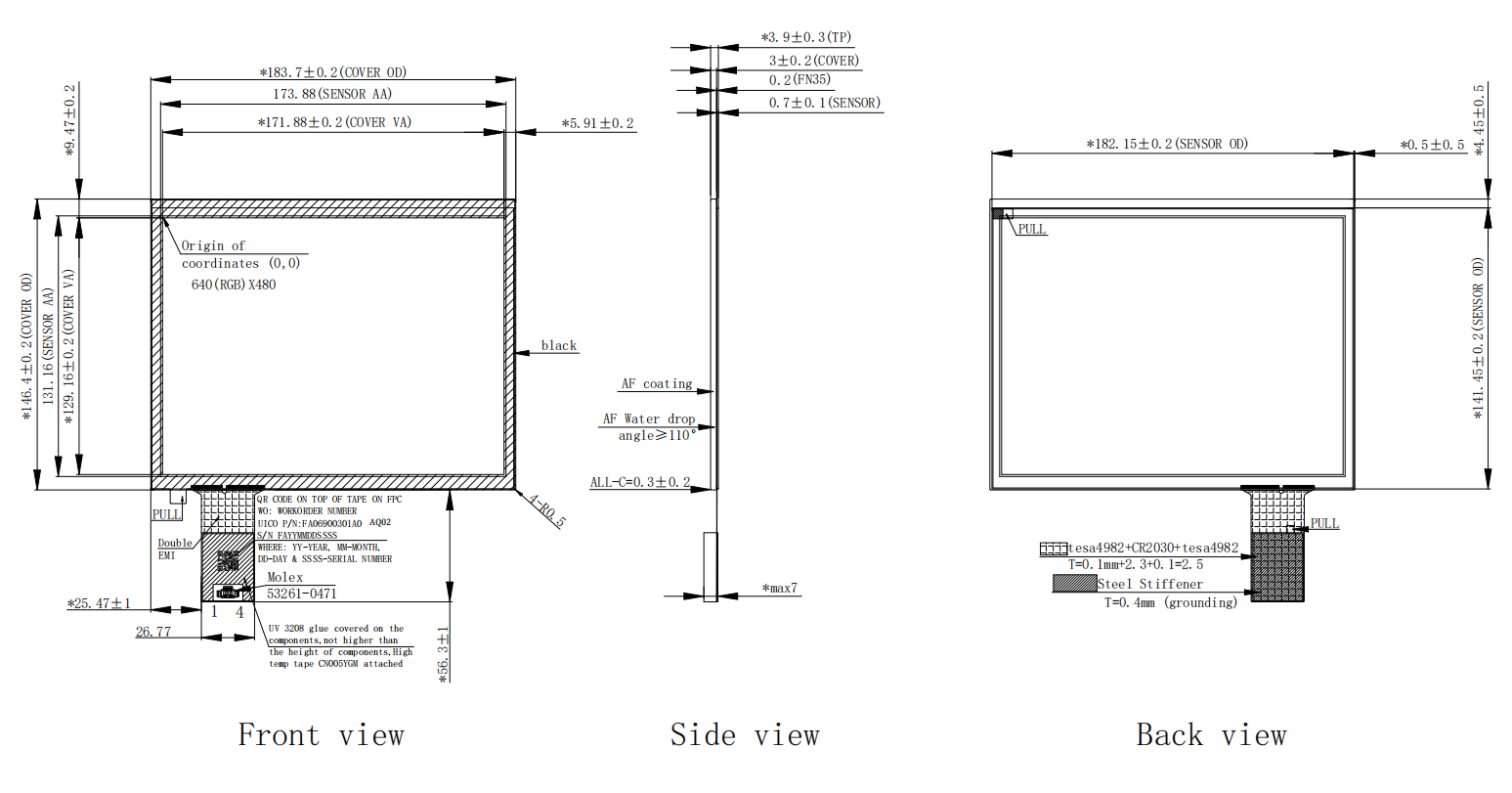

Drawing

Specifications

Property	Requirement
Structure	G+G
Bonding Type	Optical Bonding
Touch IC	MXT2952TD
No. of Touch	10 (Desiccation)
Cover Lens Thickness	3.0mm (Chemical Strengthened) (AF)
ITO glass Thickness	0.7mm
Surface Hardness	≥ 7H}
Light Transmittance	85% Min
Operating Temperature	-20~70°C
Storage Temperature	-30~80°C

Applications

Industrial HMI Equipment

Suitable for operator panels, automation equipment, and industrial control systems where a durable glass surface and reliable touch operation are required.

Medical Devices

Can be integrated into medical instruments and diagnostic equipment that require an easy-to-clean glass interface and stable touch performance.

Self-Service Terminals

The combination of optical bonding and an anti-fingerprint surface helps maintain display readability in kiosks, ticketing systems, and interactive terminals.

Commercial Control Panels

Suitable for building automation, access control systems, and other embedded interfaces that require a customized touch solution.

Custom Embedded Products

Designed for OEM projects requiring application-specific cover glass, mechanical dimensions, or branding.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

Customization

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

Why choose optical bonding instead of air bonding?

Optical bonding fills the air gap between layers with a transparent adhesive. Compared with air bonding, it generally reduces internal reflections, improves perceived contrast, and helps limit condensation inside the display assembly. However, it also increases manufacturing complexity and cost.

Is the anti-fingerprint coating the same as anti-glare?

No. An anti-fingerprint (AF) coating is intended to reduce fingerprint residue and make the surface easier to clean. Anti-glare (AG) treatment is designed to reduce reflected light. Some applications combine both treatments, while others require only one depending on the installation environment.

Can the cover glass be customized?

Yes. The cover glass can typically be customized with different thicknesses, shapes, silk-screen printing, logos, decorative borders, holes, and edge finishing based on project requirements.

Is this touch panel supplied with a TFT display?

No. FN0840P007A is a standalone capacitive touch panel. It is intended to be integrated with a compatible TFT LCD or a custom display assembly.

Can this touch panel be adapted for different projects?

Yes. OEM projects often require adjustments to the cover glass, controller configuration, FPC design, optical bonding process, or mechanical dimensions to match the target equipment.
