Selecting an LCD panel is only one part of designing a display system. Equally important is how the display layers are assembled.
One of the most common questions during product development is whether an air-bonded display is sufficient or whether optical bonding is worth the additional manufacturing cost. The answer is rarely straightforward.
For some products, optical bonding noticeably improves readability and environmental reliability. For others, it increases cost without providing meaningful benefits. The right decision depends less on the technology itself and more on where and how the display will be used.
An indoor HMI installed inside a factory control cabinet has very different requirements from an outdoor charging station, a marine navigation display, or an agricultural terminal operating in rain, dust, and direct sunlight. Treating optical bonding as a universal upgrade often leads to unnecessary costs, while relying on air bonding in demanding environments may introduce avoidable performance issues later in the product lifecycle.

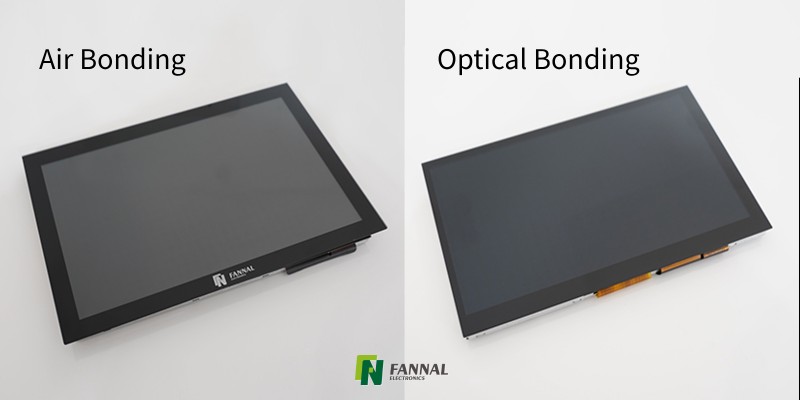

This article compares air bonding and optical bonding from an engineering perspective. Instead of focusing only on features, we'll look at the trade-offs, application scenarios, and practical considerations that influence real display design decisions.
Before comparing the two bonding methods, it's helpful to understand where bonding fits within a typical touch display.

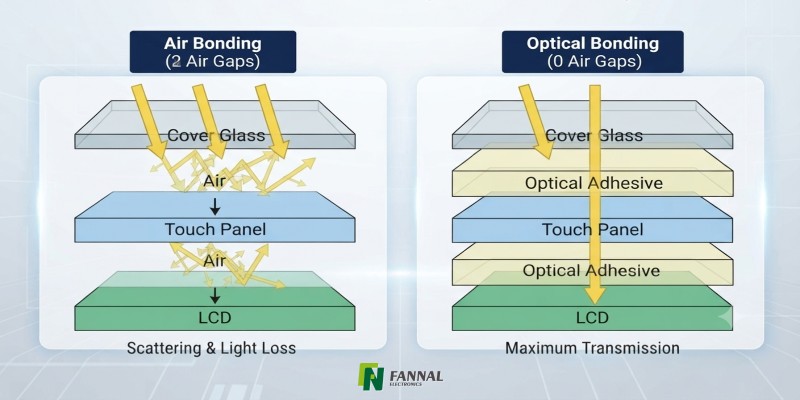

A complete display module consists of several optical and mechanical layers rather than a single component.
Cover Glass
│
Touch Sensor
│
LCD Panel
│
BacklightThe difference between air bonding and optical bonding is not the number of layers. It is how these layers are joined together.
In an air-bonded assembly, controlled air gaps remain between the components.
In an optically bonded assembly, those gaps are filled with a transparent optical adhesive, creating a much more integrated optical structure.
Although this appears to be a manufacturing detail, it directly affects how light travels through the display, how the assembly responds to vibration and temperature changes, and how well the screen performs in challenging environments.
Engineering Note
Bonding is not simply an assembly process. It influences both the optical performance and the mechanical reliability of the entire display module.
Air bonding is sometimes viewed as the "basic" option, with optical bonding positioned as the premium alternative. In practice, this oversimplifies the decision.
Many industrial products continue to use air-bonded displays because the technology meets their requirements while keeping manufacturing and maintenance relatively straightforward.
The structure leaves small air gaps between the LCD, touch panel, and cover glass. These gaps simplify assembly and make it easier to replace damaged components during servicing. For equipment expected to remain in operation for many years, easier field repair can be a significant advantage.
Air bonding is commonly found in applications such as:
Indoor HMI systems
Factory automation equipment
Laboratory instruments
Commercial control terminals
Medical devices used in controlled indoor environments
In these applications, ambient lighting is usually predictable, moisture exposure is limited, and mechanical stress is relatively low. Under these conditions, the optical limitations introduced by the air gap are often acceptable.
The air gap becomes more noticeable when the operating environment becomes more demanding.

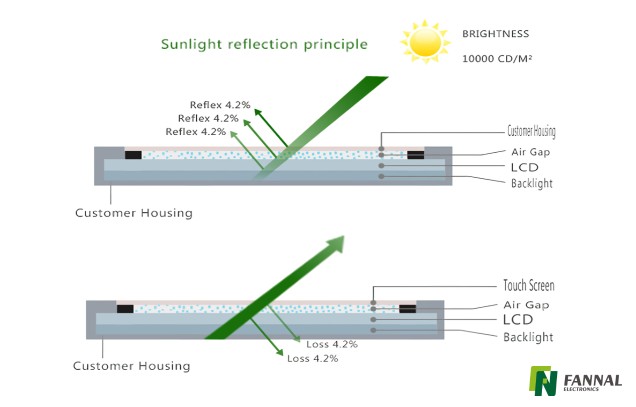

Each transition between air and glass creates a reflective surface. As light passes through multiple interfaces, a portion of it is reflected instead of reaching the viewer.
Indoors, this effect may be barely visible.
Outdoors, especially under direct sunlight, these reflections can reduce image contrast and make the display appear washed out, even when the LCD itself has sufficient brightness.
The air gap may also create additional engineering challenges over the product's lifetime.
Typical concerns include:
Increased internal reflections in bright environments
Greater risk of visible condensation if moisture enters the assembly
Dust contamination if long-term sealing performance is compromised
Reduced mechanical rigidity compared with a fully bonded structure
These limitations do not automatically make air bonding unsuitable. Instead, they define the situations where engineers should evaluate whether the additional cost of optical bonding provides measurable benefits.
Optical bonding is often associated with premium display products because the improvement is immediately visible. However, its value extends well beyond appearance.
The process replaces the air gaps inside the display with a transparent optical adhesive whose refractive index is much closer to that of glass. By reducing the difference between adjacent materials, less light is reflected within the display stack.
The result is not a brighter LCD, but a more efficient optical path.
More of the light generated by the backlight reaches the user instead of being reflected between internal layers.
This distinction is important because it is frequently misunderstood.
Increasing LCD brightness and applying optical bonding solve different problems.
A brighter backlight produces more light.
Optical bonding helps preserve more of that light as it passes through the display assembly.
For outdoor equipment, where strong ambient light competes with the display image, reducing internal reflections often has a greater impact on perceived readability than increasing brightness alone.
Although optical performance receives most of the attention, many engineers choose optical bonding for other reasons.
By eliminating the air gap, the display becomes a more integrated mechanical structure. This can improve vibration resistance and reduce the risk of internal condensation during rapid temperature changes.
These characteristics are particularly valuable in:
Agricultural machinery
Marine electronics
Construction equipment
Transportation systems
Industrial devices exposed to frequent environmental changes
That said, optical bonding is not a universal solution.
It does not increase the native brightness of the LCD.
It cannot compensate for an underpowered backlight.
It does not improve the viewing angle of the LCD panel itself.
And once the display has been fully bonded, repairing or replacing individual components generally becomes more difficult and expensive.
Like many engineering decisions, optical bonding introduces both advantages and compromises. Whether those trade-offs are worthwhile depends entirely on the application's requirements rather than the technology itself.
The technical differences between air bonding and optical bonding are relatively easy to understand. The more difficult question is whether those differences justify the additional manufacturing cost for a specific product.
There is no universally better approach.
Instead, engineers typically evaluate several trade-offs together rather than optimizing for a single parameter.
One of the strongest arguments for optical bonding is improved visibility in bright environments.
The reason is often misunderstood.
Optical bonding does not increase the LCD's native brightness. A 1000-nit panel remains a 1000-nit panel after bonding. What changes is the amount of light lost before it reaches the viewer.
Every air gap creates another reflective interface. Under direct sunlight, these internal reflections reduce contrast and make dark areas appear washed out. By replacing the air gap with an optical adhesive, the display loses less light to reflection, making the image appear clearer under the same ambient conditions.
For outdoor equipment, this improvement can be significant.
For an indoor control terminal used under stable lighting, however, the visual difference may be relatively small.
Engineering Note
If outdoor readability is a priority, optical bonding should be considered alongside display brightness, anti-reflective (AR) coatings, anti-glare (AG) surface treatments, and cover glass design. No single technology solves every visibility problem.
Environmental conditions often have a greater influence on bonding selection than optical performance alone.
Displays installed outdoors or in industrial environments may experience vibration, humidity, condensation, dust, and repeated temperature cycling over many years.
Removing the air gap helps create a more integrated display assembly. This reduces the possibility of moisture accumulating between layers and generally improves resistance to mechanical shock and vibration.
Typical applications where optical bonding is commonly considered include:
Agricultural and construction equipment
Marine electronics
Industrial HMIs exposed to frequent temperature changes
That does not mean every industrial display requires optical bonding.
Many factory control systems operate indoors for years with air-bonded displays because their environmental conditions remain relatively stable.
One advantage of air bonding is often overlooked during product development.
It is generally easier to repair.
If the cover glass or touch sensor is damaged, replacing individual components is usually more practical than with a fully optically bonded assembly.
This can be valuable for products expected to remain in service for many years or for equipment deployed in remote locations where replacing an entire display module is expensive.
Optical bonding, by comparison, creates a permanent optical structure. While this improves overall durability, it also increases the complexity of repair.
For projects where field maintenance is an important part of the product strategy, serviceability should be considered alongside optical performance.
Optical bonding is a more demanding manufacturing process.
Achieving a reliable optical bond requires controlled materials, specialized equipment, and careful process management to avoid bubbles, particles, or uneven adhesive distribution.
As display size increases, maintaining consistent bonding quality also becomes more challenging.
For this reason, optical bonding typically adds both manufacturing cost and production complexity.
That additional investment may be well justified for products operating outdoors or in demanding environments.
For equipment used exclusively indoors, however, the performance improvement may not always offset the higher manufacturing cost.
The objective is not to minimize cost or maximize specifications—it is to achieve the most appropriate balance for the application.
Rather than asking which technology is "better," it is usually more helpful to start with the application's operating environment.
The table below summarizes typical engineering considerations.
Project Requirement | Air Bonding | Optical Bonding |
|---|---|---|
Indoor HMI with controlled lighting | ✓ Often sufficient | Usually unnecessary |
Outdoor equipment in direct sunlight | Limited | ✓ Recommended |
High humidity or condensation | Acceptable with proper sealing | ✓ Better long-term protection |
Frequent vibration or mechanical shock | Acceptable in many cases | ✓ Better structural integrity |
Easy field repair | ✓ Easier | More difficult |
Lower manufacturing cost | ✓ Lower | Higher |
Maximum optical performance | Limited by internal reflections | ✓ Better optical efficiency |
These are general guidelines rather than fixed rules.
For example, some indoor medical devices use optical bonding to improve image clarity and simplify cleaning, while certain outdoor systems continue using air bonding because maintenance requirements or budget constraints outweigh the optical benefits.
Every project should be evaluated according to its own operating conditions, reliability targets, and lifecycle expectations.
Several misconceptions frequently appear during display selection.
Not exactly.
The LCD produces the same amount of light. Optical bonding improves perceived readability by reducing reflection losses rather than increasing brightness.
Not at all.
Air bonding remains a practical and widely used solution for many industrial products where environmental conditions are well controlled.
Not necessarily.
Some outdoor products combine high-brightness LCDs, anti-reflective coatings, and carefully designed enclosures while continuing to use air bonding. Optical bonding often improves overall performance, but it should be considered as part of the complete display system rather than as a standalone upgrade.
It doesn't.
Poor viewing angles, insufficient brightness, inappropriate surface treatments, or an unsuitable enclosure design can still limit display readability even when optical bonding is used.
Air bonding and optical bonding are not competing technologies in the traditional sense.
They represent different engineering approaches to solving different design challenges.
Air bonding remains a practical choice for many indoor products where cost efficiency, serviceability, and controlled operating conditions are the primary priorities.
Optical bonding becomes increasingly valuable when displays must maintain readability and reliability under demanding environmental conditions, particularly where sunlight, moisture, vibration, or temperature changes are part of normal operation.
The most appropriate solution is rarely determined by a single specification. It comes from understanding the complete application—including the operating environment, maintenance strategy, expected product lifetime, and performance requirements—and selecting the bonding method that best supports those goals.
No. Optical bonding does not increase the panel's native brightness. Instead, it reduces internal reflections within the display stack, allowing more of the existing light to reach the viewer. The improvement is most noticeable in bright ambient lighting rather than in dark indoor environments.
No. Optical bonding reduces internal reflections, but glare can also originate from the outer surface of the cover glass. In applications with strong ambient light, anti-reflective (AR) or anti-glare (AG) surface treatments are often used together with optical bonding to achieve better overall readability.
Not always. Many industrial HMIs, laboratory instruments, and factory control systems operate reliably with air-bonded displays because they are installed indoors under stable environmental conditions. The decision should be based on application requirements rather than assuming optical bonding is always the superior option.
In some cases, yes, but it is not always a simple modification. Optical bonding usually requires the display stack and manufacturing process to be designed accordingly. Retrofitting an existing product may involve changes to the cover glass, touch sensor, controller integration, or mechanical structure.
Its primary purpose is optical and mechanical improvement rather than touch sensitivity. However, by creating a more rigid display assembly and eliminating air gaps, optical bonding may contribute to a more consistent user experience in certain applications. Overall touch performance still depends on factors such as sensor design, controller tuning, cover glass thickness, and firmware.
