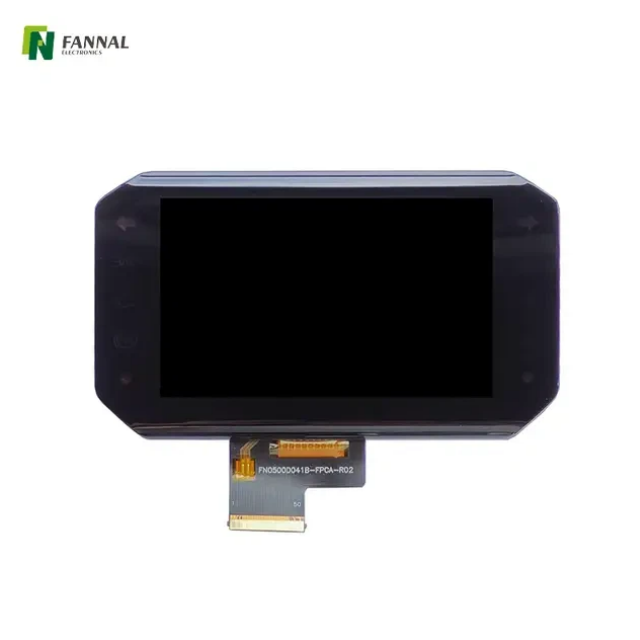

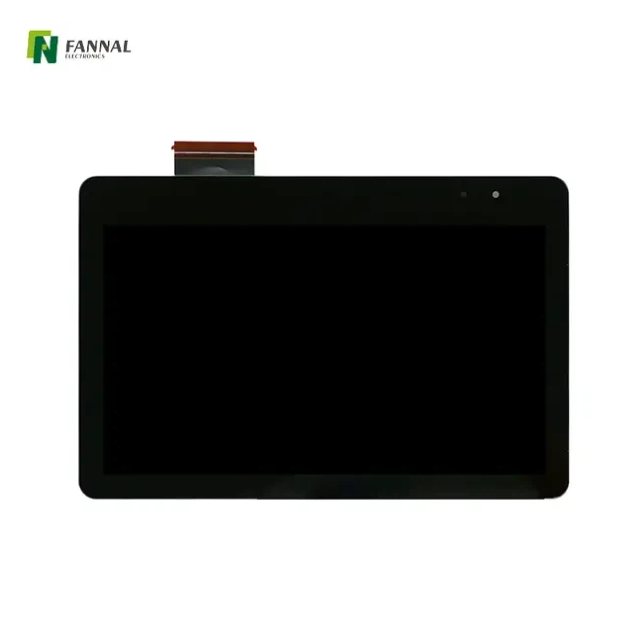

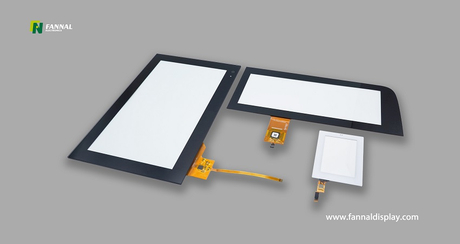

Touchscreen optical bonding is a critical process in modern display manufacturing that merges the touch panel and the display module into a single, highly durable unit. This process not only enhances optical clarity but also strengthens the overall structure and reduces reflection and glare. In this article, we will explore the fundamental concepts behind optical bonding, the different methods used in the industry, step-by-step production workflows, essential materials and tools, as well as common manufacturing challenges. FANNAL, a leading provider of touch display solutions, has developed extensive expertise in delivering high-quality bonded modules suitable for industrial, medical, and outdoor environments. With decades of experience and ISO-certified production, FANNAL ensures that every bonded touchscreen meets strict optical and mechanical performance standards.
Optical bonding refers to the process of filling the air gap between a touch panel and a display module with a transparent adhesive. This eliminates the unwanted reflections and improves display performance, particularly in high-brightness or outdoor conditions. By creating a continuous optical path from the cover glass to the display, bonding enhances contrast, reduces glare, and provides a more robust assembly.
In traditional displays without bonding, an air gap exists between the cover glass and the LCD or OLED panel. Light traveling through this gap can reflect off internal surfaces, causing glare, reduced contrast, and lower visibility in bright environments. Users often perceive washed-out colors or find the screen difficult to read under sunlight or industrial lighting. This issue is especially problematic in high-end industrial machines, medical imaging devices, or outdoor kiosks where clarity is critical for user safety and operational accuracy.
By introducing a refractive-index-matched optical adhesive between the touch panel and the display, light travels more directly through the display layers. The adhesive reduces internal reflections and glare, improves contrast, and enhances the viewing angle. Furthermore, it strengthens the display mechanically, making it more resistant to shocks, vibration, and environmental factors like dust or moisture. Adhesive properties such as flexibility, UV resistance, and thermal stability determine how well the bonded module performs under extreme conditions. Selecting the right adhesive is therefore crucial to balancing optical clarity, mechanical integrity, and long-term reliability.
Selecting the appropriate bonding method is essential for quality, durability, and repairability. The main methods include wet bonding, dry bonding using OCA (Optically Clear Adhesive) sheets, and traditional air-gap bonding.
Wet bonding involves dispensing a liquid optical resin between the touch panel and the display. The resin spreads evenly under pressure and is cured using heat or UV light.
Materials: Urethane or epoxy resins are commonly used due to their optical clarity, adhesion strength, and resistance to yellowing.
Equipment: Automated dispensing machines, precision curing ovens, and vacuum lamination systems.
Pros: Provides excellent optical performance, durable adhesion, and minimal optical distortion. It is particularly suitable for outdoor displays, rugged industrial monitors, and medical devices where environmental exposure is high.
Cons: More complex process requiring controlled environments and precise curing. Once the resin is cured, repairs are difficult. Processing errors or contamination during dispensing can result in bubbles, uneven layers, or optical defects.
Dry bonding uses pre-cut adhesive sheets placed between the touch panel and the display.
Lamination Steps: The OCA sheet is aligned precisely, vacuum-rolled or pressed onto the surfaces, and cured thermally or by UV.
Advantages: Easier repair or replacement of the touch panel, cleaner process with fewer chemical handling requirements, and uniform thickness control. OCA sheets also minimize warping for larger displays and maintain excellent optical consistency across the entire screen.
Applications: Widely used in consumer electronics, monitors, and medical devices where repairability and lower process complexity are priorities. Advanced OCA sheets also offer flexibility to accommodate curved or irregular displays.
Although less common in modern applications, some displays still use air-gap bonding for cost-sensitive devices or where adhesive use is limited by environmental conditions. Air-gap displays are more susceptible to reflection, glare, and mechanical damage, making them less suitable for outdoor, medical, or industrial applications. However, they may still be acceptable for simple indoor monitors or low-cost consumer devices where optical performance is less critical.
Understanding the production workflow is crucial for achieving consistent optical performance and reliability.
Before bonding, each display and touch panel undergoes rigorous inspection for defects, scratches, or contamination. Cleaning includes removal of dust, fingerprints, and oil residues using anti-static wipes, IPA solutions, or ultrasonic baths. Cleanroom conditions or laminar flow benches minimize particulate contamination, which can cause bubbles, optical defects, or adhesion failures. Additional surface treatments, such as plasma or corona treatment, may be applied to improve adhesive wetting and bonding strength.
Wet Bonding: Optical resin is injected evenly, and a vacuum-assisted roll lamination ensures uniform spread without trapping air. The process may be repeated for multi-layer displays or high-precision industrial monitors.
Dry Bonding: The OCA sheet is aligned with micron-level precision, and rollers remove air pockets. Proper alignment ensures edge-to-edge optical clarity and uniform touch response. Large-format displays or custom shapes may require segmented OCA application with careful edge sealing.
The adhesive is cured under controlled temperature and UV or thermal conditions. The curing profile is critical: too fast or uneven curing can cause stress, warping, or haze formation. Extended curing cycles may be required for high-viscosity resins or large displays. Modern manufacturing lines use automated ovens with precise temperature ramping and UV intensity control to ensure repeatable results across batches.
After bonding, displays undergo rigorous quality control checks:
Bubbles and Haze: Even minor defects can significantly degrade optical performance. Advanced inspection cameras or interferometry techniques detect micro-bubbles and optical inconsistencies.
MTF (Modulation Transfer Function) and Resolution Testing: Ensures sharpness and image quality remain consistent with design specifications.
AR Verification: Confirms anti-reflective coatings perform correctly when bonded. Some bonded modules also undergo light scattering analysis to measure reflectivity reduction quantitatively.
Common failure modes include particulate-induced bubbles, thermal stress cracks, and yellowing over time. Early detection and process control help prevent batch-level failures.
The materials used and equipment precision directly influence the bonded display’s performance.
Silicone: Flexible, excellent UV resistance, suitable for temperature-sensitive applications. Its low modulus reduces stress on large or curved displays.
Urethane: Strong adhesion, excellent optical clarity, and moderate flexibility. Urethane is widely used in outdoor displays for industrial machinery and transportation systems.
Epoxy: High rigidity and durability, suitable for harsh environments. Epoxy maintains excellent adhesion even in high-humidity or vibration-heavy conditions but may yellow over long-term UV exposure.
Cover glass selection affects scratch resistance, reflectivity, and touch sensitivity. Chemically strengthened or tempered glass improves mechanical durability. Anti-glare (AG) coatings reduce surface reflections, while anti-fingerprint (AF) coatings maintain clean touch performance. Specialty coatings may also improve contrast in high-brightness outdoor environments or enhance durability in industrial applications.
High-quality bonding requires precision equipment. Lamination rollers, vacuum tables, and alignment jigs prevent air entrapment and ensure uniform adhesive thickness. Regular maintenance and calibration of tools are essential to maintain process repeatability and reduce defect rates. Vendor checklists typically include particle control systems, roller pressure calibration, and inspection protocols for both adhesives and glass surfaces.
Even with skilled technicians, optical bonding presents significant challenges.
Prevention: Cleanroom environments, anti-static tools, surface cleaning, and controlled humidity are key.
Remediation: Minor bubbles may be removed during lamination, but larger defects require rework. Automated vision inspection helps identify defects early to reduce waste.
Different materials expand differently under heat. Adhesive selection, curing profile, and panel thickness optimization reduce stress that can cause cracking, delamination, or warping. Using flexible adhesives and stress-relieving lamination techniques can extend product lifetime.
Displays undergo accelerated testing including humidity, thermal cycling, and UV exposure to ensure they maintain optical clarity and adhesion. Additional testing for vibration and shock resistance is performed for industrial and outdoor applications. Such rigorous testing ensures displays remain functional in the most demanding environments.
Touchscreen optical bonding is a precise, technically demanding process that dramatically improves display clarity, durability, and usability. Choosing the correct bonding method, adhesive material, and quality control procedures ensures optimal performance for industrial, medical, and outdoor displays. FANNAL leverages its in-house engineering and production expertise to deliver bonded modules using advanced OCR and OCA techniques, tailored for long-life applications in harsh environments. For more detailed information, technical datasheets, or to request a free sample, contact us today and experience the difference of high-quality optical bonding solutions.
