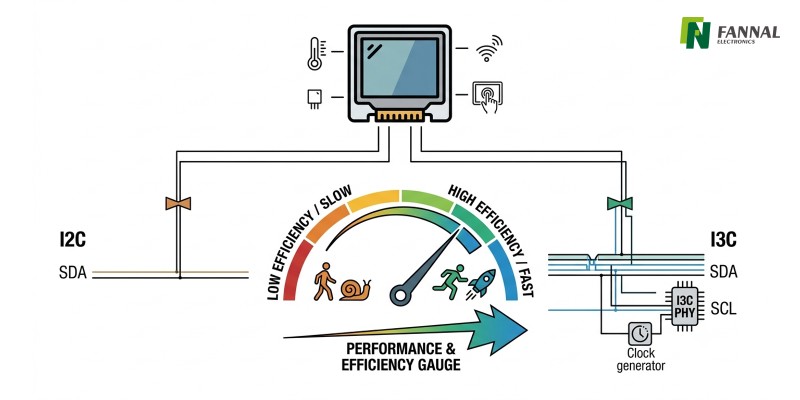

MIPI I3C vs I2C: What Embedded Display Designers Need to Know

For a long time, I2C has been the default choice for connecting touch controllers, sensors, EEPROMs, and power management devices in embedded systems. It is simple, widely supported, and, in many cases, still does exactly what designers need it to do.

So why is there growing interest in MIPI I3C?

The short answer is that embedded systems have changed. Modern devices increasingly combine touch interfaces, multiple sensors, cameras, AI processors, and various peripheral ICs into a single platform. As systems become more connected, some of I2C's limitations become harder to ignore.

That doesn't mean I2C is disappearing. It simply means engineers now have another option to consider.

What Is I2C?

Inter-Integrated Circuit (I2C) is a widely used two-wire serial communication protocol developed in the 1980s.

Using only a Serial Data (SDA) line and a Serial Clock (SCL) line, I2C provides a simple and cost-effective way to connect multiple peripherals to a microcontroller.

Common display-related applications of I2C include:

• Capacitive touch controllers

• Ambient light sensors

• Temperature sensors

• EEPROM devices

• Power management ICs

• Display configuration interfaces

Because of its simplicity and broad ecosystem support, I2C remains one of the most widely deployed interfaces in embedded display systems.

However, increasing system complexity is exposing some of its limitations.

What Is MIPI I3C?

MIPI I3C (Improved Inter Integrated Circuit) is a modern serial interface developed by the MIPI Alliance to address the performance limitations of I2C while maintaining backward compatibility.

Like I2C, I3C uses only two signal lines:

• SDA (Serial Data)

• SCL (Serial Clock)

However, I3C introduces several enhancements, including:

• Higher data transfer speeds

• Lower power consumption

• Dynamic device addressing

• In-band interrupts

• Improved error handling

• Better electromagnetic interference (EMI) performance

• Support for mixed I2C and I3C devices on the same bus

These capabilities make I3C particularly attractive for next-generation embedded applications.

I2C Still Solves Most Problems

Despite being introduced decades ago, I2C remains one of the most common interfaces found in industrial and embedded display systems.

In a typical HMI or industrial control panel, I2C is often used to communicate with:

• Capacitive touch controllers

• Ambient light sensors

• Temperature sensors

• EEPROM devices

• Power management ICs

For these applications, the amount of data being transferred is relatively small. The interface is mature, development tools are readily available, and engineers are familiar with its behavior.

In other words, there is usually no urgent reason to replace a working I2C design simply because a newer standard exists.

This is particularly true in industrial applications, where stability and long-term availability often matter more than adopting the latest technology.

Where I2C Starts to Show Its Age

The challenge arises when systems become more complex.

A modern embedded platform may include multiple sensors, advanced touch functionality, cameras, and dedicated processors handling AI workloads. All of these devices need to communicate with the host processor, often over shared interfaces.

At that point, engineers may begin running into practical issues.

Bandwidth can become a limitation. Additional interrupt lines complicate PCB routing. Managing multiple devices on the same bus becomes more challenging. Power consumption also becomes a concern, especially in battery-powered products.

These issues don't necessarily mean I2C is inadequate. They simply reflect the fact that today's embedded systems often have very different requirements than the systems I2C was originally designed for.

What Changes with MIPI I3C?

At first glance, I3C looks very similar to I2C. Both use two signal lines, and one of I3C's design goals was to maintain compatibility with existing I2C ecosystems.

The differences become more apparent in larger or more demanding systems.

I3C supports significantly higher data transfer rates, allows devices to communicate interrupts through the bus itself, and provides more flexible device management. It also introduces mechanisms intended to reduce power consumption during operation.

For engineers, the most important question is not whether I3C offers more features. It is whether those features solve actual problems within a specific design.

If an existing I2C implementation already meets performance requirements, switching interfaces may offer little practical benefit.

If system complexity is increasing, however, I3C may help simplify future development.

I2C vs I3C: A Practical Comparison

The table highlights the technical differences, but specifications alone rarely determine design decisions.

In practice, the decision often depends on the expected product lifecycle, system architecture, and how much expansion is anticipated over time.

Does This Matter for Display Systems?

One common misunderstanding is that I3C is intended to replace display interfaces such as MIPI DSI.

It is not.

MIPI DSI continues to handle image data transmission between processors and display panels.

I3C is more relevant to the devices surrounding the display system. Touch controllers, environmental sensors, biometric modules, and other peripherals increasingly contribute to the overall user experience.

A display may still receive video data through DSI while communicating with a touch controller through I2C or I3C.

For display designers, this means that I3C is less about the panel itself and more about the broader embedded ecosystem in which the display operates.

Should Embedded Display Designers Care About I3C?

The answer depends largely on the application.

For many industrial HMIs, medical devices, and equipment with relatively straightforward architectures, I2C remains entirely adequate. There may be little justification for introducing additional complexity.

However, engineers working on newer platforms may find themselves dealing with increasing numbers of sensors, stricter power requirements, or processors that already include native I3C support.

In those situations, understanding I3C early in the design phase can help avoid limitations later.

The transition from I2C to I3C is unlikely to happen overnight. Like many interface evolutions, it will probably occur gradually, with both standards coexisting for years.

What This Means for Display Manufacturers

From a display supplier's perspective, interface trends beyond the display panel itself are becoming increasingly important.

Touch functionality, sensor integration, and system-level compatibility often influence product development decisions just as much as brightness, viewing angle, or optical performance.

At FANNAL, many projects still rely on proven I2C-based architectures because they provide the reliability and longevity industrial customers expect. At the same time, emerging standards such as I3C are worth monitoring as embedded systems continue to evolve.

The goal is rarely to adopt new technologies as quickly as possible. More often, it is about understanding when those technologies solve real engineering problems.

Final Thoughts

I2C has earned its place in embedded design through decades of reliable use, and it is not going away anytime soon.

I3C should not be viewed as a replacement that immediately makes I2C obsolete. Instead, it represents an evolution aimed at addressing challenges that become more apparent as embedded systems grow more sophisticated.

For many display applications, I2C will continue to be the practical choice.

For others, particularly systems integrating numerous peripherals or targeting future platform scalability, I3C may gradually become part of the conversation.

The important question is not which interface is "better." It is whether the interface matches the actual requirements of the product being designed.

When evaluating embedded display systems, understanding both options helps engineers make decisions based on application needs rather than industry trends alone.

FAQ

1. Can MIPI I3C and I2C devices coexist on the same bus?

Yes. One of I3C's major advantages is backward compatibility with many existing I2C devices, allowing gradual migration without redesigning the entire system.

2. Does MIPI I3C replace MIPI DSI for LCD communication?

No. MIPI DSI remains the primary interface for transferring display image data, while I3C is intended for peripheral communication such as touch controllers and sensors.

3. Is I3C necessary for industrial display applications?

Not always. Many industrial systems still operate effectively with I2C. I3C becomes more attractive as systems integrate more sensors and require higher performance.

4. What are the main benefits of I3C over I2C in embedded systems?

I3C offers higher bandwidth, lower power consumption, dynamic addressing, in-band interrupts, and improved scalability compared with traditional I2C.

5. Should new embedded designs start considering I3C support?

For products with long development cycles or future upgrade requirements, evaluating I3C compatibility early can help improve long-term flexibility.
