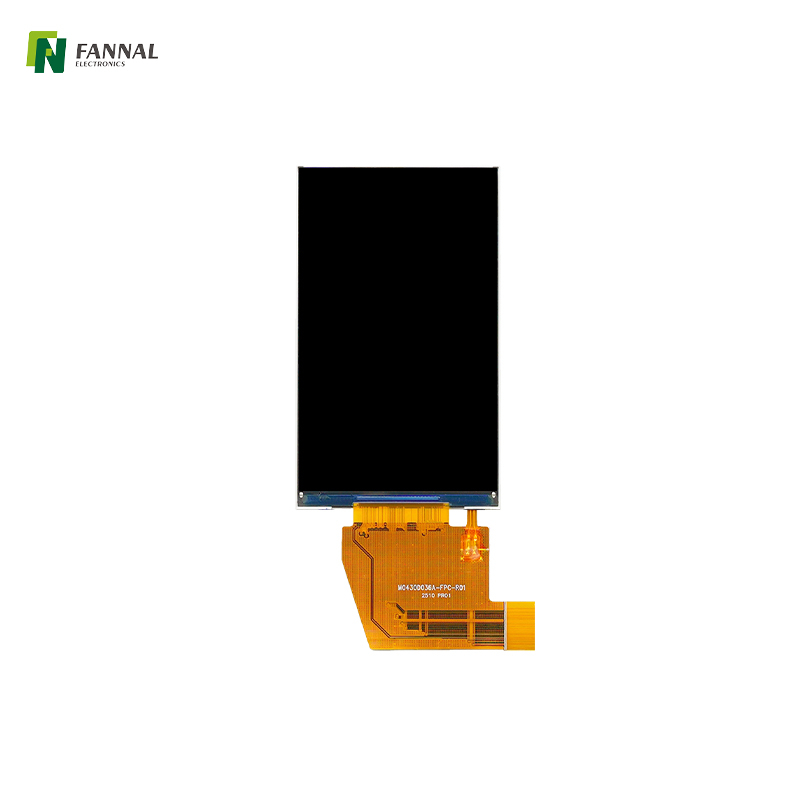

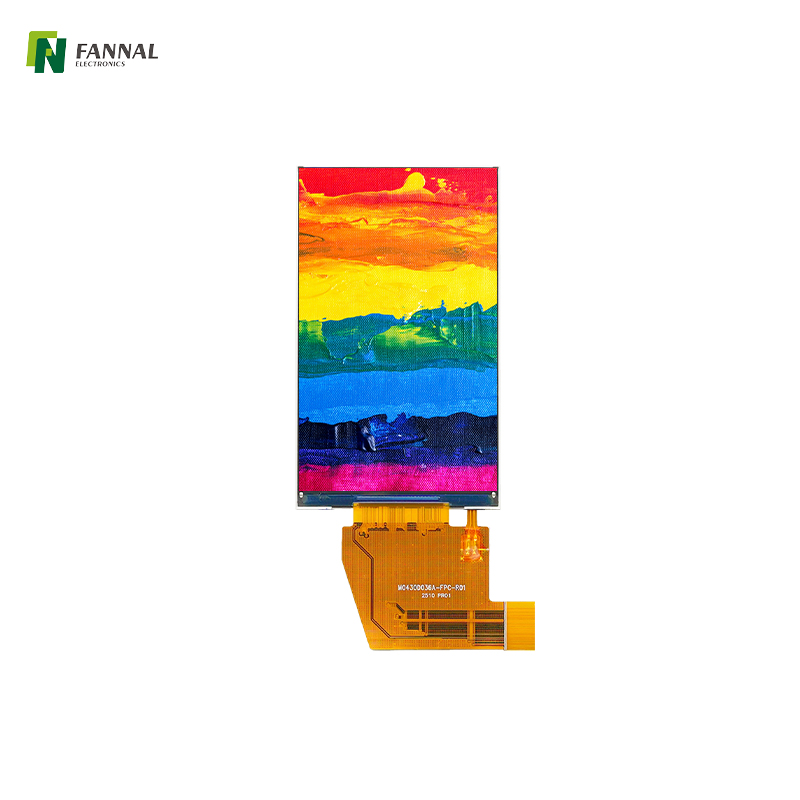

4.3-Inch 480x800 MIPI Display for Industrial Application

Model:
FN0430D036B
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
Resolution:
480x800
Direction:
ALL
Interface:
MIPI
Brightness(cd/m²):
500
Touch Screen:
Customizable

Quantity:
Availability:





Inquiry Add to Basket Download

MIPI Display Industry TFT Display 4.3 inch Display

Product Features

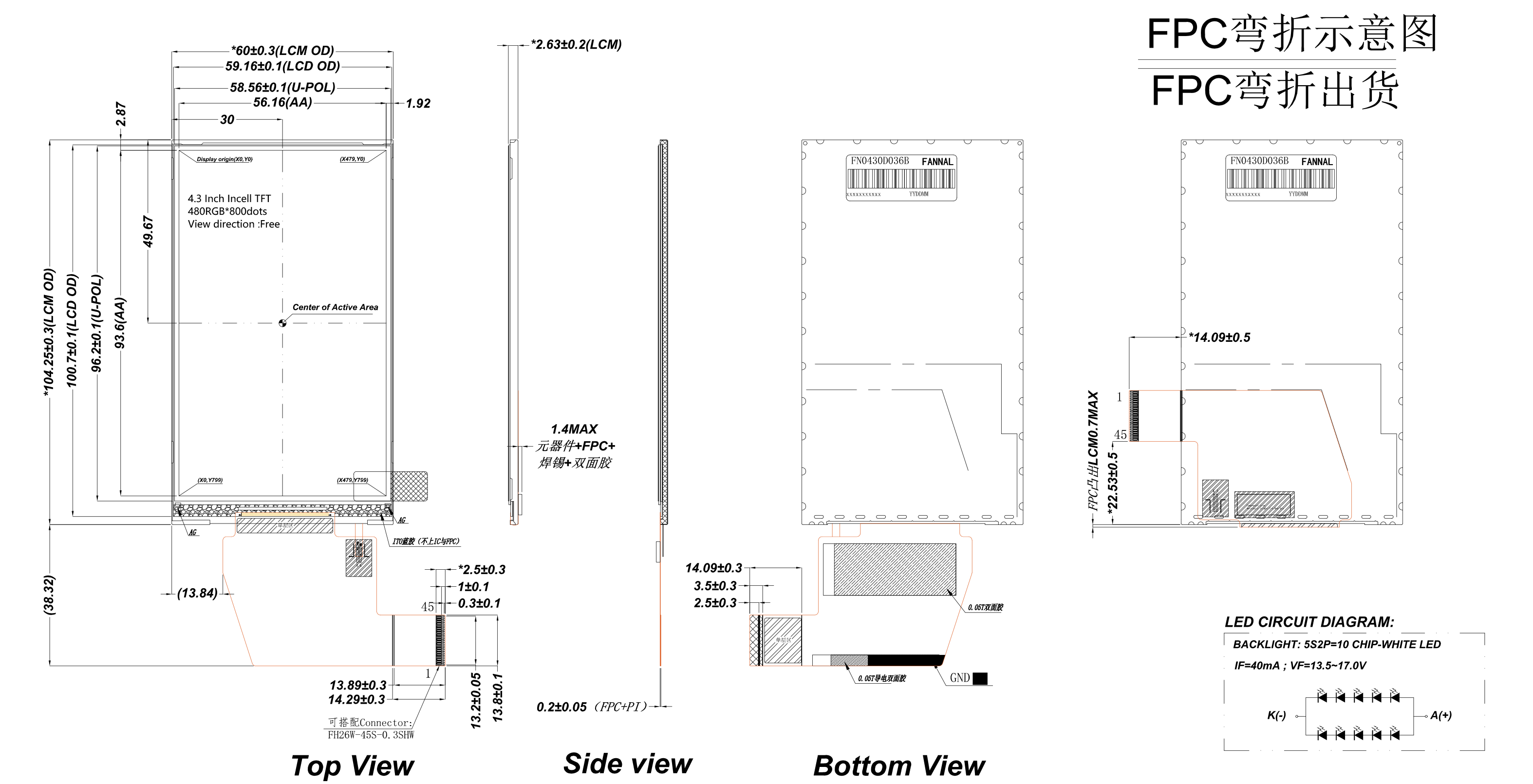

Product Drawing

Specification

Add Ons

Product Application

详情页IPS工控

4.3-Inch 480x800 MIPI Display for Industrial Application

The 4.3-inch 480x800 MIPI display is an excellent choice for various industrial applications, combining performance, durability, and user-friendly features. Its adaptability makes it a valuable component in modern industrial systems.

FN0430D036B

General Specifications：

LCD size(inch):	4.3 (Diagonal)
Resolution:	480(H)×800(V)
Pixel Pitch:	0.117(H)x0.117(V)
Active Area(mm):	56.16(H)×93.6(V)
Module Size(mm):	60.0(W)×104.25(H)×2.63(D)
Display Mode(mm):	Normally Black
Interface:	MIPI
View Direction:	ALL
Power Supply:	2.8
Luminance(cd/m2):	500(Typ.)
Operating Temperature(°C):	-20~+70
Storage Temperature(°C):	-30~+80

Interface:

Pin No.	Symbol	I/O	Description
1	NC	-	No connection.
2-3	GND	P	Power ground.
4-5	LEDK	P	Backlight Cathode.
6	GND	P	Power ground.
7-8	LEDA	P	Backlight Anode.
9-10	GND	P	Power ground.
11-12	VDD	P	Power Supply 2.8V.
13-14	IOVCC	P	I/O Power Supply 1.8V.
15-16	GND	P	Power ground.
17-18	RESET	I	Reset pin.
19-20	PWM	I	PWM control signal.
21-22	GND	P	Power ground.
23-24	D0P	I	MIPI differential data input.
25-26	D0N	I	MIPI differential data input.
27-28	GND	P	Power ground.
29-30	CLKN	I	MIPI differential clock input.
31-32	CLKP	I	MIPI differential clock input.
33-34	GND	P	Power ground.
35-36	D1P	I	MIPI differential data input.
37-38	D1N	I	MIPI differential data input.
39-40	GND	P	Power ground.
41-45	NC	-	No connection.

Electrical Characteristics:

Parameter

Symbol

Min.

Typ.

Max.

Unit

Notes

Forward Current Voltage

VF

13.5

15.0

17.0

V

Note 1

Forward Current

If

-

40

-

mA

LED lifetime

-

30000

-

Hrs

Note 2

Customization

CTP

Structure: GG, GFF,Size:1.8* ~ 55",Touch with Water/Salt Water/Sweat,Meet EMI/RFI Standards,Linux/Windows/IOS and Android,Customization on Cover: AG/AR/AF Meet IK Standards,Multi-touch Solution,True Touch with Gesture and Palm Rejection,Finger/Glove and Passive Pen Input

AD Board

We can provide complete accessories, including backlight board, AD Board and wire sets.

Application

With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc.
