9 Inch Capacitive Touch Display 1024×600 MIPI Interface

Name: 9 Inch Capacitive Touch Display 1024×600 MIPI Interface
Brand: FANNAL
Rating: 5.0 (31 reviews)

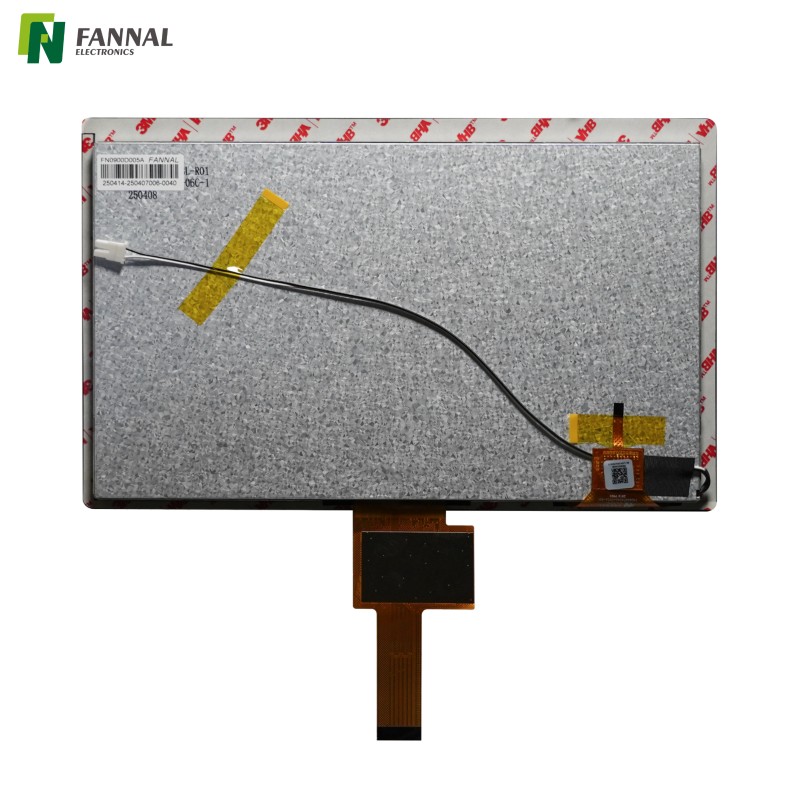

9 Inch MIPI TFT LCD Module with Capacitive Touch for Embedded Systems

Model:
FN0900T004B
Brand:
FANNAL
Size(inch):
9
Cover OD (mm):
222*139.6*7.45
Display AA(mm):
196.61*114.15
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
TP VA (mm):
197.61(H)x115.15(V)
Structure:
G+G
Resolution:
1024*600
Direction:
FREE
Display Interface:
MIPI
TP Interface:
IIC
Brightness(cd/m²):
510

Quantity:
Availability:





Inquiry Add to Basket

Capacitive Touch Display

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

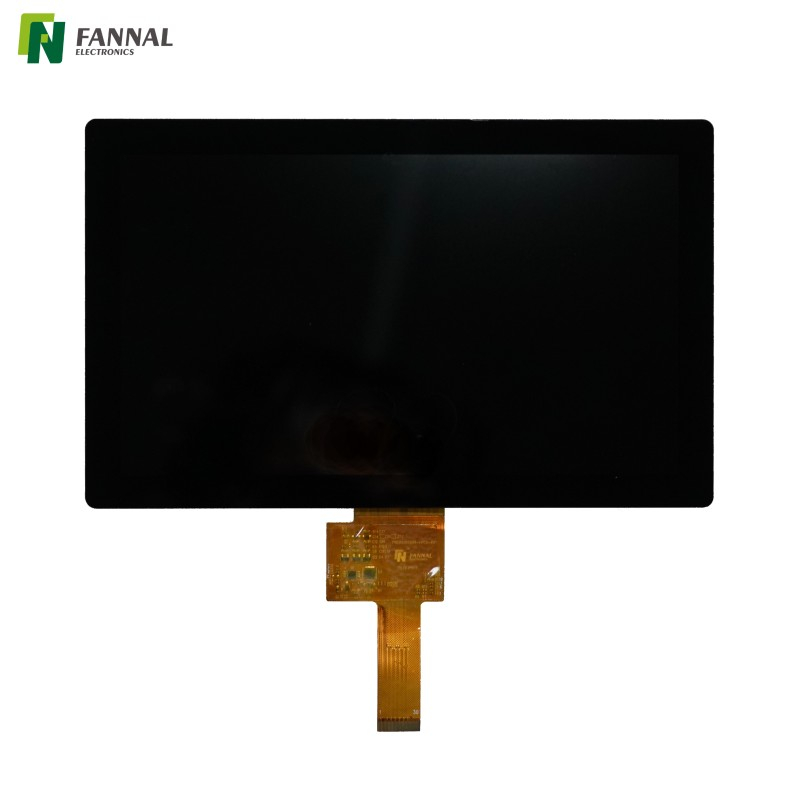

FN0900T004B is a 9 inch capacitive touch display module designed for industrial and embedded applications requiring reliable touch interaction and stable display performance. The module integrates a 1024×600 TFT LCD with projected capacitive touch technology, supporting 5-point touch operation through an IIC interface.

Featuring a MIPI display interface and mXT640U touch controller, this display is suitable for embedded Linux, Android, and custom HMI systems that require responsive touch control and compact integration. The 510 cd/m² typical brightness provides clear visibility for indoor equipment and semi-outdoor operating environments.

With a surface hardness of ≥7H and an operating temperature range of -20°C to +70°C, FN0900T004B is designed for industrial environments where durability, reliability, and long-term stability are essential. The module can be used in industrial control systems, medical devices, smart terminals, portable equipment, and embedded control interfaces.

Product Features

Multi-Touch Control

Supports 5-point capacitive touch operation for responsive and intuitive user interaction.

MIPI Display Interface

Equipped with a MIPI interface for high-speed data transmission and efficient embedded system integration.

Industrial Temperature Support

Designed to operate reliably in temperatures ranging from -20°C to +70°C.

Durable Touch Surface

Features surface hardness ≥7H to improve scratch resistance and long-term durability.

High Optical Transmittance

Offers ≥85% touch transmittance to maintain display clarity and image quality.

Compact Integrated Structure

Combines TFT LCD and capacitive touch into a compact module suitable for space-constrained embedded devices.

Drawing

Specifications

Item	Specification	Unit	Remark
TPM Active Size	9 (Diagonal)	Inch
TPM Outline Size	222(H) x 139.6(V) x 7.45(T)	mm
View Area	197.61(H) x 115.15(V)	mm
Surface hardness	≥7H	-	750g
Surface treatment	-	-
Touch Transmittance	85% Min	-
Touch Driver IC	mXT640U	-
Touch Points	5 (Desiccation)	-
Touch Mode	Finger	-
Touch Interface	IIC	-
IIC address	0x4A	-
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
Humidity	10% ~ 90%	-
TFT part Number	FN0900D005A	pcs	Follow Spec
TPM Surface Luminance	510 (typ.)	cd/m2
TFT interface	MIPI	-
TFT resolution	1024*600	-

Typical Applications

Industrial HMI Systems

Suitable for industrial control panels, machine interfaces, and automation equipment.

Embedded Linux and Android Devices

Compatible with embedded systems requiring MIPI display integration and capacitive touch functionality.

Medical Equipment

Can be used in portable medical devices, monitoring systems, and diagnostic interfaces.

Smart Control Terminals

Suitable for smart home panels, access control systems, and interactive control terminals.

Portable Industrial Equipment

Applicable to handheld testing devices, portable controllers, and field operation equipment.

Semi-Outdoor Devices

The 510 nits brightness supports equipment operating in indoor and moderately bright environments.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

Customizations

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications
