eDP vs LVDS: Key Differences, Advantages, and Selection Guide

For years, LVDS was the default display interface in industrial computers, embedded systems, and HMI equipment. Many industrial TFT LCD modules, especially in the 7-inch to 15.6-inch range, were designed around LVDS because it was stable, relatively simple, and widely supported by industrial motherboards.

That situation has gradually changed.

As display resolutions increased and embedded processors became more powerful, eDP started replacing LVDS in many newer designs. Today, eDP is common in industrial tablets, medical devices, portable equipment, and higher-resolution embedded displays, especially where thinner cabling, lower EMI, and reduced power consumption matter.

At the same time, LVDS has not disappeared. A large number of industrial systems still rely on it because of long product lifecycles, legacy platform compatibility, and proven reliability in fixed-function equipment.

So the real question is usually not “Which interface is better?”

It is:

Which interface makes more sense for the actual product lifecycle, resolution requirement, EMI environment, and hardware architecture?

That distinction matters in industrial environments.

What is eDP?

Embedded DisplayPort (eDP) is a digital display interface derived from the DisplayPort standard. It was originally developed for laptops and portable electronics, but it is now widely used in industrial and embedded display systems as well.

Unlike LVDS, eDP transmits packetized data and does not require a dedicated clock pair. This allows fewer differential pairs while supporting significantly higher bandwidth.

In practical engineering terms, eDP makes it easier to support:

• Full HD and higher resolutions

• Higher refresh rates

• Thinner cable structures

• Lower pin-count connectors

• More compact motherboard layouts

Modern embedded CPUs and GPUs increasingly integrate native eDP output, which is one reason many new industrial platforms are moving in that direction.

eDP is especially common in:

• Industrial tablets

• Medical displays

• Portable HMI systems

• Embedded AI devices

• Battery-powered equipment

• Thin industrial panel PCs

What Is LVDS?

LVDS (Low-Voltage Differential Signaling) has been used in industrial displays for decades.

It transmits data through differential pairs with separate clock signals, using relatively low voltage swings to reduce EMI and power consumption compared with older TTL interfaces.

One reason LVDS became dominant in industrial equipment is that it was predictable and stable. Many long-lifecycle industrial platforms standardized around LVDS years ago, and those systems are still deployed today.

In factory automation and industrial control systems, it is common to see products remain in service for 7 to 15 years. In those situations, changing interface architecture is not always desirable.

LVDS is still widely found in:

• Legacy industrial PCs

• CNC systems

• Factory HMIs

• Medical analyzers

• Transportation equipment

• Embedded systems using older FPGA or SoC platforms

Even now, many industrial TFT LCD panels continue offering LVDS versions because compatibility remains important.

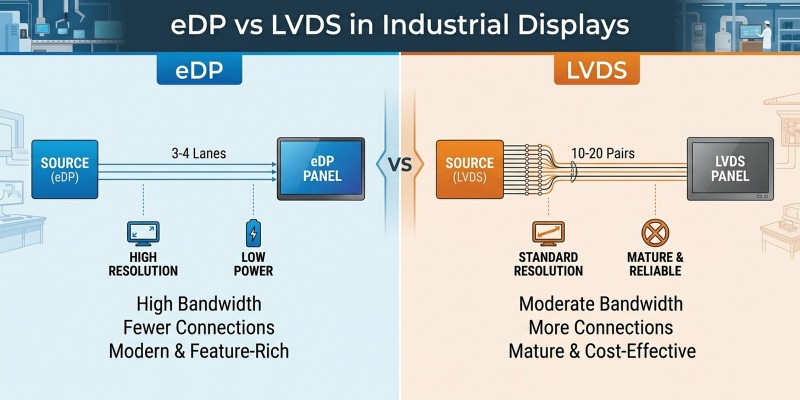

eDP vs LVDS: The Main Technical Differences

The bandwidth difference becomes important once resolutions move beyond traditional industrial standards.

For example, older 1024×768 or 1280×800 displays are usually manageable with LVDS. But higher-resolution panels, especially 1920×1080 and above, often become more practical with eDP due to cable size and signal integrity considerations.

Why Many New Industrial Systems Are Moving to eDP?

The transition from LVDS to eDP is not just about higher resolution marketing.

There are several practical engineering reasons behind it.

Reduced Cable Complexity

LVDS often requires more differential pairs and larger connectors. In compact devices, routing those signals becomes increasingly difficult.

eDP reduces cable bulk, which helps in:

• Thin industrial tablets

• Compact medical devices

• Portable instruments

• Edge AI systems

• Battery-powered equipment

Mechanical design teams usually appreciate this long before marketing departments do.

Better Support for High-Resolution Displays

As industrial interfaces become more graphical, demand for higher pixel density increases.

Modern HMIs increasingly use:

• Full HD

• Wide viewing angle IPS panels

• Multi-window interfaces

• Camera integration

• Real-time data visualization

At some point, LVDS becomes less efficient for handling those requirements.

Lower EMI Risk

In industrial environments, EMI is never just a theoretical issue.

Motor drives, switching power supplies, relays, and nearby RF systems can all affect display stability.

eDP often performs better in EMI-sensitive designs because:

• Fewer high-speed pairs are required

• Embedded clock architecture simplifies routing

• Signal integrity management is generally cleaner

That does not mean eDP automatically solves all EMI problems. PCB layout, grounding strategy, shielding, cable quality, and bonding structure still matter significantly.

Lower Power Consumption

For battery-powered devices, interface power consumption matters.

This becomes relevant in:

• Portable medical equipment

• Handheld terminals

• Field instruments

• Mobile HMI systems

eDP generally offers better power efficiency than LVDS, especially in modern low-power architectures.

Why LVDS Still Exists in Industrial Equipment?

Despite industry migration toward eDP, LVDS remains extremely common in industrial projects.

That is not because engineers are outdated.

Usually, it is because industrial systems prioritize stability over trend adoption.

In many industrial environments:

• Existing motherboards already use LVDS

• Qualification testing was completed years ago

• Cable harnesses are already validated

• EMC certification depends on current architecture

• Long-term maintenance matters more than interface modernization

Replacing LVDS with eDP may require:

• New motherboard design

• BIOS modification

• Signal conversion boards

• New cable structures

• Additional EMC validation

For some projects, the engineering cost is simply not justified.

Can eDP Replace LVDS Directly?

Not usually.

This is one of the most common misconceptions in display integration projects.

Although both interfaces are used for LCD communication, eDP and LVDS use fundamentally different signaling methods and protocols.

A passive cable replacement generally will not work.

Converting between LVDS and eDP usually requires:

• Protocol conversion ICs

• Bridge boards

• Signal timing adaptation

• Additional power management

In some cases, conversion increases system complexity and introduces additional EMI or thermal considerations.

For long cable applications in industrial environments, conversion solutions should also be evaluated carefully for signal reliability.

Which Interface Is Better for Industrial Displays?

There is no universal answer.

The decision depends heavily on application conditions.

eDP may be more suitable when:

• High resolution is required

• The system uses modern embedded CPUs

• Compact mechanical design matters

• Lower EMI is important

• Lower power consumption is needed

• Future platform scalability matters

LVDS may still make more sense when:

• Existing industrial platforms already use LVDS

• Long-term compatibility is critical

• Qualification risk must remain low

• Resolution requirements are moderate

• Product redesign budget is limited

In many industrial projects, engineering continuity matters more than adopting the newest interface standard.

Display Interface Selection Is Often a System-Level Decision

One mistake in display selection is treating the interface as an isolated specification.

In reality, interface choice affects:

• PCB layout

• Cable routing

• Thermal structure

• EMC performance

• Optical bonding stack-up

• Connector reliability

• Mechanical thickness

• Driver board architecture

• Long-term component sourcing

Especially in outdoor applications, medical devices, and industrial HMI systems, the interface decision should be evaluated together with the full display integration strategy.

For example:

A high-brightness outdoor display using optical bonding may face additional thermal load and EMI considerations. In some cases, cable routing becomes more difficult due to shielding requirements or waterproof structural constraints.

Similarly, medical devices often prioritize signal stability and low EMI behavior over aggressive display upgrades.

The “best” interface is usually the one that creates the fewest downstream engineering problems.

Conclusion

eDP is gradually becoming the preferred interface for many modern industrial displays because it supports higher bandwidth, simpler cabling, lower power consumption, and better scalability for future platforms.

At the same time, LVDS remains deeply established across industrial equipment due to its long history, platform compatibility, and proven field reliability.

The choice between eDP and LVDS is rarely just a specification comparison.

It is typically a balance between:

• performance

• compatibility

• EMC risk

• lifecycle expectations

• system architecture

• mechanical constraints

• development cost

In industrial display integration, those tradeoffs usually matter more than raw interface bandwidth alone.

For many projects, customization is still necessary to ensure the display, touch system, interface architecture, and optical structure work reliably together in the actual operating environment.

FAQ

Is eDP replacing LVDS completely?

Not entirely.

eDP is becoming more common in newer high-resolution systems, but LVDS is still widely used in industrial and medical equipment with long product lifecycles. Many legacy platforms continue using LVDS because redesign costs and qualification risks are significant.

Is eDP better than LVDS for industrial displays?

Not in every situation.

eDP generally provides higher bandwidth, lower pin count, and better scalability. However, LVDS can still be the more practical choice for stable long-term industrial platforms where compatibility and proven reliability are more important than interface modernization.

Can LVDS and eDP use the same cable?

No.

The signaling architecture is different. eDP and LVDS are not directly compatible through passive cable replacement. Conversion usually requires dedicated bridge ICs or adapter boards.

Does eDP reduce EMI problems?

It can help, but it is not a guaranteed solution.

eDP typically uses fewer differential pairs and embedded clock architecture, which may simplify signal routing and improve EMI behavior. However, PCB layout, shielding, grounding, cable quality, and overall system design still have major influence on EMC performance.

Is LVDS still suitable for Full HD displays?

In some cases, yes.

Dual-channel LVDS can support Full HD resolutions, but cable complexity and signal integrity requirements increase significantly. For newer Full HD and higher-resolution designs, eDP is often easier to integrate.

Which interface is more suitable for outdoor displays?

It depends on the full system design.

Outdoor displays often involve additional challenges such as high brightness, thermal management, waterproofing, long cable routing, and EMI exposure. The interface should be evaluated together with optical bonding structure, backlight power design, and enclosure constraints.
