9 Inch Industrial Touch Display Module | 1024x600 TFT LCD with I2C CTP

Name: 9 Inch Industrial Touch Display Module | 1024x600 TFT LCD with I2C CTP
Brand: FANNAL
Rating: 5.0 (94 reviews)

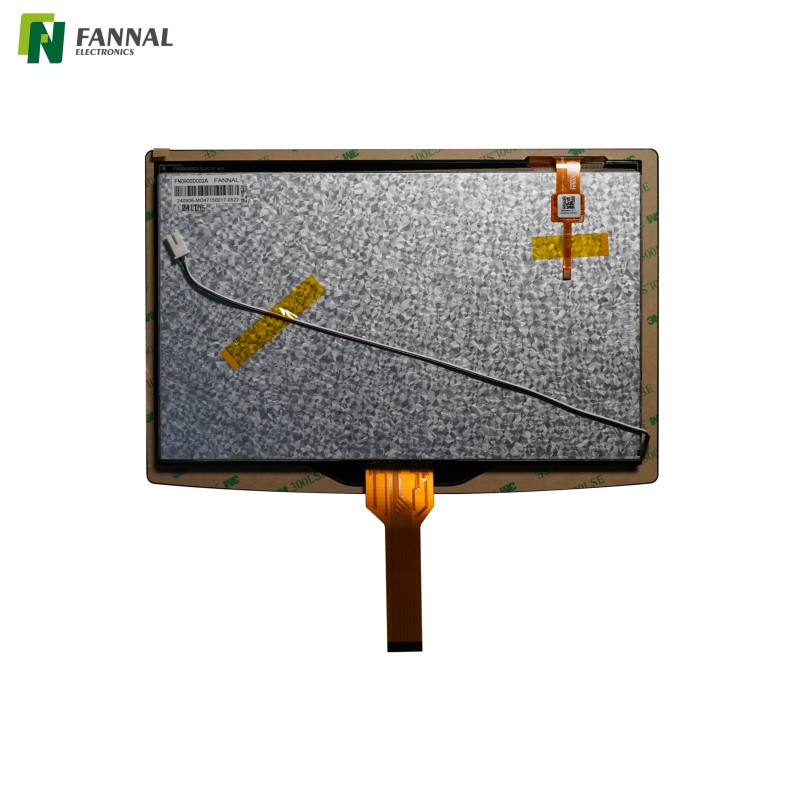

Custom 9 Inch Industrial Touch Display | Irregular Shaped G+G Touch Panel

Model:
FN090AM002
Brand:
FANNAL
Size(inch):
9
Cover OD (mm):
225.20(H)x152.0(V)x1.83(D)
Display AA(mm):
196.61(W) x 114.15(H)
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
Contrast Ratio:
500(TYP)
TP VA (mm):
197.61(H)x115.15(V)
Structure:
G+G
Resolution:
1024x600
Display Interface:
MIPI
TP Interface:
I2C
Brightness(cd/m²):
400

Quantity:
Availability:





Inquiry Add to Basket

9 Inch Industrial Touch Display

Features

Drawing & Specifications

Applications

Customizations

FAQ

Key Features

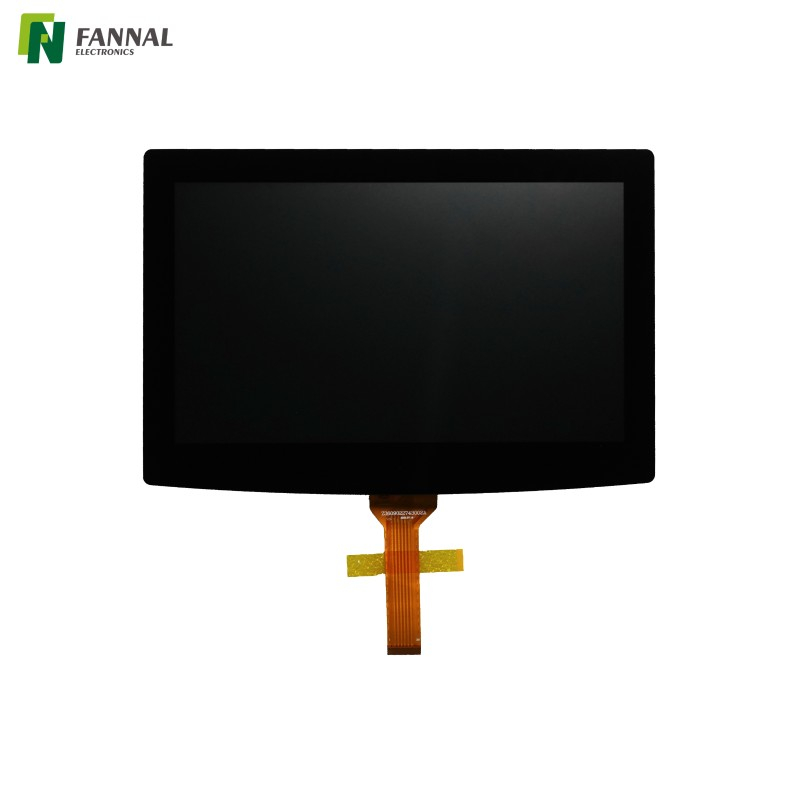

Bespoke Cover Lens Customization: We offer professional customization for the cover glass, including irregular shapes and specialized edge cutting. This specific model features a curved bottom edge to fit unique mechanical enclosures and ergonomic designs.
Superior Durability: Features a G+G (Glass-on-Glass) structure and a 6H surface hardness rating, ensuring long-term reliability and scratch resistance in harsh industrial settings.
High-Resolution Visuals: Equipped with a 1024x600 pixel TFT-LCD screen, providing a clear display with 400 cd/m² (typical) luminance for professional-grade visibility.
Advanced Touch Control: Integrated with the CYTMA568 driver IC, supporting precise 5-point multi-touch via an I2C interface.
Wide Temperature Resilience: Engineered for reliability, with an operating temperature range from -20°C to 70°C.

Drawing

Specifications

TFT-LCD General Specifications

NO.	Item	Specifications	Unit
1	LCD Size	9.0(digital)	inch
2	Resolution	1024x(RGB) x 600	pixel
3	LCD Type	TFT/Transmissive/Normally White	-
4	Contrast Ratio	500(TYP)	-
5	Luminance	360(MIN) 400(TYP)	cd/m²
6	Module Size	210.70(W) x 126.40(H) x 5.0(D)	mm
7	Active Area	196.61(W) x 114.15(H)	mm
8	Pixel Pitch	0.192 x 0.19025	mm
9	Driver IC	EK79007AD+EK7321BCGA	/
10	Colors Depth	16.7M	/
11	LED lifetime	50000(min)	Hour
12	Weight	TBD	g
13	Interface	MIPI	-
14	Operating Temperature	-20~70	℃
15	Storage Temperature	-30~80	℃

Touch Panel General Specifications

NO.	Item	Specifications	Unit
1	Touch Panel Size	9.0(Diagonal)	inch
2	Structure	G+G
3	View Area	197.61(H)x115.15(V)	mm
4	Outline Dimension	225.20(H)x152.0(V)x1.83(D)	mm
5	Transparency	85%Min
6	Surface Hardness	6H
7	Driver IC	CYTMA568-56LQI-44BB
8	Detect Points	5
9	Interface	I2C
10	Power supply	2.8-3.3	V
11	Operating Temperature	-20~70	℃
12	Storage Temperature	-30~80	℃
13	ESD (Air)	±8	KV
	ESD (Contact)	±4	KV
14	ROHS Compliance	OK
