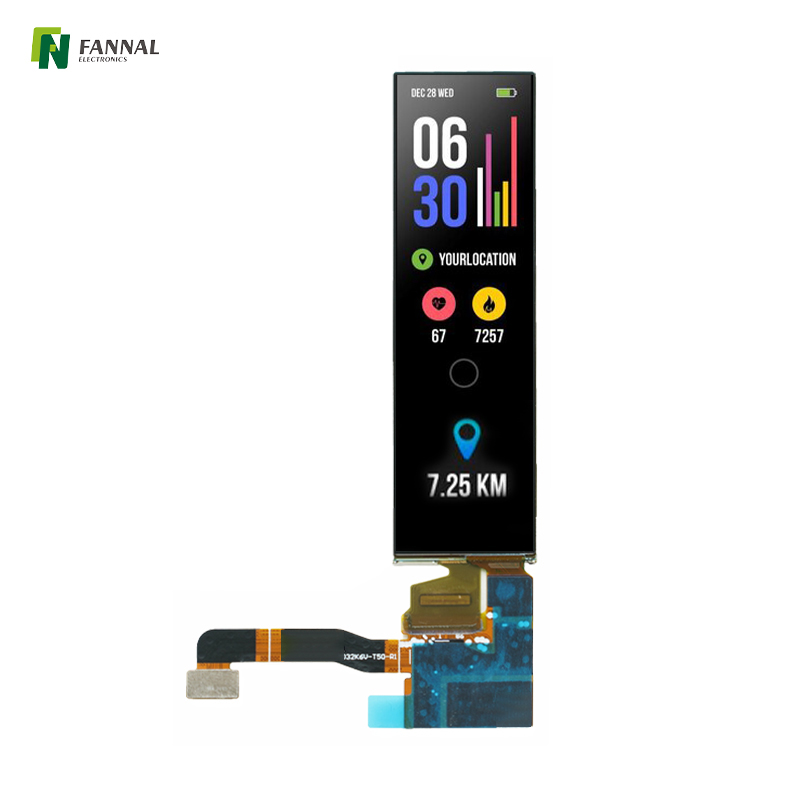

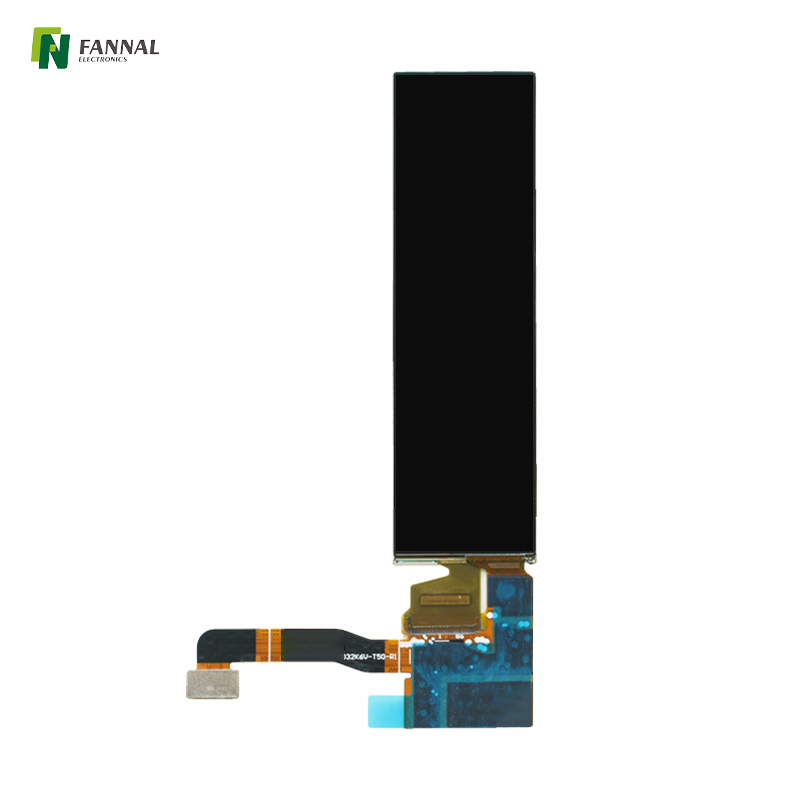

3.2 inch Bar AMOLED display 262x928 MIPI interface OLED screen

Name: 3.2 inch Bar AMOLED display 262x928 MIPI interface OLED screen
Brand: FANNAL
Rating: 5.0 (62 reviews)

3.189-inch Bar AMOLED Display

Model:
FN0320E002A
Brand:
FANNAL
Size(inch):
3.2
Operation Temp(℃):
-20~+70℃
Storage Temp(℃):
-40~+80℃
Resolution:
262×928
Direction:
ALL
Display Interface:
MIPI
Brightness(cd/m²):
500
Touch Screen:
Customization

Quantity:
Availability:





Inquiry Add to Basket

Bar AMOLED Display amoled display buy display screen

Overview

Drawing

Specification

Applications

About FANNAL

Overview

The display belongs to the standard 3.2-inch AMOLED size class, with an actual active diagonal of 3.189 inches. The display is designed for high-performance wearable devices, featuring a resolution of 262x928 pixels. With a luminance of 500 cd/m², this display ensures bright and vivid visuals, making it suitable for various applications where visibility is crucial.

Key Specifications

Active Area: 22.008 x 77.952 mm
Interface: MIPI
Luminance: 500 cd/m²
View Direction: All directions (wide viewing angles)

Features

High Resolution: The display's pixel density allows for sharp text and images, enhancing user experience in wearable applications.
Wide Viewing Angles: With the ability to view the display clearly from any angle, it ensures usability in diverse conditions.
Compact Form Factor: The bar-shaped design is particularly suited for applications like fitness trackers, smart bands, and other compact wearable devices.
Brightness: The high luminance makes the display legible even in bright environments, ensuring usability in outdoor settings.

This AMOLED display is an excellent choice for developers looking to create innovative and user-friendly wearable devices, combining functionality with outstanding visual performance.

Why choose a bar-style display?

Bar-style displays (portrait elongated aspect ratios) improve UI clarity in vertical information stacks such as lists, notifications, or status feeds. They reduce scrolling and maximize usable screen area in tight form factors.

Drawing

屏幕截图 2024-10-23 140911

Specifications

General Specifications

LCD size(inch):	3.189 (Diagonal)
Resolution:	262(H)×928(V)
Pixel Pitch:	84(H)x84(V)
Active Area(mm):	22.008(H)×77.952(V)
Module Size(mm):	23.808×81.052×0.83
Interface:	MIPI
View Direction:	ALL
Luminance(cd/m2):	500(Typ.)

Interface

Pin No.	Symbol	I/O	Description
1	GND	P	Ground.
2	GND	P	Ground.
3	LCM_CLKN	I/O	MIPI DSI clock signal.
4	VCI_EN	I	Active high enable input pin for VCI.
5	LCM_CLKP	I/O	MIPI DSI positive clock signal.
6	GND	P	Ground.
7	GND	P	Ground.
8	LCD_IO(1.8V)	P	DIC Logic 1.8V.
9	LCM_D1P	I	MIPI DSI Negative differential data signal.
10	GND	P	Ground.
11	LCM_D1P	I	MIPI DSI Positive differential data signal.
12	LCD_RESET	I	Reset signal input.
13	GND	P	Ground.
14	LCM_ID	I	ID.
15	LCM_D0N	I	MIPI DSI Negative differential data signal.
16	GND	P	Ground.
17	LCM_D0P	I	MIPI DSI Positive differential data signal.
18	VCC_CTP	P	TP Power 2.8V.
19	GND	P	Ground.
20	GND	P	Ground.
21	LCM_TE	O	Synchronous signal output from panel to avoid tearing effect.
22	CTP_RESRT	I	TP reset signal.

Electrical Characteristics

Parameter	Symbol:	Min.	Max.	Unit
EL Driving Voltage	ELVDD	-0.3	5.5	V
Module Operation voltage	VDDIO	-0.3	5.5	V

Applications

Wearable & Handheld Embedded Displays

This compact bar format is well-suited for wearable products, handheld diagnostic tools, and portable measurement devices requiring vertical information display.

Vertical Dashboards & Instrument Panels

Ideal for vertical dashboard integration in lightweight vehicles, scooters, and other compact mobility equipment where portrait orientation optimizes data layout.

Smart Home & Control Interfaces

Used in smart appliance panels, control terminals, and status displays where vertical UI layouts improve usability and space efficiency.

Industrial Embedded Systems

Applicable to embedded industrial equipment that benefits from high contrast and elongated visualization, such as process indicators, alert stacks, and status feeds.

E bike display

smart home Display

industrial-panels

About FANNAL

Well-Experienced: 15 years of experience in TFT Displays, AMOLED Displays, Touch Displays, Capacitive Touchscreens, and Touch Monitors manufacturing.

One-Stop Solution: Full in-house process for touch screen, display, and optical bonding

Global Service: Italy, Germany, France, Spain, India, Japan, Singapore, and more — timely local support.

Strong Background: Financially backed by SECO, a top European leader in embedded and display solutions.

Reliable Supply: Our long-term supplier network ensures you receive consistent quality and reliable delivery, even in high-demand seasons.

Quality Assurance: ISO 9001, ISO 14001, ISO 45001, ISO 13485 & IATF 16949 certified; REACH & RoHS compliant.

Album

FANNAL Ablum

FAQ

Q1: What interface does this 3.2″ AMOLED display use?

A:
This display uses a MIPI interface, commonly supported by mobile processors and many embedded display controllers. MIPI simplifies wiring and supports efficient high-speed data transfer.

Q2: Is the bar-style form factor advantageous?

A:
Yes. The vertical bar shape is particularly useful for layouts where information is best presented in a tall orientation, such as lists, status feeds, or compact dashboards, reducing UI scaling complexity.

Q3: What are the visual benefits of AMOLED over LCD?

A:
AMOLED self-emissive technology produces deep blacks, high contrast, and wide viewing angles without the need for backlight modules, enhancing readability and visual impact in compact display formats.

Q4: Can this display be integrated with common embedded platforms?

A:
Yes—thanks to the MIPI interface, it can be paired with many embedded processors and driver boards that support MIPI, allowing flexible system design for compact displays.

Q5: What types of applications is this display suited for?

A:
This bar-style display is suited for applications that require vertical content presentation in a compact footprint, including wearables, handheld devices, smart control panels, and industrial embedded systems.
