6.5 Inch G+G Capacitive Touch Panel | 10-Point IIC/USB

6.5 Inch Industrial Touch Screen Panel for HMI & Embedded Devices

Model:
FN0650P001A
Size(inch):
6.5
Cover OD (mm):
155.98*127.46*3.9
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
TP VA (mm):
133.98(H) x 100.86(V)
Structure:
G+G
TP Interface:
IIC

Quantity:
Availability:





Inquiry Add to Basket

capacitive touch panel

Drawing

Specifications

Applications

Customizations

FAQ

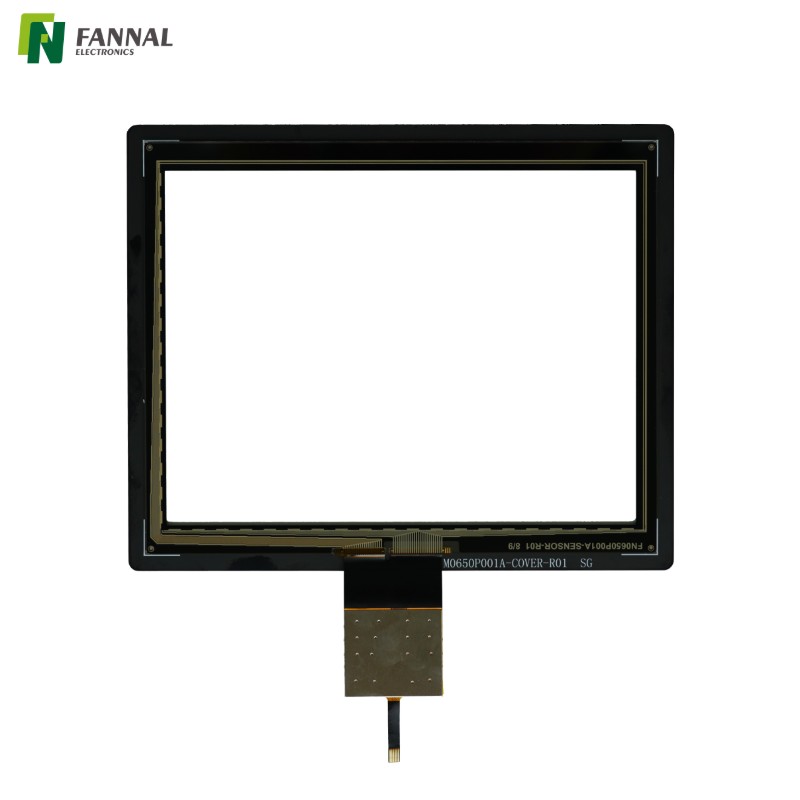

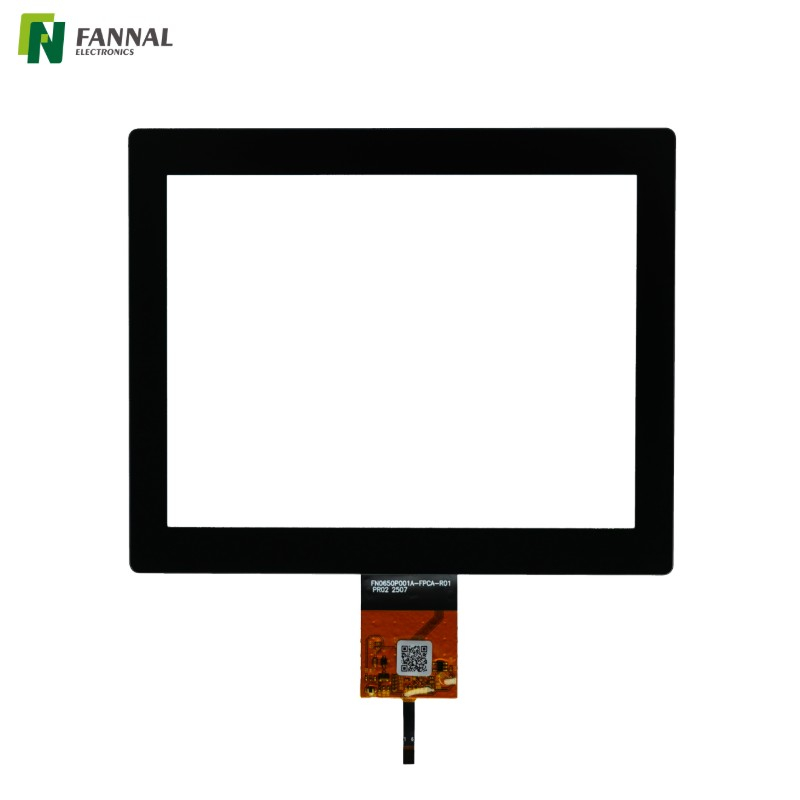

This 6.5-inch G+G capacitive touch panel is designed for industrial and embedded applications requiring stable multi-touch performance and mechanical durability.

Featuring a 3.0mm chemically strengthened cover glass and mxT1664T3 touch controller, it supports 10-point touch with both IIC interfaces. The panel operates reliably in -20°C to +70°C environments, making it suitable for HMI terminals and integrated display systems.

Key Features

G+G structure with 3.0mm cover glass
Chemically strengthened surface (≥7H)
10-point multi-touch (Finger)
IIC interface
-20°C ~ +70°C operating range
RoHS-2.0 compliant

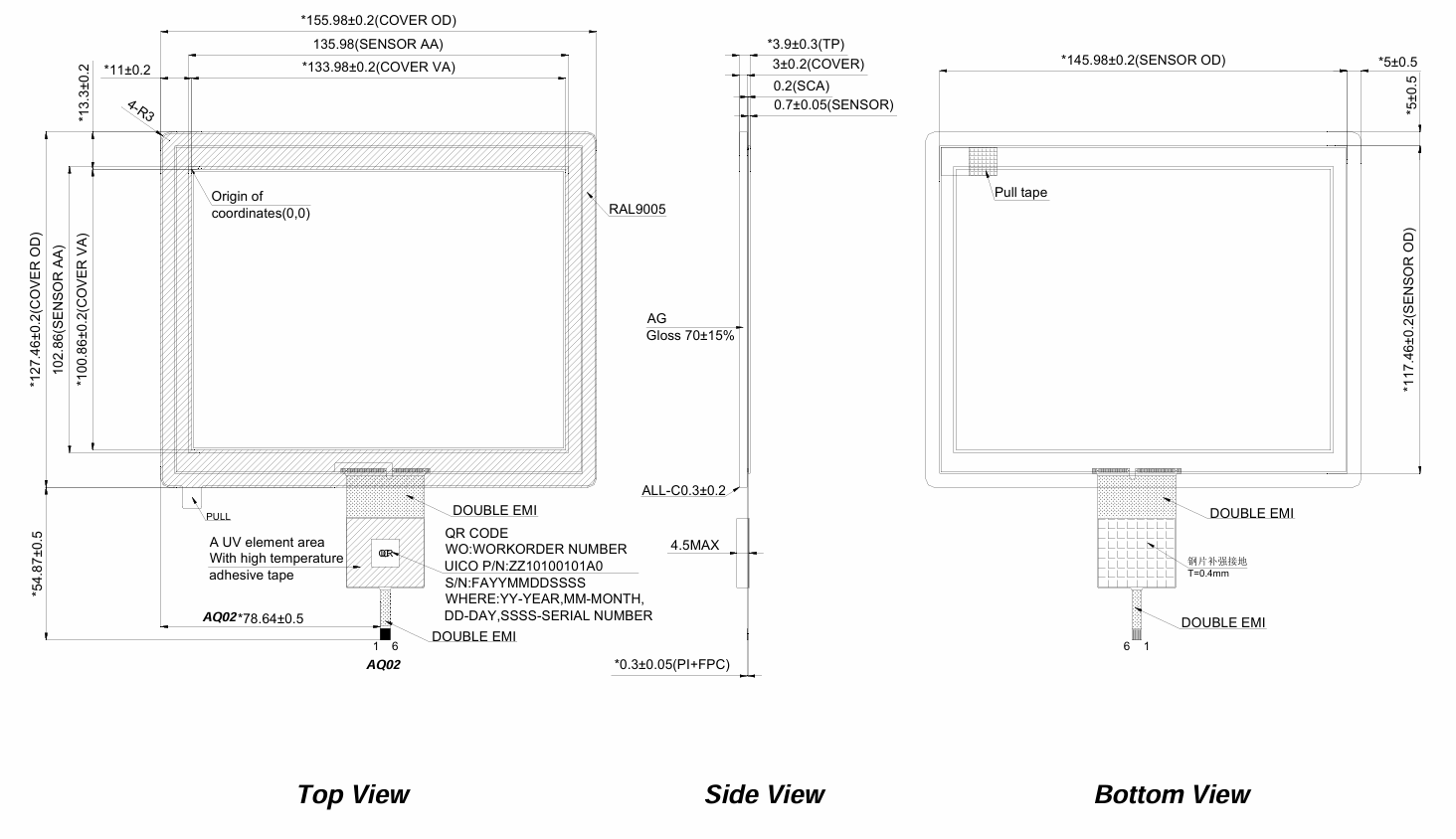

Drawing

Specifications

Category	Item	Specification	Unit / Remark
Mechanical	TP Active Size	6.5 (Diagonal)	Inch
	TP Outline Size	155.98(H) x 127.46(V) x 3.9(T)	mm
	View Area	133.98(H) x 100.86(V)	mm
Structure	Product Structure	G+G
	Cover Material	Sodalime Glass	3.0mm Thickness
	Sensor Material	ITO Glass	0.7mm Thickness
	Strengthening Method	Chemically Strengthened
Electronic	Touch Controller	mxT1664T3
	No. Of Touch	10 Points
	Touch Interface	IIC	Dual support indicated
	Touch Mode	Finger
Optical/Physical	Surface Hardness	≥7H	750g load
	Touch Transmittance	82% ~ 85% Min.
	Surface Treatment	-
Environmental	Operating Temperature	-20°C ~ +70°C
	Storage Temperature	-30°C ~ +80°C
	Humidity	10% ~ 90%
	Requirements	RoHS-2.0

Applications

This 6.5-inch G+G capacitive touch panel is suitable for integration into industrial and embedded display systems where stable multi-touch performance and mechanical durability are required.

Typical application areas include:

Industrial HMI Terminals
Used in control panels and operator interfaces requiring reliable touch input in continuous operation environments.
Embedded Control Devices
Suitable for integrated display modules in automation equipment and system controllers.
Medical & Laboratory Equipment
Applicable to devices operating within controlled indoor environments where stable capacitive touch input is required.
Commercial Control Panels
Designed for equipment requiring a robust glass surface and multi-touch functionality.

Customizations

To support diverse system integration requirements, FANNAL provides flexible customization services covering touch panel design, display integration, and optical bonding.

● Touch Panel Customization

Size Support: Up to 65”
Structure Options: G+G, G+F+F
Operating Temperature:
- Industrial: –20°C ~ +70°C
- Automotive: –30°C ~ +85°C
Enhanced Functions:
Waterproof touch
Glove touch
Passive stylus support
Gesture & palm rejection

● Touch Controller & Firmware

In-house firmware tuning and touch parameter optimisation
IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip
EMC-focused hardware design
Strong anti-interference capability for industrial systems

● Cover Lens Customisation

Material Options:
Glass (0.55mm–10mm)
PMMA (0.5mm–3mm)
PC (0.1mm–1mm)
Processing Options:
CNC machining
2.5D / 3D hot bending
Ceramic silk printing
Surface Treatment:
AG / AR / AF
Anti-microbial
Anti-explosion

● Display & Interface Integration

Beyond standalone touch panels, FANNAL supports full display module integration:

LCD sizes: 1.77" – 15.6"
Panel partners: BOE, Innolux, JDI, Hannstar, CTC, TCL, Tianma
Panel types: IPS / TN / LTPS
Interface conversion: SPI, MCU, RGB, MIPI, LVDS, eDP
Driver boards: HDMI / VGA / LVDS / Type-C

● Optical Bonding Services

Bonding Type	Size Support	Application
OCA	Up to 15.6”	High-volume automated production
LOCA / OCR	Up to 32”	Enhanced contrast & durability
Silicone	Up to 32”	Rugged industrial environments

FAQ

1. Can this 6.5" touch panel be integrated with different LCD brands?

Yes. The touch panel is designed for flexible integration and can be matched with LCD panels from major suppliers such as BOE, Innolux, Tianma and others. Mechanical alignment, FPC definition and controller tuning can be adjusted according to the selected display.

2. Does this touch panel support firmware tuning for EMC or noise environments?

Yes. Firmware tuning and parameter optimisation can be provided to improve noise immunity in electrically complex environments. This is especially important for industrial control systems with high EMI exposure.

3. Can the cover glass be customised in shape, printing or thickness?

Yes. The cover lens can be customised in outline shape, edge finishing (2.5D/3D), silk printing and thickness adjustment. Surface treatments such as AG, AR or AF are also available depending on the application requirement.

4. Is optical bonding available for this model?

Yes. This touch panel can be supplied as a standalone part or integrated with LCD through OCA, LOCA or silicone optical bonding. Bonding selection depends on brightness requirements, environmental conditions and mechanical design.

5. What is the typical product lifecycle and supply stability?

The product is positioned for industrial applications with stable long-term supply planning. Lifecycle support and change notification procedures can be provided upon request to reduce project risk.
