In industrial display systems, a parallel display interface refers to a method where pixel or control data is transmitted using multiple data lines at the same time.
Compared to serial interfaces such as MIPI DSI or eDP, parallel interfaces do not serialize data into high-speed differential signals. Instead, they rely on wider buses and simpler timing relationships between the host system and the TFT panel.
This is an older architecture, but it is still widely used in MCU-based designs, cost-sensitive products, and systems where long-term stability matters more than bandwidth efficiency.

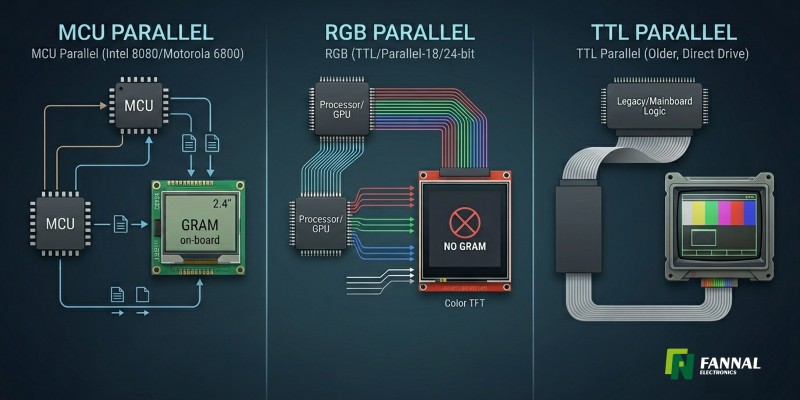

In practice, most parallel interfaces fall into three categories:
RGB (DPI / TTL RGB)
MCU parallel interfaces (8080 / 6800)
Generic TTL parallel formats (16/18/24-bit)
They are often confused as one type, but in real system design they behave quite differently.
RGB parallel interface (often called DPI or TTL RGB) is the closest thing to a “video signal” in the parallel world.
The host continuously streams pixel data to the display in sync with a pixel clock, and the panel refreshes in real time.

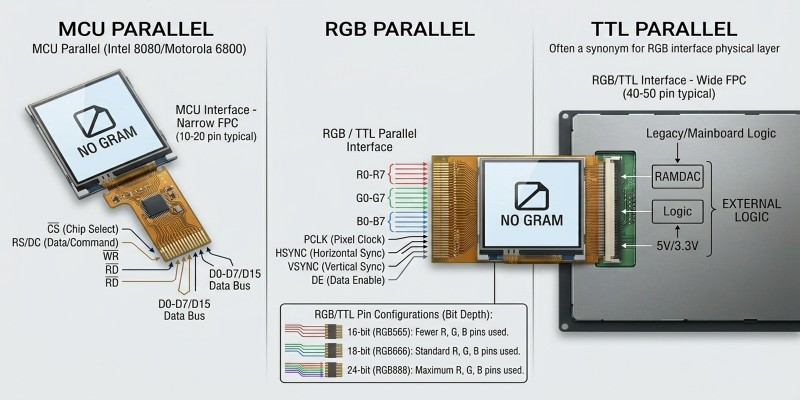

Typical signals include:
R[7:0], G[7:0], B[7:0]
PCLK (pixel clock)
HSYNC / VSYNC
DE (data enable)
There is no concept of “writing a pixel” in the software sense. Once the pipeline is running, data flows continuously.
This is why RGB is usually found in:
Embedded Linux systems with display controllers
FPGA-based display pipelines
Industrial HMIs with medium-resolution panels
Custom SoC display outputs
The cost of this simplicity is hardware overhead. More pins are required, PCB routing becomes more sensitive, and signal integrity starts to matter as resolution increases.
But in systems that already have a display controller, RGB is still one of the most direct ways to connect a TFT panel.
MCU parallel interfaces are structurally different from RGB. They are not designed for continuous streaming, but for controlled access to display memory.
The most commonly used standard is the 8080 (i80) interface. The 6800 interface still exists but is less common in new designs.
A typical 8080 interface includes:
Data bus (D0–D15)
WR (write signal)
RD (read signal)
CS (chip select)
DC (data/command select)
Instead of streaming pixels continuously, the MCU interacts with the display controller in a command-based manner.
A simplified update sequence usually looks like this:
Define display window
Send command to set address
Write pixel data into GRAM
Internal controller refreshes the panel
In this model, the display controller behaves more like a memory-mapped device rather than a video sink.
This architecture is common in:
MCU-driven TFT modules
Industrial control panels
Simple HMI interfaces with moderate refresh requirements
The 6800 interface follows a similar concept but uses a different timing control mechanism (E / R-W signals). It is mostly seen in legacy systems and rarely selected for new designs.
In many datasheets, “parallel RGB” is also described by bit width:
24-bit RGB (RGB888)
18-bit RGB (RGB666)
16-bit RGB (RGB565)
This is not a separate interface type. It is simply a configuration of the same RGB parallel structure.
The decision is usually not about image quality in a strict sense, but about system constraints:
Available GPIOs on the SoC or FPGA
PCB routing complexity
Connector cost and space
Power and EMI considerations
In real industrial projects, reducing bit width is often a system trade-off rather than a display quality decision.
Interface Type | Signal Model | System Behavior | Complexity | Typical Use Case |
|---|---|---|---|---|
RGB (DPI / TTL RGB) | Continuous pixel streaming | Real-time video pipeline | Medium–High (routing sensitive) | SoC / FPGA display systems, industrial HMI |
MCU 8080 (i80) | Command + memory write | Register + GRAM access | Low–Medium | MCU-based embedded displays |
MCU 6800 | Command + memory write | Similar to 8080, different timing | Low–Medium | Legacy industrial systems |
TTL Parallel (16/18/24-bit) | RGB variant | Depends on host implementation | Medium | Cost-optimized embedded systems |
This table is not about performance ranking. In real projects, the choice is usually determined by system architecture rather than interface capability.
Parallel interfaces are not chosen because they are modern. In many cases, they are chosen because they reduce system risk.
MCU platforms already support 8080 or RGB natively. Switching to serial interfaces often means redesigning the entire display pipeline, not just changing a connector.
Another practical reason is predictability. Parallel interfaces do not require high-speed SERDES design, differential pair tuning, or complex PHY validation. Once a system is stable, it tends to remain stable for a long time.
In industrial environments where product lifecycles can easily exceed 5–10 years, that stability is often more valuable than interface efficiency.
It is easy to treat display interfaces as a performance comparison, but in actual engineering work, the decision is usually structural.
RGB interfaces are typically tied to SoC display controllers with continuous output pipelines.
8080 interfaces are tied to MCU-based systems where display memory is written explicitly.
Serial interfaces like MIPI, LVDS, and eDP belong to high-speed SoC or IPC architectures where bandwidth and layout constraints dominate design decisions.
So the interface is not an isolated choice. It reflects the underlying system architecture.
In many cases, the real decision is not “which interface should we use,” but “what kind of system are we building around this display.”
Parallel display interfaces represent a straightforward but still widely used approach in TFT system design.
RGB (DPI) provides continuous video-style output for SoC-driven systems.
8080/6800 interfaces support command-based display control for MCU systems.
TTL parallel configurations adjust bit width to fit system constraints.
While serial interfaces have become the mainstream for high-resolution and high-speed applications, parallel interfaces still remain relevant in industrial and embedded systems where simplicity, cost control, and long-term stability are more important than interface evolution.
In real-world designs, parallel interfaces are often not the most advanced option—but they are still one of the most practical ones.
Parallel interfaces usually become restrictive when higher resolutions, faster refresh rates, or tighter PCB layouts push the design beyond comfortable signal margins. In many cases, the challenge is not the interface itself, but the growing complexity of routing, EMI management, and available IO resources on the host platform.
For long-lifecycle industrial equipment, the display interface is often tied closely to the existing controller architecture. Moving to a serial interface may require changes to the processor platform, software framework, and validation process. If the current solution already meets performance requirements, maintaining a proven architecture is often the lower-risk decision.
In practice, the issue is rarely the RGB protocol itself. As clock frequencies increase, PCB routing quality becomes more critical. Timing mismatches between signals, trace length differences, and EMI effects often become the factors that determine whether a design remains stable.
Reducing from 24-bit to 18-bit or 16-bit RGB can help relieve IO pressure and simplify routing when system constraints are moderate. However, if the design is already approaching its limits in terms of layout complexity or signal timing, transitioning to a serial interface may provide a more sustainable long-term solution.
TTL parallel options continue to exist because they offer flexibility during system integration. Supporting multiple bit-depth configurations allows display modules to work with a wider range of processors and hardware constraints without requiring major architectural changes.
