LCD Display Resolution, Screen Size & Aspect Ratio Explained

Selecting an LCD display involves more than simply choosing a screen size.

Engineers and product designers must also consider display resolution, aspect ratio, pixel density, viewing distance, interface compatibility, and mechanical installation requirements. These factors directly affect image quality, user experience, system performance, and product cost.

For industrial applications, selecting the right display is even more important. A machine control panel, medical device, handheld terminal, or outdoor equipment may all require different combinations of screen size, resolution, and aspect ratio to achieve the best balance between performance and reliability.

This guide explains the relationships between LCD screen size, display resolution, and aspect ratio, compares the most common display formats, and provides practical recommendations for selecting an industrial LCD display.

What Is LCD Screen Size?

LCD screen size refers to the diagonal measurement of the display's active viewing area. It is typically expressed in inches, such as 5", 7", 10.1", or 15.6".

However, the screen size alone does not describe the actual dimensions of the display.

For example, two 10.1-inch LCD panels may have different widths and heights if they use different aspect ratios.

This is because the diagonal length remains the same while the width-to-height relationship changes.

Therefore, engineers should always verify the following specifications instead of relying only on the screen size:

• Active Area (AA)

• Outline Dimension (OD)

• Viewing Area (VA)

• Mechanical mounting space

These dimensions determine whether a display can fit into the product enclosure.

What Is Display Resolution?

Display resolution describes the number of pixels arranged across the screen.

It is usually expressed as:

Horizontal Pixels × Vertical Pixels

Examples include:

A higher resolution means the display contains more pixels, allowing it to present finer details and smoother images.

However, higher resolution does not always mean better image quality.

The perceived sharpness also depends on the physical size of the display.

For example, both of the following displays have the same Full HD resolution:

• 7-inch 1920 × 1080

• 15.6-inch 1920 × 1080

Although they contain the same number of pixels, the smaller display packs those pixels into a much smaller area, resulting in a much higher pixel density.

What Is Pixel Density (PPI)?

Pixel density, commonly measured in Pixels Per Inch (PPI), describes how closely pixels are packed on a display.

Generally speaking:

• Higher PPI produces sharper text and finer image details.

• Lower PPI makes individual pixels more noticeable, especially at close viewing distances.

For industrial applications, selecting the highest PPI is not always necessary.

For example:

• A handheld medical device viewed from a short distance may benefit from a higher pixel density.

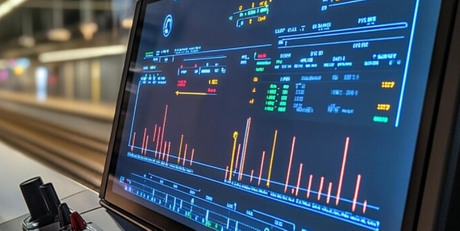

• A factory HMI viewed from one meter away may not require an extremely high-resolution display.

Instead of pursuing the highest resolution, engineers should choose a pixel density that matches the viewing distance and application requirements.

What Is Aspect Ratio?

Aspect ratio describes the proportional relationship between the display's width and height.

Unlike screen size, aspect ratio does not indicate the physical dimensions or the number of pixels. Instead, it defines the overall shape of the display.

Some common aspect ratios include:

Each aspect ratio has its own advantages and trade-offs. The best choice depends on the application rather than simply selecting the widest or highest-resolution display.

Resolution vs. Screen Size vs. Aspect Ratio

These three terms are often confused, but they describe different characteristics of a display.

A useful way to understand their relationship is:

• Screen size determines the physical dimensions of the display.

• Resolution determines how much image information can be shown.

• Aspect ratio determines the shape of the display and influences the user interface layout.

All three factors work together. Changing one specification often affects the others, which is why display selection should always consider the complete system design rather than a single parameter.

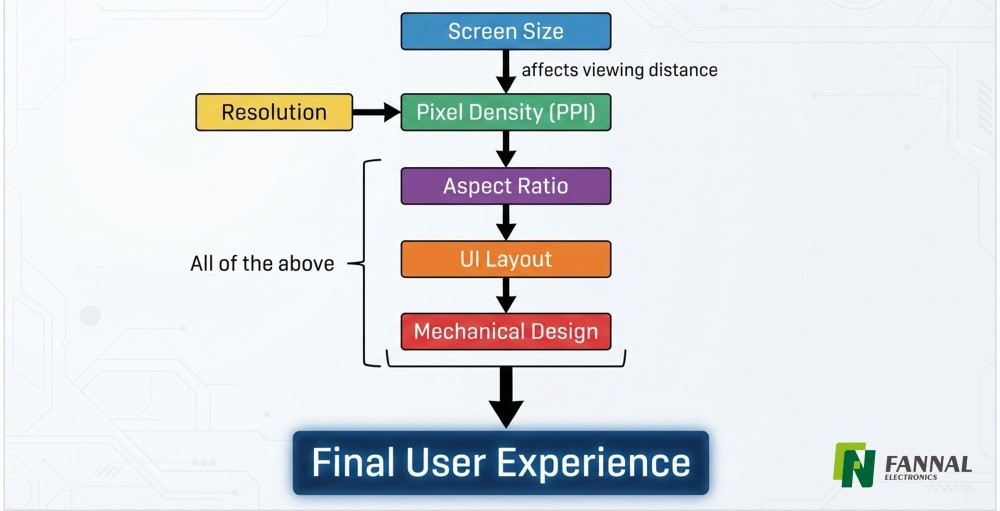

How Screen Size, Resolution, and Aspect Ratio Work Together

Screen size, resolution, and aspect ratio are often discussed as separate specifications, but in practice they work together to determine the overall performance of an LCD display.

When selecting a display for an industrial application, focusing on a single specification can easily lead to an unbalanced design. A larger screen does not automatically improve usability, a higher resolution does not always produce a better user experience, and a wider aspect ratio is not suitable for every application.

Instead, these specifications should be evaluated together according to the product's operating environment, user interface, hardware capability, and mechanical constraints.

The relationship can be summarized below.

Although these specifications are independent, changing one usually affects the others.

For example:

• Increasing the resolution while keeping the same screen size improves pixel density, making text and graphics appear sharper. However, it also increases graphics processing requirements and system cost.

• Increasing the screen size without changing the resolution makes icons and text physically larger, but reduces pixel density and image sharpness.

• Changing the aspect ratio affects how information is arranged rather than how sharp it appears. A wider display provides more horizontal workspace, while a taller display offers additional room for menus and parameter lists.

Rather than maximizing one specification, engineers should balance all three based on the application's functional requirements.

Design Example: Different Applications Require Different Display Priorities

The following examples illustrate how display selection changes depending on the application rather than simply choosing the highest specification.

These examples demonstrate that display selection is always application-driven.

For example, a factory operator viewing a control panel from one meter away may gain little benefit from a Full HD display if the interface contains only large buttons and status indicators. In this case, a lower-resolution display can reduce hardware requirements and overall system cost without affecting usability.

By contrast, a medical imaging device or an industrial inspection system may need to display fine graphics, detailed charts, or high-resolution images. A higher-resolution panel becomes valuable because it improves image clarity and allows more information to be displayed simultaneously.

Similarly, a wide aspect ratio display is useful only when the user interface is designed to take advantage of the additional horizontal space. Otherwise, the extra screen area may remain unused while increasing material cost.

Engineering Design Tips

When selecting an LCD display, it is generally more effective to optimize the entire system rather than pursuing the highest specification in every category.

Ultimately, the best LCD display is not defined by having the largest screen, the highest resolution, or the widest aspect ratio. It is the display that delivers the right balance between image quality, usability, system performance, mechanical integration, and long-term reliability.

Common LCD Resolutions and Their Aspect Ratios

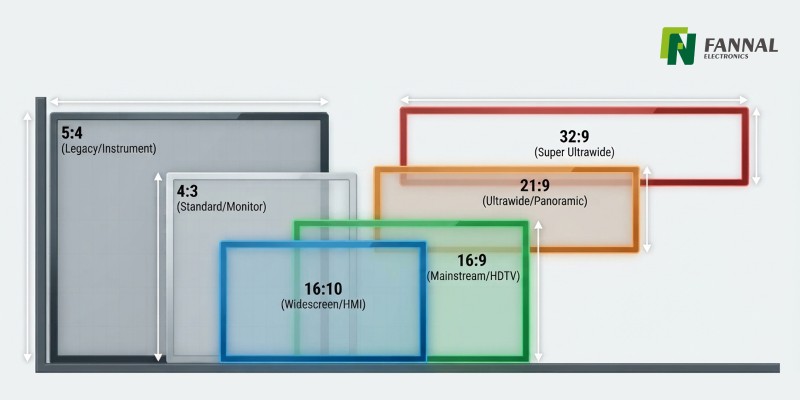

Common LCD Display Aspect Ratios Explained

There is no universally "best" aspect ratio for every LCD display.

Each display format is designed to balance viewing area, information layout, mechanical integration, and manufacturing availability. Choosing the right aspect ratio depends on the application's functional requirements rather than simply selecting the widest or highest-resolution display.

The following are the most common aspect ratios used in industrial LCD applications.

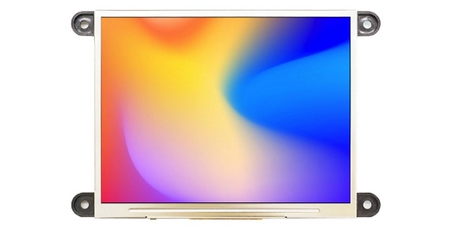

4:3 Aspect Ratio

A 4:3 display provides more vertical space than modern widescreen formats, making it well suited for legacy industrial systems, medical devices, and applications that display long parameter lists. Although fewer new panels are introduced today, 4:3 remains a practical choice when upgrading existing equipment or maintaining software designed for this format.

5:4 Aspect Ratio

Commonly represented by 1280 × 1024 (SXGA), the 5:4 aspect ratio is widely used in industrial automation and factory control systems. It offers a slightly taller display than 4:3 and continues to be used in applications that require compatibility with traditional industrial computers and control platforms.

16:9 Aspect Ratio

The 16:9 aspect ratio is the most widely available LCD format, offering the largest panel selection, broad software compatibility, and competitive pricing. It is suitable for most industrial displays, although applications requiring additional vertical workspace may benefit from a 16:10 display instead.

16:10 Aspect Ratio

A 16:10 display provides extra vertical space while maintaining a widescreen layout. This additional height improves the usability of industrial HMI interfaces, parameter lists, and engineering software, making it a popular choice for industrial and medical equipment.

21:9 Ultrawide Aspect Ratio

A 21:9 display expands the horizontal workspace, making it suitable for dashboards, monitoring systems, and visualization platforms. To maximize its benefits, the user interface should be specifically designed for an ultrawide layout; otherwise, the additional screen width may provide little practical value.

32:9 Super Ultrawide Aspect Ratio

A 32:9 display provides an extremely wide viewing area and is typically used in specialized applications such as control centers, simulation systems, and panoramic monitoring. Compared with standard formats, it generally requires more graphics processing power and has fewer standard panel options.

Stretched LCD Displays

Unlike standard aspect ratios, a stretched LCD display uses a customized long and narrow format to fit space-constrained products. It is commonly used in transportation systems, shelf-edge displays, vending machines, and industrial equipment where a conventional display cannot efficiently utilize the available installation space.

Which Aspect Ratio Should You Choose?

Selecting an aspect ratio is often a trade-off between interface design, mechanical constraints, and system cost.

The following recommendations can serve as a general reference.

However, the aspect ratio should never be selected in isolation.

A successful industrial display design should also consider:

• Mechanical dimensions

• Resolution

• Pixel density

• Viewing distance

• Brightness

• Display interface

• Touch technology

• Environmental conditions

• Long-term panel availability

Choosing the Right LCD Display for Industrial Applications

Selecting the right LCD display involves more than comparing specifications.

Before finalizing a display solution, engineers should evaluate the following questions:

• Does the display fit the available installation space?

• Is the aspect ratio suitable for the user interface?

• Does the resolution provide sufficient image detail?

• Is the brightness appropriate for the operating environment?

• Is the display interface compatible with the host system?

• Will the panel remain available throughout the product life cycle?

• Is a standard panel sufficient, or is a custom display required?

In many industrial projects, there is no single perfect specification. The best solution is usually the one that balances performance, reliability, manufacturability, and total cost of ownership.

Custom LCD Display Solutions

Standard LCD panels meet the needs of many applications, but some products require customized display solutions to achieve the desired mechanical design or user experience.

FANNAL provides customized LCD display and touch solutions for industrial applications, including:

• Custom TFT LCD modules

• High-brightness displays

• Wide aspect ratio displays

• Stretched LCD displays

• PCAP touch integration

• Optical bonding

• Cover glass customization

• Interface customization

Whether you need a standard widescreen LCD or a fully customized display solution, selecting the appropriate screen size, resolution, and aspect ratio is the foundation of a successful product design.

Frequently Asked Questions

Does a higher resolution always provide better image quality?

Not necessarily.

Image quality depends on multiple factors, including screen size, pixel density (PPI), viewing distance, display technology, brightness, and optical performance. A higher resolution improves image detail only when it matches the application's viewing conditions.

Why do many industrial displays still use 4:3 or 5:4 aspect ratios?

Many industrial control systems were originally designed around these formats. In addition, interfaces with large amounts of vertical information may benefit from a taller display rather than a wider one.

Is 2560 × 1440 an ultrawide resolution?

No.

2560 × 1440 uses a 16:9 aspect ratio and is commonly known as QHD. A typical ultrawide resolution is 3440 × 1440, which uses a 21:9 aspect ratio.

Is 4K always a 16:9 display?

No.

The most common 4K UHD resolution (3840 × 2160) uses a 16:9 aspect ratio, while DCI 4K (4096 × 2160) uses a wider 17:9 format. Resolution and aspect ratio are related but not identical concepts.

Can LCD displays be customized to different aspect ratios?

Yes.

For industrial applications, custom LCD solutions can be designed with different screen sizes, resolutions, aspect ratios, touch technologies, brightness levels, interfaces, and optical bonding configurations to meet specific product requirements.
