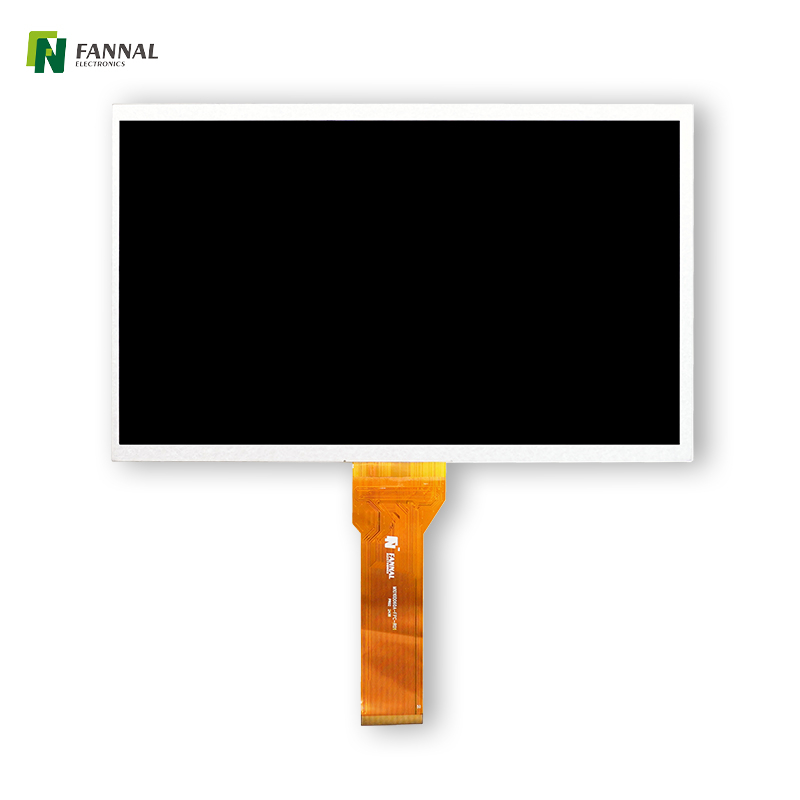

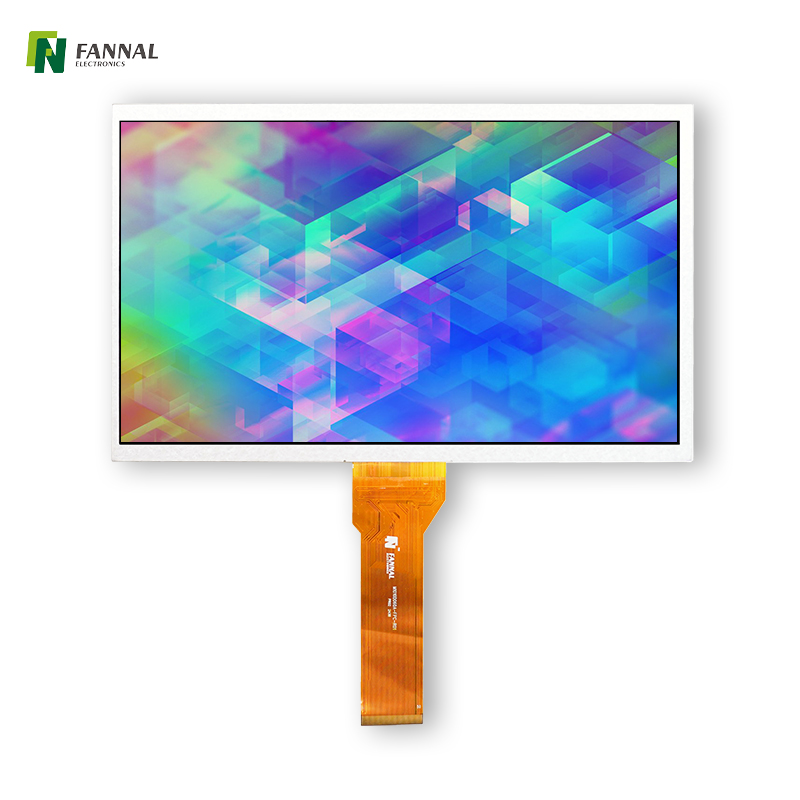

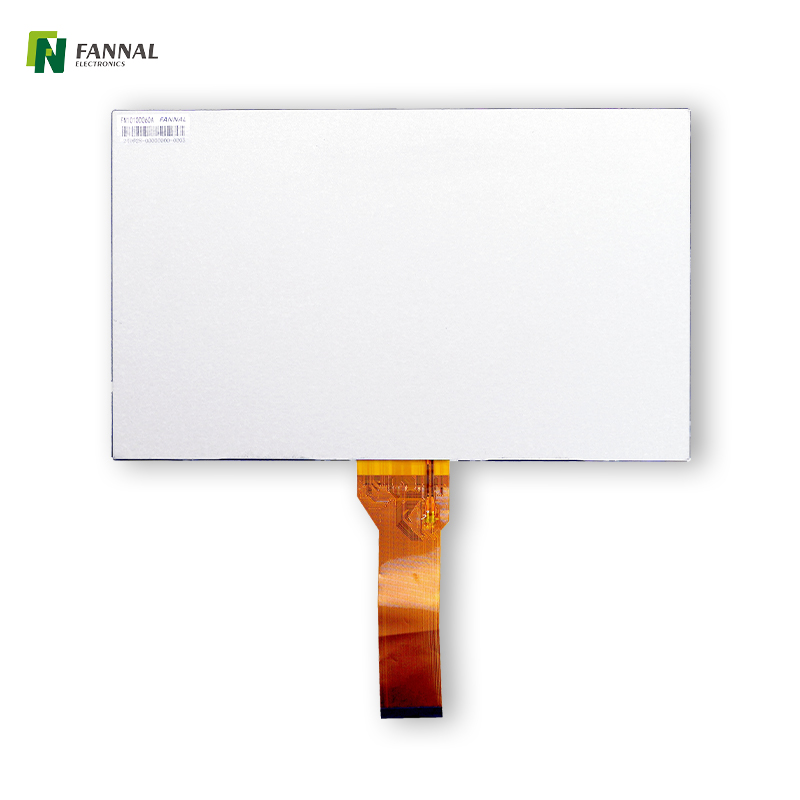

10.1" TFT LCD Display, 1024x600, Wide Viewing Angle

Model:
FN1010D060A
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
Resolution:
1024x600
Direction:
ALL
Interface:
RGB
Brightness(cd/m²):
400
Touch Screen:
Customizable

Quantity:
Availability:





Inquiry Add to Basket Download

10 inch TFT display wide viewing angle 10 inch LCD display high-resolution 10 inch TFT display industrial 10 inch TFT display automotive 10 inch TFT display

Product Features

Product Drawing

Specification

Add Ons

Product Application

详情页IPS工控

10.1" TFT LCD Display, 1024x600, Wide Viewing Angle

the 10.1" TFT LCD display, with its 1024x600 resolution and wide viewing angle, is an outstanding choice for anyone seeking high-quality visual technology. Its versatility, user-friendly design, and exceptional performance make it a must-have for both personal and professional use. Embrace the future of display technology with this innovative solution, and elevate your digital experience today.

One of the standout features of this display is its wide viewing angle. Users can enjoy clear images from various perspectives, making it ideal for collaborative work or presentations. Whether you're watching videos, browsing the web, or using software applications, the display delivers consistent color accuracy and brightness.

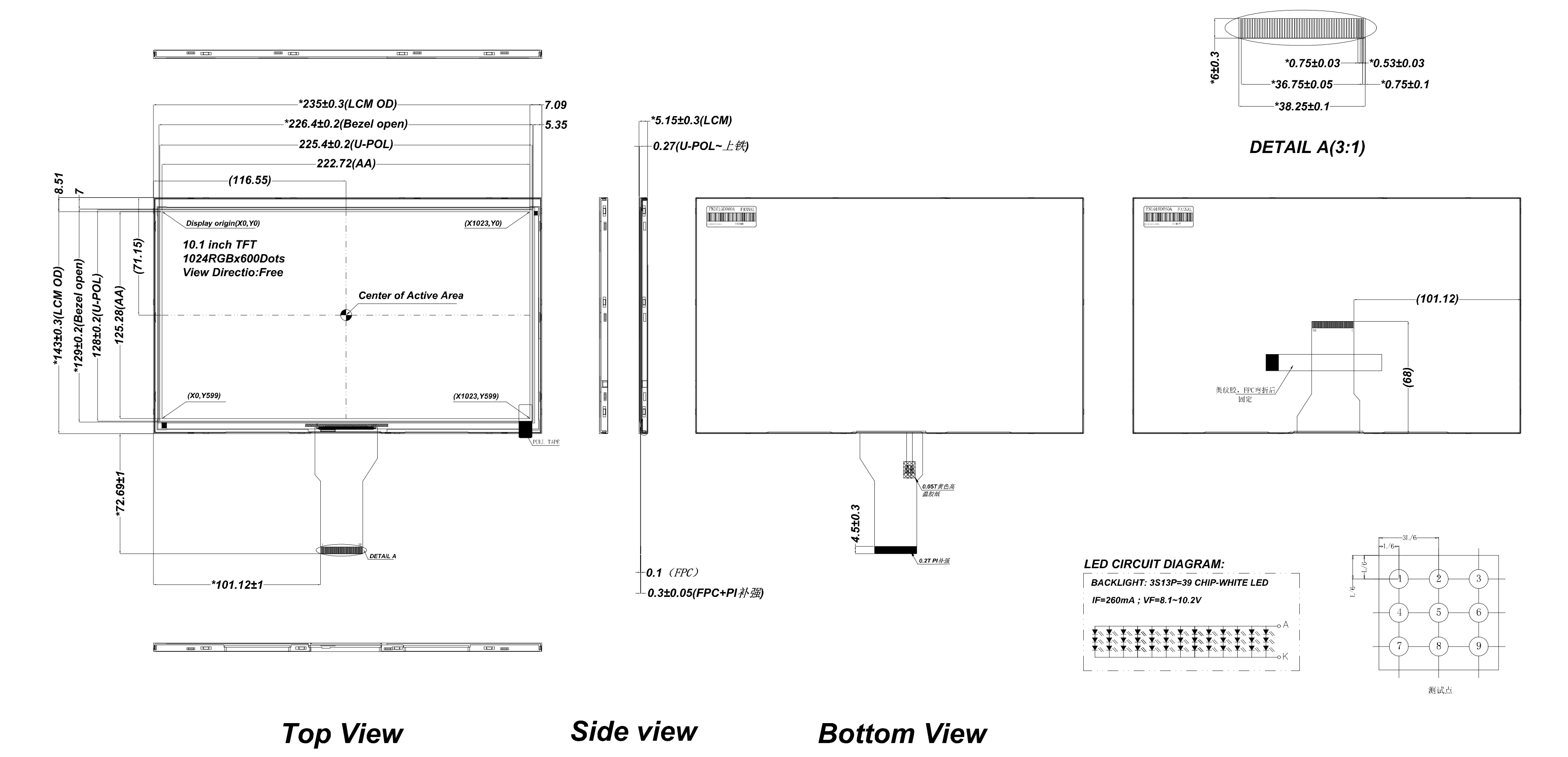

FN1010D060A 2D

General Specifications：

LCD size(inch):	10.1 (Diagonal)
Resolution:	1024(H)×600(V)
Pixel Pitch:	0.2175x0.2088(V)
Active Area(mm):	222.72(H)×125.28(V)
Module Size(mm):	235(W)×143(H)×5.15(D)
Display Mode(mm):	Normally Black
Interface:	RGB
Pixel arrangement:	RGB-Vertical Stripe
View Direction:	ALL
Luminance(cd/m2):	400(Typ.)
Operating Temperature(°C):	-20~+70
Storage Temperature(°C):	-30~+80

Interface:

Pin No.	Symbol	I/O	Description
1-2	LEDA	P	Power supply for LED anode input.
3-4	LEDK	P	Power supply for LED cathode input.
5	GND	P	Power ground
6	VCOM	P	Common voltage
7	VDD	P	Power for Digital Circuit
8	MODE	I	DE/SYNC mode select
9	DE	I	Data Input Enable
10	VS	I	Vertical Sync Input
11	HS	I	Horizontal Sync Input
12-19	B7-B0	I	Blue data input.
20-27	G7-G0	I	Green data input.
28-35	R7-R0	I	Red data input.
36	GND	P	Power ground
37	DCLK	I	Sample clock
38	GND	P	Power ground
39	L/R	I	Left / right selection
40	U/D	I	Up/down selection
41	VGH	P	Gate ON Voltage
42	VGL	P	Gate OFF Voltage
43	AVDD	P	Power for Analog Circuit
44	RESET	I	Global reset pin.
45	NC	-	No connection
46	VCOM	P	Common Voltage
47	DITHB	I	Dithering function
48	GND	P	Power ground
49-50	NC	-	No connection

Electrical Characteristics:

Parameter	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	VDD	2.3	3.3	3.6	V
	AVDD	-	9.6	-	V
	VGH	-	18	-	V
	VGL	-	-6	-	V
	VCOM	4.0	4.2	4.4	V
Power Supply current	IDD	-	TBD	-	mA
Input logic high voltage	VIH	0.7VDD	-	VDD	V
Input logic low voltage	VIL	0	-	0.3VDD	V

CTP

Structure: GG, GFF,Size:1.8* ~ 55",Touch with Water/Salt Water/Sweat,Meet EMI/RFI Standards,Linux/Windows/IOS and Android,Customization on Cover: AG/AR/AF Meet IK Standards,Multi-touch Solution,True Touch with Gesture and Palm Rejection,Finger/Glove and Passive Pen Input

AD Board

We can provide complete accessories, including backlight board, AD Board and wire sets.

As the demand for custom projects continues to rise, the bar-type TFT market is expanding rapidly. Our bar-type TFT solution is ideally suited for a variety of applications, including industrial, automotive, medical, home appliances, and maritime sectors.
