Selecting the wrong IPS LCD interface at the hardware design stage often leads to PCB respins, EMI compliance failures, or unacceptable framerates. These issues delay product launches and heavily frustrate engineering teams. You must align processor capabilities with your chosen display panel early in the design phase.
While modern processors support multiple display protocols, the optimal choice depends strictly on your system architecture, resolution targets, and environmental constraints. Engineers cannot simply pick the newest protocol. They must carefully evaluate bandwidth requirements and physical routing space.
This guide breaks down the engineering realities of selecting a display interface to ensure seamless integration. We will explore SPI, RGB, LVDS, and MIPI DSI protocols. You will learn how to match hardware constraints with the right technology for your next build, avoiding common integration bottlenecks.
Key Takeaways
SPI is the default for low-resolution, constrained-pin-count microcontrollers (MCUs) where framerate is secondary.
RGB offers straightforward, high-bandwidth parallel data transfer but requires significant GPIO resources and careful EMI management.
LVDS remains the industrial standard for robust, high-noise-immunity transmission over longer FPC/cable distances.
MIPI DSI delivers the highest bandwidth-to-power ratio for high-resolution displays but requires precise impedance matching and complex software initialization.
System Architecture First: Defining Your Hardware Constraints
Processor Limitations (MCU vs. MPU)
Interface selection begins directly at the host processor. You cannot force a protocol if your silicon lacks the necessary hardware controller. Many microcontrollers (MCUs) lack dedicated MIPI or LVDS hardware. This limitation forces reliance on simpler protocols like SPI or RGB. Conversely, powerful microprocessors (MPUs) handle advanced serial interfaces effortlessly. Always verify your processor datasheets before selecting a display.
Pin Count vs. PCB Real Estate
Engineers constantly battle for board space. You must weigh the trade-off between parallel and serial interfaces. Parallel interfaces require massive pin allocations. An RGB interface might consume up to 28 GPIO pins. This heavy pin count devours valuable PCB real estate. Serial interfaces require far fewer pins. However, they demand much tighter routing rules and impedance control. You must evaluate your available board space early.
Memory (RAM) Bottlenecks
Higher resolution interfaces require significant framebuffer memory. Video data processing relies heavily on available RAM. A standard 800x480 panel at 16-bit color consumes roughly 768KB of memory per frame. If your host processor lacks sufficient internal RAM, you face a hard roadblock. In these scenarios, you must use an interface utilizing a display-side GRAM. We typically see SPI or MCU-parallel interfaces filling this specific role.
Evaluating Core Interface Protocols for Your Project
SPI (Serial Peripheral Interface)
SPI operates through simple serial communication. It features an incredibly low pin count, typically using a 3-wire or 4-wire configuration.
Best for: Small wearable displays, smart meters, or static UI panels.
Drawback: Inherently low bandwidth prevents smooth video playback. Framerates drop significantly on larger screens.
Best Practice: Use DMA (Direct Memory Access) alongside SPI to offload processor overhead during screen refreshes.
RGB (Parallel)
RGB transmits video data in strict parallel formats. It uses 16-bit, 18-bit, or 24-bit color depth configurations. The data directly matches the timing requirements of the display controller.
Best for: Mid-sized screens driven by MPUs lacking dedicated serial serializers.
Drawback: Parallel data lines generate high EMI. Routing these lines over long distances causes severe signal degradation.
Common Mistake: Failing to add series termination resistors on RGB data lines, which leads to signal ringing.
LVDS (Low-Voltage Differential Signaling)
LVDS relies on paired differential signals. It transmits data at exceptional speeds using minimal voltage swings. This approach creates strong noise immunity.
Best for: Industrial equipment, automotive infotainment, and larger panels requiring high environmental reliability.
Drawback: It represents an older standard. The architecture requires a serializer on the host side and a deserializer on the display side.
Best Practice: Keep differential pairs tightly coupled and match their lengths perfectly on your PCB.
MIPI DSI (Mobile Industry Processor Interface)
MIPI DSI utilizes a high-speed, packet-based serial protocol. Engineers originally optimized it for modern mobile devices. Integrating this into a modern MIPI DSI display yields exceptional battery efficiency and massive data throughput.
Best for: High-resolution, low-power applications such as 1080p or 4K mobile screens.
Drawback: It features stringent licensing restrictions and closed documentation environments. It also demands demanding PCB impedance matching.
Best Practice: Ensure strict 100-ohm differential impedance across all D-PHY routing traces.
Decision Matrix: Performance and EMI Compliance
Bandwidth & Resolution Ceilings
Realistic resolution maximums dictate your interface options. SPI generally tops out around 320x240 pixels. Pushing SPI beyond this causes noticeable screen tearing. RGB handles 800x480 or 1024x600 resolutions comfortably. LVDS scales easily into the 1080p territory. MIPI DSI reigns supreme for bandwidth. It easily handles 4K resolutions at high refresh rates. You must map your target resolution to these hard ceilings.
The following table outlines baseline engineering expectations for each major protocol.
Interface Protocol
Max Practical Resolution
Pin Count Requirement
EMI Profile
SPI
320 x 240
Low (3 to 4 pins)
Low
RGB
1024 x 600
High (Up to 28 pins)
Very High
LVDS
1920 x 1080
Medium (Differential pairs)
Low (Self-shielding)
MIPI DSI
4K+
Low (Differential lanes)
Low (Self-shielding)
Signal Integrity & EMI/EMC Testing
Parallel RGB leaves a heavy EMI footprint. Twenty-four pins switching states simultaneously act like tiny antennas. This massive electrical noise complicates final product certification. Differential signals provide a distinct advantage. LVDS and MIPI protocols are inherently self-shielding. The paired opposite signals cancel out radiated emissions. This physical characteristic drastically simplifies CE and FCC testing processes.
Design Complexity Implications
Hardware teams must analyze hidden design complexities. An RGB interface appears mathematically simple on a schematic. However, routing 24 parallel lines without crosstalk requires a complex multi-layer PCB. You must carefully manage trace lengths across multiple board layers. This complexity often negates the initial hardware simplicity. A streamlined LVDS setup usually requires fewer PCB layers, simplifying the overall hardware layout.
Implementation Realities and Integration Risks
FPC Routing Constraints

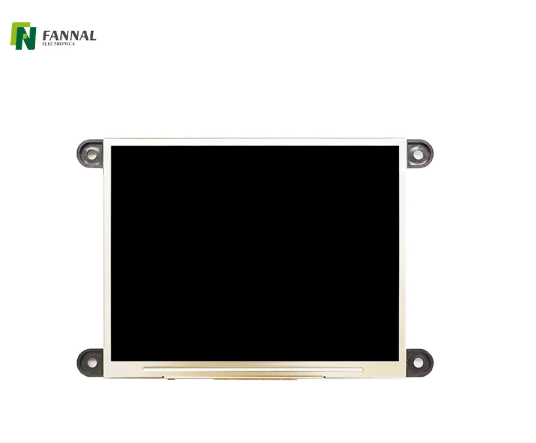

Physical connections dictate system reliability. Detail the physical realities of connecting the IPS TFT LCD display to the mainboard carefully. FPC (Flexible Printed Circuit) bending radii impact signal integrity. MIPI and LVDS require strict differential pair length matching on the FPC. Any deviation causes timing skews. You must coordinate closely with panel manufacturers to ensure FPC designs meet high-speed routing tolerances.
Driver IC Lead Times and Software Overhead
Supply chain realities impact protocol choices. Hardware engineers often overlook software overhead during component selection. Initializing a MIPI controller requires navigating complex, vendor-specific documentation. These documents often sit behind strict NDAs. In contrast, RGB timing remains generally universal. RGB software drivers are highly transparent and widely documented. We advise verifying Driver IC availability before finalizing any board layouts.
Bridge IC Reliance
Native processor support sometimes falls short. Engineers often use conversion chips when native support is lacking. Converting RGB to MIPI through a bridge IC introduces notable risks. Popular bridge chips like the SSD2828 solve physical compatibility but add overhead. Bridge ICs consume extra board space and draw additional power. They can also introduce slight latency into the video pipeline. Weigh these risks carefully.
Application-Based Shortlisting Logic
IoT Devices and Smart Home Panels
Smart home interfaces require simple graphical overlays. Why a 3.5 inch IPS TFT LCD using an SPI or 16-bit RGB interface provides the best balance? It handles simple GUIs perfectly. These applications rarely demand 60fps video playback. SPI minimizes processor load for simple touch interactions. RGB provides just enough bandwidth for smooth page transitions. Both keep the hardware footprint minimal.
Industrial Automation and Medical Devices
Factory floors and hospitals represent harsh electrical environments. We mandate LVDS for these specific sectors. LVDS offers exceptional cable-length tolerance. You can route LVDS cables several meters away from the host processor. Furthermore, differential signaling ignores intense factory floor electrical noise. Medical monitors require absolute reliability without signal degradation. LVDS delivers this stability consistently.
High-End Consumer Electronics
Mobile phones and premium tablets demand flawless visuals. You easily justify the engineering overhead of MIPI DSI here. High framerates and rich color depth require massive bandwidth. MIPI delivers this data while preserving battery life. Consumer electronics rely on sleek, low-power profiles. D-PHY architectures manage rapid state changes efficiently. They keep thermal output low despite heavy data loads.
The Custom Route
Off-the-shelf interfaces occasionally fail strict enclosure specifications. Standard cables might simply not fit your mechanical housing. You must know how specifying a custom TFT LCD display solves mechanical bottlenecks. Custom designs allow tailored FPC lengths. You can also integrate bridge ICs directly onto the panel flex cable. This shifts hardware complexity away from your mainboard, simplifying your core assembly.
Conclusion
Display interface selection remains a strict compromise. You must balance host processor capabilities against desired resolution targets and PCB routing complexity. Ignoring any of these constraints guarantees integration failures late in the development cycle. Serial interfaces win on board space and EMI, while parallel interfaces remain highly accessible for simpler processors.
Before committing to a final PCB layout, your hardware team must take immediate action. We recommend acquiring evaluation kits for your chosen processor immediately. Validate the driver IC initialization manually. Test the exact display timing parameters on a breadboard or dev-board setup. Proving your software stack early prevents costly hardware respins.
FAQ
Q: Can I drive a high-resolution display with an SPI interface?
A: No. SPI suffers from severe bandwidth limitations. Driving anything above 320x240 pixels over SPI results in dropped frames and aggressive screen tearing. You cannot push smooth video through a standard SPI bus.
Q: What is the difference between serial RGB and parallel RGB?
A: Parallel RGB uses dedicated pins for every color bit, sending data simultaneously. Serial RGB multiplexes the color data over fewer pins, sending sub-pixels sequentially. Parallel RGB requires more board space, whereas serial RGB reduces pin count but demands higher clock speeds.
Q: How do I connect a MIPI DSI display to an RGB-only processor?
A: You must use a dedicated bridge IC, such as the SSD2828. The bridge chip takes the parallel RGB signals and serializes them into MIPI packets. However, this adds power consumption, increases PCB footprint, and requires additional software initialization.
Q: Is LVDS becoming obsolete?
A: No. While MIPI DSI has largely replaced it in mobile consumer electronics, LVDS remains deeply entrenched in industrial, medical, and automotive sectors. Its immunity to electrical noise and ability to drive long cables keep it actively developed and highly relevant.
