Deploying standard consumer-grade screens in harsh settings often ends in operational disaster. Hardware engineers frequently face extreme field failure rates when utilizing standard screens in outdoor kiosks. Automotive clusters and industrial controls also suffer heavily under these limitations. These repeated failures lead directly to rapid readability loss and unwanted warranty claims. Customers quickly lose trust in the final product.
A true wide temperature IPS display changes this reality completely. It relies on specialized engineering and advanced material science. These panels actively prevent liquid crystal freezing, isotropic blackout, and color inversion under harsh thermal stress.
This article delivers a strictly objective, specification-driven framework for hardware engineers and procurement teams. We will guide you through evaluating and shortlisting highly reliable wide-temperature displays. You will learn how to parse detailed specifications effectively. By the end, you will confidently select panels capable of surviving severe environmental extremes.
Key Takeaways
Standard LCDs fail in extreme temperatures due to fluid viscosity changes and isotropic transition; wide-temp modules utilize specialized LC fluids and durable polarizers to operate typically from -30°C to +85°C.
IPS (In-Plane Switching) panels hold distinct advantages over TN and VA panels in harsh environments by maintaining color accuracy and contrast ratios at wide viewing angles.
Specification sheets must be scrutinized for the delta between "Operating Temperature" and "Storage Temperature," as well as thermal shock testing compliance.
Form factor matters: Standardized industrial sizes (e.g., 10.25" and 10.3" ultra-wide formats) often provide better supply chain stability and longevity.
Understanding Failure Mechanisms in Extreme Environments
Cold weather drastically affects standard liquid crystal modules at a molecular level. Sub-zero temperatures increase the viscosity of the fluid inside the panel. This thicker fluid slows down crystal response times significantly. Users will notice severe ghosting artifacts trailing moving objects on the screen. Sluggish user interface updates quickly frustrate machine operators trying to input commands. If ambient temperatures drop low enough, the liquid crystals freeze entirely. A frozen panel stops updating and becomes entirely useless in the field. The display may even suffer permanent mechanical damage as the frozen fluid expands slightly.
High heat introduces an entirely different set of destructive forces to the display module. Extreme heat often originates from direct sunlight pounding on an outdoor enclosure. Trapped heat inside unventilated industrial casings also raises internal temperatures rapidly. This intense thermal load causes liquid crystals to reach their boiling point. The molecules transition uncontrollably into an isotropic state. When this phase change occurs, the organized liquid crystal structure collapses. The screen turns completely black or dark, absorbing even more solar radiation. Engineers call this phenomenon "isotropic blackout." It renders displays completely unreadable during peak operating hours.
Display failure extends far beyond just the liquid crystal glass itself. Extreme environments attack multiple internal components simultaneously. Standard commercial polarizers warp and bubble under intense solar radiation. Adhesives holding the display layers together can delaminate easily under thermal cycling. Furthermore, standard LED backlights degrade rapidly when subjected to high thermal loads over long periods. You must evaluate the entire assembly, including the chassis and flex cables, to guarantee survival in extreme conditions. A display is only as robust as its weakest internal component.
Why Choose a Wide Temperature IPS Display Over TN or VA?
TN (Twisted Nematic) and VA (Vertical Alignment) panels dominate budget commercial markets. However, they struggle heavily in harsh industrial environments. IPS technology maintains structural alignment much better under physical and thermal stress. TN panels suffer from severe color inversion at vertical viewing angles. A screen might look fine straight on, but appear completely washed out from below. VA panels often shift contrast drastically when viewed off-center. IPS keeps critical data highly readable from virtually any angle. You rely heavily on accurate, off-axis information in an industrial display setting. Operators rarely stand perfectly centered in front of heavy machinery.
Thermal stress also threatens color fidelity across the entire screen area. Precise molecular alignment gives IPS technology a massive advantage here. It resists color shift aggressively as environmental heat rises or falls. TN panels lose their color accuracy rapidly near their upper or lower thermal limits. Colors distort, washing out important alerts and warning indicators. IPS ensures safety-critical interfaces display red as true red, not a muted orange or brown. This precision prevents costly operational mistakes in the field.
Engineers frequently question power consumption across different panel types. Many assume IPS inherently draws far more power than TN alternatives. Historically, traditional IPS designs did require much stronger backlights to push light through the dense pixel structure. Today, modern wide temperature TFT LCD modules utilize highly optimized aperture ratios. These modern panels balance thermal output and brightness efficiently. They deliver brilliant visuals without overwhelming your available thermal budget or battery capacity.
Below is a concise comparison illustrating how different panel technologies respond to harsh environmental factors. Use this reference when debating panel types during the early design phase.
Panel Technology Performance in Harsh Environments
Feature
TN Panels
VA Panels
IPS Panels
Viewing Angle Stability
Poor (Severe vertical color inversion)
Moderate (Contrast shift off-center)
Excellent (Consistent from all angles)
Color Fidelity (Heat Stress)
Low (Washes out quickly)
Moderate (Slight shifting)
High (Maintains accurate hues)
Structural Alignment
Vulnerable to pressure and heat
Moderately stable
Highly robust under thermal loads
Key Technical Specifications for Industrial Display Selection
Standard industrial operating thresholds typically range from -20°C to +70°C. Extreme automotive applications demand an extended range of -30°C to +85°C. Operating temperature dictates exactly when the device can safely power on and function normally. Operating outside this envelope voids warranties and guarantees immediate performance degradation.
You must also closely inspect the specified Storage Temperature rating. Storage limits generally span a wider range, often from -40°C to +90°C. Devices frequently remain powered off inside unconditioned vehicles or outdoor kiosks for extended periods. Overheating during these dormant periods destroys internal alignments invisibly. Verify these numbers strictly before approving any component for your bill of materials.
Outdoor wide-temp panels require immense brightness to combat ambient glare. You typically need 1000+ nits of luminance for adequate daylight readability. High luminance must pair closely with high contrast ratios for optimal text clarity. However, operating heat strictly limits your maximum safe backlight driving current. Pushing LEDs too hard in high ambient heat destroys their phosphors quickly. Proper thermal dissipation designs protect the backlight assembly from catastrophic burn-out.

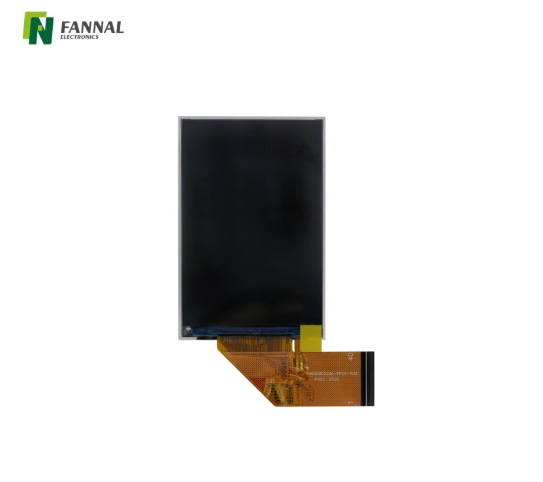

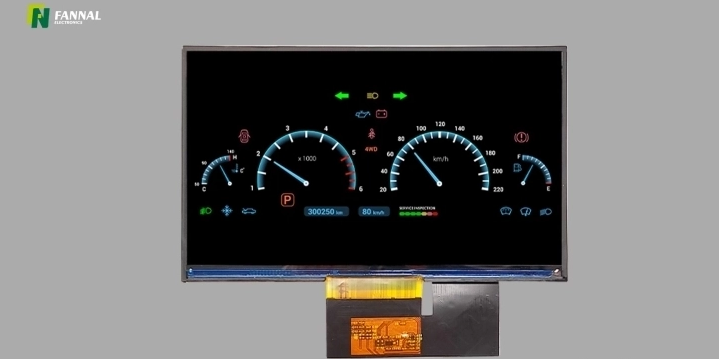

Form factor dramatically impacts application fit and overall user experience. Stretching interfaces across wide aspect ratios suits modern control layouts perfectly. For example, utilizing a 10.25 inch wide-temperature IPS LCD fits modern automotive instrument clusters beautifully. Factory floors and heavy machinery control stations often adopt a 10.3 inch wide-temperature IPS TFT for HMI panels. These stretch and bar-type layouts display critical data streams efficiently without wasting vertical dashboard space.
We strongly recommend optical bonding over traditional air-gap bonding for extreme environments. Air gaps allow ambient moisture to collect between the touch panel and the underlying LCD. Rapid temperature shifts cause this trapped moisture to condense instantly into water droplets. Condensation fogs up the screen and blocks visibility entirely for the user. Optical bonding fills this void completely with a specialized optical resin. This process prevents any internal fogging and dramatically improves impact resistance.
Compliance, Reliability Testing, and Environmental Durability
Displays must survive extreme temperature transitions in real-world scenarios. Thermal shock testing validates this specific survival capability objectively. Engineers subject modules to rapid cycling chambers during the environmental validation phase. They might move panels from a freezing -30°C environment to a blistering +80°C chamber in mere minutes. Rapid thermal expansion and contraction stress every internal component heavily. High-quality modules pass this testing without fracturing adhesives or severing delicate micro-connections.
High-Temperature/High-Humidity (HTHH) certifications prove long-term durability in the field. Standard reliability protocols often push devices to 85°C at 85% relative humidity. Testers maintain these brutal conditions continuously for 500 hours or more. This prolonged exposure validates the chemical integrity of polarizers and internal edge sealants. It ensures the panel will not degrade prematurely in tropical or highly humid industrial climates.
High-temperature environments often exist right alongside heavy industrial machinery. Automotive sectors also generate massive amounts of localized electromagnetic noise. Therefore, EMI/EMC compliance remains strictly non-negotiable for these critical deployments. Robust shielding protects the sensitive display driver ICs from external signal interference. Clean shielding designs prevent random screen flickering, phantom touches, or complete touch controller failures.
Step-by-Step Shortlisting Framework for Procurement
Procuring the right hardware demands a highly structured, evidence-based approach. Follow this step-by-step framework to evaluate your supply chain options objectively.
Define Environmental Extremes: Map out the absolute worst-case scenario for your device deployment. Include direct solar loading calculations in your thermal model. Solar radiation easily pushes internal enclosure temperatures 20°C higher than ambient air.
Validate the BOM (Bill of Materials): Demand hard evidence from your chosen manufacturer. Ensure they utilize true industrial-grade components across the board. The LC fluid, backlights, FPC cables, and driver ICs must all carry matching temperature ratings.
Assess Lifecycle and EOL Policies: Industrial and automotive designs require multi-year longevity. Consumer panels go End-of-Life (EOL) far too quickly. Ensure your vendor offers a firm 3- to 5-year availability guarantee. This prevents incredibly costly mid-lifecycle redesigns.
Request Prototypes for Chamber Testing: Never bypass your own in-house environmental chamber validation. Advise your team to procure samples early in the design cycle. Perform accelerated life testing rigorously before committing to high-volume manufacturing.
Conclusion
Specifying a wide-temperature module represents a critical upfront investment in reliability. It prevents catastrophic downstream costs like mass field recalls and severe brand damage.
Prioritize vendors supplying transparent environmental testing data, including thermal shock and MTBF metrics.
Always mandate optical bonding for outdoor screens to eliminate internal moisture condensation completely.
Verify storage temperature limits independently from operating ranges to ensure unpowered survival.
Secure long-term availability guarantees early to safeguard your hardware supply chain.
Take the next step in your hardware design process today. Download detailed specification sheets for your shortlisted panels. Contact an application engineer directly to request technical drawings and discuss customized sample testing for your next rugged deployment.
