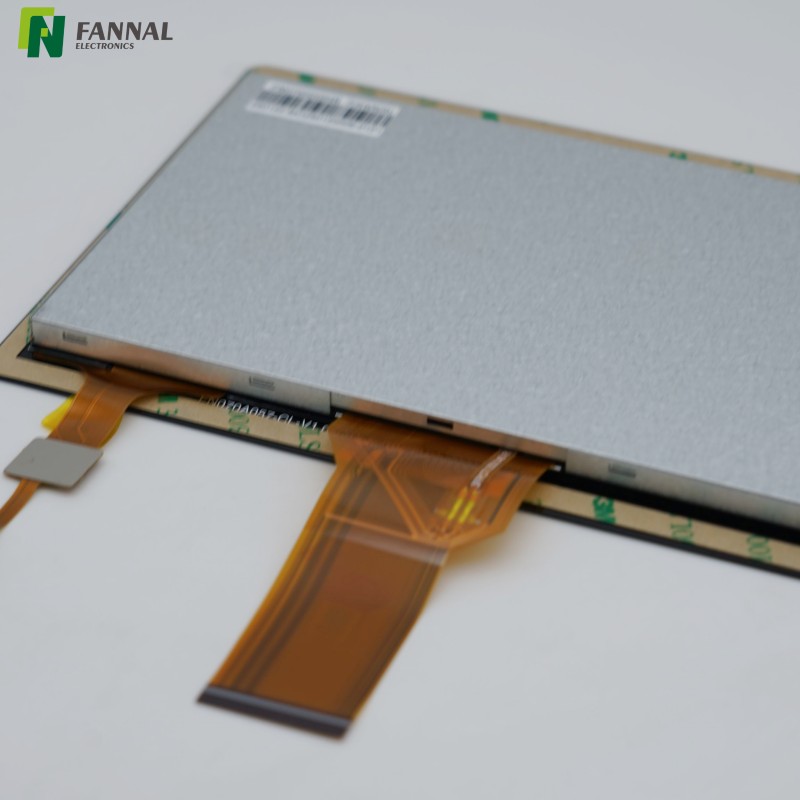

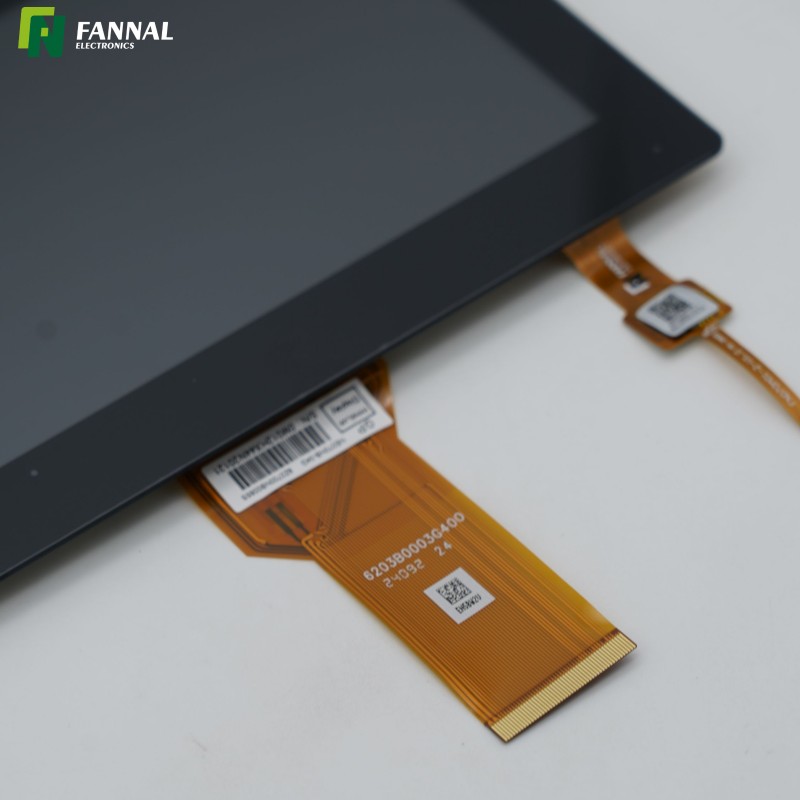

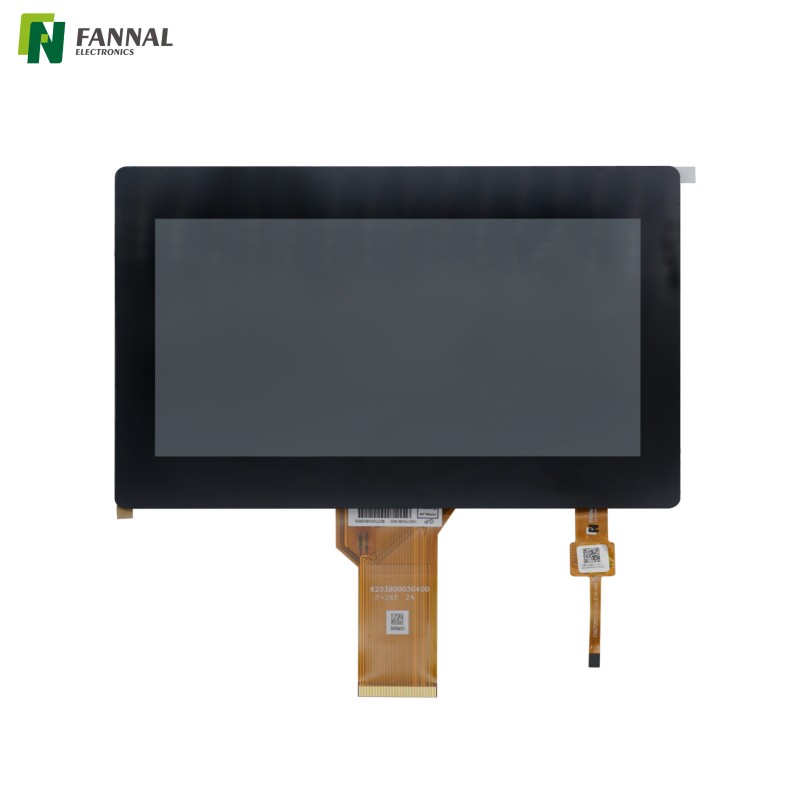

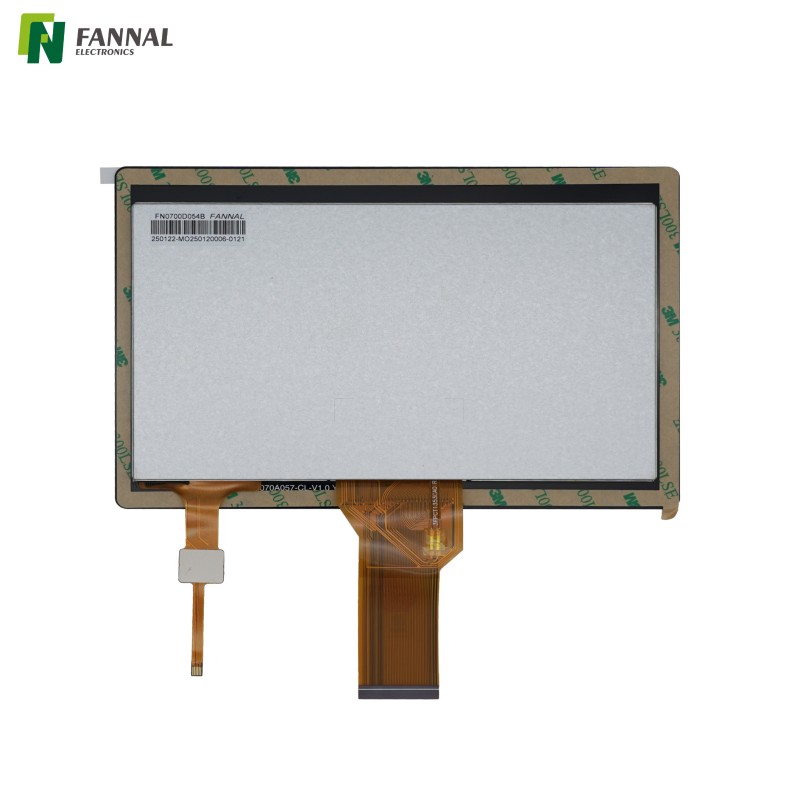

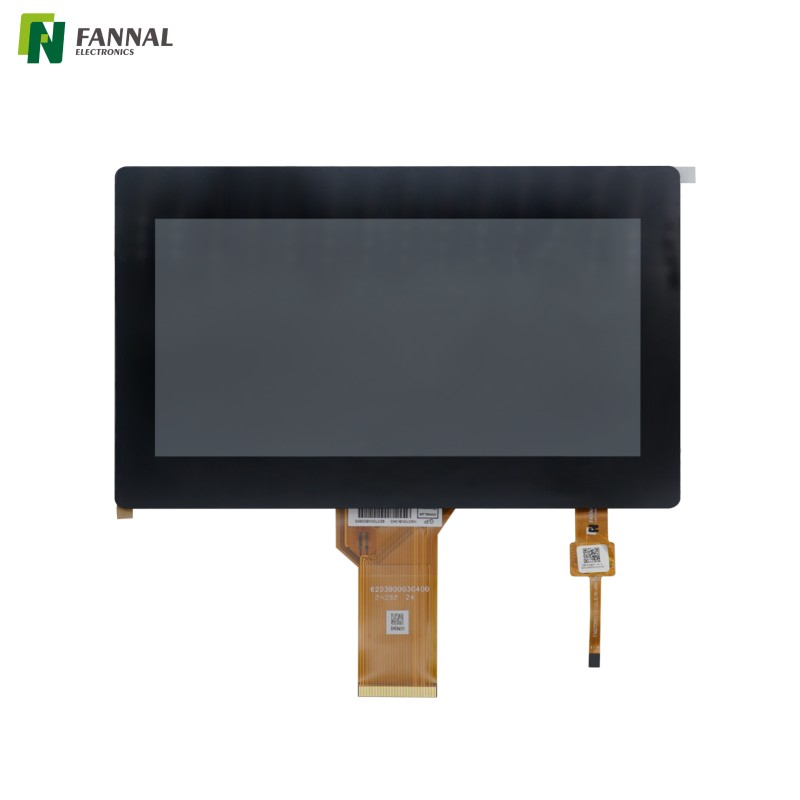

7 Inch Capacitive Touch Display with AF Coating

Name: 7 Inch Capacitive Touch Display with AF Coating
Brand: FANNAL
Rating: 5.0 (8 reviews)

7 Inch Touch Display with Anti-Fingerprint Glass

Model:
FN070AM057-V4.0
Brand:
FANNAL
Size(inch):
7
Cover OD (mm):
179.80 (H) x 124.80 (V) x 1.83 (T)
Display AA(mm):
154.08 (H) x 85.92 (V)
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
TP VA (mm):
154.88 (H) x 86.72 (V)
Resolution:
800 x 480
Direction:
12 O'clock
Display Interface:
RGB 24Bit
TP Interface:
I2C
Brightness(cd/m²):
250

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

The FN070AM057-V4.0 is a 7-inch capacitive touch display combining an 800 × 480 TFT LCD with a projected capacitive touch panel. Designed for embedded HMI applications, it features an anti-fingerprint coated cover glass, 5-point touch capability, and an I2C touch interface for straightforward system integration.

Features

Anti-Fingerprint Cover Glass

The cover glass is finished with an AF (Anti-Fingerprint) coating, helping reduce visible fingerprints during daily operation. This improves screen appearance and reduces cleaning frequency in applications with frequent user interaction.

Integrated Capacitive Touch Display

The display combines a 7-inch TFT LCD with a projected capacitive touch panel, reducing integration effort compared with sourcing the LCD and touch panel separately.

Five-Point Capacitive Touch

The touch panel supports up to five simultaneous touch points, allowing common gesture operations while remaining suitable for industrial HMI software and embedded user interfaces.

Designed for Embedded Systems

The LCD uses a 24-bit RGB interface, while the touch panel communicates through I2C, making the module compatible with many embedded processors and control platforms.

Suitable for Indoor HMI Applications

With a typical brightness of 250 cd/m², the display is intended for indoor environments where ambient lighting is controlled. Outdoor installations or locations exposed to strong sunlight generally require higher brightness displays.

Optimized Viewing Direction

The TFT adopts a 12 o'clock viewing direction, which is well-suited for equipment typically viewed from the front or slightly above, such as desktop instruments, control panels, and operator terminals.

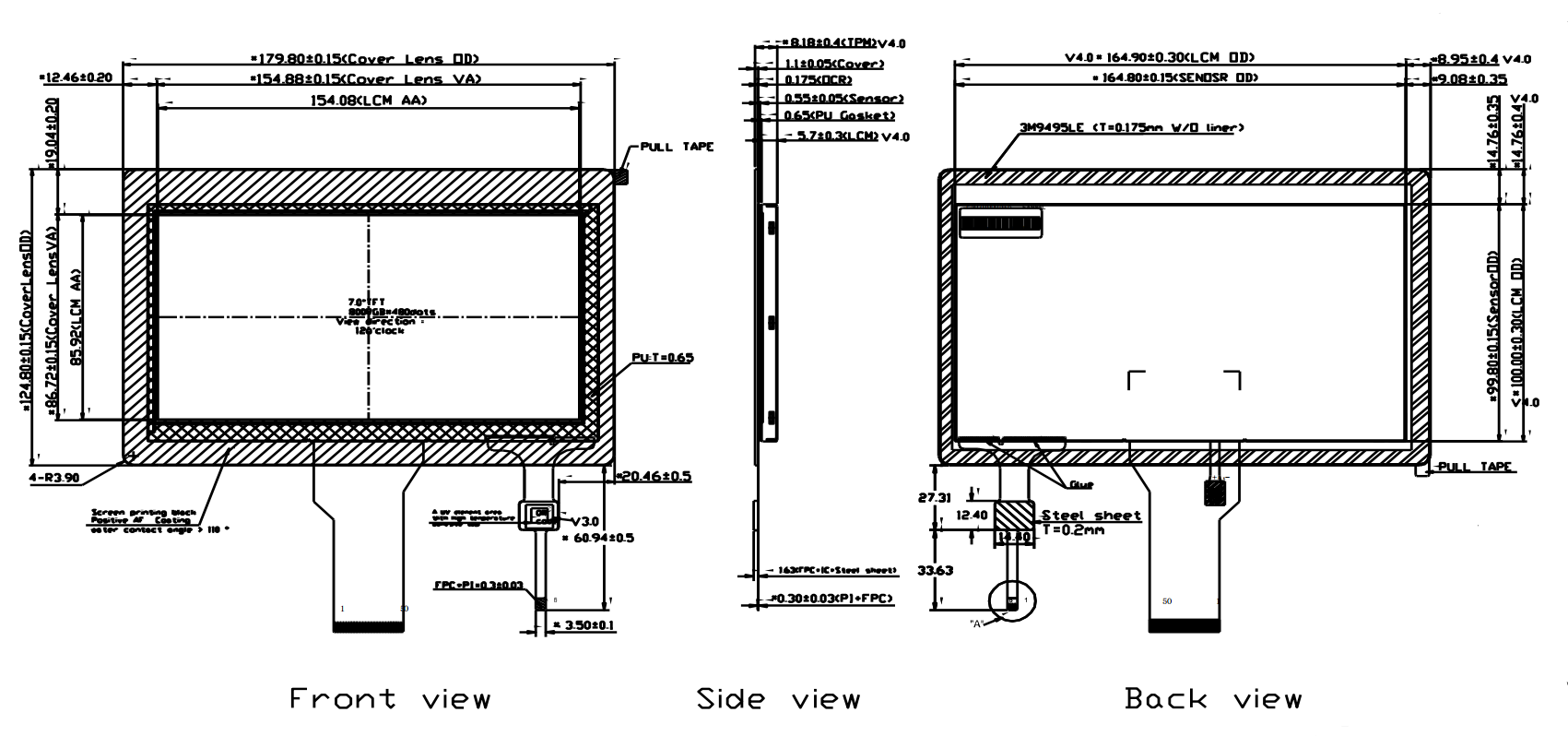

Drawing

Specifications

1. Touch Panel General Specifications

Item	Specification	Unit
Active Size	7.0 (Diagonal)	Inch
Outline Size	179.80 (H) x 124.80 (V) x 1.83 (T)	mm
View Area	154.88 (H) x 86.72 (V)	mm
Surface hardness	6H Min	-
Surface treatment	AF coating	-
Transparency	82% Min	-
Driver IC	CYTMA568-56LQI-44BB	-
Detect Points	5	-
Touch Handling	-	-
Interface	I2C	-
IIC address	0x24	-
Operating Temperature	-20 ~ 70	°C
Storage Temperature	-30 ~ 80	°C

2. TFT General Specifications

Item	Specification	Unit	Remark
Screen Size	7.0 (Diagonal)	Inch	-
Resolution	800 (RGB) x 480	pixel	-
Display Mode	Normally White, Transmissive	-	-
Dimensional Outline	165 (H) x 100 (V) x 5.65 (D)	mm	Note 2
Active Area	154.08 (H) x 85.92 (V)	mm	-
Dot Pitch	0.0642 (H) x 0.1790 (V)	mm	-
Pixel Arrangement	Pixels RGB stripe	-	-
Display Colors	16.7M	-	-
Viewing Direction	12	O'clock	Note 1
Interface	RGB 24Bit	-	-
Luminance, White	250 (Typ.)	cd/m²	-
Weight	150	g	Note 3
Power Consumption	1.5	W	-

Note 1: The viewing direction for best image quality is different from the TFT definition.
Note 2: Please refer to the attached drawings for more information on front and back outline dimensions.
Note 3: LCM weight tolerance: ±5%.
