How Industrial Display Controllers Handle Different Interfaces?

Many engineers assume that a display controller (often referred to as a driver board or scaler board) simply converts one interface into another:

• HDMI to LVDS

• DisplayPort to eDP

• VGA to MIPI

At first glance, this seems straightforward.

However, in industrial applications, display adaptation is rarely just about connector compatibility. Two panels with identical sizes and resolutions may still fail to work properly due to differences in timing requirements, lane configurations, firmware settings, power sequencing, or signal integrity constraints.

The real role of an industrial display controller is to bridge the compatibility gap between system outputs and display modules while maintaining reliability throughout the product lifecycle.

What Does an Industrial Display Controller Actually Do?

A display controller typically performs four major functions.

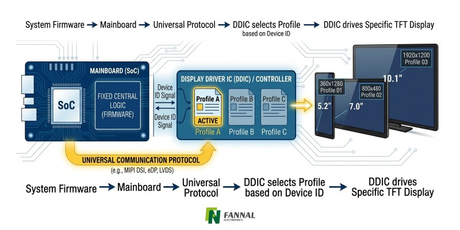

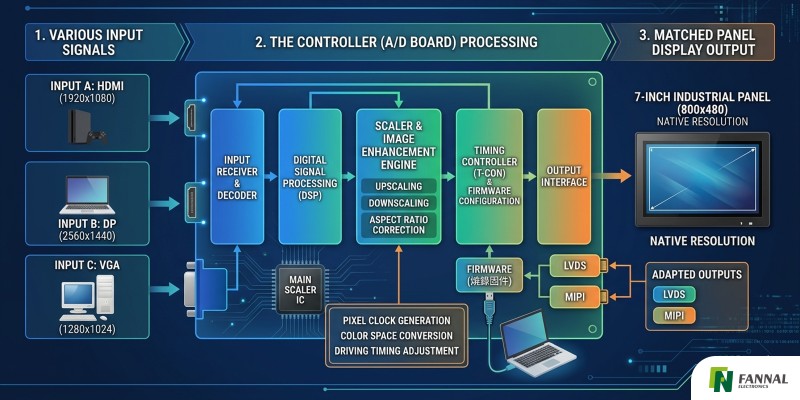

1. Signal Reception and Decoding

Industrial systems may output video signals through:

• HDMI

• DisplayPort (DP)

• VGA

• DVI

• USB Type-C with DP Alt Mode

LCD panels, however, do not directly understand these interfaces. Instead, they usually require panel-specific interfaces such as:

• LVDS

• eDP

• MIPI DSI

• RGB TTL

• V-by-One HS

The controller decodes incoming video signals and converts them into the digital pixel data required by the target panel.

Without this translation layer, communication between the host system and display panel is impossible.

Resolution Scaling Is Not a Universal Solution

One common misconception is that a scaler can automatically solve any resolution mismatch.

For example:

Input signal:

1280 × 720

Panel native resolution:

1920 × 1080

The controller may perform:

• Upscaling

• Cropping

• Aspect ratio preservation

• 1:1 pixel mapping

However, every scaling method introduces trade-offs.

Basic interpolation algorithms offer:

Advantages:

• Lower cost

• Minimal processing overhead

Limitations:

• Reduced text sharpness

• Softer UI elements

Advanced scaling engines provide:

Advantages:

• Better image quality

• Improved edge preservation

Limitations:

• Higher controller cost

• Additional processing latency

In industrial HMI systems, fast response and interface readability are often more important than consumer-grade video quality.

For this reason, many industrial designs intentionally match the system output resolution to the panel's native resolution to avoid unnecessary scaling.

Timing Conversion: The Hidden Challenge

Resolution alone does not determine compatibility.

Display panels also require specific timing parameters, including:

• Pixel Clock

• Horizontal Sync (HSync)

• Vertical Sync (VSync)

• Front Porch

• Back Porch

• Sync Width

• Data Enable (DE)

For example, two 1920 × 1080 panels may have completely different requirements:

Even though the resolution appears identical, improper timing configuration may cause:

• Black screens

• Image shifting

• Flickering

• Partial image display

• Intermittent signal loss

In many industrial projects, what appears to be a defective display is actually a timing mismatch issue.

Interface Conversion Beyond Simple Connectivity

Industrial displays employ various interface technologies, each with its own strengths and limitations.

RGB TTL

Advantages:

• Simple implementation

• Lower cost

Limitations:

• Poor EMI performance

• Large cable count

• Limited transmission distance

Common applications:

• Legacy industrial equipment

• Low-resolution systems

LVDS

LVDS remains one of the most widely used interfaces in industrial displays.

Advantages:

• Excellent noise immunity

• Proven long-term reliability

• Suitable for harsh industrial environments

Limitations:

• Limited bandwidth for very high resolutions

• Gradually being replaced in newer designs

Common applications:

• Industrial HMIs

• Medical equipment

• Automation control systems

eDP

eDP is increasingly adopted in newer industrial platforms.

Advantages:

• Higher bandwidth

• Reduced cable complexity

• Support for high-resolution panels

Limitations:

• More complex lane configuration

• Link training challenges during integration

In practice, eDP integration is not always easier than LVDS despite its technical advantages.

MIPI DSI

MIPI DSI is commonly used in:

• Portable devices

• Embedded handheld terminals

• Compact integrated systems

Advantages:

• Low power consumption

• High bandwidth efficiency

Limitations:

• Strict PCB layout requirements

• Short transmission distances

• Increased debugging complexity

MIPI is not automatically the best choice for all industrial environments.

Why Is Industrial Display Adaptation More Complicated Than Consumer Displays?

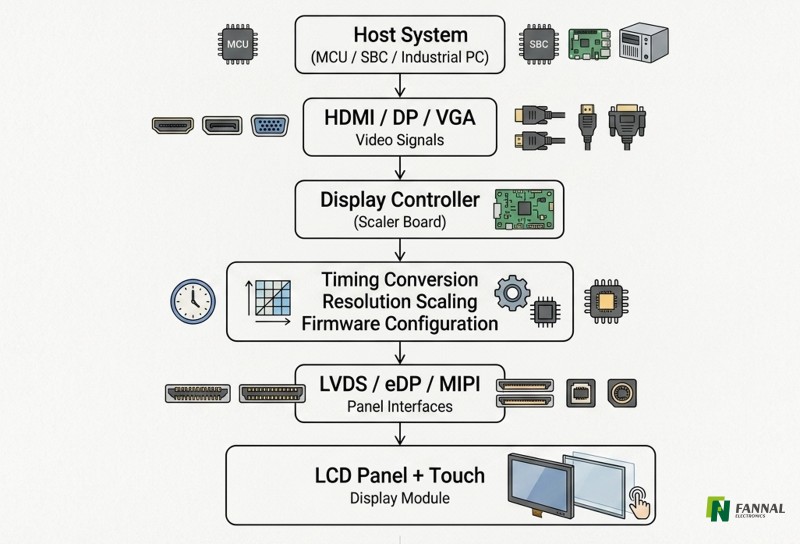

A consumer monitor typically follows a simple architecture:

Host → HDMI → Monitor

Industrial display systems often involve:

Host CPU/GPU → Operating System → Display Controller → Firmware Configuration → LCD Panel → Backlight Driver

→ Touch Controller

Each component introduces variables that affect overall system stability.

Industrial projects focus not only on whether a display works initially, but also whether it can:

• Operate reliably under EMI exposure

• Support extended temperature ranges

• Maintain long-term availability

• Accommodate future panel replacement

• Meet regulatory requirements in medical or transportation applications

Why Panels With the Same Resolution Cannot Always Be Replaced Directly?

This is one of the most common misconceptions in industrial display projects.

Two 10.1-inch, 1280 × 800 LVDS panels may still differ in:

• Pin assignments

• Power sequencing requirements

• Backlight control methods

• Timing specifications

• EDID configurations

• Firmware dependencies

As a result:

Matching resolution does not guarantee compatibility.

Panel replacement often requires full validation of the display subsystem.

When Should You Avoid Using a Scaler Board?

Adding a controller is not always the optimal approach.

Real-Time Applications

Examples include:

• Machine vision systems

• Remote operation equipment

• High-speed industrial control systems

Additional image processing latency introduced by scalers may negatively affect performance.

High-Reliability Systems

Examples include:

• Medical devices

• Defense equipment

• Safety-critical control systems

Additional controller boards increase:

• Thermal load

• EMI exposure

• Potential failure points

Native panel interfaces may offer a more robust solution.

Extreme Environmental Conditions

Examples include:

• Outdoor applications

• Wide-temperature systems (-30°C to +85°C)

The controller itself must meet the same environmental requirements as the display module.

Otherwise, the controller may become the weakest link in the system.

Display Compatibility Does Not Guarantee Touch Compatibility

Industrial display integration involves two independent subsystems:

• Display path

• Touch path

A panel replacement that works electrically on the display side may still introduce touch-related issues such as:

• Coordinate mapping errors

• Missing operating system drivers

• Controller IC incompatibility

• Reduced glove or wet-touch performance

• EMC susceptibility in industrial environments

For integrated touch display systems, both display and touch interfaces should be validated together during system integration.

Improving Adaptation Success in Industrial Projects

Before selecting a controller solution, engineers should verify:

✓ Panel datasheet specifications

✓ Interface type (LVDS, eDP, MIPI, V-by-One)

✓ Supply voltage requirements

✓ Backlight driving methods

✓ Pixel clock specifications

✓ Timing parameters

✓ Touch controller compatibility

✓ EMI/EMC requirements

✓ Product lifecycle expectations

Many integration problems can be avoided during the initial design phase.

At FANNAL, display controller selection is rarely about simply making a panel light up. The greater challenge lies in ensuring stable operation across varying environments, evolving supply chains, and long product lifecycles.

In industrial applications, long-term compatibility often matters more than interface specifications alone.
