Home » Products » Capacitive Touchscreens » 5 Inch G+G Capacitive Touch Panel with Chemically Strengthened Glass

5 Inch G+G Capacitive Touch Panel with Chemically Strengthened Glass

Name: 5 Inch G+G Capacitive Touch Panel with Chemically Strengthened Glass
Brand: FANNAL
Rating: 5.0 (21 reviews)

5 Inch Projected Capacitive Touch Panel with 5-Point Touch

Model:
FN0500P083A
Brand:
FANNAL
Size(inch):
5
Cover OD (mm):
144.00 (H) x 96.00 (V) x 2.10 (D)
Operation Temp(℃):
-30~80
Storage Temp(℃):
-30~80
TP VA (mm):
109.00 (H) x 65.60 (V)
Structure:
G+G
TP Interface:
I2C

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

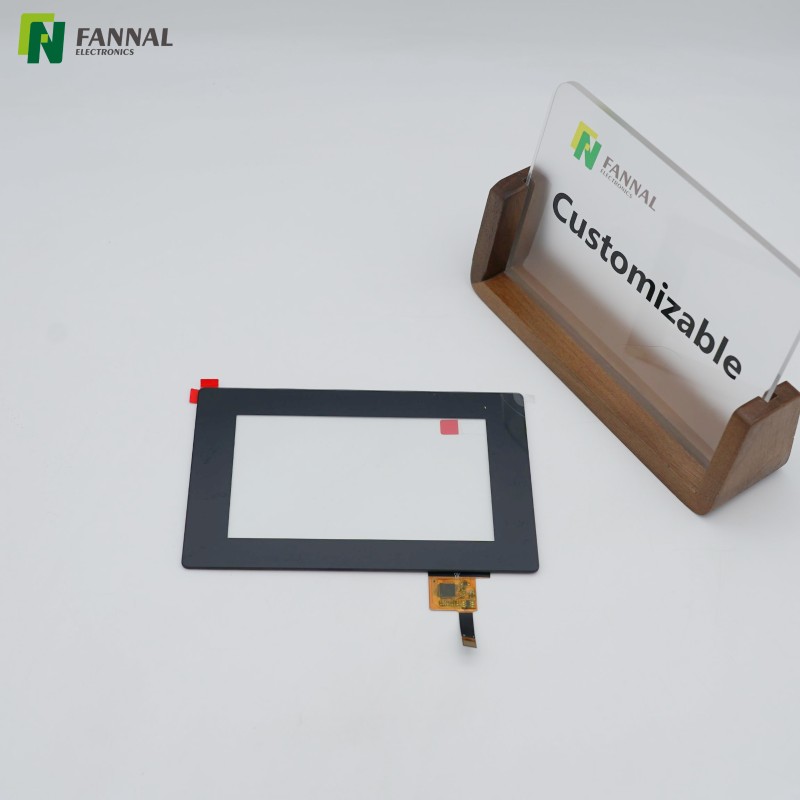

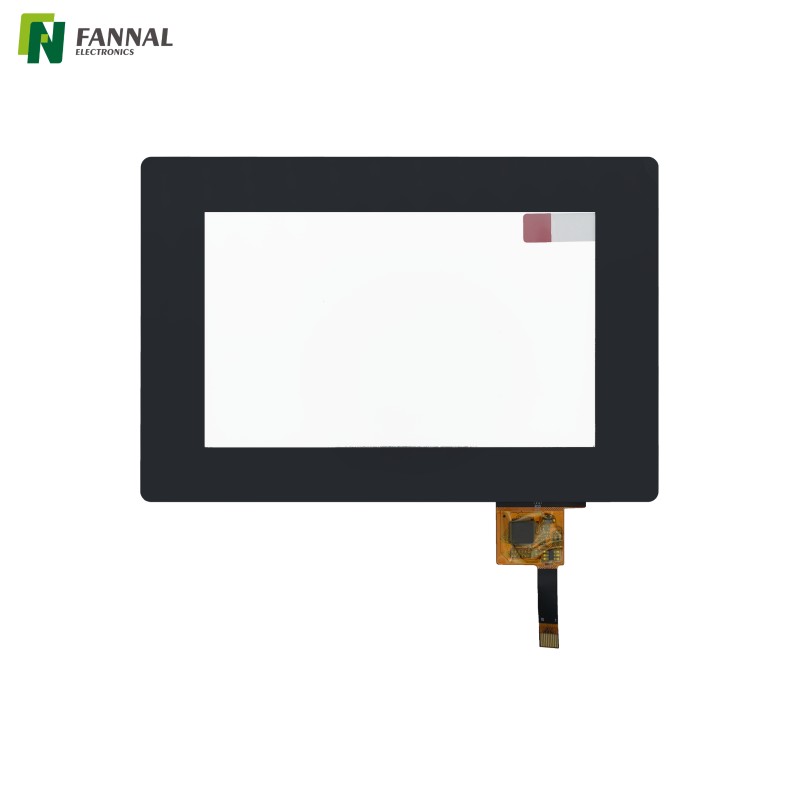

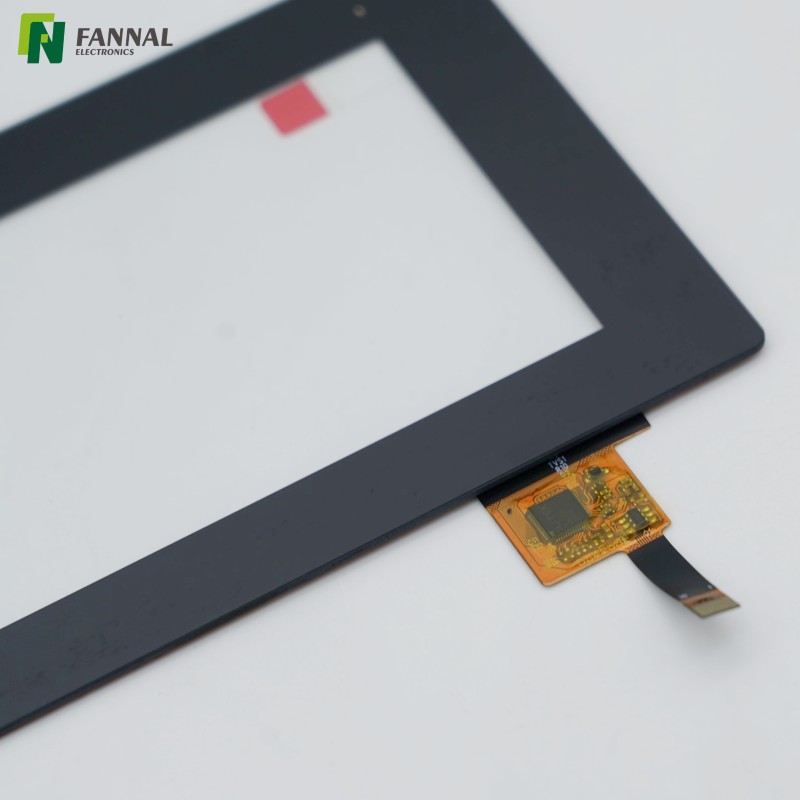

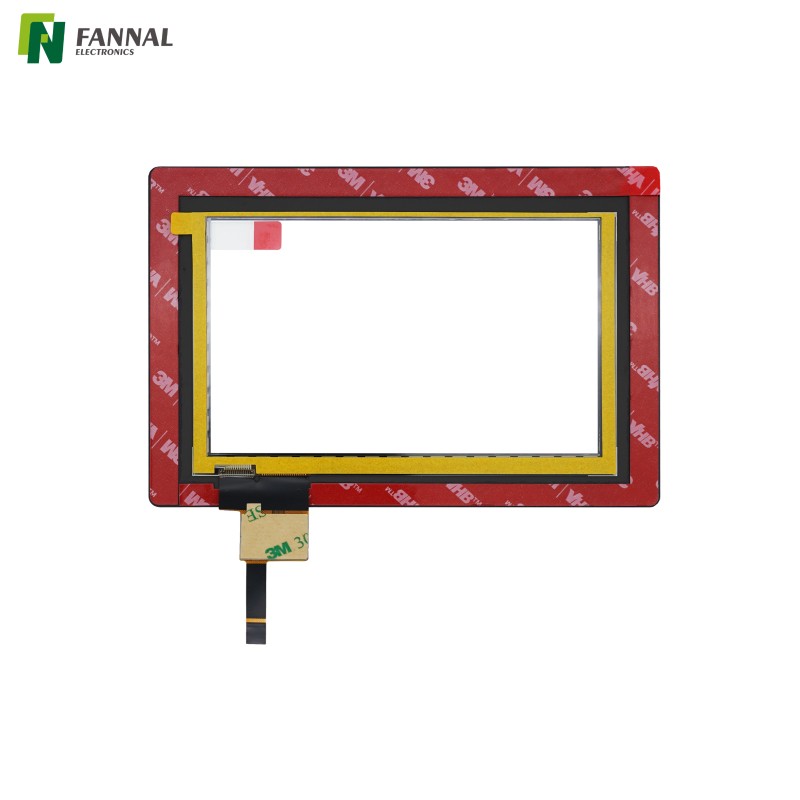

The FN0500P083A is a 5 inch projected capacitive touch panel designed for embedded systems that require reliable multi-touch input and durable glass construction. Its G+G structure, chemically strengthened cover glass, and extended operating temperature range make it suitable for industrial equipment, control panels, and OEM display integration.

Features

G+G Structure for Improved Mechanical Stability

The touch panel adopts a Glass-to-Glass (G+G) construction, combining a glass sensor with a glass cover lens. Compared with film-based touch structures, G+G designs are commonly selected where optical stability and long-term durability are priorities.

The most suitable touch structure still depends on the application's impact resistance, cost target, and installation environment.

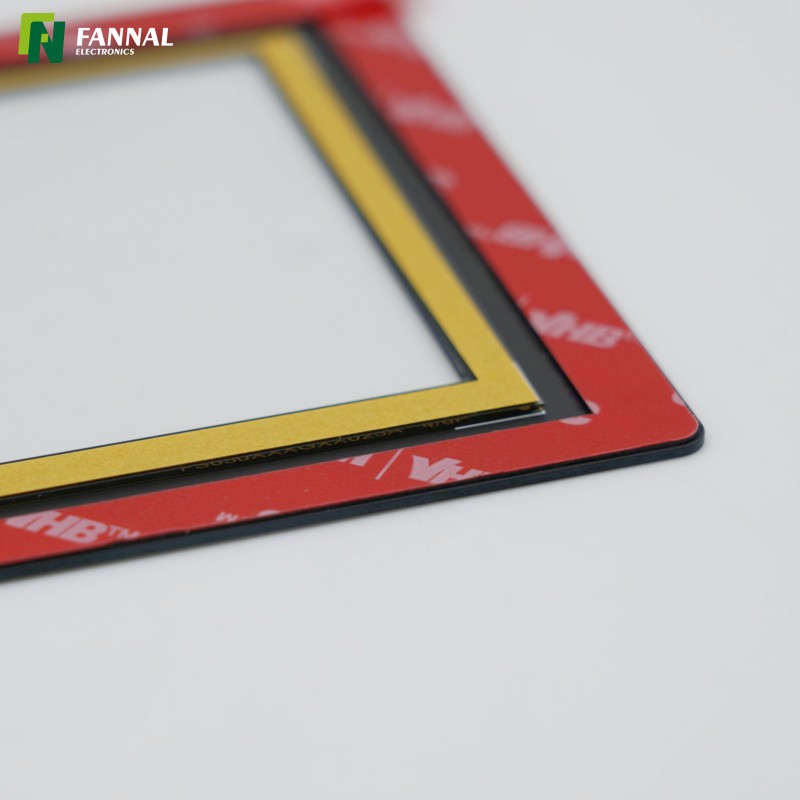

Chemically Strengthened Cover Glass

The 1.1 mm chemically strengthened cover glass provides additional resistance to scratches and everyday mechanical wear.

For applications exposed to frequent user interaction, strengthening helps improve long-term durability, although it should not be considered a substitute for impact-rated protective glass where vandal resistance is required.

Five-Point Capacitive Touch

Supporting 5-point touch, the panel allows simultaneous touch inputs for applications that require gesture recognition or more flexible user interaction than single-touch systems.

Whether multi-touch is beneficial depends on software design and the intended operating workflow.

Extended Temperature Performance

With an operating temperature range of -30°C to +80°C, the touch panel is suitable for equipment installed in environments where temperature fluctuations exceed typical office conditions.

Final environmental performance should always be evaluated together with the LCD module and enclosure.

Designed for OEM Integration

The panel communicates through an I2C interface and can be integrated with a wide range of LCD modules. Depending on project requirements, parameters such as cover glass appearance, printing, FPC layout, and connector design can typically be customized.

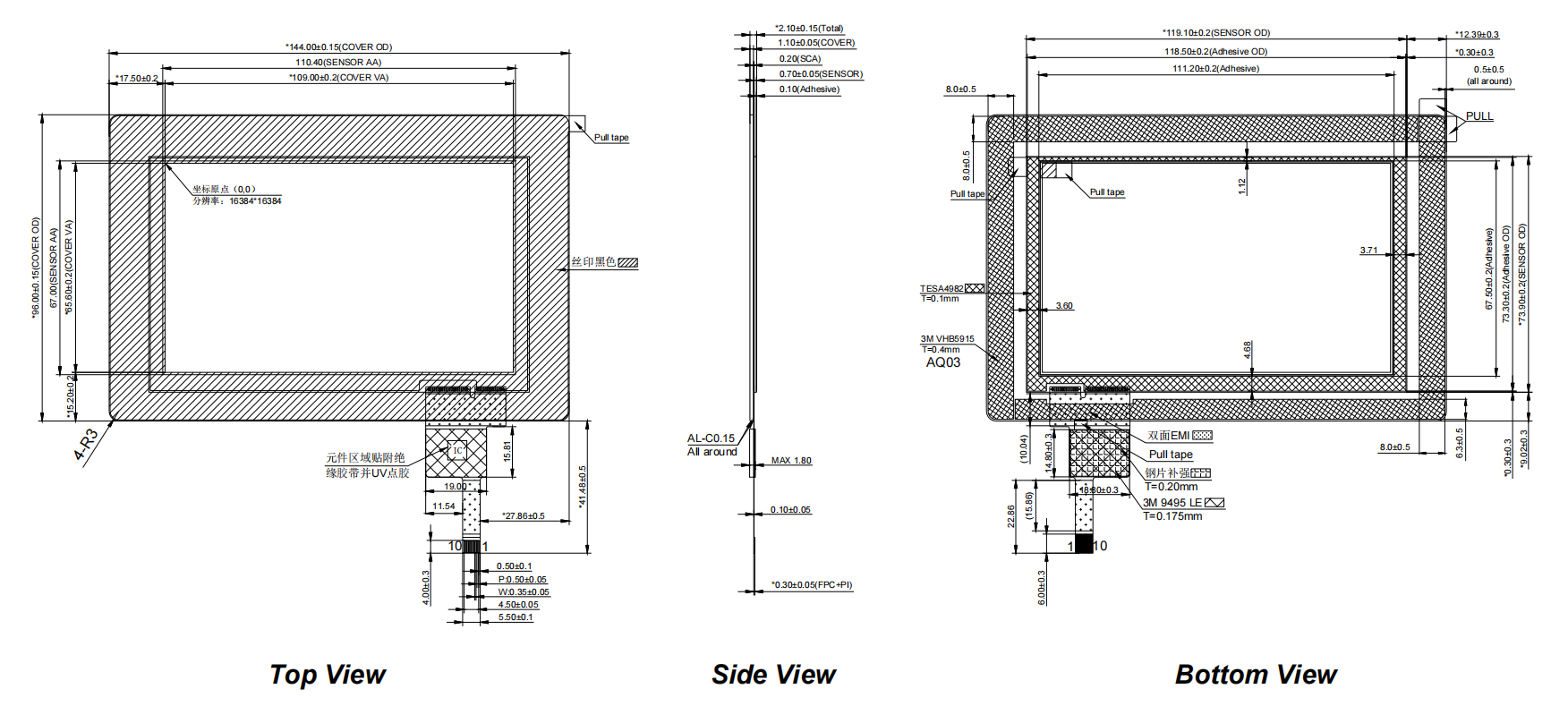

Drawing

Specifications

Item	Specification	Unit
Product Structure	G+G	-
Touch Panel Size	5.0 (Diagonal)	inch
Structure	CTP	-
View Area	109.00 (H) x 65.60 (V)	mm
Outline Dimension	144.00 (H) x 96.00 (V) x 2.10 (D)	mm
Surface Hardness	7H Min.	-
Sensor Material	Ito Glass	-
Sensor Thickness	0.7mm	-
Cover Material	Sodalime Glass	-
Cover Thickness	1.1mm	-
Transparency	85% Min.	-
Driver IC	ILI2130	-
Detect Points / No. Of Touch	5	-
Channels	18 x 11	-
Interface	I2C (Connector: COF-IIC)	-
Power Supply	MIN 3.1V, TYP 3.3V, MAX 3.5V	V
Operating Temperature	-30 ~ +80	°C
Storage Temperature	-30 ~ +80	°C
Strengthening Method	Chemically Strengthen	-
Environmental Requirements	RoHS-2.0	-

Applications

Industrial Control Panels

Suitable for operator interfaces used in automation equipment, machine controls, and manufacturing systems.

Medical Devices

Can be integrated into medical instruments and laboratory equipment requiring reliable capacitive touch operation.

Building Automation Systems

Applicable to HVAC controllers, smart building panels, and access management terminals.

Smart Home Control Interfaces

Suitable for wall-mounted controllers and embedded touch interfaces where a durable glass surface is preferred.

OEM Embedded Equipment

Designed for manufacturers integrating custom touch panels with LCD modules for dedicated electronic products.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

Customizations

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

Why choose a G+G touch panel instead of a film-based touch structure?

G+G touch panels are commonly selected for applications requiring better optical stability, improved rigidity, and greater resistance to surface wear. Film-based structures may still be appropriate when weight or cost is the primary concern.

Is chemically strengthened glass the same as impact-resistant glass?

No. Chemical strengthening improves the glass's resistance to scratches and everyday mechanical stress, but applications requiring vandal resistance or certified impact protection may require thicker cover glass or additional mechanical design.

When is 5-point touch useful?

Multi-touch is beneficial for gesture-based interfaces, map navigation, or applications requiring simultaneous user inputs. For simple menu-driven HMIs, additional touch points may not provide significant practical advantages.

Can this touch panel be used with different LCD modules?

Yes. As a standalone projected capacitive touch panel, it can typically be integrated with compatible LCD modules depending on mechanical dimensions and optical requirements.

What can be customized?

Depending on the project, customization may include cover glass thickness, silk printing, logo printing, surface treatment, FPC routing, connector type, and controller configuration.
