As battery-powered devices become increasingly common across industrial, medical, transportation, and portable electronics, reducing display power consumption has become an important design objective rather than simply a desirable feature.
For many engineers, the first instinct is to search for a low-power display or replace an existing panel with a more efficient technology. While display technology certainly plays a role, it is only one part of the overall power budget.
In practice, the power consumed by a display system depends on many factors, including backlight brightness, display resolution, refresh rate, driver architecture, touch integration, and even the way the user interface is designed. Optimizing only one of these elements rarely delivers the best results.
A truly energy-efficient display is not necessarily the display with the lowest power consumption. Instead, it is a display that provides the required brightness, readability, responsiveness, and image quality while using only the energy needed for its intended application.
For example, an industrial HMI installed inside a factory may prioritize stable readability and long service life, while a battery-powered handheld instrument may place greater emphasis on extending operating time between charges. An outdoor terminal, on the other hand, often requires a high-brightness display to remain visible under direct sunlight, even if doing so increases overall power consumption.
Because every application has different priorities, reducing LCD display power consumption is rarely about selecting a single "low-power" panel. It is about optimizing the entire display system to achieve the best balance between performance, usability, battery life, and cost.
In this article, we'll examine where display power consumption comes from, which design choices have the greatest impact, and practical engineering strategies for building more energy-efficient LCD systems.

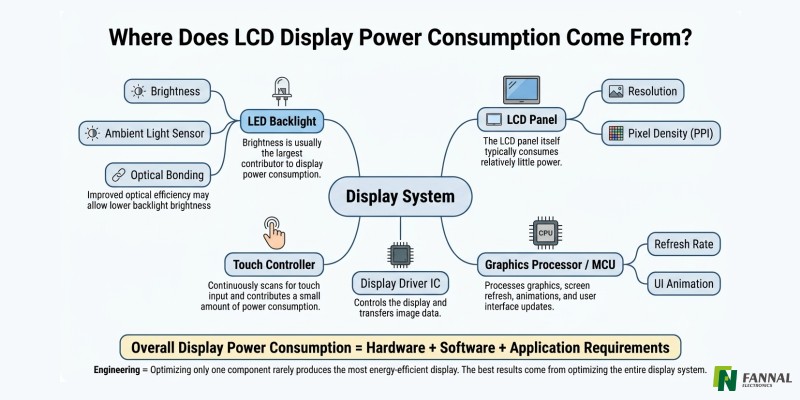

Where Does LCD Display Power Consumption Come From?
Many people assume that the LCD panel itself is the primary source of power consumption. In reality, an LCD display is a complete system made up of multiple components, each contributing differently to the total energy usage.
In many TFT LCD applications, the LED backlight consumes significantly more power than the liquid crystal panel itself. The brighter the display, the more power the backlight typically requires, which is why high-brightness displays designed for outdoor environments generally consume more energy than standard indoor displays.
Beyond the backlight, several other factors also influence overall power consumption:
Display resolution – Higher resolutions increase the number of pixels that must be processed and refreshed, potentially placing greater demands on the graphics processor and memory bandwidth.
Refresh rate – Applications displaying rapidly changing graphics generally consume more power than those showing mostly static information.
Touch technology – Capacitive touch controllers continuously scan for touch input, adding a small but measurable amount of power consumption.
Display driver and interface – The driver IC, display interface, and system architecture all contribute to the overall energy budget.
User interface design – Frequent animations, full-screen updates, and unnecessary visual effects can increase graphics workload and overall system power consumption.
For this reason, evaluating only the LCD panel can be misleading. The most effective way to reduce power consumption is to understand how every part of the display system contributes to the final result and optimize them together rather than focusing on a single component.
Six Practical Ways to Reduce LCD Display Power Consumption
Reducing display power consumption does not usually require a completely different display technology. In many cases, a combination of hardware selection, software optimization, and system-level design can significantly lower energy usage while maintaining a good user experience.
The following strategies are widely used in industrial and embedded systems to build more energy-efficient display solutions.
1. Optimize Backlight Brightness
For most TFT LCDs, the LED backlight is one of the largest contributors to total display power consumption. As brightness increases, power consumption generally rises as well.
However, many products operate at maximum brightness even when it is unnecessary. In indoor environments, reducing brightness from 100% to a level that still provides comfortable readability can noticeably decrease power usage without affecting the user experience.
An effective approach is to implement automatic brightness adjustment using an ambient light sensor. Instead of maintaining a fixed brightness level, the system continuously adapts to surrounding lighting conditions.
For example:
A handheld diagnostic device used in a hospital can reduce brightness in dim environments to extend battery life.
An outdoor terminal can automatically increase brightness in direct sunlight and reduce it when ambient light decreases.
This approach not only reduces energy consumption but also improves user comfort and may help extend the service life of the LED backlight.
Engineering consideration
Reducing brightness should never compromise readability. The goal is to provide sufficient luminance for the operating environment rather than simply minimizing power consumption.
2. Select a Resolution That Matches the Application
A higher resolution provides more image detail, but it does not automatically improve every product.
Applications that primarily display large buttons, operating status, or simple menus often gain little practical benefit from moving to a much higher resolution. Meanwhile, higher resolutions require additional graphics processing, memory bandwidth, and sometimes more expensive hardware.
For example, an industrial controller displaying machine status may operate effectively with a moderate-resolution display, while a medical imaging system or machine vision interface can justify a higher-resolution panel because users need to distinguish fine details.
Selecting an appropriate resolution helps achieve a better balance between image quality, hardware complexity, and system power consumption.
Engineering consideration
Choose the resolution based on the information density of the user interface rather than assuming that the highest specification always delivers the best design.
3. Reduce Refresh Rate When Appropriate
Not every application requires a display refreshing at 60 Hz or higher.
Many industrial products show relatively static information for long periods. Equipment status pages, smart meters, environmental monitors, and laboratory instruments may update only when new data becomes available.
Lowering the refresh rate in these situations can reduce graphics processing activity and lower overall system power consumption.
However, applications displaying video, animations, or rapidly changing graphics still require higher refresh rates to maintain smooth performance.
Engineering consideration
Match the refresh rate to the application's update frequency instead of using a single fixed value for every operating mode.
4. Design an Efficient User Interface
Power consumption is influenced not only by hardware but also by software design.
Frequent screen animations, unnecessary transitions, and continuous full-screen updates increase GPU workload and memory access, even when the displayed information changes very little.
A well-designed user interface minimizes unnecessary redraws and updates only the regions of the screen that actually change. This approach can reduce processor activity while improving system responsiveness.
Simple interface layouts also tend to be easier to read in industrial environments where operators need to obtain information quickly.
Engineering consideration
An efficient user interface is an important part of an energy-efficient display system. Optimizing software often delivers measurable power savings without changing any hardware.
5. Use Ambient Light to Your Advantage
Ambient lighting changes throughout the day, yet many displays continue operating at the same brightness level regardless of the environment.
By combining an ambient light sensor with adaptive brightness control, a system can automatically provide only the illumination required for comfortable viewing.
In addition, technologies such as optical bonding and anti-reflective surface treatments improve display visibility by reducing reflections. Because the image remains easier to see, some applications can achieve acceptable readability at a lower backlight brightness than would otherwise be required.
Engineering consideration
Improving optical performance can sometimes reduce power consumption indirectly by lowering the brightness needed to achieve the same viewing experience.
6. Choose the Right Display Technology
Different display technologies offer different advantages, and no single solution is ideal for every application.
Monochrome LCDs are often suitable for simple information displays with very low power requirements.
Transflective LCDs improve visibility in bright environments by making use of ambient light, potentially reducing dependence on high backlight brightness.
Conventional TFT LCDs remain the preferred choice for applications requiring full color, rich graphics, and responsive touch interaction. Their overall power consumption can still be optimized through careful control of brightness, refresh rate, and system design.
Rather than searching for the lowest-power display technology, engineers should evaluate the complete operating environment, expected battery life, image quality requirements, and user experience before making a decision.
Display Technology | Typical Power Consumption | Main Advantages | Considerations |
Monochrome LCD | Very Low | Extremely low power, simple design, long battery life | Limited graphics and color capability |
Standard TFT LCD | Moderate | Full color, high image quality, excellent UI flexibility | Backlight is usually the largest power consumer |
Transflective LCD | Low to Moderate | Improved sunlight readability, reduced reliance on high backlight brightness | Image quality indoors may differ from transmissive TFTs |
High-Brightness TFT LCD | High | Excellent outdoor visibility | Higher power consumption due to brighter backlight |
Engineering consideration
The most energy-efficient display is not always the one with the lowest power consumption—it is the one that provides the required performance using the least amount of energy for its intended application.
How to Evaluate an Energy-Efficient Display
Reducing display power consumption is often misunderstood as selecting the display with the lowest power rating. In reality, a truly energy-efficient display delivers the required performance while consuming only the energy necessary for its intended application.
For example, a display with extremely low power consumption may not be suitable if it lacks sufficient brightness for outdoor use or cannot provide the image quality required by the application. Conversely, selecting a high-brightness panel for an indoor device may increase power consumption without delivering any practical benefit.
Instead of focusing on a single specification, engineers should evaluate the display as part of the overall system.
The following considerations can help determine whether a display is genuinely energy-efficient for a particular application.
Viewing Environment
Will the device operate indoors, outdoors, or in environments with changing ambient lighting?
Outdoor applications often require significantly higher brightness levels than indoor equipment. Technologies such as optical bonding, anti-reflective coatings, or transflective LCDs may improve readability without relying solely on increasing backlight brightness.
Display Content
How much information changes on the screen?
Static interfaces generally consume less processing power than interfaces with continuous animations or video. Applications displaying fixed parameters, equipment status, or measurement results may benefit from lower refresh rates and simpler graphics.
Operating Time
Battery-powered products typically prioritize longer operating time, while equipment connected to external power supplies may prioritize image quality or brightness instead.
Understanding how long the device is expected to operate between charges helps determine where power optimization delivers the greatest value.
User Experience
Reducing power consumption should never make a product difficult to use.
Brightness that is too low, slow screen updates, or poor readability can negatively affect productivity and user satisfaction. The goal is to reduce unnecessary energy consumption without compromising usability.
System Cost
Some power-saving solutions require additional sensors, software development, or more advanced hardware. Evaluating the overall cost alongside expected energy savings helps identify the most practical solution for commercial products.
Ultimately, an energy-efficient display is the result of balancing multiple engineering requirements rather than optimizing a single specification.
Application Examples
Different industries prioritize display performance in different ways. As a result, there is no universal approach to reducing LCD display power consumption.
Portable Medical Devices
Portable medical equipment often operates on rechargeable batteries while requiring clear, reliable image quality.
Rather than maximizing brightness, designers typically focus on balancing battery life, readability, and regulatory requirements. Automatic brightness adjustment and optimized user interfaces are commonly used to reduce unnecessary power consumption.
Industrial Handheld Terminals
Warehouse scanners, handheld HMIs, and field service tools frequently operate throughout an entire work shift.
Because these products are carried by users, extending battery life is often more valuable than achieving the highest display resolution. Moderate brightness, efficient software design, and adaptive power management are typically more effective than simply selecting a different LCD panel.
Outdoor Equipment
Outdoor terminals, EV charging stations, agricultural equipment, and marine electronics present a different challenge.
These applications require excellent visibility under direct sunlight, which often necessitates higher display brightness and increased power consumption.
In these cases, technologies such as optical bonding, anti-reflective coatings, and transflective LCDs may improve readability more efficiently than increasing brightness alone.
Industrial HMIs
Factory automation equipment generally operates using external power supplies, making energy consumption less critical than reliability and usability.
However, reducing unnecessary graphics processing, avoiding excessive brightness, and selecting an appropriate resolution can still improve overall system efficiency and thermal performance.
Engineering Takeaways
When designing a low-power LCD system, remember the following principles:
✔ The LCD panel is only one contributor to overall display power consumption.
✔ LED backlight brightness is often the largest source of power usage in TFT LCD systems.
✔ Higher resolution does not always improve user experience or justify increased power consumption.
✔ Adaptive brightness control is one of the simplest and most effective energy-saving strategies.
✔ User interface design can influence system power consumption as much as hardware selection.
✔ Different applications require different optimization priorities.
✔ The most energy-efficient display is the one that delivers the required performance with the least amount of energy—not necessarily the display with the lowest power rating.
FAQ
1. Does a larger LCD display consume more power?
Not necessarily.
Power consumption depends on multiple factors, including backlight brightness, resolution, refresh rate, display technology, and system design. A larger display often requires a larger backlight, but two displays of the same size can have significantly different power consumption depending on their specifications and operating conditions.
2. Does reducing brightness always save power?
Generally, yes.
For most TFT LCDs, lowering the LED backlight brightness is one of the most effective ways to reduce display power consumption. However, brightness should always remain sufficient for the intended viewing environment to maintain readability and user comfort.
3. Is a higher-resolution display less energy-efficient?
Not always.
Higher resolutions require more graphics processing and memory bandwidth, which can increase overall system power consumption. Whether this affects battery life depends on the application, hardware platform, and how the display is used.
4. Can optical bonding reduce display power consumption?
Indirectly, yes.
Optical bonding reduces internal reflections and improves display readability, especially in bright environments. Because the screen can remain readable at a lower backlight brightness, some applications may achieve lower overall power consumption while maintaining the same viewing performance.
5. What makes an energy-efficient display?
An energy-efficient display is not simply the display with the lowest power consumption. It is one that delivers the required brightness, image quality, responsiveness, and user experience while minimizing unnecessary energy use for its specific application.
