9 Inch PCAP Touch Panel | AG Coating & Custom Icon Printing

Name: 9 Inch PCAP Touch Panel | AG Coating & Custom Icon Printing
Brand: FANNAL
Rating: 5.0 (63 reviews)

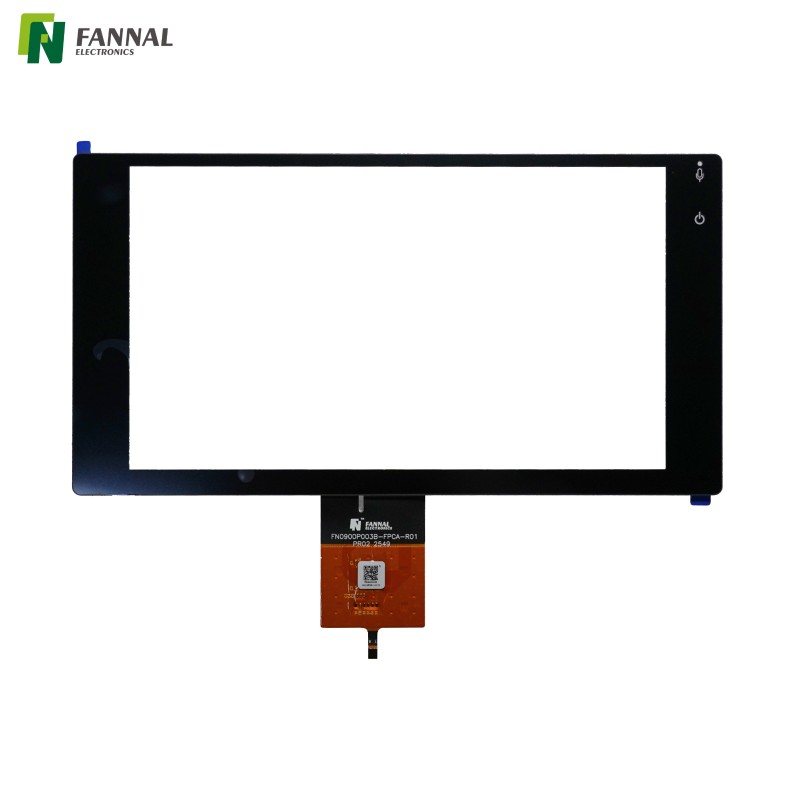

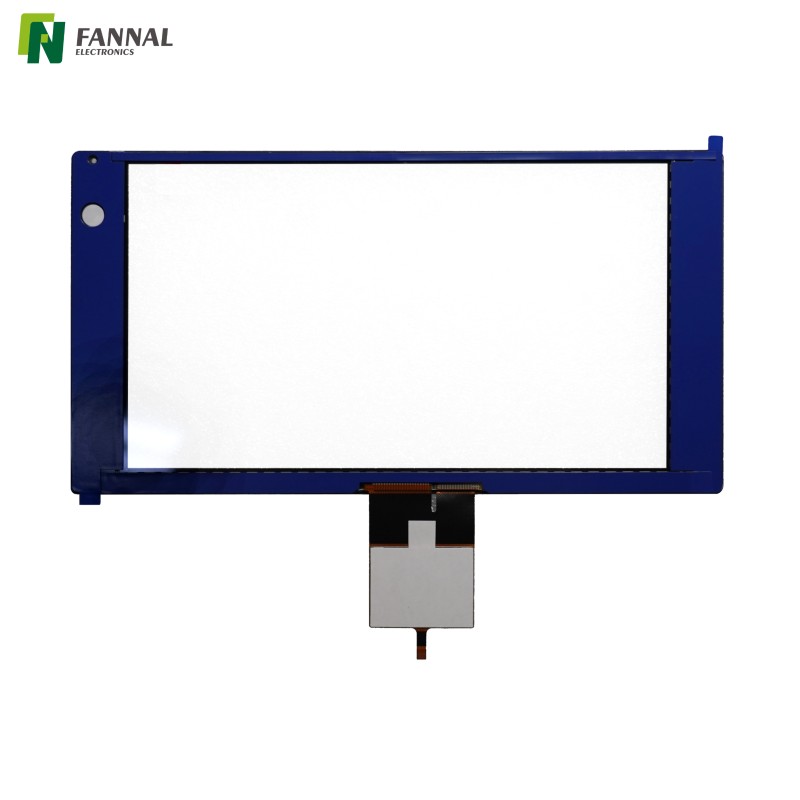

9" Industrial PCAP Touch Panel with Custom Cover Lens & AG Coating

Model:
FN0900P003B
Brand:
FANNAL
Size(inch):
9
Cover OD (mm):
241.30*126.60
Operation Temp(℃):
-30~85
Storage Temp(℃):
-40~85
TP VA (mm):
198.91(H)x111.89(V)
Structure:
G+G
TP Interface:
I2C

Quantity:
Availability:





Inquiry Add to Basket

pcap touch panel

Key Features

Drawing & Specifications

Applications

Customizations

FAQ

Key Features

High-End Surface Treatment (AG): The cover glass features an Anti-Glare (AG) coating, significantly reducing reflections and ensuring excellent readability even in bright or outdoor environments.
Fully Customizable Cover Lens: We support bespoke icon and logo printing on the cover glass to match your brand identity and functional requirements.
Ultra-Wide Temperature Range: Specifically engineered for extreme conditions, operating reliably from -30°C to +85°C, making it perfect for rigorous industrial use.
Robust G+G Structure: Built with a Tempered Glass + ITO Glass (G+G) structure and SCA optical bonding, providing high impact resistance and long-term stability.
Precision Multi-Touch: Powered by the FT5526-003 driver IC, supporting a smooth 5-point finger touch experience with high transparency (86% Min).

Drawing

Specifications

Item	Specification	Unit
TP Active Size	9.0	Inch
TP Outline Size	241.3(H)x126.6(V)x2.9(T)	mm
View Area	198.91(H)x111.89(V)	mm
Surface hardness	≥6H	-
Surface treatment	AG	-
Touch Transmittance	86% Min (550nm)	-
Touch Driver IC	FT5526-003	-
Touch Points	5 points	-
Touch Mode	Finger touch	-
Operating Temperature/Humidity	-30 ~ +85°C, 45-90%	°C
Storage Temperature/Humidity	-40 ~ +85°C, 5-90%	°C

Product Applications

Outdoor Industrial Terminals: Thanks to the AG coating and wide temperature range, it excels in charging piles, parking systems, and outdoor kiosks.
Medical Control Interfaces: High-durability glass and custom icons make it ideal for sterilized medical equipment and diagnostic displays.
Marine & Transportation: Designed to withstand temperature fluctuations in boat dashboards and vehicle-mounted rugged tablets.
Smart Building Intercoms: Professional appearance with custom printed logos for premium residential or office access control.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

Customizations

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

Q: Can I customize the icons and colors printed on the cover lens?

A: Yes. We offer professional silk-screen printing services. You can provide your design files, and we can print custom icons, logos, and specific border colors on the cover glass.

Q: What is the benefit of the AG (Anti-Glare) surface treatment?

A: AG treatment diffuses reflected light, which prevents the "mirror effect" in bright environments. This is essential for maintaining clear visibility in outdoor or high-light industrial settings.

Q: Is this touch panel suitable for extremely cold or hot environments?

A: Absolutely. This module is rated for an industrial-grade operating temperature of -30°C to +85°C, ensuring stable performance in both freezing and high-heat conditions.

Q: Does the touch panel support operation with gloves?

A: The standard finger touch mode is optimized for high sensitivity. However, our technical team can tune the FT5526-003 IC firmware to support specific glove types or water-rejection features upon request.
