15" Capacitive Touch Panel | 10-Point Multi-Touch, Anti-Glare

Name: 15" Capacitive Touch Panel | 10-Point Multi-Touch, Anti-Glare
Brand: FANNAL
Rating: 5.0 (62 reviews)

15" Industrial 10-Point Multi-Touch G+G Capacitive Touch Panel

Model:
FN1500P010A
Brand:
FANNAL
Size(inch):
15
Cover OD (mm):
347.4(H) x 271.3(V) x 3.95(T)
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
TP VA (mm):
305.1(H) x 229.1(V)
Structure:
G+G
TP Interface:
IIC

Quantity:
Availability:





Inquiry Add to Basket

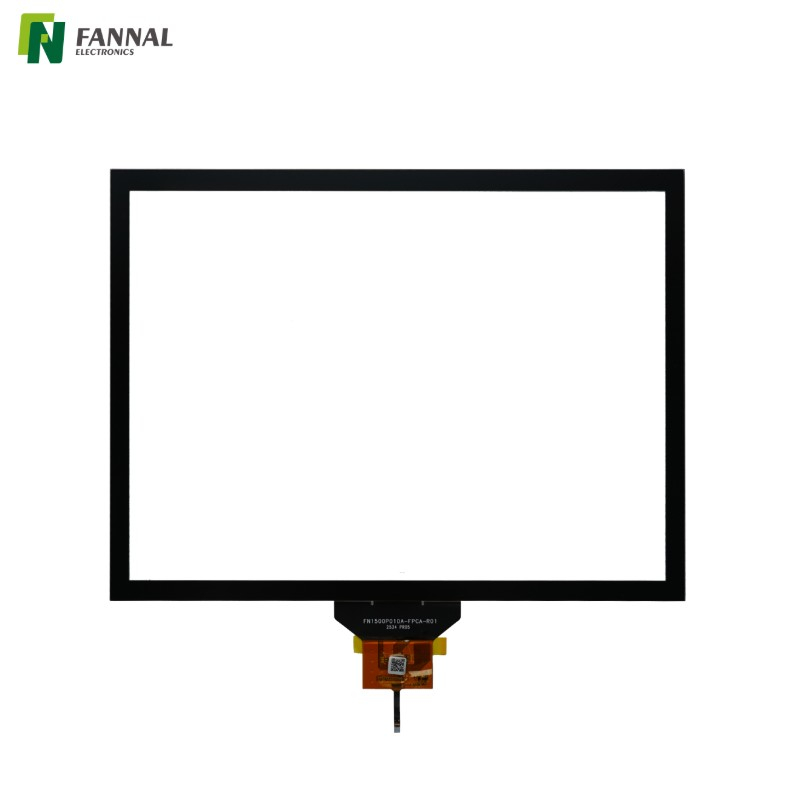

15" Capacitive Touch Panel

Product Description

Drawing & Specifications

Industrial Case Study

Customizations

FAQ

As a specialized manufacturer of custom touch displays, we design our 15" G+G (Glass + Glass) capacitive touch panels for demanding industrial, medical, and outdoor applications. Featuring precise 10-point multi-touch, high light transmittance, and an anti-glare surface, this panel delivers responsive interaction even in challenging environments. With chemically strengthened cover glass and ITO sensor, it maintains reliable operation across -20°C to 70°C, providing durable, long-term performance for mission-critical systems.

Key Features

10-Point Multi-Touch – Smooth, responsive touch for finger input, supporting advanced interactive applications.
High Durability – 7H surface hardness withstands scratches and daily wear.
Anti-Glare Surface – Reduces reflections for clear visibility in bright environments.
Robust Materials – Chemically strengthened 3.0mm cover glass and 0.7mm ITO sensor ensure reliability.
Wide Operating Range – Performs consistently in temperatures from -20°C to 70°C.
Industrial Compliance – RoHS-2.0 certified for safe and eco-friendly deployment.
Easy Integration – I2C (IIC) interface compatible with standard controllers (mXT1664T3).

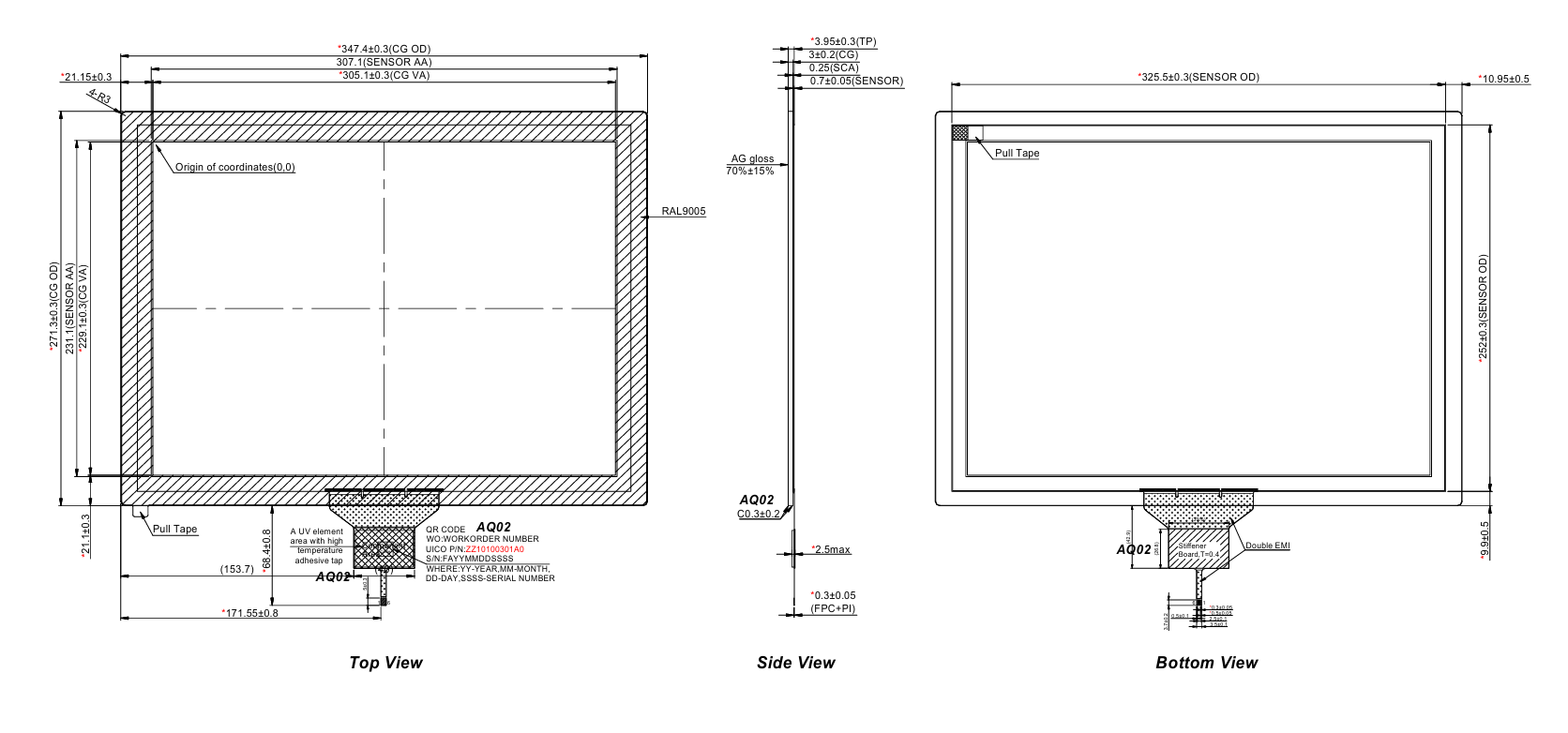

Drawing of FN1500P010A

Specifications of FN1500P010A

Item	Specification	Unit / Remark
Product Structure	G+G (Glass + Glass)	—
Active Size	15.0 (Diagonal)	Inch
Outline Dimension	347.4(H) x 271.3(V) x 3.95(T)	mm
View Area	305.1(H) x 229.1(V)	mm
Touch Controller (IC)	mXT1664T3	—
Touch Interface	IIC (I2C)	—
Number of Touch Points	10 Points	Finger (Desiccation)
Transmittance	82% Min.	—
Surface Hardness	≥ 7H	750g load
Surface Treatment	AG (Anti-Glare)	—
Cover Material / Thickness	Chemically Strengthened Sodalime	3.0mm
Sensor Material / Thickness	ITO Glass	0.7mm
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
Environmental Compliance	RoHS-2.0	—

Industrial Automation Control Console

Challenge:
Industrial control consoles often operate in harsh environments with high temperatures, dust, and frequent operator interaction. Standard touch panels may fail, lose responsiveness, or wear out quickly, causing downtime and maintenance issues.

Our Solution:
As a custom touch display manufacturer, we designed a 15" G+G capacitive touch panel with 10-point multi-touch for precise operation. The chemically strengthened glass and AG (anti-glare) surface ensure scratch resistance and clear visibility under bright factory lighting. The panel is engineered to withstand -20°C to 70°C, maintaining consistent touch performance even in demanding conditions.

Results:

Reliable, long-term operation without touch failures.
Improved operator efficiency and reduced maintenance costs.
Fully integrated solution tailored to the client’s industrial environment.

Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

1. What makes a G+G capacitive touch panel suitable for industrial automation?

G+G panels offer high durability, precise multi-touch, and resistance to harsh conditions. Ideal for factory consoles and HMI systems.

2. How does anti-glare treatment improve outdoor touch screen usability?

AG coating reduces reflection and improves visibility under sunlight. It ensures accurate touch operation for kiosks and outdoor terminals.

3. How do I integrate this touch panel with existing industrial displays?

It supports standard I2C interface and mXT1664T3 controller. Custom integration services can adapt it to your LCD or TPM system.

4. What are the advantages of chemically strengthened glass for industrial touch screens?

Chemically strengthened glass, such as sodalime treated in a potassium salt bath, offers significantly higher surface compression than standard glass. This results in 7H+ hardness, superior scratch resistance, and higher IK impact ratings.

5. Is it possible to customize the touch panel for specific industrial applications?

Yes. Customization options include bespoke dimensions, 10-point multi-touch tuning, specialized surface treatments (AG/AR/AF), and optical bonding services to meet the specific mechanical requirements of your industrial project.
