Do Two-Wheeler Instrument Clusters Still Need Monochrome Displays?

Transportation development has continuously changed how people interact with distance.

For two-wheelers, that evolution has been especially obvious.

From the old steel-frame bicycles powered entirely by human effort, to gasoline motorcycles, and now to electric mobility platforms with connected systems and navigation, almost every generation of two-wheelers has redefined what riders expect from the machine itself.

But interestingly, the display was never part of the original idea.

At the beginning, a motorcycle or bicycle only needed to do one thing: move a person from one place to another.

There was no reason for a display to exist.

No rider was asking for UI animations, Bluetooth pairing, or navigation overlays. In many early vehicles, even speed indication was optional.

The instrument cluster only appeared after riders started asking for information.

• Fuel level

• Speed

• RPM

• Mileage

That was the first shift.

Vehicles were no longer just transportation tools.
They started becoming information systems.

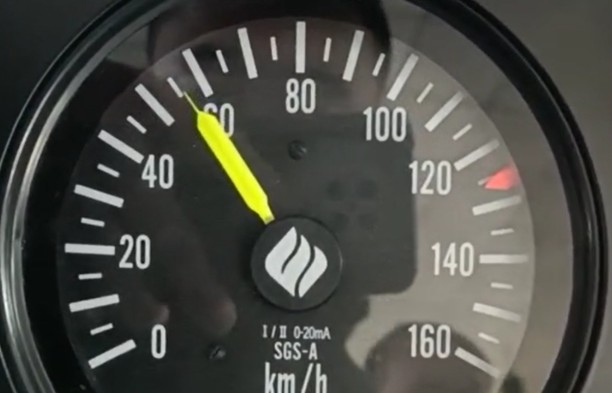

Why Mechanical Gauges Dominated for So Long

Today, it is easy to assume LCDs should have replaced analog gauges decades ago.

In reality, the transition was much slower, especially in gasoline-powered motorcycles.

The reason was not simply “technology limitations.”

It was an engineering tradeoff.

Early motorcycle electrical systems had limited power stability, especially during ignition and low-RPM operation. Under these conditions, mechanical gauges remained attractive because they were:

• Simple

• Reliable

• Easy to read under sunlight

• Resistant to vibration

• Extremely low power consumption

In outdoor applications, reliability often mattered more than visual experience.

Even today, some entry-level motorcycles still use partially mechanical clusters for exactly this reason.

And in many industrial environments, engineers still prefer simpler monochrome displays over complex UI systems when long-term stability is the priority.

Why Electric Two-Wheelers Accelerated TFT Adoption

The rise of electric scooters and e-bikes changed the display industry much faster than traditional motorcycles did.

Stable lithium battery systems changed the entire display equation.

Once higher-capacity battery platforms became mainstream, TFT LCDs were no longer competing for limited electrical resources.

That shift was not only about appearance.

Color TFT displays solved several practical usability problems:

• Flexible information layout

• Dynamic warning systems

• Battery visualization

• Navigation integration

• Multi-language UI

• Smartphone connectivity

• Better HMI interaction

For modern HMI systems, especially in connected vehicles, monochrome interfaces quickly became restrictive.

At the same time, TFT technology itself also improved rapidly.

• Higher brightness

• Wider operating temperature

• Optical bonding

• Better anti-reflection treatment

• Improved low-temperature response

Many issues that previously limited TFT adoption in outdoor applications gradually became manageable.

But the transition is still not universal.

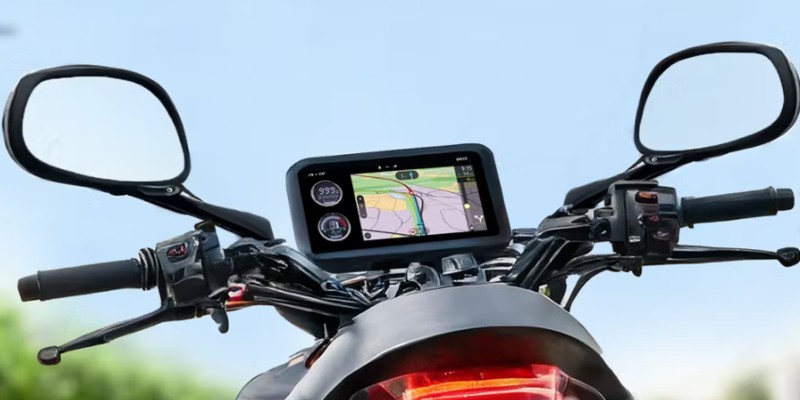

The Real Turning Point Was Navigation

In recent years, one requirement changed the display strategy of many motorcycle manufacturers: navigation.

Especially for high-displacement motorcycles and touring riders, phone holders stopped being a reliable long-term solution.

Riders do not want a smartphone falling from the handlebar while riding mountain roads.
They also do not want overheating, rain exposure, glare, or glove operation problems during long rides.

Once navigation moved into the dashboard itself, monochrome displays started reaching their practical limits.

This is why many modern motorcycle instrument clusters now prioritize:

• High-brightness TFT

• Optical bonding

• Anti-glare cover glass

• Wide viewing angle IPS panels

• Glove-compatible touch operation

• Low-temperature startup reliability

In outdoor applications, readability becomes much more complicated than simply increasing brightness.

For example:

A display with high brightness but poor optical bonding may still become difficult to read under direct sunlight because of internal reflections.

Similarly, some consumer-grade TFT panels perform well indoors but suffer from ghosting, slow response, or blackening issues in low-temperature riding conditions.

The display itself is only one part of the system.

Integration matters just as much.

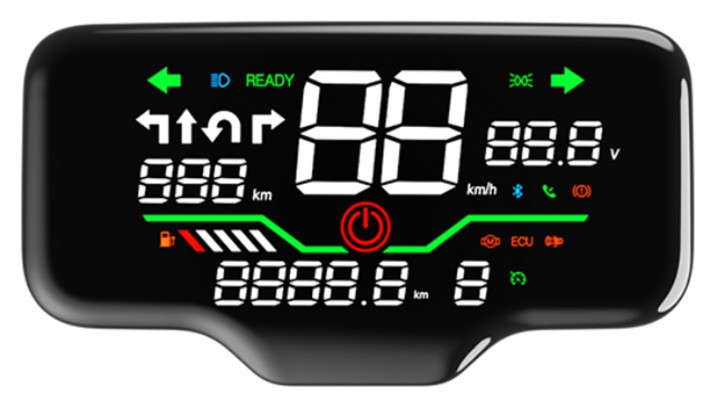

Do Monochrome Displays Still Have a Future?

Yes.

But probably not in the same segments as before.

Monochrome LCDs are not disappearing because they are “obsolete.”

They continue to make sense in many applications where simplicity, low power consumption, and cost stability remain priorities.

The market is becoming more segmented.

In many low-cost transportation platforms, monochrome displays are still the more reasonable engineering choice.

They consume less power.
They are easier to integrate.
They often provide better long-term stability under harsh environmental conditions.

But for vehicles increasingly centered around riding experience, navigation, connectivity, and intelligent interaction, TFT adoption will continue to accelerate.

This is not simply a display upgrade.

It reflects a broader change in how two-wheelers are being defined.

The vehicle is no longer only transportation.

It is becoming an interactive platform.

And once that shift happens, the display naturally becomes part of the riding experience itself.

At FANNAL, we work with customers across different two-wheeler display projects, including high-brightness TFT modules, optical bonding solutions, and custom touch integration for outdoor applications.

In practice, there is no single “best” display technology for all motorcycles or e-bikes.

Requirements vary significantly depending on:

• Environmental conditions

• Power architecture

• UI complexity

• Cost targets

• Long-term reliability expectations

In many projects, customization is still necessary to balance readability, durability, integration complexity, and overall system cost.

FAQ

Why are monochrome LCDs still used in motorcycles and e-bikes?

Monochrome LCDs are still widely used because they offer low power consumption, good sunlight readability, simpler integration, and lower system cost. In commuter vehicles and shared mobility platforms, these advantages are often more important than advanced UI functions.

Why are TFT displays becoming more common in motorcycle dashboards?

TFT displays support navigation, dynamic UI layouts, smartphone connectivity, and richer riding information. As battery systems become more capable, TFT integration becomes more practical in modern motorcycle HMI systems.

Are TFT displays suitable for outdoor motorcycle applications?

They can be, but outdoor performance depends heavily on brightness, optical bonding, anti-reflection treatment, and operating temperature range. Consumer-grade TFT panels may struggle under direct sunlight or low-temperature conditions.

What are the main engineering challenges for motorcycle displays?

Common challenges include:

• Vibration resistance

• EMI

• Condensation

• Glove touch operation

• Sunlight readability

• Power stability

• Low-temperature lag

• Optical bonding reliability

• Long-term outdoor durability

Is optical bonding necessary for motorcycle TFT displays?

Not always, but optical bonding is often recommended for outdoor applications because it reduces internal reflections and improves sunlight readability under harsh lighting conditions.
