What Makes A High-Performance Motorcycle Display? | Fannal Touch Solutions

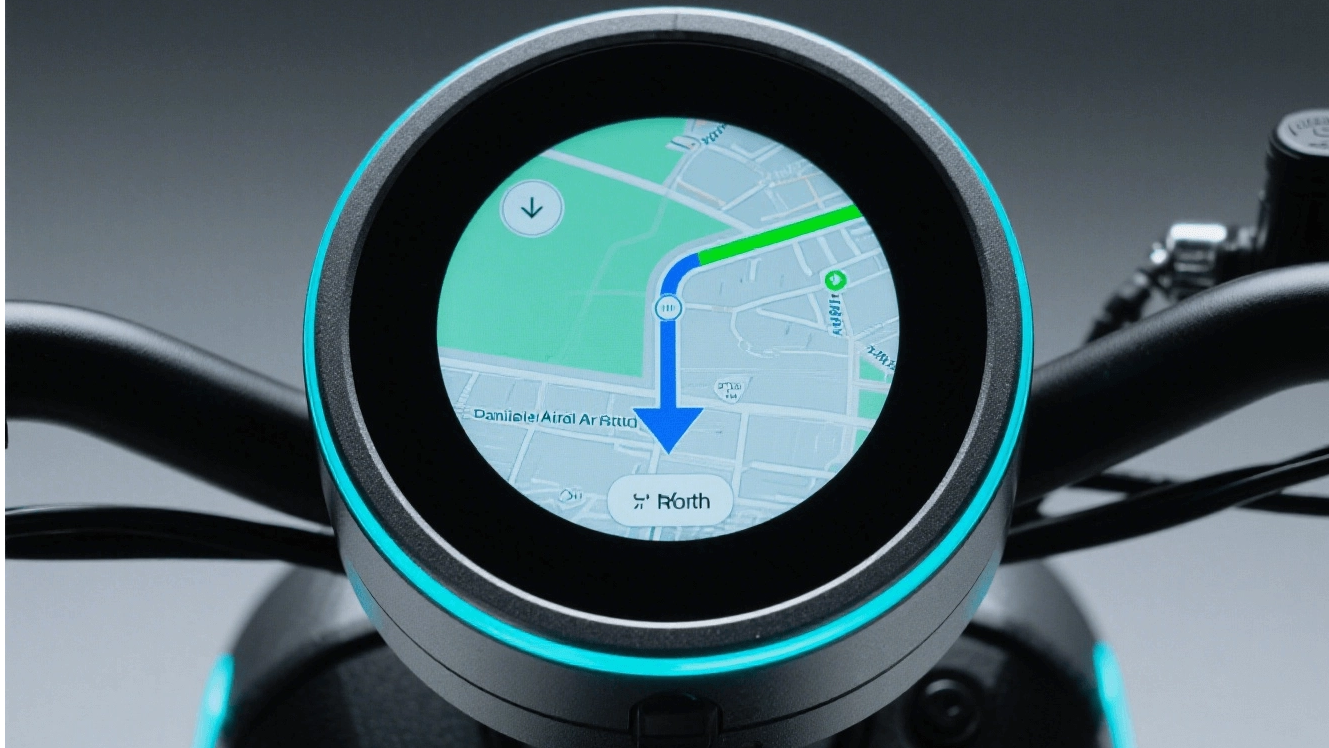

In today’s wave of intelligent mobility, motorcycle displays are no longer simple instrument panels—they are now integrated HMI systems combining visualization, interaction, and vehicle control.

From a system design perspective, a high-performance motorcycle display is not defined by a single specification, but by how well multiple subsystems—optics, touch, mechanics, and electronics—work together under real-world conditions.

What defines a high-performance motorcycle display in real applications?

A high-performance motorcycle display is defined by readability, durability, touch reliability, and environmental robustness under outdoor conditions. It must maintain stable performance under sunlight, vibration, rain, and extreme temperatures.

From a module integration standpoint, this means balancing:

• Optical performance (brightness + bonding)

• Mechanical strength (cover lens + sealing)

• Touch system robustness

• Long-term reliability in harsh environments

Unlike consumer displays, failure modes in motorcycle applications are system-level, not component-level.

Why is sunlight readability the primary design constraint?

Sunlight readability is the most critical factor because motorcycle displays operate in uncontrolled outdoor lighting conditions, including direct sunlight.

To achieve usable visibility, the system typically requires:

• ≥1000 nits brightness (often 1200–1500 nits in practice)

• Optical bonding (OCA/LOCA) to eliminate air gaps

• Anti-reflection (AR) and anti-glare (AG) surface treatment

Engineering insight:

Increasing brightness alone is not sufficient. Without optical bonding, internal reflections can reduce contrast by 30–50%, making high brightness ineffective.

System trade-off:

• Higher brightness → increased power consumption & thermal load

• Optical bonding → improved readability but higher manufacturing complexity

How do vibration and impact affect display module design?

Motorcycle displays must withstand continuous vibration and mechanical shock, far beyond typical automotive cabin conditions.

A robust design requires:

• Reinforced mechanical structure (frame + bracket design)

• High-strength cover glass (typically 3–6 mm)

• Compliance with IK impact standards (IK08–IK10)

• Secure FPC and connector design to prevent fatigue failure

Engineering insight:

Most field failures are not LCD failures—but connector loosening, solder fatigue, or bonding delamination.

System-level recommendation:

• Avoid rigid-only fixation; introduce controlled mechanical compliance

• Validate using random vibration testing, not just sine wave tests

What makes touch functionality reliable with gloves and water?

Reliable touch performance requires a carefully tuned PCAP (projected capacitive) system, not just a standard sensor.

A motorcycle display must support:

• Glove touch (thick riding gloves)

• Wet touch (rain conditions)

• Noise immunity (engine + power system EMI)

Key design factors:

• High signal-to-noise ratio (SNR) touch controller

• Custom sensor pattern (not standard phone layout)

• Firmware tuning for:

  • Water rejection

  • False touch suppression

  • Multi-touch stability

Engineering trade-off:

• Increasing sensitivity improves glove touch

• But excessive sensitivity increases false triggering under rain

→ The solution is algorithm + hardware co-design, not just parameter tuning.

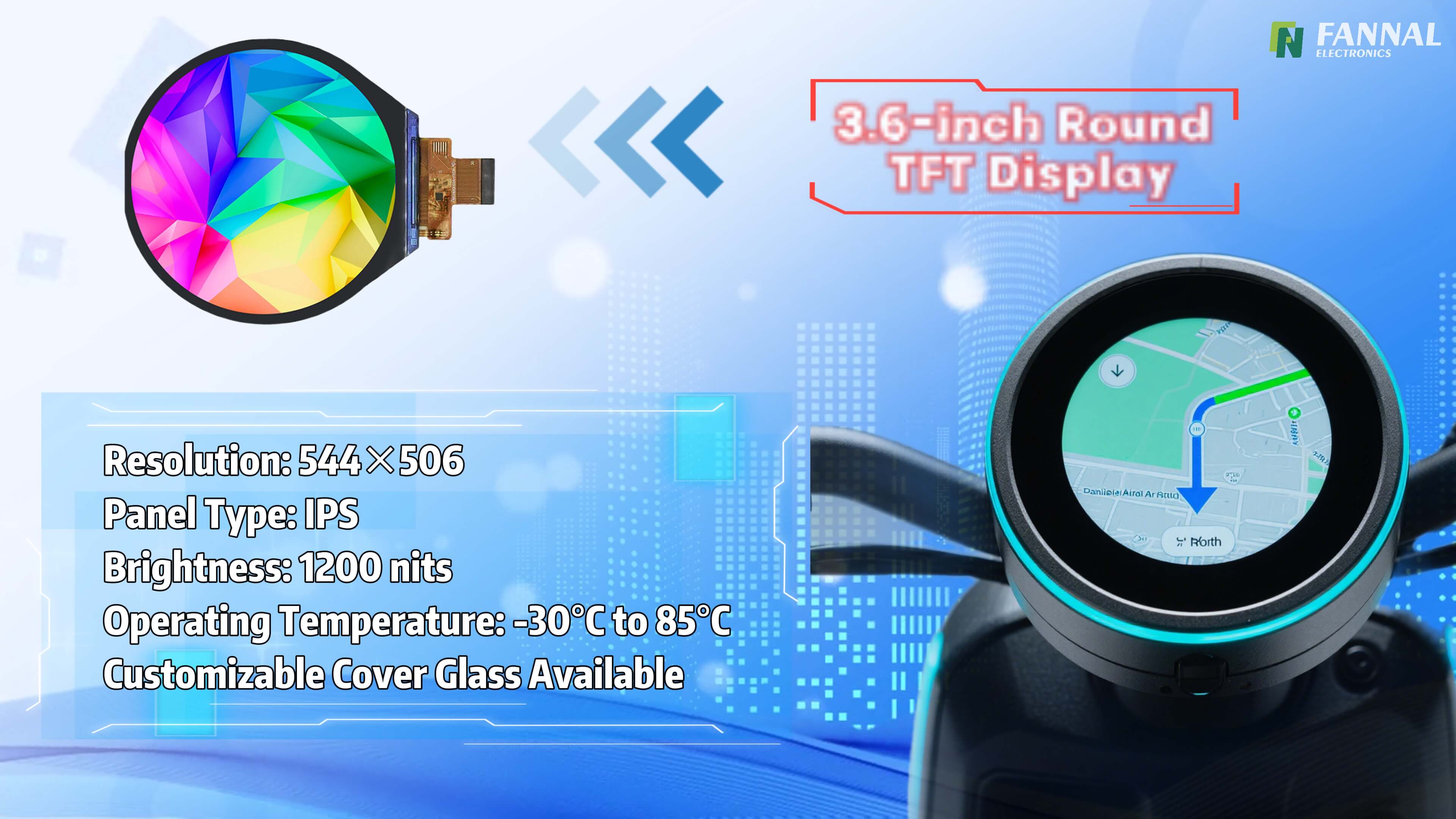

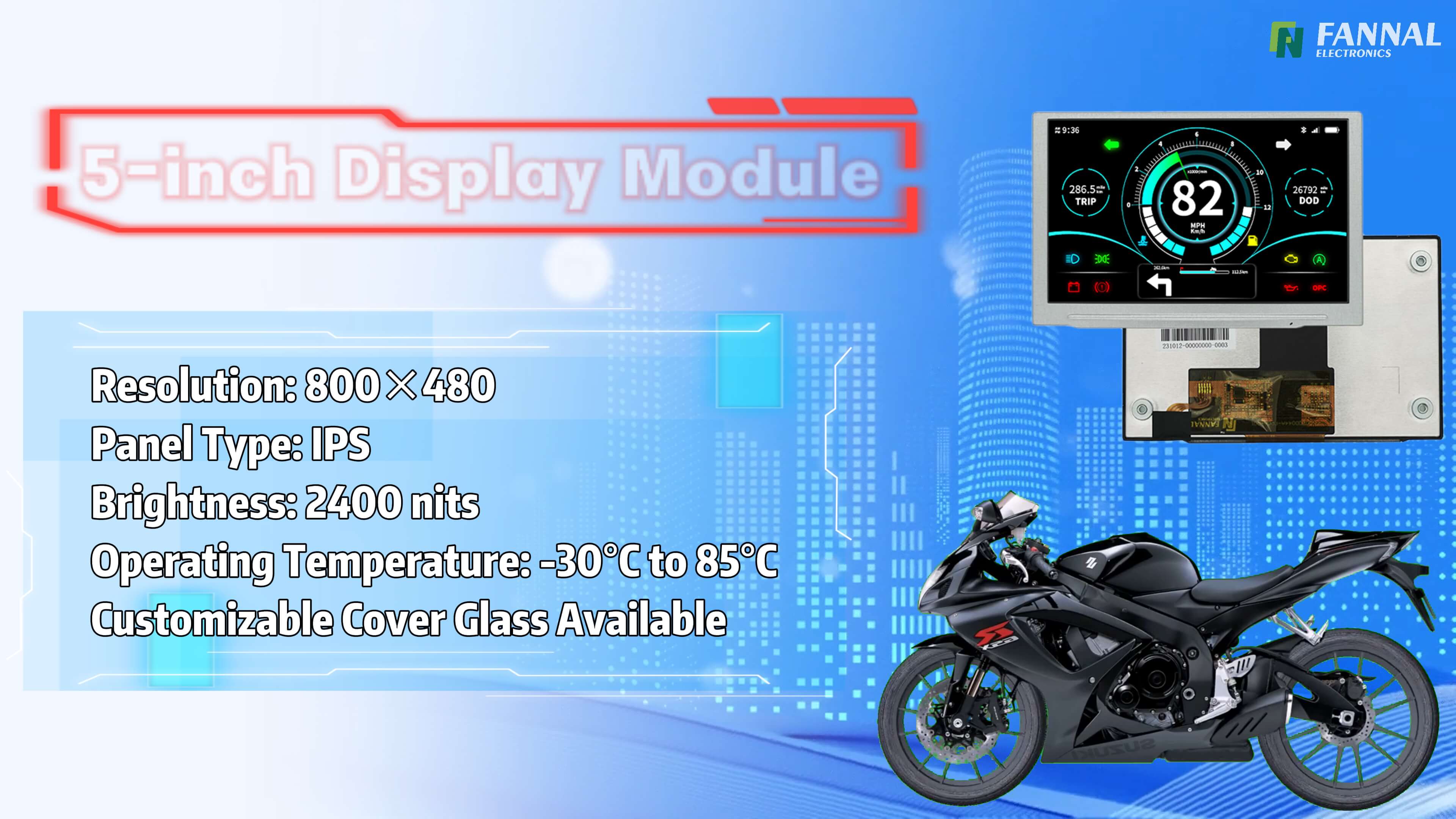

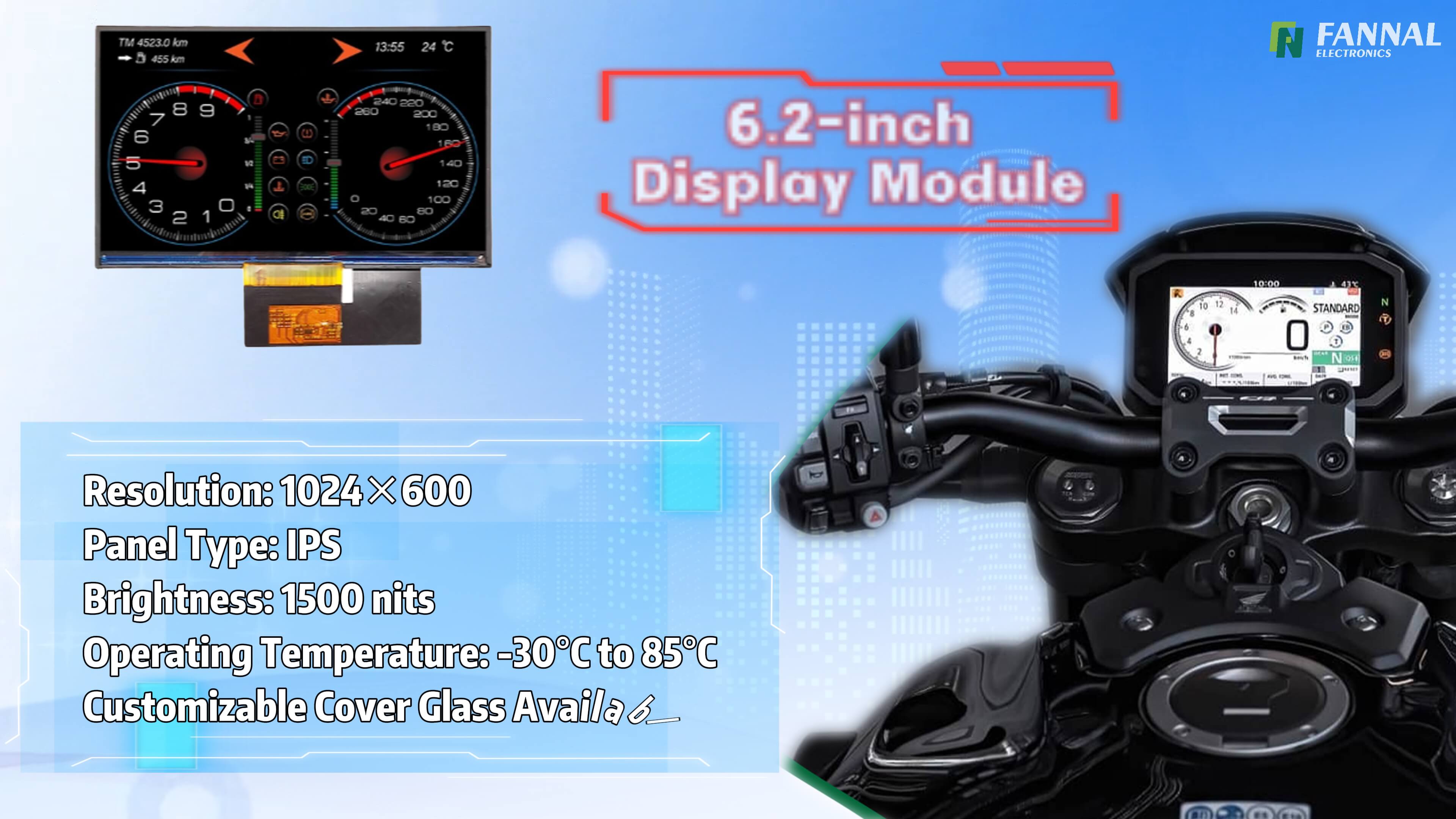

What display specifications are actually required for modern UI?

Modern motorcycle dashboards increasingly integrate:

• Navigation (map rendering)

• UI animations

• Multi-zone information display

Typical requirements:

• Resolution ≥ 1024×600

• IPS panel for wide viewing angles

• High contrast ratio for outdoor readability

Engineering insight:

Resolution should match viewing distance and UI density, not blindly increase.

Higher resolution:

• Improves UI clarity

• But increases GPU load and system cost

How do you ensure stable operation across extreme temperatures?

Motorcycle displays are exposed to full environmental cycles, not controlled cabin conditions.

Typical requirement:

• Operating range: -30°C to +85°C

Key design considerations:

• Low-temperature liquid crystal response optimization

• High-temperature backlight reliability

• Adhesive stability (optical bonding layer must not yellow or delaminate)

Common failure risks:

• Slow response or ghosting at low temperatures

• Backlight degradation at high temperatures

• Optical bonding bubbles over lifecycle

What are the key integration elements beyond the display panel?

A high-performance motorcycle display is a fully integrated module, not just an LCD.

Critical integration elements include:

• Optical bonding (OCA/LOCA)

• Cover lens (strength + coating)

• Touch panel integration

• EMI shielding design

• Waterproof sealing (IP65/IP67)

System insight:

Most performance gaps in the market come from integration quality, not panel specs.

Key specification checklist for motorcycle display design

How should OEMs approach motorcycle display selection?

OEMs should not evaluate displays based on isolated parameters, but on application-specific system performance.

Recommended evaluation approach:

1. Define real usage conditions (sunlight, rain, vibration)

2. Validate integrated module, not separate components

3. Request:

   • Optical bonding validation data

   • Touch performance test (glove + water)

   • Environmental reliability reports

Critical insight:

A display that performs well in lab specs can still fail in field conditions due to integration mismatch.

FAQ

What is the typical brightness for a motorcycle display?

Most motorcycle displays require at least 1000 nits, but 1200–1500 nits is common for direct sunlight visibility.

Is optical bonding necessary for motorcycle displays?

Yes. Without optical bonding, reflections significantly reduce readability, especially under strong sunlight.

Can standard capacitive touch work with gloves?

Not reliably. Motorcycle applications require specially tuned PCAP systems for glove and wet touch.

What causes motorcycle display failures in the field?

Most failures come from mechanical stress, connector fatigue, or poor sealing—not the LCD panel itself.

What IP rating is recommended for motorcycle displays?

IP65 is the minimum, while IP67 is preferred for better water resistance.
