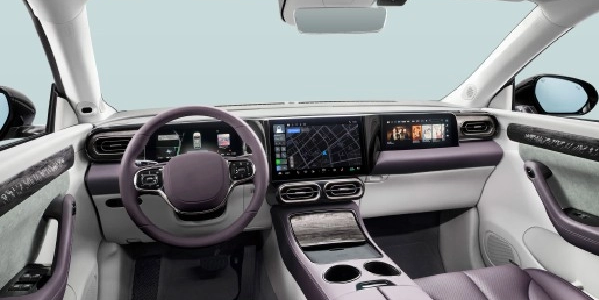

Instrument Panel in Car: Dashboard Instruments and Automotive Display System Design

What is an instrument panel in a car and how is it different from a dashboard display?

An instrument panel in a car is the system that presents critical driving data such as speed, RPM, fuel, and warnings. A dashboard display refers specifically to the visual interface (LCD/OLED) used to render this information.

From an engineering perspective, the instrument panel is a system-level integration, while the display is only one component within it. A complete instrument cluster typically includes:

• Display module (TFT / OLED)

• Touch panel (optional)

• Cover lens (glass or PMMA)

• Backlight system

• Driver IC & ECU interface

• Mechanical housing & thermal design

What are the main types of car instrument panels and displays?

Automotive instrument panels have evolved into three main architectures:

1. Analog Instrument Cluster

• Mechanical gauges (stepper motors)

• Minimal display integration

2. Hybrid Instrument Cluster

• Small TFT embedded with analog gauges

• Transitional solution for cost-sensitive platforms

3. Fully Digital Instrument Cluster

• Full TFT or OLED display

• Software-defined UI (speed, ADAS, navigation)

Comparison Table: Instrument Panel Technologies

Engineering judgment:

• TFT remains dominant due to cost stability + lifetime predictability

• OLED is used in premium vehicles but requires burn-in mitigation and thermal control

Why is TFT LCD still the dominant car display technology?

TFT LCD is widely used in automotive displays because it provides the best balance of cost, brightness, lifetime, and reliability.

From a module supplier perspective:

• Mature supply chain → stable pricing

• High brightness achievable (>1000 nits)

• Long lifetime (50,000+ hours)

• Lower risk of image retention compared to OLED

Engineering trade-off:

System insight:
For instrument clusters exposed to direct sunlight and static UI elements, TFT is still the safer engineering choice.

What makes a car display readable under sunlight and harsh environments?

A car display must remain readable under high ambient light, temperature variation, and vibration.

Key engineering factors include:

1. High Brightness Design

• Target: 800–1500 nits

• Requires efficient LED backlight + thermal management

2. Optical Bonding (Critical)

• Eliminates air gap between display and cover lens

• Reduces reflection from ~4% to <1.5%

3. Anti-Reflection (AR) / Anti-Glare (AG)

• AR coating improves contrast in sunlight

• AG reduces specular reflection but may reduce sharpness

4. Wide Viewing Angle (IPS)

• Ensures visibility from different driver positions

Engineering insight:
Without optical bonding, even a 1000-nit display can appear washed out. Optical stack design is often more important than raw brightness.

How do touch and display integrate in modern dashboard systems?

Modern automotive displays often integrate touch functionality, especially in center dashboards.

Two main integration methods:

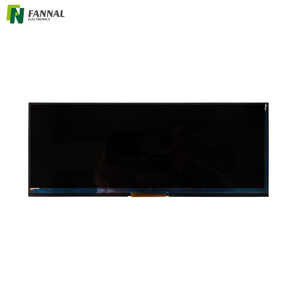

1. On-cell / In-cell Touch

• Integrated into display panel

• Thinner structure

• Lower reflectivity

2. PCAP (Projected Capacitive) Add-on

• Separate touch panel laminated on top

• Better flexibility and durability

Engineering trade-off:

System recommendation:
For instrument clusters, non-touch or PCAP is preferred due to reliability and EMI stability.

What are the key challenges in automotive display system integration?

Designing a car instrument panel is not just about selecting a display. The real challenges lie in system-level integration:

1. EMI / EMC Compliance

• Display + touch must not interfere with vehicle electronics

• Shielding and grounding design are critical

2. Thermal Management

• Dashboard environments can exceed 85°C

• Backlight degradation and color shift must be controlled

3. Vibration & Shock Resistance

• Automotive-grade bonding and mounting required

4. Long Lifecycle Requirement

• 5–10 years supply consistency

• Component obsolescence management

5. UI Safety & Redundancy

• Fail-safe display for critical data (speed, warning)

Engineering insight:
Many failures in automotive displays occur not at launch, but after 2–3 years in field conditions, especially due to thermal and UV degradation.

How to choose the right display module for a car instrument panel?

From a B2B procurement or system design perspective, selection should follow this priority:

Core Selection Checklist

• Display size & resolution (UI requirement driven)

• Brightness (>1000 nits recommended)

• Operating temperature (-30°C to +85°C)

• Optical bonding capability

• Interface compatibility (LVDS / MIPI)

• Touch requirement (yes/no)

• Lifetime & supply stability

Typical Automotive Display Specifications

Conclusion: Why system-level thinking matters in automotive display design

An instrument panel in a car is not just a display—it is a mission-critical human-machine interface (HMI).

From a manufacturer’s perspective, the competitive advantage lies in:

• Optical stack optimization (not just panel selection)

• Stable supply chain for long lifecycle projects

• Integration capability (display + touch + bonding + EMI)

In automotive projects, the best display is not the highest spec—it is the one that delivers consistent performance over 10 years in real-world conditions.

FAQ

What is the difference between instrument cluster and infotainment display?

The instrument cluster shows driving data like speed and RPM. The infotainment display handles media, navigation, and user interaction.

Why do most cars still use TFT instead of OLED?

TFT offers longer lifetime, higher brightness, and no burn-in risk, making it more reliable for automotive use.

What brightness is required for a car dashboard display?

Typically 800–1500 nits is required for sunlight readability, depending on optical bonding and coatings.

Is touch necessary for instrument panels?

No. Most instrument clusters remain non-touch due to safety and reliability considerations.

What is optical bonding in car displays?

It is a process that laminates the display and cover glass to reduce reflection and improve visibility.
