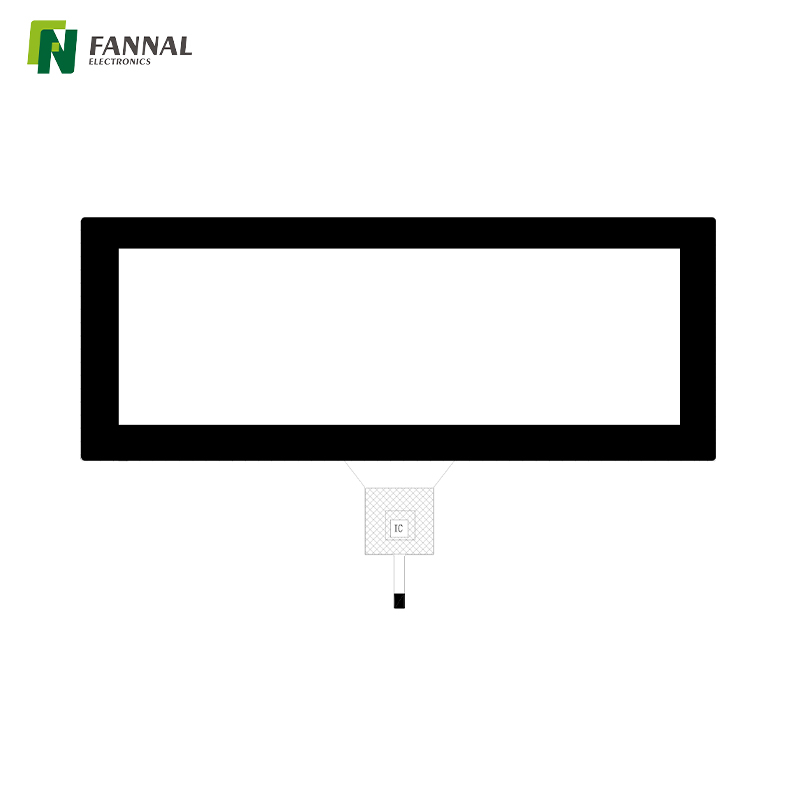

FN0784P002A
FANNAL
7.84
82.40*216.18*1.1
192.88*62.20*0.70
-20~70
-30~80
Microchip
Customizable
60.20*190.88
G+G
IIC
| Availability: | |
|---|---|
| Quantity: | |
Features
Supports 10-point multi-touch, enabling gestures like pinch-to-zoom, swipe, and drag.
Microchip touch controller ensures fast, accurate, and stable touch response.
Maintains edge-to-edge precision under repeated use in vehicle environments.
Operating Temp: –20°C ~ +70°C; Storage Temp: –30°C ~ +80°C
G+G structure provides scratch resistance, durability, and impact tolerance.
Engineered for vibration, temperature swings, and long-term in-vehicle operation.
I²C interface ensures compatibility with various automotive TFT displays.
Compact form factor allows embedding into infotainment systems, dashboards, and control panels.
Optimized for automotive HMI applications, supporting responsive driver and passenger interactions.
High optical quality with wide viewing angles, maintaining visibility from multiple seating positions.
Durable cover lens protects the touch panel while preserving accurate responsiveness.
Drawing
Specifications
Size (inch): | 7.84 |
P/N: | FN0784P002A |
Structure: | G+G |
TP VA (mm): | 60.20*190.88 |
Cover OD (mm): | 82.40*216.18*1.1 |
Sensor OD: | 192.88*62.20*0.70 |
Operation Temp(℃): | -20-70 |
Storage Temp(℃): | -30-80 |
Interface: | IIC |
Number of Touch: | 10 |
CTP IC: | Microchip Technology |
TFT to Match: | Customizable |
Application / Case Story
The 7.84" automotive capacitive touch panel is designed for in-vehicle human-machine interfaces (HMIs):
Infotainment systems – media, navigation, and vehicle settings control
Dashboard displays – critical vehicle information at a glance
Embedded control panels – HVAC, climate, or seat adjustment controls
Case Story:
A European automotive supplier integrated the 7.84" touch panel into their infotainment system. The 10-point touch allowed smooth gesture-based navigation, while the G+G structure and Microchip IC ensured durability under extreme temperatures inside the vehicle. The compact panel design enabled seamless dashboard integration, improving driver usability and passenger interaction without compromising reliability.
Customization – Engineering-Driven Options
FANNAL provides extensive customization to match automotive and industrial integration requirements.
Sizes up to 65", structures G+G or G+F+F
Supports multi-touch, glove touch, water-resistant, gesture & palm rejection
Industrial Grade: –20°C ~ +70°C; Automotive Grade: –30°C ~ +85°C
In-house firmware tuning and optimization
Trusted IC partners: Microchip, EETI, ILITEK, FocalTech, GOODiX, Cypress
High reliability, anti-interference, EMC engineered
Materials: Glass (0.55–10mm), PMMA (0.5–3.0mm), PC (0.1–1.0mm)
Design options: CNC shaping, hot bending, 2.5D/3D glass, ceramic printing
Surface treatments: AG / AR / AF, anti-microbial, anti-explosion
Type | Size Range | Notes |
|---|---|---|
OCA | Up to 15.6" | High-volume production |
LOCA/OCR | Up to 32" | High contrast and durability |
Silicone | Up to 32" | Rugged automotive/industrial use |
Tailored FPC/connector shape, length, pin definitions
EMI shielding and optimized signal transmission
Supports multiple signal conversions: SPI, MCU, RGB, MIPI, LVDS, eDP
FAQ
FANNAL optimizes firmware and signal processing to compensate for vibration and dynamic vehicle movement, ensuring precise 10-point multi-touch detection in driving conditions.
Yes. The panel supports high optical clarity and anti-glare surface treatment, reducing reflections and maintaining visibility under direct sunlight. For extreme heat zones, custom optical bonding and backlight tuning can be applied.
G+G structure, robust touch IC, and automotive-grade EMC design provide resistance to long-term mechanical stress, temperature cycling, and electrical interference, minimizing drift or failure over years of use.
FANNAL offers custom FPC layouts, cover lens shaping, multi-touch tuning, and optical bonding solutions, ensuring seamless integration with dashboards, infotainment systems, or embedded automotive displays.
