FN0700D138A
-30~80
-30~80
1024×600
ALL
LVDS
1000
Customizable
| Availability: | |
|---|---|
| Quantity: | |

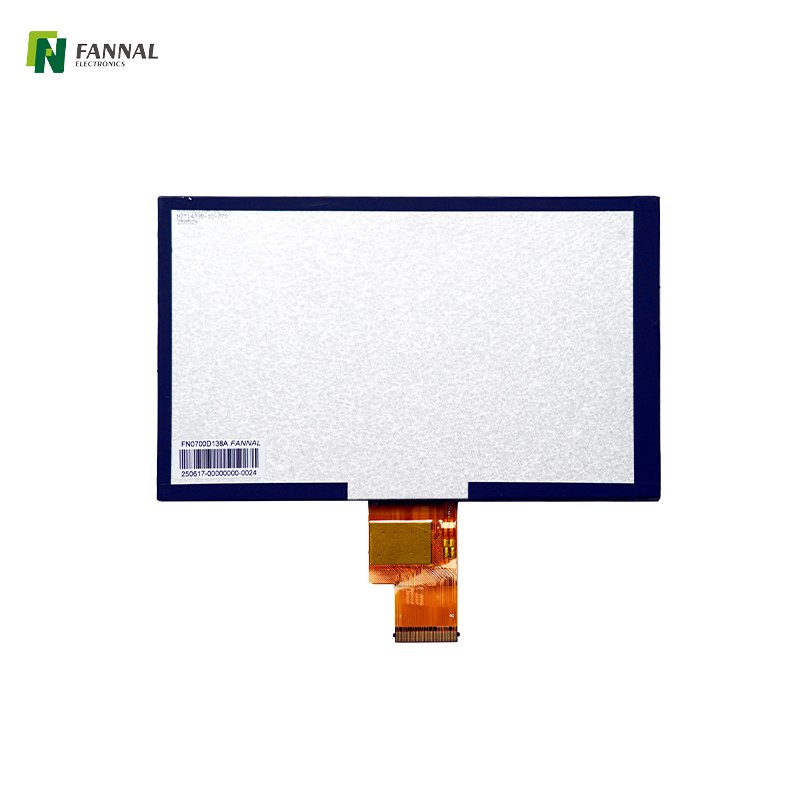

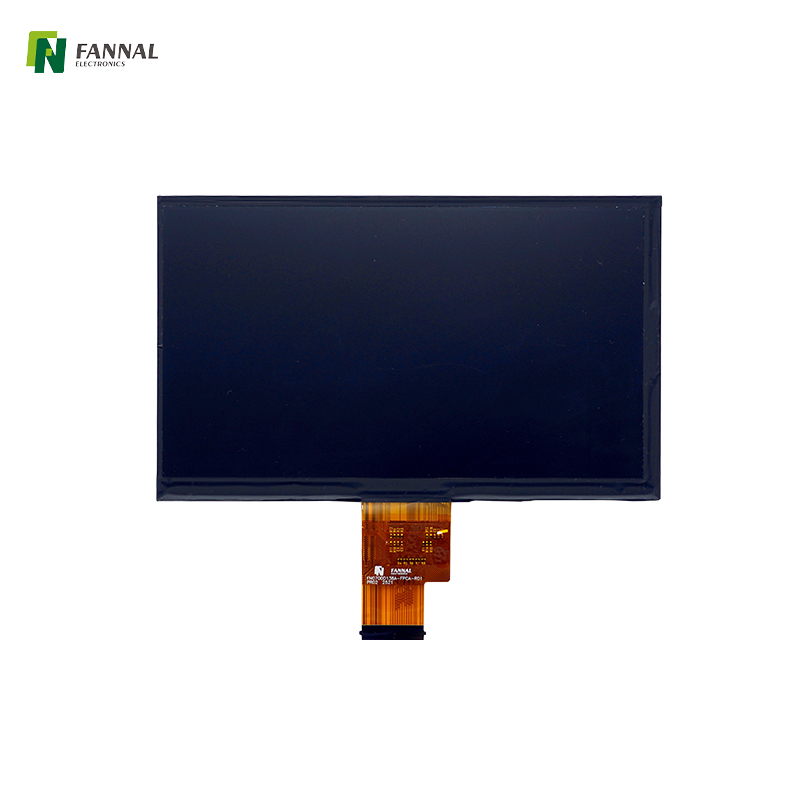

This 7-inch TFT LCD module features a wide operational temperature range of -30 to 80 degrees Celsius, making it a wide temperature LCD display suitable for extreme conditions. Its 7 inch HD LCD Panel guarantees sharp visuals, while the high luminance ensures visibility even in direct sunlight.
This display is not only durable but also customizable to fit specific project needs. Tailor the interface and features to suit various applications, ensuring seamless integration into your existing systems. Whether used in automotive displays, industrial controls, or outdoor signage, this TFT LCD Display stands out with its superior quality and adaptability.
Comparison and Advantages:
In comparison to competitors, the UltraBright 7-Inch TFT LCD Display offers significant advantages:
Operational Temperature: Withstanding temperatures from -30 to 80 degrees Celsius, it outperforms many standard displays that struggle in extreme climates.
High Resolution and Luminance: Its 1024x600 resolution and 1000 luminance provide exceptional clarity and brightness, ensuring that content is visible in any lighting condition, including direct sunlight.
Versatility: The customizable features allow it to be tailored for various applications, from rugged outdoor environments to sophisticated indoor setups.
Overall, this 7-inch TFT LCD module’s combination of wide temperature tolerance, high resolution, and exceptional brightness makes it a versatile solution that outperforms competitors in industrial, outdoor, and automotive environments—delivering reliability and clarity where other displays fail.

General Specifications:
LCD size(inch): | 7.0 (Diagonal) |
Resolution: | 1024(H)×600(V) |
Interface: | LVDS |
View Direction: | ALL |
| Luminance(cd/m2): | 1000(Typ.) |
Operating Temperature(°C): | -30~+80 |
Storage Temperature(°C): | -30~+80 |
Interface:
| PIN | Symbol |
| 1 | VCC |
| 2 | VCC |
| 3 | GND |
| 4 | RXINON |
| 5 | RXINOP |
| 6 | GND |
| 7 | RXIN1N |
| 8 | RXIN1P |
| 9 | GND |
| 10 | RXIN2N |
| 11 | RXIN2P |
| 12 | GND |
| 13 | RXCLKN |
| 14 | RXCLKP |
| 15 | GND |
| 16 | RXIN3N |
| 17 | RXIN3P |
| 18 | GND |
| 19 | NC |
| 20 | SELLVDS |
| 21 | NC |
| 22 | NC |
| 23 | NC |
| 24 | NC |
| 25 | VLED 12V |
| 26 | VLED 12V |
| 27 | GND |
| 28 | BL EN |
| 29 | BL PWM |
| 30 | NC |
Customization

CTP
Structure: GG, GFF,Size:1.8* ~ 55",Touch with Water/Salt Water/Sweat,Meet EMI/RFI Standards,Linux/Windows/IOS and Android,Customization on Cover: AG/AR/AF Meet IK Standards,Multi-touch Solution,True Touch with Gesture and Palm Rejection,Finger/Glove and Passive Pen Input

AD Board
We can provide complete accessories, including backlight board, AD Board and wire sets.
Application
With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc.
Automotive Industry
Ideal for dashboard systems, reverse camera monitors, and infotainment displays. The high brightness and wide viewing angles ensure drivers can clearly view information in all lighting conditions, enhancing safety and performance.
Payment & Vending Systems
Used in self-service kiosks and vending machines, the screen’s durability and sunlight readability ensure uninterrupted service and easy readability in outdoor or semi-outdoor environments.
Industrial Panels
Perfect for industrial control systems, offering robust performance under vibration, temperature shifts, and dusty conditions. This tft lcd display module helps ensure 24/7 operational reliability.
Medical Equipment
From diagnostic machines to monitoring systems, the display delivers precise color accuracy and resolution, helping medical professionals make quick and accurate decisions.
E-bikes and Motorcycles
This TFT display motorcycle module is optimized for visibility in dynamic outdoor environments, supporting real-time performance monitoring under varying light conditions.
Outdoor Digital Signage
The outdoor LCD signage display provides businesses with a high-visibility advertising platform even under bright sun, rain, or snow. With waterproof TFT display integration, it withstands all weather challenges.
Fitness Equipment
Used in smart treadmills, rowing machines, and interactive spin bikes, the screen displays vibrant training data and interfaces, enhancing the user experience.
Home Applications
Appliances such as ovens, air purifiers, and washing machines benefit from this colour TFT display, offering modern user interfaces with sharp visuals and responsive feedback.
Payment Systems |
Transportation |
E-bike | |
Outdoor |
Industrial Panels |
Medical Equipment |
Fintness Equipment |
Engineering Plant |
Motorbike |
Vending Machine |
Home Application |
What is a TFT LCD display?
A TFT LCD display (Thin-Film Transistor Liquid Crystal Display) is an active matrix screen known for fast refresh rates, high resolution, and vibrant colors.
Is this display sunlight readable?
Yes, it features high brightness and anti-glare coating, making it ideal for sunlight readable outdoor LCD applications.
Can I use this display in harsh weather?
Yes. Its weatherproof outdoor LCD design ensures performance in rain, snow, and extreme heat.
Is the display customizable?
We offer a wide range of custom TFT display solutions, including touch screen options, cover glass, brightness levels, and mounting features.
What industries is this screen best suited for?
It’s widely used in automotive, industrial panels, medical equipment, outdoor signage, and home appliances.
