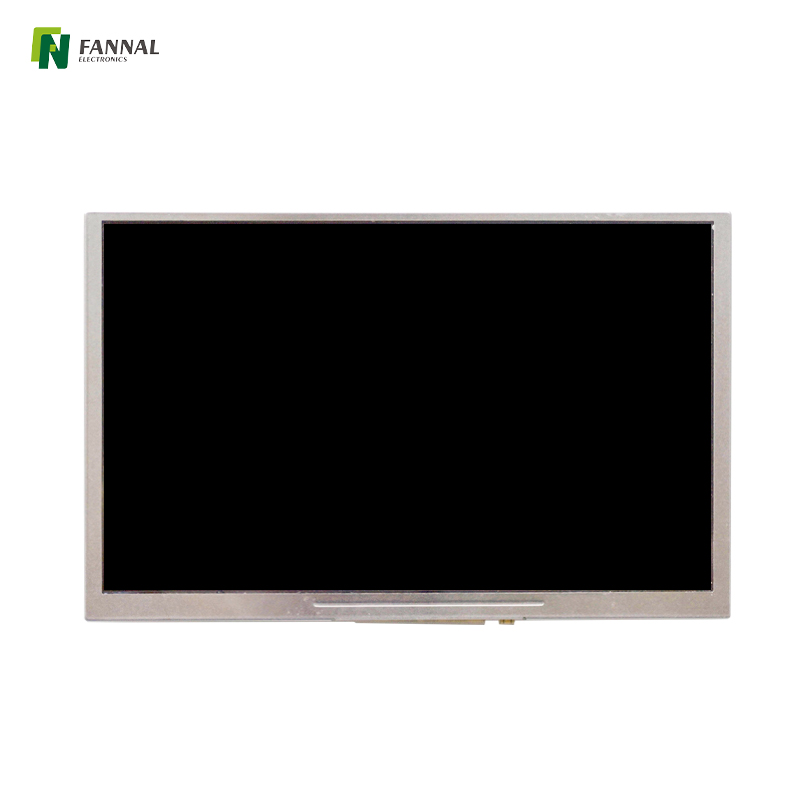

7.0 Inch Low Power Consumption TFT Display 800*480 IPS LCD

Name: 7.0 Inch Low Power Consumption TFT Display 800*480 IPS LCD
Brand: FANNAL
Rating: 5.0 (79 reviews)

7.0-inch Industrial TFT LCD Display

Model:
FN0700D112B
Brand:
FANNAL
Size(inch):
7
Display AA(mm):
152.4*91.44
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
Resolution:
800×480
Direction:
ALL
Interface:
LVDS
Brightness(cd/m²):
400
Touch Screen:
Customizable

Quantity:
Availability:





Inquiry Add to Basket Download

Low power consumption buy display screen

Product Features

Drawing & Specifications

Customizations

Product Application

FAQ

详情页IPS工控

7.0 inch TFT display, 800x480, LVDS, Industrial LCD Screen, 400cd/m²

This 7.0 inch is developed with a standard 800x480 high-resolution IPS screen and LVDS interface.

IPS All-View Technology: Features a "Normally Black" display mode with a true ALL-viewing angle, ensuring consistent color accuracy and high contrast from any direction without grayscale inversion.
Ultra-Low Power Consumption: Optimized backlight and circuit design prioritize energy efficiency, significantly extending the battery life of handheld industrial terminals and portable medical devices.
High-Speed LVDS Interface: Equipped with an LVDS interface for robust, high-speed data transmission with low electromagnetic interference (EMI), simplifying integration with modern industrial processors.
Industrial-Grade Durability: Built to withstand harsh environments with a wide operating temperature range from -20°C to +70°C and a storage range of -30°C to +80°C.
Crisp 800x480 Resolution: Provides a clear and sharp visual experience with a 0.1905mm pixel pitch, ideal for complex HMI dashboards and diagnostic displays.
Slim and Lightweight Design: With a thin 5.2mm module thickness and a weight of only 116g (Typ.), this display is perfect for space-constrained and weight-sensitive applications.

Drawing

屏幕截图 2024-10-27 124411

Specifications

General Specifications：

LCD size(inch):	7.0 (Diagonal)
Resolution:	800(H)×480(V)
Pixel Pitch:	0.1905(H)x0.1905(V)
Active Area(mm):	152.4(H)×91.44(V)
Module Size(mm):	165.0x104.6x5.2
Display Mode(mm):	Normally Black, Transmissive
Interface:	LVDS
View Direction:	ALL
Weight	116(Typ.)
Luminance(cd/m2):	400(Typ.)
Operating Temperature(°C):	-20~+70
Storage Temperature(°C):	-30~+80

Interface:

Pin No.	Symbol	I/O	Description
1-2	VDD	P	Power Supply(+3.3V).
3-4	GND	I	Ground.
5	RXIN0N	I	LVDS Negative differential data signal.
6	RXIN0P	I	LVDS Positive differential data signal.
7	GND	P	Ground.
8	RXIN1N	I	LVDS Negative differential data signal.
9	RXIN1P	I	LVDS Positive differential data signal.
10	GND	P	Ground.
11	RXIN2N	I	LVDS Negative differential data signal.
12	RXIN2P	I	LVDS Positive differential data signal.
13	GND	P	Ground.
14	RXCLKN	I	LVDS Negative Clock signal.
15	RXCLKP	I	LVDS Positive Clock signal.
16	GND	P	Ground.
17-18	VLED	P	Backlight Anode +12.0V.
19	GND	P	Ground.
20	ADJ	I	PWM signal input, it is for brightness control.

Electrical Characteristics:

Parameter	Symbol:	Min.	Typ.	Max.	Unit
Forward Voltage	VF	-	12.0	-	V
Forward Current	IF	-	300	-	mA

Customizations

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

Custom Touchscreen

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

Typical Applications for the 7.0" Low Power IPS Display

Handheld Industrial Terminals: The ultra-low power consumption and lightweight design (116g) make it the ideal choice for battery-operated devices such as ruggedized barcode scanners, field testing instruments, and inventory management tablets.
Portable Medical Diagnostic Devices: With IPS all-view technology, this display ensures that medical professionals can read critical data from any angle in brightly lit clinical environments or emergency response units.
Smart Home & Building Automation: The slim 5.2mm profile allows for seamless integration into wall-mounted control panels, thermostat displays, and high-end security intercom systems where energy efficiency is a priority.
Automotive & Marine Dashboards: Thanks to its wide operating temperature range (-20°C to +70°C) and robust LVDS interface, it is well-suited for secondary vehicle displays, specialized marine navigation tools, and motorcycle clusters.
Industrial HMI (Human-Machine Interface): Its 800x480 resolution and high contrast are perfect for compact industrial controllers, CNC machine monitors, and factory floor data visualization terminals that require 24/7 reliability.
EV Charging Stations & Parking Meters: The display's durability and wide-viewing angles ensure information remains clear for users in outdoor or semi-outdoor transactional kiosks.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

FAQ

Q1: Why is this 7.0-inch display specifically labeled as "Low Power Consumption"?

A: This module features an optimized backlight LED string and high-efficiency driving circuitry designed to minimize current draw while maintaining a solid 400 nits brightness. By reducing power consumption, it significantly extends the battery life of portable industrial devices and lowers the heat signature of enclosed HMI systems, ensuring more stable long-term operation.

Q2: What are the advantages of using an LVDS interface for a 7-inch LCD?

A: The LVDS (Low-Voltage Differential Signaling) interface is ideal for industrial environments because it provides high-speed data transmission with excellent noise immunity. It minimizes electromagnetic interference (EMI), which is critical for precision medical instruments or sensitive handheld testing tools, and allows for longer cable lengths compared to traditional TTL interfaces.

Q3: Can this 800x480 display be used in direct sunlight?

A: With a typical luminance of 400 cd/m², this display is perfectly readable in indoor and semi-outdoor environments. For applications requiring direct sunlight readability, we recommend pairing this IPS panel with Optical Bonding technology. This process eliminates the internal air gap and reduces reflections, effectively enhancing contrast and visibility even in high-ambient light conditions.

Q4: Does "Normally Black" mode improve the viewing experience for industrial users?

A: Yes. The Normally Black (IPS) technology ensures that when pixels are off, the screen is truly dark, resulting in a superior contrast ratio. More importantly, it provides an ALL-viewing angle, meaning the colors and data on the 800x480 screen remain accurate and readable from any direction—top, bottom, left, or right—without the grayscale inversion common in standard TN panels.

Q5: Is this 7.0" LCD suitable for outdoor charging piles or marine dashboards?

A: Absolutely. Its wide operating temperature range (-20°C to +70°C) and robust storage capabilities ensure it can handle the environmental stress of outdoor installations. Its slim 5.2mm profile and low-power design make it particularly effective for solar-powered or space-constrained outdoor applications like EV charging stations and compact marine navigation displays.
