Features – 7.0" TFT IPS LCD (800×480, RGB)
High Resolution & Wide Viewing
7.0″ IPS TFT display with 800×480 resolution and full wide viewing angles, ensuring consistent color and readability from multiple perspectives.
Low Power Consumption
Efficient operation at just 2.0 W, ideal for battery-powered or portable devices, reducing energy use and extending device runtime.
Industrial-Grade Reliability
Operating temperature -20°C to +70°C and storage temperature -30°C to +80°C, suitable for industrial environments.
High Brightness & Clear Display
400 cd/m² luminance provides clear visibility in indoor and semi-outdoor environments.
Long Lifespan
Up to 50,000 hours of continuous operation, supporting long-term projects with minimal maintenance and replacement needs.
Flexible Integration
Standard RGB interface for easy system integration, compatible with various embedded and industrial platforms.

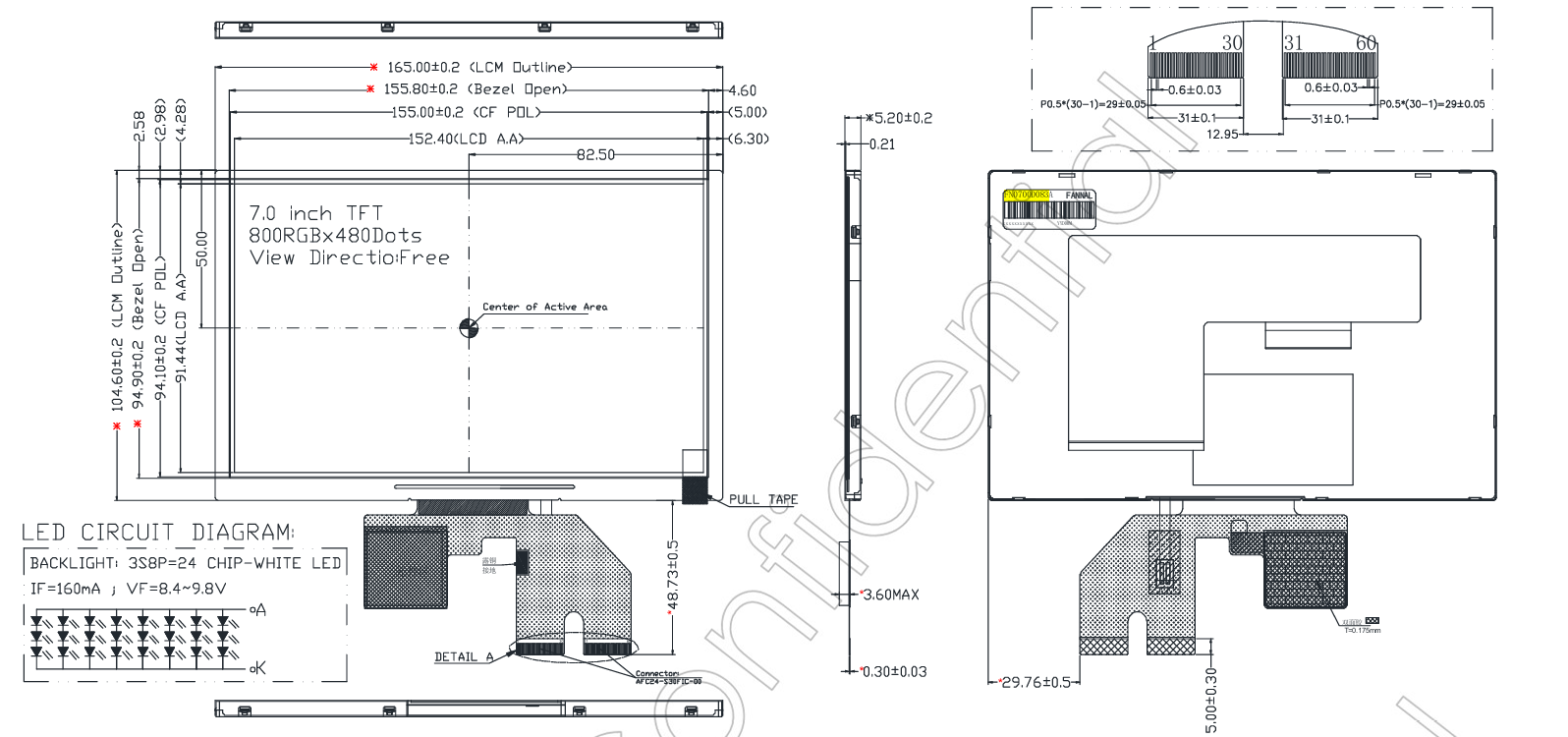

Drawing
Specifications
LCD size(inch): | 7.0 (Diagonal) |
Resolution: | 800(H)×480(V) |
Pixel Pitch: | 0.1345(H)x0.1345(V) |
Active Area(mm): | 152.4(H)×91.44(V) |
Module Size(mm): | 165.0(W)x104.6(H) ×5.2(D) |
Display Mode(mm): | Normally Black, Transmissive |
Interface: | RGB |
View Direction: | ALL |
Power Supply: | 3.3 |
Luminance(cd/m2): | 400(Typ.) |
Operating Temperature(°C): | -20~+70 |
Storage Temperature(°C): | -30~+80 |
Interface:
Pin No. | Symbol | I/O | Description |
1-2 | VLEDA | P | Power for LED backlight(Anode). |
3-4 | VLEDK | P | Power for LED backlight(Cathode). |
5 | NC | - | No connection. |
6 | GND | P | Ground. |
7 | NC.EDGSL | - | No Connection. |
8 | VDD | P | Power supply(+3.3V) |
9-13 | NC | - | No Connection. |
14 | RESET | I | Global reset. |
15 | NC/VCOM | - | No Connection. |
16 | GND | P | Ground. |
17-22 | NC | - | No connection. |
23 | GND | P | Ground. |
24-29 | R5-R0 | I | Red data. |
30-31 | GND | P | Ground. |
32-37 | G5-G0 | I | Green data. |
38 | DE | I | Data enable pin. |
39 | NC | - | No Connection. |
40 | GND | P | Ground. |
41 | DLCK | I | Clock signal input. |
42 | VDD | P | Power supply |
43-44 | NC | - | No Connection. |
45-50 | B5-B0 | I | Blue data. |
51-58 | NC | - | No Connection. |
59 | GND | I | Ground. |
60 | NC | - | No Connection. |
Electrical Characteristics:
Parameter | Symbol: | Min. | Typ. | Max. | Unit |
Forward Voltage | VF | - | 9.0 | - | V |
Forward Cuttent | IF | - | 160 | - | mA |
LED Lifetime | - | - | 50000 | - | Hrs |
Customization – Tailored Display Solutions
Size Range: 1.77" – 15.6" (FANNAL supports custom 7.0" integration for your device)
Panel Partners: BOE, Innolux, JDI, Hannstar, CTC, TCL, Tianma
Panel Technologies: IPS / TN / LTPS
Operating Temperature:
Industrial: –20°C ~ 70°C
Automotive: –30°C ~ 85°C
Interface Design: Custom FPC shape, length, pin definition; supports SPI, MCU, RGB, MIPI, LVDS, eDP
Signal Optimization: Optional conversion for different host platforms, EMI shielding, and circuit optimization for stable signal transmission
Backlight System: Metal, plastic, or hybrid structure; brightness from standard to ultra-high (up to 3000 cd/m²); lifetime up to 50,000 hours
Driver Board: Interfaces RGB, VGA, HDMI, LVDS, DVI, Type-C; compatible with custom TFT modules; optimized for stable image and long-term reliability
Touch Technologies: G+G, G+F+F, capacitive or resistive options
Touch Functions: Multi-touch, glove touch, passive pen, gesture recognition, palm rejection, waterproof
Controller Options: EETI, ILITEK, Microchip, FocalTech, Cypress (FANNAL design partners)
Custom Mechanical & Optical Solutions: CNC cut, 3D/2.5D glass shaping, optical bonding, AR/AG/AF coatings, anti-microbial or anti-explosion treatments
Engineering Advantage:
FANNAL provides end-to-end customization, including LCD module selection, backlight tuning, touch integration, interface optimization, and mechanical adaptation. Every module can be tailored for industrial, automotive, or medical applications, ensuring long-term reliability, precise performance, and seamless integration.
