What Is LCD Response Time?
LCD response time describes how quickly a liquid crystal pixel changes from one optical state to another when the driving signal changes. It is typically measured in milliseconds (ms).
Two common specifications are black-to-white-to-black response time and gray-to-gray (GtG) response time. Black-to-white-to-black measures transitions between black and white states, while GtG evaluates transitions between different gray levels. The reported value depends on the measurement method and transition conditions.
Response time affects how clearly an LCD presents changing content. If pixel transitions are too slow for the displayed content, previous image states may remain temporarily visible, producing ghosting or motion artifacts.
For industrial displays, the required response time depends on the application. Static information such as machine settings and status indicators may tolerate slower transitions than rapidly changing graphics, moving equipment imagery, or video.
How Does Temperature Affect LCD Response Time?

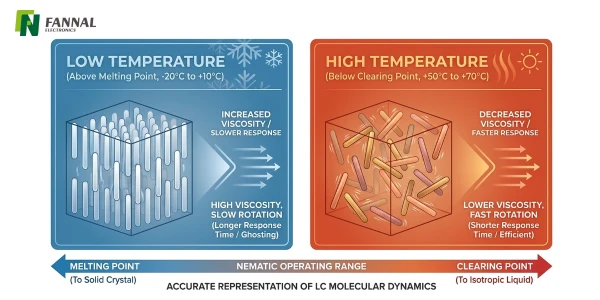

Liquid crystal molecules change orientation under an applied electric field. The speed of this movement depends partly on the physical properties of the liquid crystal material, including its rotational viscosity and elastic properties.
Temperature changes these properties and therefore affects pixel response time.
At lower temperatures, liquid crystal viscosity generally increases, making molecular reorientation slower. As a result, LCD response time typically increases, and transitions between image states may become more noticeable.
At higher temperatures, molecular movement generally becomes faster, so response time often decreases. However, this trend does not continue indefinitely. As the material approaches its clearing point, its liquid-crystal phase and optical behavior change.
The actual response time at a given temperature depends on the liquid crystal material, panel structure, cell gap, driving conditions, and the specific gray-level transition being measured. Therefore, a response-time value measured at 25°C should not automatically be assumed to apply at the minimum or maximum operating temperature.
Why Does Low-Temperature Response Matter?
A display may remain electrically operational at low temperatures while responding more slowly than it does at room temperature. This distinction matters when the display must update information promptly after a cold start or during sustained operation in a cold environment.
Potential effects include:
Visible ghosting: Previous image states may remain visible during transitions.
Slower interface updates: Rapidly changing graphics may appear less responsive.
Reduced dynamic image clarity: Moving content can show more noticeable trailing.
Longer stabilization after a cold start: Display behavior may change as the panel warms toward its normal operating condition.
These effects are particularly relevant to outdoor equipment, vehicle displays, industrial machinery, and other systems exposed to low ambient temperatures.
The extent of the change varies by panel design and liquid crystal material. It should be evaluated against the application's actual operating temperature range rather than inferred from room-temperature specifications alone.
What Is the Liquid Crystal Clearing Point (Tni)?
The clearing point, commonly designated Tni, is the temperature at which a liquid crystal material transitions from its ordered nematic phase to an isotropic liquid phase. Above this transition, the material no longer maintains the same liquid-crystal molecular order required for normal LCD operation.
Tni is an important material-selection parameter because the liquid crystal must retain its required phase under the intended operating conditions.
However, Tni is not the maximum rated operating temperature of the finished display module. The display's operating limit also depends on its other materials, polarizers, driver components, adhesives, mechanical structure, and thermal design.
If a display is installed in a sealed enclosure or exposed to direct sunlight, its internal temperature can be significantly higher than the ambient temperature. The design therefore needs to account for the temperature the display assembly may actually experience.
For this reason, selecting a liquid crystal material with an appropriately high clearing point is one part of thermal design, not a substitute for validating the complete display module.
Why Do Outdoor Displays Need Special Attention to Tni?
Outdoor displays can face both low-temperature response challenges and high-temperature exposure. These are related but different engineering considerations.
At low temperatures, the priority is to maintain acceptable pixel response and display readability. At high temperatures, the material must remain within its suitable operating phase, while the complete module must withstand the application's thermal conditions.
For outdoor display applications, FANNAL specifies liquid crystal materials with a clearing point (Tni) of at least 100°C. This material-selection requirement provides additional thermal margin for outdoor applications.
It should not be interpreted as meaning that the display is rated to operate at 100°C. The allowable operating temperature must still be established through the product specification and validation of the complete module.
A suitable design should consider:
The specified minimum and maximum operating temperatures.
Potential internal temperature rise caused by direct sunlight or enclosure conditions.
Liquid crystal clearing point and other material temperature limits.
Response-time requirements at relevant operating temperatures.
Thermal management and the intended installation environment.
The appropriate specifications depend on the product and application. A display designed for an indoor industrial controller may have different material requirements from one intended for outdoor machinery or a sunlight-exposed vehicle interface.
How to Specify LCD Response Time for Your Application
When selecting a custom LCD module, response time should be evaluated alongside the operating environment and the intended visual content.
Define the required operating temperature range. Specify the minimum and maximum temperatures at which the display must operate. If the product will be exposed to direct sunlight or installed inside a poorly ventilated enclosure, consider the likely temperature inside the assembly rather than ambient temperature alone.
Check the response-time test conditions. Confirm whether the specified value represents black-to-white-to-black response time or GtG response time, and identify the measurement temperature. Values obtained using different methods or conditions may not be directly comparable.
Evaluate performance beyond 25°C. If the application requires operation in cold environments, ask whether response-time data or functional validation is available at the relevant low temperatures. Room-temperature specifications alone cannot establish low-temperature performance.
Review liquid crystal material requirements. For outdoor applications, Tni should be considered together with the actual operating temperature range, thermal design, and other component limitations.
Validate the display in its intended configuration. The assembled product may behave differently from a bare panel because of enclosure temperature, backlight heat, and other system-level factors. Testing should reflect the intended operating environment.
For custom display projects, these requirements should be defined early so that material selection, panel design, driving conditions, and thermal management can be evaluated together.
Conclusion
LCD response time is influenced by both liquid crystal material properties and operating temperature. Lower temperatures generally slow molecular reorientation and increase response time, while higher temperatures can accelerate transitions until the material approaches its clearing point.
For outdoor applications, response time and Tni should be treated as separate but related design considerations. The first concerns how quickly the display changes image states; the second helps establish whether the liquid crystal material can retain its required phase under elevated temperatures.
Selecting a suitable LCD therefore requires more than checking a single response-time figure. The measurement conditions, operating temperature range, material properties, and complete module design all need to match the application.
Frequently Asked Questions
1. What is a good response time for an LCD?
There is no single response-time value suitable for every application. The required performance depends on the displayed content, transition measurement method, operating temperature, and system requirements. The specification should be evaluated under conditions relevant to the intended use.
2. Does LCD response time increase at low temperatures?
Generally, yes. Lower temperatures tend to increase liquid crystal viscosity and slow molecular reorientation, resulting in longer response times. The magnitude of the change depends on the material and panel design.
3. What does Tni mean in an LCD specification?
Tni is the clearing point of a liquid crystal material, marking its transition from the nematic liquid-crystal phase to the isotropic liquid phase. It is a material property, not the rated maximum operating temperature of the finished display module.
4. Why is a high Tni important for outdoor LCDs?
Outdoor displays may experience elevated internal temperatures because of sunlight, enclosure conditions, and heat generated by the system. A suitably high Tni provides additional thermal margin for the liquid crystal material, but the complete display still requires appropriate thermal design and operating-temperature validation.
5. Does Tni ≥100°C mean an LCD can operate at 100°C?
No. Tni describes a phase-transition temperature of the liquid crystal material. The finished module's maximum operating temperature depends on the limits of the liquid crystal, polarizers, adhesives, driver components, and other parts of the assembly. The product's specified operating range must be confirmed separately.
