In medical device projects, one question comes up repeatedly during display selection:
“Can this touch display pass EMC certification?”
At first glance, it sounds straightforward. But in practice, the question itself is slightly misleading.
Because in medical EMC testing, the display is rarely the certification target by itself. The actual test object is the entire medical device system — including the power architecture, motherboard, grounding structure, cables, shielding design, enclosure, and every connected module.
Still, experienced engineers know something else:
In many IEC 60601-1-2 failures, the display assembly ends up being one of the main sources of EMI problems.
That is why display integration matters far more than simply choosing a panel with good specifications.
Medical EMC testing is typically based on IEC 60601-1-2, which focuses on two things simultaneously:
The device should not generate excessive electromagnetic interference
The device should continue operating correctly under electromagnetic disturbance
In other words, medical devices must be both:
low-emission
high-immunity
This is different from many industrial HMI systems where moderate interference tolerance may still be acceptable.
In medical environments, unstable behavior can directly affect signal acquisition, monitoring accuracy, or user operation. ICU systems, portable ultrasound equipment, patient monitors, surgical devices, and imaging equipment often operate in electrically crowded environments with multiple active electronic systems nearby.
That changes the EMC design priority completely.

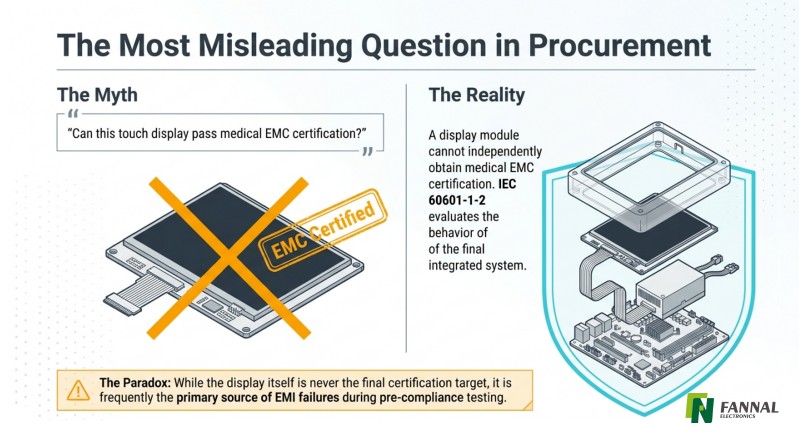

This is one of the most common misunderstandings in the industry.
A TFT display, AMOLED module, or capacitive touchscreen does not independently obtain medical EMC certification in the same way a complete medical device does.
What actually passes EMC testing is the final integrated product.
That includes:
mainboard
power system
touch/display subsystem
enclosure
cable routing
shielding structure
grounding architecture
Because of this, saying:
“This display can pass medical EMC certification”
is technically incomplete without understanding the full system integration.
At the same time, saying:
“The display has nothing to do with EMC”
is equally inaccurate.
In practice, display assemblies often become critical EMC variables during pre-compliance testing.
The display subsystem sits in a difficult position electrically.
It combines:
high-speed digital signals
switching power circuits
long flexible cables
touch sensing
backlight driving
grounding transitions between modules
All of these can affect EMI and EMS behavior.
Some risks are predictable. Others only appear after full system integration.

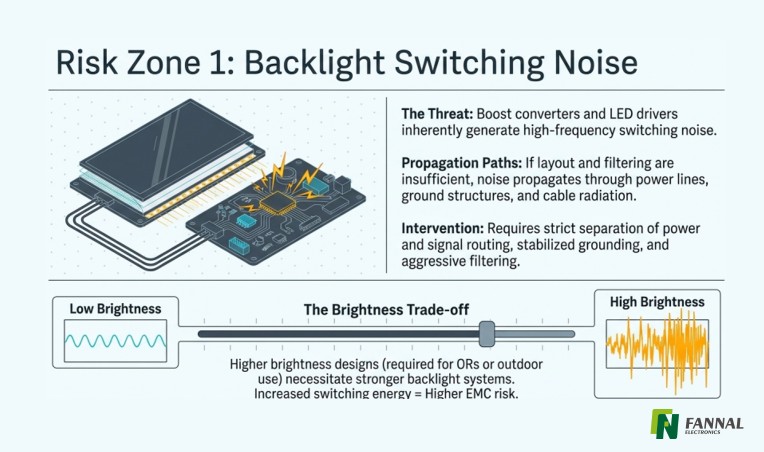

Most LCD backlight systems rely on boost converters or switching LED drivers.
These circuits generate high-frequency switching noise by nature.
If filtering and layout are insufficient, noise can propagate through:
power lines
ground structures
cable radiation
In medical devices, conducted emissions failures are often linked to:
LED driver layout
unstable grounding
insufficient filtering
poor separation between power and signal routing
Higher brightness designs for medical monitors or outdoor-capable medical equipment can make this more difficult because stronger backlight systems typically increase switching energy.
This is one reason why display brightness and EMC performance sometimes become a tradeoff rather than a simple specification upgrade.

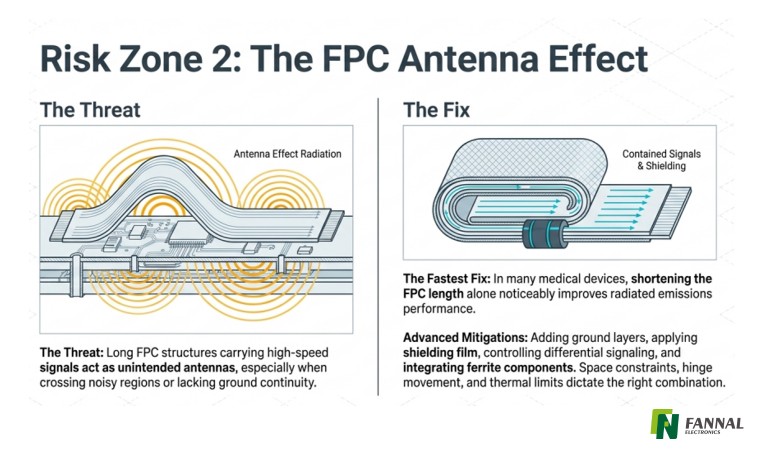

Flexible printed cables are easy to underestimate during early design stages.
But in EMC debugging, they are often one of the first areas engineers inspect.
Long FPC structures carrying high-speed signals may radiate unexpectedly, especially when:
grounding continuity is weak
cable routing crosses noisy regions
shielding is incomplete
differential signaling is poorly controlled
In some medical devices, shortening the FPC length alone noticeably improves radiated emissions performance.
Other cases require:
additional ground layers
shielding film
ferrite components
revised routing structure
There is no universal solution because enclosure space, thermal constraints, hinge movement, and serviceability also affect cable design decisions.

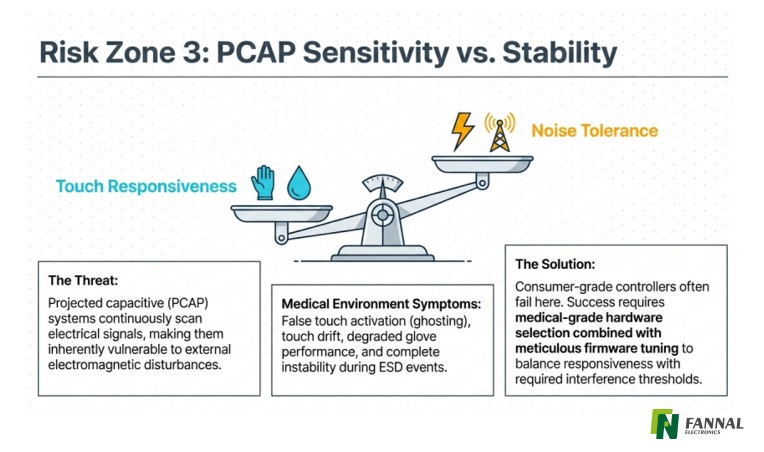

Projected capacitive touch systems continuously scan electrical signals to detect touch events.
That makes them inherently sensitive to electromagnetic disturbance.
In medical environments, common EMC-related touch problems include:
false touch activation
touch drift
unstable operation during ESD events
degraded glove touch performance
intermittent responsiveness near RF sources
Higher sensitivity settings can improve touch responsiveness, but they may also reduce noise tolerance.
Again, this becomes an engineering balance rather than a purely “better specification” problem.
Touch controller selection matters significantly here.
Some controllers perform well in consumer electronics but become unstable in industrial or medical environments where:
gloves are used
moisture exists
long cables are involved
grounding conditions are imperfect
Firmware tuning is often just as important as hardware selection.

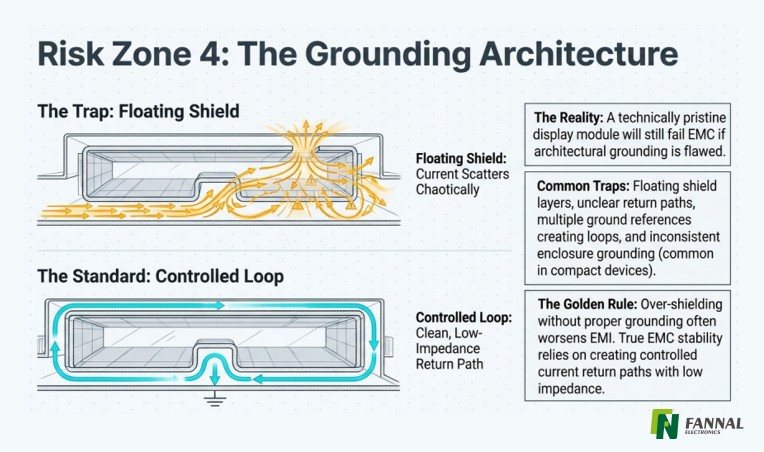

In many medical display projects, grounding architecture becomes the real deciding factor.
A technically good display module can still fail EMC testing if:
shield layers are floating
return current paths are unclear
multiple ground references create loops
enclosure grounding is inconsistent
This is especially common in compact medical systems where mechanical space is limited.
Good EMC performance usually depends less on adding more shielding everywhere, and more on creating controlled current return paths with low impedance.
Over-shielding without proper grounding can sometimes worsen the problem.
Different display interfaces behave very differently from an EMC perspective.
Interface | Typical EMC Characteristics |
|---|---|
RGB Parallel | More signal lines, higher radiation risk |
LVDS | Better noise immunity through differential signaling |
MIPI DSI | High speed, compact routing, but stricter layout requirements |
eDP | Good high-resolution capability, requires careful signal integrity control |
In medical devices, LVDS is still commonly preferred in many systems because of its relatively stable EMC characteristics and mature integration ecosystem.
MIPI can reduce cable complexity, but high-speed routing requirements become more demanding.
The “best” interface depends heavily on:
cable length
enclosure structure
processor architecture
thermal constraints
EMC margin targets
This happens more often than many teams expect.
A device may function perfectly during prototype validation, but fail EMC during certification because EMC issues are often systemic rather than functional.
Typical late-stage problems include:
unstable grounding introduced by mechanical redesign
longer cable routing after enclosure changes
display replacement without EMC reevaluation
insufficient isolation between power and display subsystems
touch instability during ESD testing
radiated emission peaks from backlight switching harmonics
These issues are difficult to predict purely from datasheets.
That is why pre-compliance testing is valuable long before final certification.
A display supplier cannot independently guarantee full medical EMC compliance for the final device.
But experienced display integration support can significantly reduce EMC risk during development.
In medical device projects, this often includes:
selecting display interfaces with better EMC behavior
optimizing touch/display integration structure
reviewing grounding and shielding approaches
reducing cable-related radiation risks
improving optical bonding reliability under environmental stress
assisting with pre-scan troubleshooting
Requirements vary considerably depending on the application.
A portable handheld medical device faces very different EMC constraints compared to a surgical console or bedside monitoring system.
That is why display integration in medical environments is rarely a purely catalog-based selection process.
Customization is often necessary — not for marketing reasons, but because EMC behavior depends heavily on actual system architecture.
Usually no. EMC certification is performed on the complete medical device system rather than on an isolated display module.
Capacitive touch systems are sensitive to electrical disturbance. Poor grounding, insufficient shielding, long cables, or aggressive touch sensitivity settings can reduce ESD stability.
In many cases, yes. LVDS uses differential signaling, which generally reduces radiation and improves noise immunity compared to RGB parallel interfaces.
Indirectly, sometimes. Optical bonding itself is not an EMC solution, but integrated structures can help improve grounding continuity and reduce certain mechanical instability issues depending on the design.
They can be. Higher brightness often requires stronger backlight driving circuits, which may increase switching noise and EMI challenges.
Medical EMC performance is rarely determined by a single component.
But the display subsystem often has more influence than teams initially expect.
Backlight architecture, touch integration, cable structure, grounding strategy, and interface selection can all affect whether a device passes EMC testing smoothly or enters repeated redesign cycles late in development.
In medical devices, stable display integration is not only about image quality or touch performance. It is also closely tied to long-term reliability, electromagnetic stability, and certification risk management.
For that reason, display selection in medical environments usually works best when EMC considerations are included early in the design stage rather than treated as a final compliance checklist.
