IPS LCD Burn-In vs Image Retention: What You Need to Know

In industrial and professional applications, display reliability is often more critical than raw visual performance.
A common concern raised by engineers and procurement teams is:

Do IPS LCD screens suffer from burn-in like OLED displays?

To answer that properly, we need to distinguish between permanent burn-in and temporary image retention, because they are not the same phenomenon.

What Is Burn-In on a Display?

Burn-in refers to permanent image damage caused by uneven pixel aging.

It is most commonly associated with OLED displays, where organic light-emitting materials degrade over time. When static UI elements (logos, status bars, control panels) remain on screen for extended periods, certain pixels age faster than others. This creates a visible “ghost” image that does not disappear.

Key characteristics of burn-in:

• Permanent pixel degradation

• Uneven luminance aging

• Irreversible without panel replacement

• More common in OLED technology

This mechanism is fundamentally different from how LCD panels operate.

What Is Image Retention on IPS LCD?

IPS LCD panels do not use self-emissive organic materials.
Instead, they rely on liquid crystals modulating a backlight.

What sometimes occurs on IPS LCDs is image retention (also called image persistence or temporary ghosting).

This is typically caused by:

• Electrical charge accumulation

• Static voltage patterns

• Long-duration static image display

Unlike OLED burn-in, IPS image retention is usually:

• Temporary

• Recoverable

• Not caused by material degradation

In most cases, the residual image fades after displaying dynamic content or turning the display off for a period of time.

Do IPS LCD Screens Actually Burn In?

Under normal industrial operating conditions, IPS LCD panels are highly resistant to permanent burn-in.

Because IPS technology does not rely on emissive organic compounds, there is no pixel-by-pixel aging mechanism comparable to OLED.

However, in extreme scenarios — such as:

• Excessively high brightness for prolonged periods

• Very high operating temperatures

• Continuous static UI for thousands of hours

Long-term uneven stress may cause mild luminance variation.
Even then, it is far less severe than OLED burn-in behavior.

From an engineering perspective:

IPS LCD is generally considered safer for static industrial interfaces than OLED.

What Causes Image Retention on IPS LCD Panels?

Temporary image retention on IPS panels is typically linked to operational stress rather than material degradation.

Common contributing factors include:

1. Static UI Elements

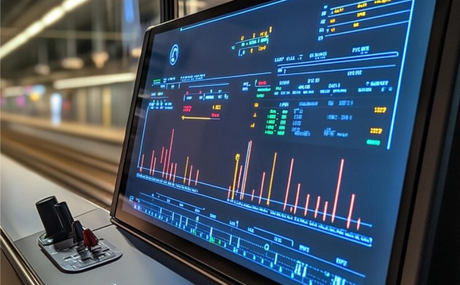

Industrial HMIs, control dashboards, and medical interfaces often display fixed icons or status indicators for extended durations.

2. High Brightness Operation

Running panels continuously at maximum luminance increases electrical stress across pixels.

3. Long Continuous Operation Cycles

24/7 operation without power cycling can increase the likelihood of temporary retention.

4. Elevated Ambient Temperature

Heat accelerates electrical drift and can intensify retention effects in poorly ventilated enclosures.

Is IPS Image Retention Permanent or Temporary?

In most industrial-grade IPS LCD panels, image retention is temporary.

Typical recovery methods:

• Displaying full-white or dynamic video content

• Powering off the panel for several hours

• Running pixel inversion patterns

If retention does not fade after these methods, it may indicate:

• Aging backlight imbalance

• Panel-level stress accumulation

• Non-ideal system design conditions

True permanent burn-in on IPS LCD remains rare compared to OLED.

How to Prevent Image Retention on Industrial LCD Displays

From a system design standpoint, prevention is straightforward.

Design-Level Strategies:

• Avoid fully static UI layouts

• Introduce minor pixel shifting or UI movement

• Implement screen saver logic in idle states

Electrical & Thermal Control:

• Avoid running at maximum brightness continuously

• Design proper heat dissipation in enclosure

• Use industrial-grade panels rated for extended operation

Panel Selection Considerations:

• Choose IPS panels with stable driving architecture

• Verify operating temperature specifications

• Confirm backlight lifetime and uniformity tolerance

Proper system integration plays a greater role than panel technology alone.

How to Fix Temporary Image Retention

If ghosting appears:

1. Display dynamic or full-white content for 30–60 minutes

2. Power cycle the display

3. Reduce brightness levels temporarily

4. Check enclosure thermal conditions

In most cases, the effect fades without long-term impact.

Persistent retention may indicate system-level stress rather than panel defect.

IPS LCD vs OLED: Which Is More Resistant to Burn-In?

When comparing IPS LCD and OLED for static industrial interfaces:

For:

• Industrial control panels

• Medical monitoring systems

• Automotive dashboards

• Outdoor kiosks

IPS LCD remains the more conservative and stable choice.

Industrial Applications Where Image Retention Matters

Image persistence risk becomes critical in environments such as:

• 24/7 industrial HMI systems

• Medical diagnostic displays

• Embedded control panels

• Public information kiosks

In these cases, system-level design, thermal management, and brightness control are more decisive than panel type alone.

FAQ

Q1: Why does IPS LCD temporary image retention occur faster in heated outdoor kiosks?

A: High operating temperatures (above $60^\circ\text{C}$) inside sealed outdoor enclosures drastically reduce the threshold voltage stability of TFT driving circuits. This thermal stress accelerates electrical drift and electrostatic charge accumulation across liquid crystal cells under static layouts.

Q2: Can optical bonding help mitigate image persistence issues on industrial panels?

A: Yes, indirectly. Optical bonding replaces the insulating air gap with a thermally conductive resin. This design significantly improves heat dissipation from the LED backlight to the front cover glass, lowering the panel's internal temperature and reducing thermal-induced voltage drift.

Q3: How do engineers distinguish between temporary charge accumulation and permanent panel aging?

A: Run a solid 50% gray screen after leaving the panel powered off for 24 hours. If the ghost image remains, it is not liquid crystal charge retention; it indicates permanent backlight degradation or uneven localized aging of the polarizers caused by localized heat concentration.

Q4: Why is IPS LCD still preferred over AMOLED for static industrial HMIs?

A: Industrial interfaces are highly static (fixed grids, status bars). AMOLED is self-emissive and prone to severe, irreversible organic material degradation (true burn-in) under 24/7 static stress. IPS LCD does not age pixel-by-pixel, making it a much safer long-term choice.

Q5: What is the most common UI design mistake that worsens LCD image retention?

A: Deploying high-contrast, sharp-edged static elements—like pure white icons against a pure black background—on 24/7 displays. This creates severe localized voltage differentials. Engineering teams should use mid-tone grays, anti-aliased edges, or screen-saver logic to balance electrical stress.

Conclusion

IPS LCD panels are highly resistant to permanent burn-in compared to OLED technology.

While temporary image retention can occur under prolonged static usage, it is generally recoverable and manageable through proper design and operation.

For industrial applications requiring long-term reliability with static UI elements, IPS LCD remains a stable and widely adopted solution.
