Selecting The Best Interface for Your TFT Module: LVDS, MIPI DSI, Or HDMI?

If you’ve ever sourced TFT Displays for an embedded device, you already know the panel itself is only half the story. The interface you choose—LVDS, MIPI DSI, or HDMI—can determine whether your design is stable, easy to integrate, cost-effective, and scalable for future models. We’ve seen projects where the display looked perfect on paper, but the system struggled with noise, cable length limits, unexpected controller complexity, or slow bring-up because the interface didn’t match the real product constraints.

At Fannal Display, we work with customers building everything from medical devices and industrial HMIs to smart appliances and handheld equipment. In our experience, “best interface” is never a universal answer. It depends on your processor platform, resolution/frame rate targets, wiring length, EMI environment, mechanical layout, and long-term supply strategy. The good news is that once you understand the strengths and tradeoffs of each interface, choosing becomes much more straightforward.

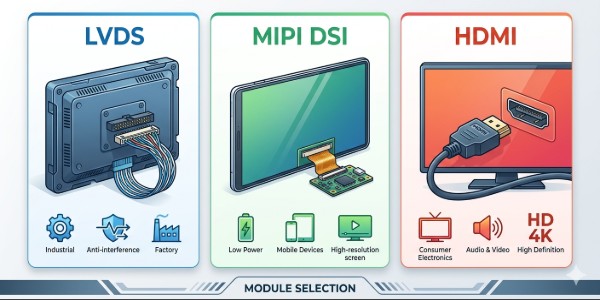

Quick overview: what these interfaces are

Before we compare, it helps to frame the three interfaces in simple terms:

• LVDS (Low-Voltage Differential Signaling): A long-established embedded display interface that sends pixel data over differential pairs. Often used in industrial and longer-cable internal display connections.

• MIPI DSI (Mobile Industry Processor Interface – Display Serial Interface): A modern, high-speed serial interface common in smartphones, tablets, and many embedded SoCs. Optimized for compact devices and low power.

• HDMI (High-Definition Multimedia Interface): A consumer/AV-focused interface designed for external displays and plug-and-play interoperability. Convenient, but often heavier in cost/power/connector size for embedded internal modules.



Start with the most important question: what is your system architecture?

In practice, your processor platform often narrows the choices more than any display spec sheet.

If you are using an embedded SoC

Many embedded SoCs (especially mobile-class or application processors) naturally support MIPI DSI and sometimes LVDS through a bridge.

If you are using an industrial PC or SBC

Industrial PCs and many SBCs often output HDMI easily, and LVDS may require specific boards or conversion.

If you are using an FPGA or custom controller

You may prefer LVDS for direct timing control, or use an HDMI receiver/bridge depending on your design approach.

Practical takeaway: Don’t pick the panel first and “hope” the interface works later. Pick the interface that matches your host platform and system wiring reality, then select the TFT module that fits.



LVDS: when it’s the best fit

Why many embedded projects still choose LVDS

LVDS is popular in embedded and industrial devices because it is mature, stable, and commonly supported by display controller ecosystems.

LVDS is a strong choice when you need:

• robust internal display connection with practical cable lengths

• good noise immunity in industrial environments

• straightforward integration for many embedded display controller boards

• a proven path for mid-to-high resolution modules

LVDS advantages (real-world)

• Good EMI performance
  Differential signaling helps reject common noise, which matters in industrial cabinets, motor-driven systems, and power electronics environments.

• Practical cable length
  Compared to many high-speed single-ended signals, LVDS can be more forgiving over internal harness distances, especially with proper cable and grounding.

• Mature ecosystem
  LVDS has been used for years in industrial HMIs, instrumentation, and embedded screens, so debugging resources and integration practices are well established.

LVDS limitations to plan for

• Pin count and cable bulk can become an issue in compact devices.

• Higher power than MIPI DSI in some implementations.

• Some modern processors no longer expose native LVDS, which may require a bridge.



MIPI DSI: the compact and modern choice

Why MIPI DSI dominates mobile and many new embedded designs

MIPI DSI is designed for high bandwidth with fewer pins and low power. If your device is compact, battery-powered, or uses a modern SoC, MIPI DSI often becomes the most natural interface.

MIPI DSI is a strong choice when you need:

• compact cabling and low pin count

• efficient power behavior

• compatibility with mobile-class processors

• high resolution in smaller form factors

MIPI DSI advantages (real-world)

• Low pin count and flexible bandwidth
  Lanes scale bandwidth without requiring large harnesses.

• Great for compact layouts
  Short internal flex cables and tight mechanical stacks are where MIPI DSI shines.

• Good for power-sensitive products
  Many products prioritize power efficiency, and MIPI was built with that in mind.

MIPI DSI limitations to plan for

• Shorter practical cable distance
  MIPI DSI is typically best for short internal connections. Longer runs can be challenging and may require careful layout and shielding.

• Higher integration sensitivity
  Signal integrity depends heavily on PCB layout, impedance control, and connector quality.

• Driver and bring-up complexity
  MIPI DSI panels often require correct initialization sequences, timing, and configuration parameters.



HDMI: easy integration, but not always the best embedded choice

Why HDMI is attractive

HDMI is convenient because it is widely supported and often “just works” from a host device.

HDMI is a strong choice when you need:

• plug-and-play compatibility

• external monitor-like behavior

• fast prototyping with PCs or SBCs

• long-distance cabling compared to many internal embedded interfaces

HDMI advantages (real-world)

• Universal ecosystem
  Many processors, SBCs, and PCs output HDMI without extra work.

• Fast prototyping and validation
  HDMI makes early-stage testing easier, especially if you are validating UI performance or video content.

• Standard connectors and known cables
  For some product designs, using standard HDMI parts simplifies logistics.

HDMI limitations to plan for

• Connector size and mechanical constraints
  HDMI connectors are larger than MIPI flex solutions.

• Power and conversion overhead
  HDMI can require additional circuitry and may increase BOM cost for an internal embedded display.

• Not always ideal for sealed industrial devices
  External-style connectors may add sealing and reliability challenges.

Comparison table: LVDS vs MIPI DSI vs HDMI for TFT Displays



How to choose: a step-by-step decision checklist

Step 1: Confirm your host output

• Does your board have native MIPI DSI?

• Does it have LVDS output or only through a bridge?

• Is HDMI already available and stable?

If your host naturally supports one interface, that often becomes the best starting point.

Step 2: Define your cable length and mechanical layout

• If the display is close to the main board (short flex), MIPI DSI is often excellent.

• If the display is farther away in a cabinet or large enclosure, LVDS may be more forgiving.

• If your system architecture is PC/SBC-like or needs standard cabling, HDMI may be easiest.

Step 3: Consider EMI and environment

Industrial environments with motors, relays, and high-current switching favor robust signaling and careful grounding.

LVDS is often a comfortable choice in noisy cabinets, while MIPI DSI requires stronger layout discipline.

Step 4: Match resolution and refresh needs

All three can support common resolutions, but the practical “best” depends on your platform, lane count (MIPI), and available bandwidth.

Step 5: Plan bring-up and software workload

• If you want minimal panel initialization headaches, HDMI can be simplest.

• If you have embedded Linux/Android and drivers ready, MIPI DSI is very efficient.

• LVDS is typically stable, but may involve controller tuning and timing parameters.

Step 6: Think about long-term sourcing and service

For production projects, reliability includes:

• stable connector supply

• consistent panel availability

• standardized harnesses

• ease of field replacement

Sometimes LVDS wins simply because it is easier to service in the field.



Conclusion

Selecting the best interface for your TFT Displays module comes down to choosing the interface that fits your platform and real installation conditions. LVDS is often a reliable industrial workhorse for practical internal harnesses. MIPI DSI is ideal for compact, modern embedded devices that prioritize low pin count and efficiency. HDMI is excellent for universal compatibility and fast prototyping, especially with PC or SBC-based systems. The “best” choice is the one that delivers stable performance with the least integration risk for your product.

To learn more about TFT module options and interface matching support, you’re welcome to visit www.fannaldisplay.com to get more information or contact our team.



FAQ

1) Which interface is best for compact TFT Displays in embedded devices?

In many compact designs with modern SoCs, MIPI DSI is a strong choice because it supports high bandwidth with low pin count and efficient integration.

2) Is LVDS still a good option for industrial TFT module projects?

Yes. LVDS remains widely used in industrial systems because it is mature, stable, and often more forgiving for practical internal cable lengths.

3) When should I choose HDMI for a TFT module?

HDMI is often best when you use an SBC/PC-style host, want plug-and-play behavior, or need fast prototyping and validation.

4) What causes a TFT module to behave unstable after interface selection?

Common causes include poor signal integrity due to cable length or routing, incorrect initialization/timing (especially for MIPI DSI), and inadequate grounding/EMI control.
