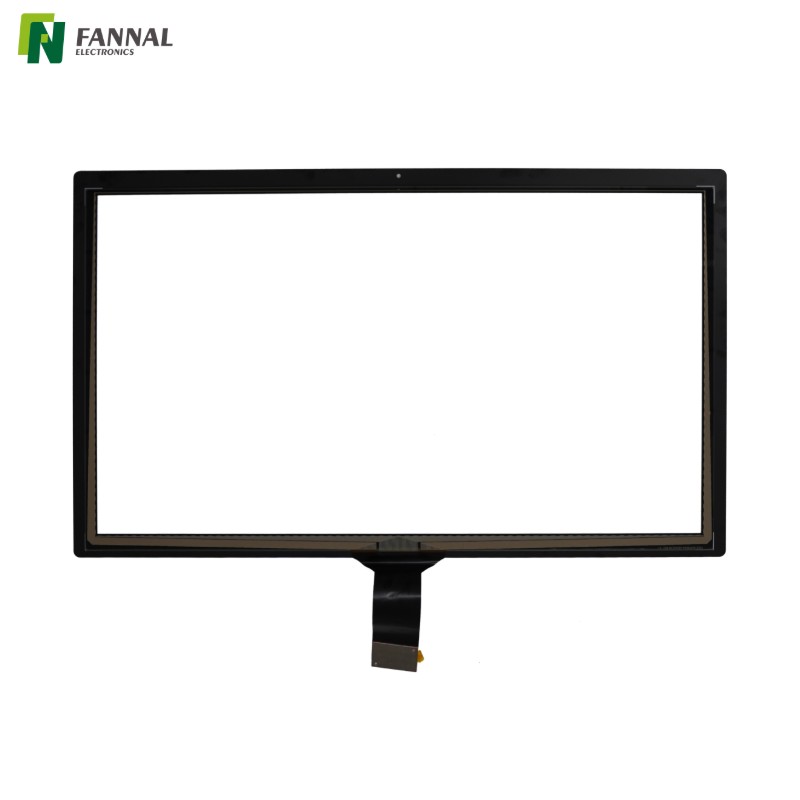

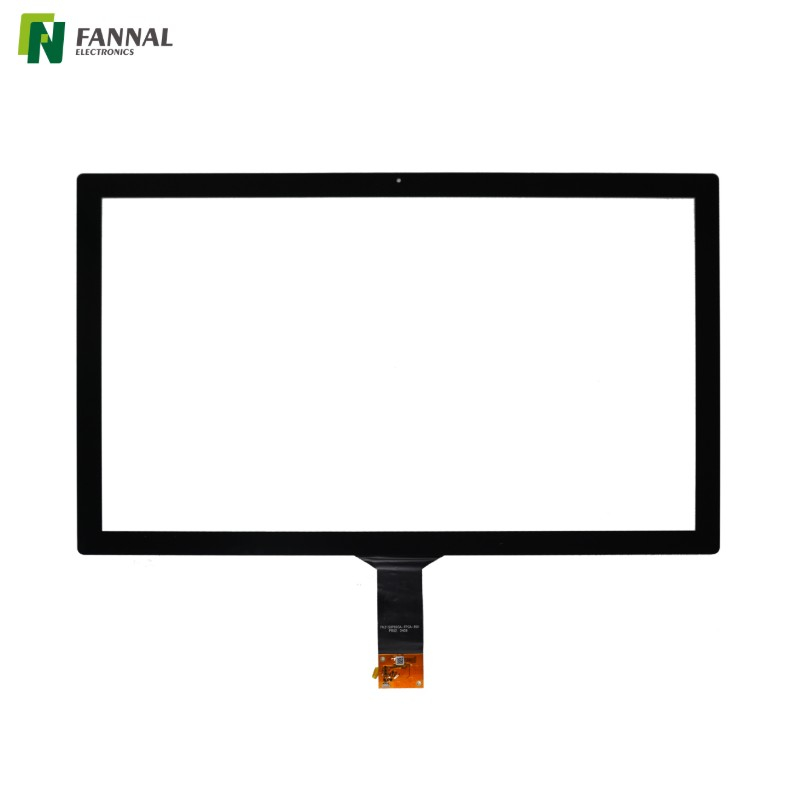

31.5 Inch Wide Temperature Industrial Touch Panel

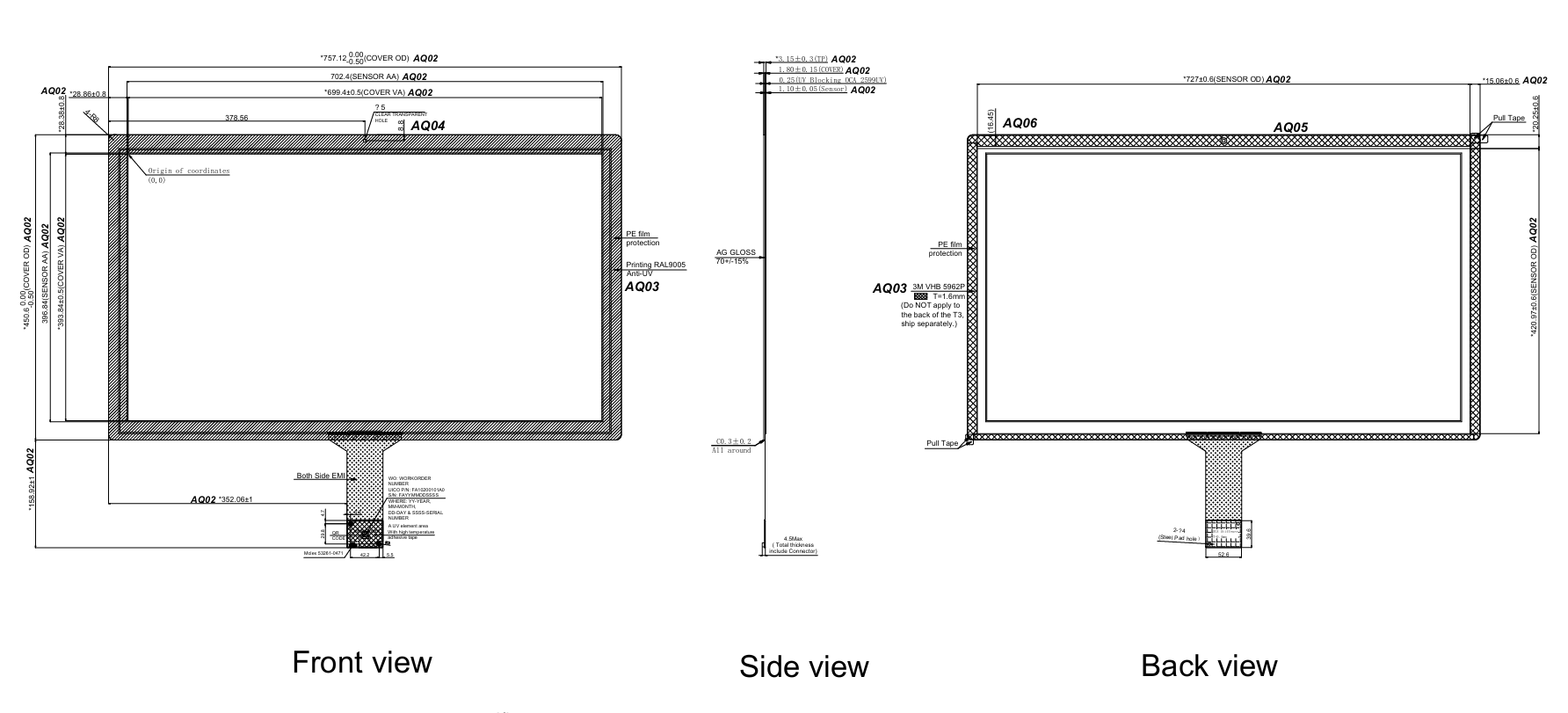

Drawing

Specifications

Wide Temperature Touch Panel for Outdoor Control Terminal in Cold Climate

Project Background

A Northern Europe system integrator was developing a 31.5-inch outdoor control terminal installed in semi-exposed industrial sites.

The system needed to operate year-round, including winter temperatures dropping below -30°C. The display module had already passed low-temperature validation, but the touch interface repeatedly failed during cold start testing.

The Real Problem Was Not the Display — It Was the Touch Layer

During environmental testing, the customer experienced:

• Touch response delay during cold start

• Multi-touch instability below -20°C

• Occasional non-responsive areas after long low-temperature exposure

• Controller communication interruption during boot

The issue was not brightness or LCD freezing. It was the touch panel electronics and sensor behavior under extreme cold conditions.

Most standard industrial touch panels are rated only from -20°C to +70°C.
Below -20°C, sensor signal stability, controller IC behavior, and material expansion differences begin to affect performance.

Why FN3150P003A Solved It

True -40°C Operating Capability

FN3150P003A is designed as a wide temperature touch panel supporting operation from -40°C to +70°C.

This ensured:

• Reliable cold start performance

• Stable touch response during continuous sub-zero operation

• No controller communication errors during boot

Large-Format Stability (31.5")

Large-size touch panels are more sensitive to signal noise and environmental stress.
With the mXT2952TD controller and optimized sensor design, the panel maintained stable 10-point touch accuracy across the full 31.5-inch active area.

Simplified System Integration via USB

The USB interface allowed direct connection to the industrial PC without additional conversion boards, reducing integration complexity and potential failure points in outdoor deployment.

Deployment Result

After validation, the system achieved:

• Successful cold start at -35°C

• Stable multi-touch performance in winter outdoor testing

• Reduced field failure risk

• Shorter integration time due to USB standard interface

The customer was able to launch the outdoor terminal without redesigning the front interface architecture.

Typical Cold-Climate Applications

FN3150P003A is suitable for:

• Outdoor control terminals

• EV charging stations in cold regions

• Energy storage system interfaces

• Mining or heavy equipment operator panels

• Unheated warehouse terminals

• Industrial kiosks installed in semi-exposed environments

Customizations

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

About FANNAL

Well-Experienced: 15 years of experience in TFT Displays, AMOLED Displays, Touch Displays, Capacitive Tuchscreens, and Touch Monitors manufacturing.

One-Stop Solution: Full in-house process for touch screen, display, and optical bonding

Global Service: Italy, Germany, France, Spain, India, Japan, Singapore, and more —  timely local support.

Strong Background: Financially backed by SECO, a top European leader in embedded and display solutions.

Reliable Supply: Our long-term supplier network ensures you receive consistent quality and reliable delivery, even in high-demand seasons.

Quality Assurance: ISO 9001, ISO 14001, ISO 45001, ISO 13485 & IATF 16949 certified; REACH & RoHS compliant.

Certificates

FAQ

Q1: What makes a wide temperature touch panel different from a standard industrial touch panel?

A wide temperature touch panel is specifically designed to operate below -20°C, typically down to -40°C.

The difference lies in controller stability, sensor calibration, material behavior under thermal contraction, and signal tuning. Standard industrial touch panels often experience signal drift, delayed response, or startup instability in sub-zero conditions.

Q2: Why do capacitive touch panels fail at very low temperatures?

At low temperatures, several factors affect capacitive sensing:

• Changes in dielectric properties of materials

• Slower response of controller IC components

• Increased signal noise during cold start

• Mechanical contraction affecting sensor uniformity

Without proper tuning and validation, capacitive touch performance may become unstable below -20°C.

Q3: Is -40°C operating temperature the same as storage temperature?

No.

A -40°C operating rating means the touch panel can power on and function normally at -40°C, including during cold start.

Many products may list -40°C storage, but only support -20°C operation. For outdoor or unheated installations, operating temperature is the critical specification.

Q4: Where is a -40°C wide temperature touch panel typically required?

A -40°C touch panel is commonly required in:

• Outdoor industrial control terminals

• EV charging stations in cold regions

• Energy storage systems

• Mining equipment

• Transportation infrastructure in Northern climates

• Unheated warehouses or semi-exposed industrial sites

These environments require reliable cold start and continuous low-temperature operation.

Q5: Does wide temperature performance affect optical clarity or touch accuracy?

A properly designed wide temperature touch panel should maintain consistent touch accuracy across the full operating range.

Optical performance (such as transmittance or surface treatment) is typically independent of temperature rating, but controller tuning and sensor design must ensure signal stability across temperature extremes.
