Choosing an LCD display is no longer just about selecting the right size or resolution. In many embedded projects, one of the first engineering questions is much simpler:
How do I connect my video source to the display?
A customer may have an industrial PC with an HDMI output, a medical workstation using DVI, an older machine controller with VGA, or a modern embedded computer offering USB Type-C or DisplayPort. At the same time, the LCD panel under consideration often lists interfaces such as LVDS, MIPI DSI, RGB, or eDP instead.
This apparent mismatch causes understandable confusion. If the computer outputs HDMI, why doesn't the LCD panel have an HDMI connector? If two products use the same LCD panel, why can one accept HDMI while another supports DisplayPort or VGA?

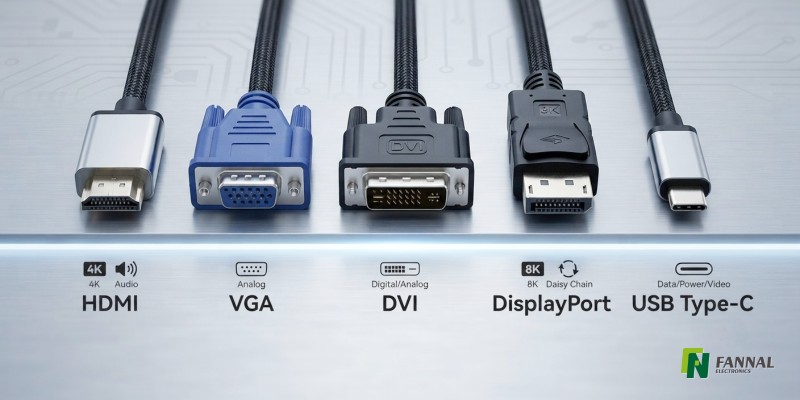

The answer is that these interfaces belong to different parts of a display system. HDMI, DisplayPort, DVI, VGA, and USB Type-C are designed to transfer video from a source device, while LVDS, MIPI DSI, eDP, and RGB are native interfaces used to drive an LCD panel. Between them sits another essential component—the LCD driver board—which converts and manages the video signal before it reaches the display.
Understanding this signal chain makes interface selection much easier. It also helps explain why the same LCD panel can often be integrated into completely different systems without changing the panel itself.
Rather than comparing interface specifications one by one, this article explains how an LCD display receives video signals, how different interfaces fit into the overall display architecture, and what engineers should consider when selecting the most suitable solution.
Understanding the Display Signal Chain
One of the most common misconceptions is treating every display connector as if it served the same purpose.
For example, it is not unusual to hear questions such as:
Is LVDS better than HDMI?
Should I choose MIPI DSI or DisplayPort?
Can I replace an HDMI panel with an LVDS panel?
From an engineering perspective, these comparisons are misleading because they mix technologies that operate at different levels of the display system.
A complete LCD display is not a single component but a chain of devices that work together to generate and display an image.
Video Source
(Industrial PC, Embedded Computer, Laptop, Medical Device)
↓
Video Interface
HDMI
DisplayPort
DVI
VGA
USB Type-C
↓
LCD Driver Board
Signal Conversion
Timing Control
Power Management
↓
Panel Interface
LVDS
MIPI DSI
eDP
RGB
↓
LCD Panel
Each stage has a different responsibility.
The video source generates the image. This may be an industrial computer, an ARM-based embedded platform, a single-board computer, or another processing unit running the application.
The video interface transports that image from the source to the display electronics. HDMI, DisplayPort, DVI, VGA, and USB Type-C all belong to this category, although each was developed for different generations of hardware and application environments.
The LCD driver board acts as a bridge between the incoming video signal and the LCD panel itself. Depending on the project, it may perform functions such as signal conversion, resolution scaling, timing generation, backlight control, EDID management, and touch controller communication. Different projects may require different controller designs even when the same LCD panel is used.
Finally, the LCD panel interface transfers precisely timed electrical signals to the display panel. Unlike HDMI or DisplayPort, interfaces such as LVDS, MIPI DSI, eDP, and RGB are designed specifically for panel driving rather than external video transmission.
Understanding these layers avoids one of the most common design mistakes: assuming that an LCD panel should expose the same connector as the source device.
In reality, the video interface and the panel interface solve different engineering problems. One is intended for system-level video transmission, while the other is optimized for driving millions of LCD pixels accurately and reliably.
Why an LCD Panel Cannot Normally Accept HDMI Directly
After reviewing an LCD panel datasheet for the first time, many engineers and purchasing teams ask a reasonable question:
If my computer has an HDMI output, why can't I simply connect it to the LCD panel?
The answer lies in the fundamental difference between a video signal and the electrical requirements of the display panel.
An HDMI cable carries a standardized digital video stream that is intended to be interpreted by a display controller. The LCD panel, however, is not a complete display device. It is only the imaging component within a larger display system.
Before an image appears on the screen, the incoming video signal must be processed into the precise format required by the panel. This process typically involves multiple tasks, including generating panel timing, sequencing power rails, controlling the backlight, and converting the incoming interface into the panel's native interface, such as LVDS, MIPI DSI, eDP, or RGB.
Without this intermediate processing, the LCD panel has no way to correctly interpret the incoming HDMI signal.
For this reason, most LCD panels are designed to work with an LCD driver board or another controller solution rather than connecting directly to an external video source.
This architecture also provides flexibility. The same LCD panel can often be paired with different controller solutions to support HDMI, DisplayPort, DVI, VGA, or USB Type-C inputs, depending on the requirements of the final product.
As a result, selecting a display solution is usually less about choosing a specific video connector and more about ensuring compatibility across the entire signal chain.
Choosing the Right Video Interface
After understanding how a display signal travels from the video source to the LCD panel, the next question is straightforward:
Which video interface should be used for a particular project?
There is no universal answer. In practice, the best interface depends more on the existing hardware platform and system requirements than on the interface itself.
In many projects, maintaining compatibility with the existing system is often more valuable than adopting the newest standard.
HDMI
HDMI remains the most common video interface for embedded displays and industrial monitors. Industrial PCs, mini PCs, media players, and many ARM-based platforms already provide HDMI output, making system integration relatively simple.
For new product development, HDMI is often the default choice because of its broad compatibility and mature ecosystem.
However, HDMI is not always the ideal solution. Some legacy industrial equipment does not provide HDMI output, while extremely long cable runs may require additional signal management. In custom display projects, engineers should also verify that the controller solution supports the required display resolution and timing rather than assuming every HDMI source behaves the same way.
Typical applications include:
DisplayPort
DisplayPort is commonly found on industrial computers, engineering workstations, and professional graphics systems.
Compared with HDMI, DisplayPort is often selected when higher resolutions, greater bandwidth, or multiple-display configurations are required. Many industrial PC manufacturers continue to include DisplayPort because of its reliability and compatibility with professional hardware.
For embedded display projects, however, DisplayPort should be selected because the host platform already provides it—not simply because it is technically newer.
If the application only requires a Full HD industrial display, choosing DisplayPort instead of HDMI may provide little practical advantage while increasing system complexity.
USB Type-C
USB Type-C has become increasingly popular because a single connector can carry power, USB data, and video simultaneously.
This significantly simplifies cable management, especially in compact devices.
One misconception is that every USB Type-C connector supports external displays.
It does not.
USB Type-C only defines the connector format. Video transmission depends on whether the hardware supports technologies such as DisplayPort Alt Mode, USB4, or Thunderbolt.
For this reason, verifying the capabilities of the host device is an important step before selecting a display solution.
DVI
Although DVI is no longer common in consumer electronics, it remains widely used in industrial automation, laboratory equipment, and medical systems that have long product life cycles.
Many existing machines continue operating reliably with DVI, and replacing the entire video infrastructure simply to adopt HDMI often offers little practical benefit.
For equipment upgrades, maintaining the original interface can reduce engineering effort, simplify validation, and minimize downtime.
VGA
VGA is the oldest interface discussed in this article, yet it has not completely disappeared.
Many factory machines, production equipment, CNC controllers, and legacy industrial systems still rely on VGA because replacing the host hardware would be significantly more expensive than maintaining the existing interface.
For new product development, VGA is generally not recommended unless compatibility with older equipment is a project requirement.
Its continued presence reflects the long service life of industrial equipment rather than any technical advantage over modern digital interfaces.
Engineering Considerations Beyond the Video Interface
When discussing display selection, it is easy to focus entirely on the video connector.
In practice, the connector is only one part of the overall display solution.
Projects that appear identical on paper can require completely different controller designs because of differences in display timing, panel resolution, operating temperature, mechanical constraints, or touch integration.
For example, two products may both use HDMI as the video input while requiring different controller boards because one uses a 7-inch LVDS panel and the other uses a 15.6-inch eDP display. Likewise, two systems using the same LCD panel may require different controller solutions simply because one host provides HDMI while another provides DisplayPort.
Successful integration depends on evaluating the complete signal chain rather than the connector alone.
Factors commonly considered during display selection include:
Engineering Consideration | Why It Matters |
Host video output | Determines available input interfaces |
LCD panel interface | Must match the controller solution |
Display resolution | Affects signal processing requirements |
Touch integration | May require additional USB or serial communication |
Power architecture | Influences controller design and system stability |
Mechanical space | Limits controller board size and connector placement |
Product lifecycle | Long-life industrial projects often prioritize compatibility over adopting newer interfaces |
For many embedded applications, these considerations have a greater impact on project success than choosing between HDMI and DisplayPort.
Conclusion
Video interfaces are often treated as competing technologies, but in practice, they are simply different methods of transporting video signals from the host system to the display electronics.
The more important question is not "Which interface is the best?" but "Which interface is the most appropriate for this system?"
A well-designed display solution considers the complete signal path—from the video source and controller electronics to the LCD panel itself—while balancing compatibility, performance, cost, and long-term maintainability.
Understanding these relationships helps engineers avoid unnecessary redesigns and select a display architecture that fits the requirements of the application rather than following interface trends.
Common Questions About LCD Video Interfaces
Why doesn't an LCD panel datasheet list HDMI or DisplayPort?
LCD panel datasheets describe the panel's native interface, such as LVDS, MIPI DSI, eDP, or RGB. HDMI and DisplayPort are external video interfaces used by the host system. An LCD driver board or controller solution is normally required to convert these video signals into the format expected by the panel.
Can the same LCD panel support HDMI, DisplayPort, and VGA?
Yes, in many cases.
The video input is determined primarily by the controller solution rather than the LCD panel itself. With an appropriate driver board, the same panel can often be integrated into systems using different video interfaces, provided the required resolution, timing, and electrical characteristics are supported.
We are upgrading an existing VGA-based system. Should we replace the interface at the same time?
Not necessarily.
If the current system continues to meet performance requirements, maintaining the existing interface may reduce development effort and validation costs. Upgrading to HDMI or DisplayPort is often beneficial for new platforms, but replacing a stable VGA system solely to modernize the connector does not always improve the overall product.
Does changing the video interface affect touch functionality?
Generally, no.
Video transmission and touch communication are usually handled through separate channels. For example, the display image may be transmitted through HDMI while the touch controller communicates through USB or a serial interface. When selecting a display solution, both functions should be evaluated together to ensure system compatibility.
When is a custom LCD driver board required?
A standard controller solution may not be suitable when the project uses a non-standard LCD panel, requires multiple video inputs, integrates specialized touch functions, has limited installation space, or demands customized display timing. In these situations, a custom driver board can simplify integration while ensuring reliable communication between the host system and the display.
