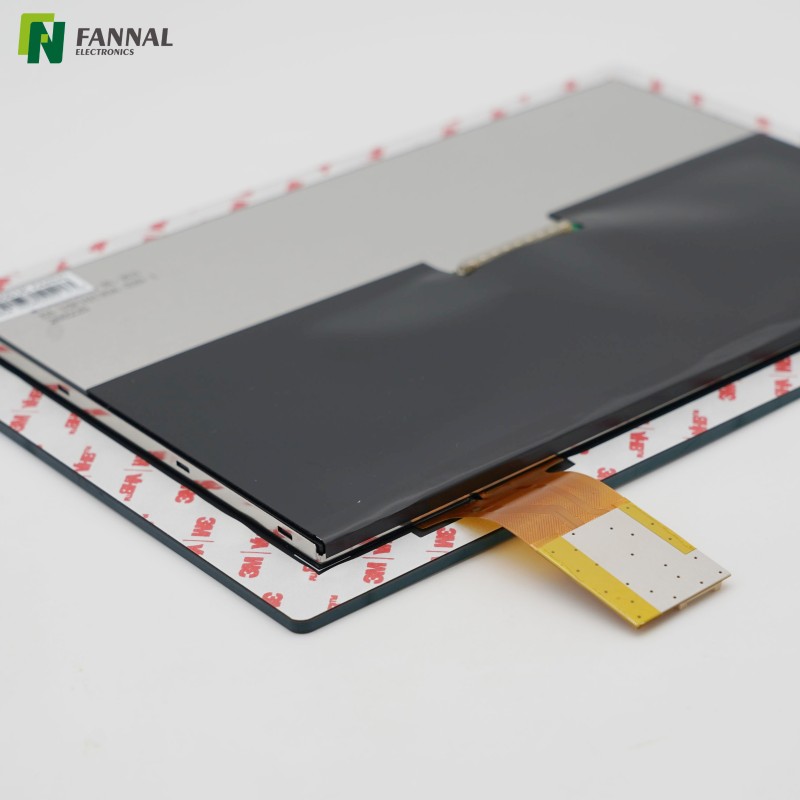

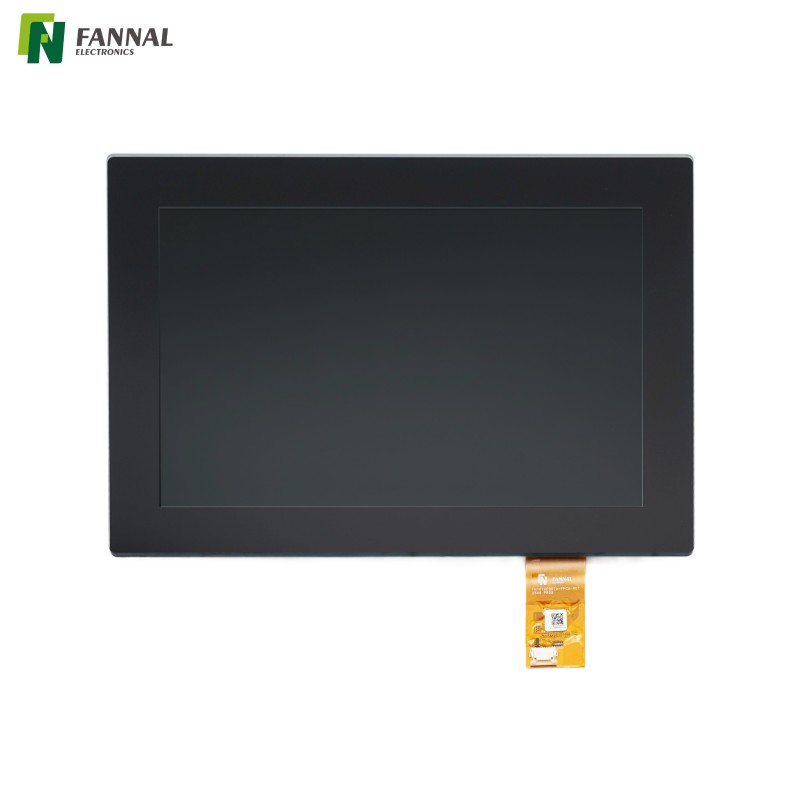

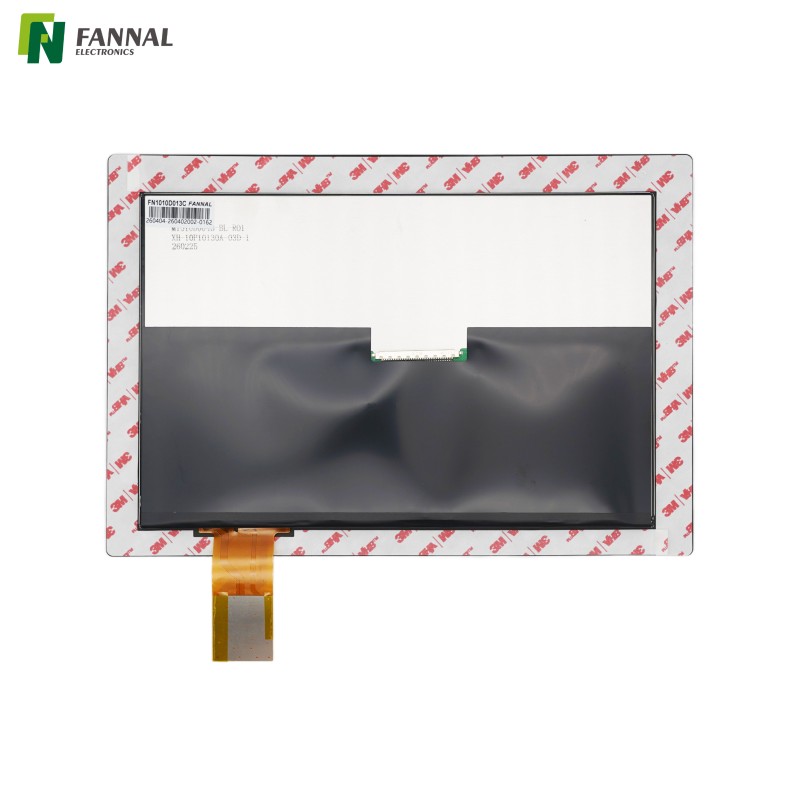

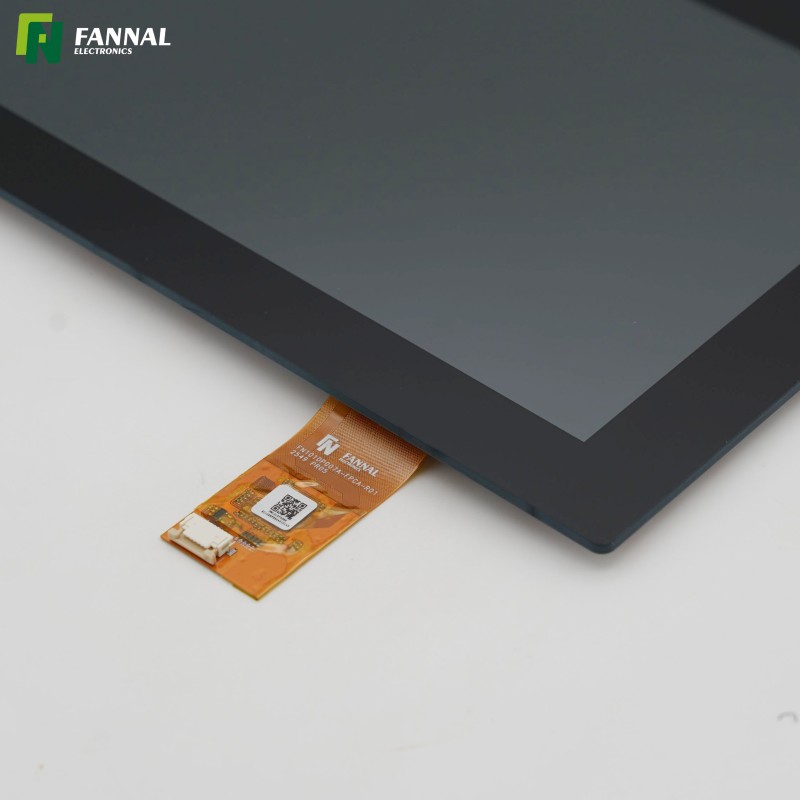

10.1 Inch High-Brightness Touch Display

Name: 10.1 Inch High-Brightness Touch Display
Brand: FANNAL
Rating: 5.0 (27 reviews)

10.1 inch high-brightness touch display delivering 850 cd/m² typical TPM luminance

Model:
FN1010T036A
Brand:
FANNAL
Size(inch):
10.1
Cover OD (mm):
263.8(H) x 180.6(V) x 9.05(T)
Display AA(mm):
216.96*135.6
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
TP VA (mm):
217.96(H) x 136.6(V)
Structure:
G+G
Resolution:
1280 x 800
Display Interface:
LVDS
TP Interface:
IIC
Brightness(cd/m²):
850

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

The FN1010T036A is a 10.1-inch high-brightness capacitive touch display with a 1280 × 800 TFT LCD and G+G touch structure. With 850 cd/m² typical TPM brightness, 5-point touch, and a -20°C to +70°C operating range, it is designed for industrial HMI and embedded equipment where screen readability and stable operation matter.

Features

850 cd/m² Typical TPM Brightness

The finished touch display provides 680 cd/m² minimum and 850 cd/m² typical brightness. This gives the display more headroom than standard indoor panels when ambient lighting becomes stronger, although direct-sunlight applications may still require additional optical and mechanical considerations.

1280 × 800 Resolution

The WXGA resolution provides a practical balance between display area, interface detail, and system requirements on a 10.1-inch screen. It is suitable for graphical HMI interfaces, monitoring screens, and equipment control panels.

G+G Projected Capacitive Touch

The G+G construction combines a glass cover with an ITO glass sensor and supports 5-point finger touch. This structure is well suited to equipment with frequent touch interaction and a durable glass front.

Wide Operating Temperature

The specified operating range of -20°C to +70°C allows the display to be used across a wider range of industrial environments than standard room-temperature displays.

Integrated Touch Display Module

The touch panel and TFT LCD are supplied as an integrated TPM, with LVDS for the display and I²C for touch communication. This simplifies integration compared with sourcing and matching the touch panel and LCD separately.

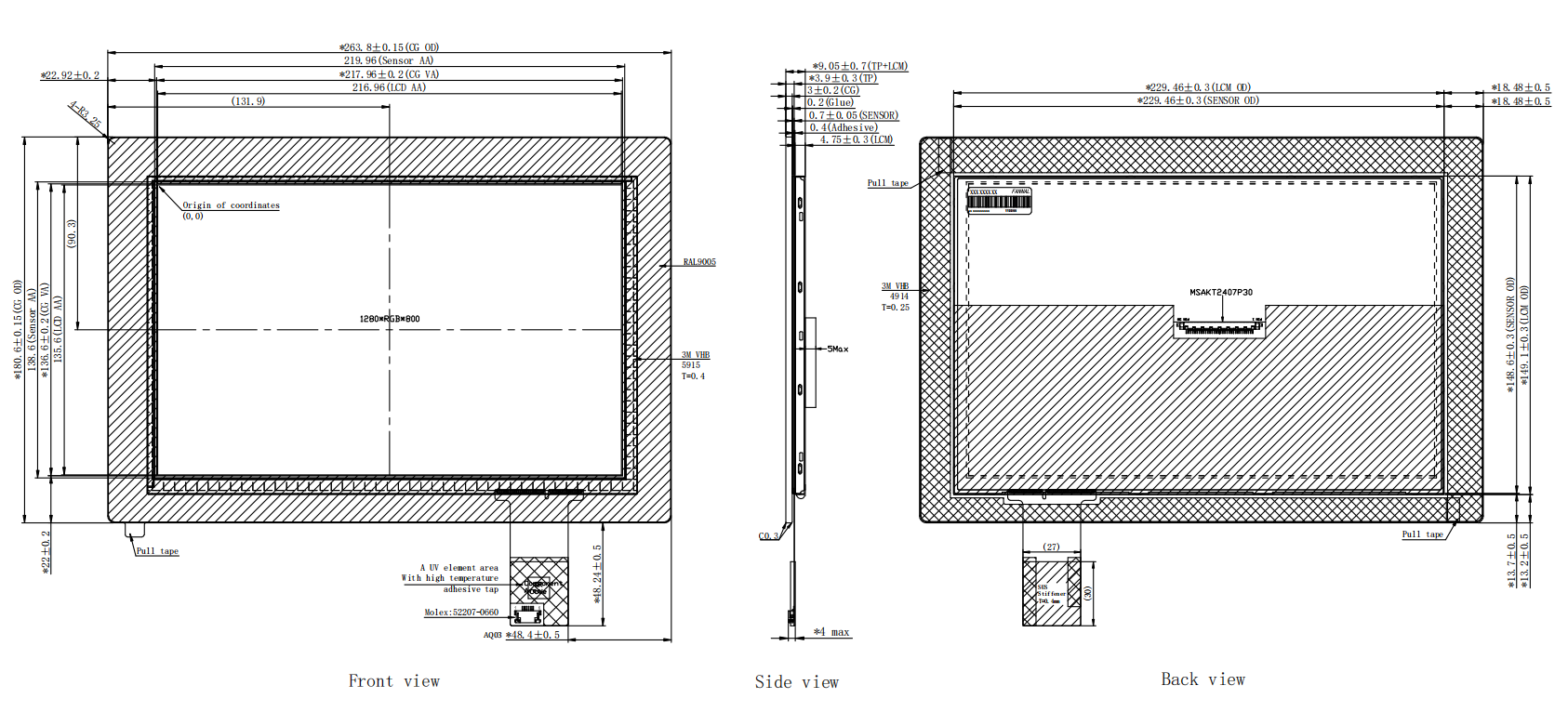

Drawing

Specifications

Item	Specification	Unit
Structure	G+G	—
Bonding Type	Air bonding	—
TPM Active Size	10.1 (Diagonal)	Inch
TPM Outline Size	263.8(H) x 180.6(V) x 9.05(T)	mm
View Area	217.96(H) x 136.6(V)	mm
Cover Lens Thickness	3.0 (Chemically strengthened)	mm
ITO Glass Thickness	0.7	mm
Surface Hardness	$\ge 6\text{H}$	—
Surface Treatment	NC	—
Light Transmittance	85% Min	—
Touch Driver IC	Microchip Touch IC	—
Touch Points	5 (Desiccation)	—
Touch Mode	Finger	—
Touch Interface	IIC	—
IIC Address	0x4A	—
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
TPM Surface Luminance	680 (min.) / 850 (typ.)	$\text{cd/m}^2$
TFT Interface	LVDS	—
TFT Resolution	1280 x 800	—

Applications

Industrial HMI

Suitable for machine interfaces, factory automation equipment, process control panels, and operator terminals where a brighter display is useful under changing ambient lighting.

Outdoor or Semi-Outdoor Equipment

The 850 cd/m² typical TPM brightness can be considered for shaded outdoor and semi-outdoor equipment. For direct sunlight, however, brightness alone is not enough; optical bonding, cover glass treatment, viewing angle, and enclosure design should also be evaluated.

Transportation and Control Equipment

Applicable to control panels, vehicle-related equipment, and other embedded systems exposed to temperature variation and changing ambient conditions.

Medical and Laboratory Equipment

Can be integrated into analyzers, monitoring equipment, and laboratory instruments that require a compact 10.1-inch graphical interface and reliable touch input.

Embedded Industrial Devices

Suitable for OEM equipment where the display, touch panel, and mechanical assembly need to be integrated into a custom enclosure.

Customizations

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

Is 850 cd/m² the brightness of the TFT or the finished touch display?

It is the TPM surface luminance, meaning the specified brightness applies to the finished touch display assembly. The typical value is 850 cd/m², with 680 cd/m² minimum.

Is 850 cd/m² enough for outdoor use?

It can be suitable for shaded or semi-outdoor environments, but 850 cd/m² should not automatically be treated as sufficient for direct sunlight. Outdoor readability also depends on reflections, cover glass, viewing angle, optical bonding, installation direction, and enclosure design.

What is the advantage of the G+G touch structure?

G+G uses a glass cover and glass sensor, providing a rigid touch surface that is well suited to repeated finger operation. It is commonly used where durability and a stable front surface are more important than achieving the thinnest possible touch structure.

Can this display operate in cold environments?

Yes. The specified operating temperature is -20°C to +70°C. Actual system performance at low temperature should still be evaluated together with the host electronics, enclosure, and application-specific startup requirements.

Can FANNAL customize this 10.1-inch touch display?

Yes. Depending on the project, FANNAL can work with customers on mechanical dimensions, cover glass design, touch configuration, interface requirements, bonding, and other display integration requirements. The final configuration depends on the host system and operating environment.
