FN150PGRGRL
15
374.65*298.45*5.3
328.32*252.50*1.1
-20~70
-30~80
Microchip
305.13*229.10
G+G
USB
| Quantity: | |
|---|---|

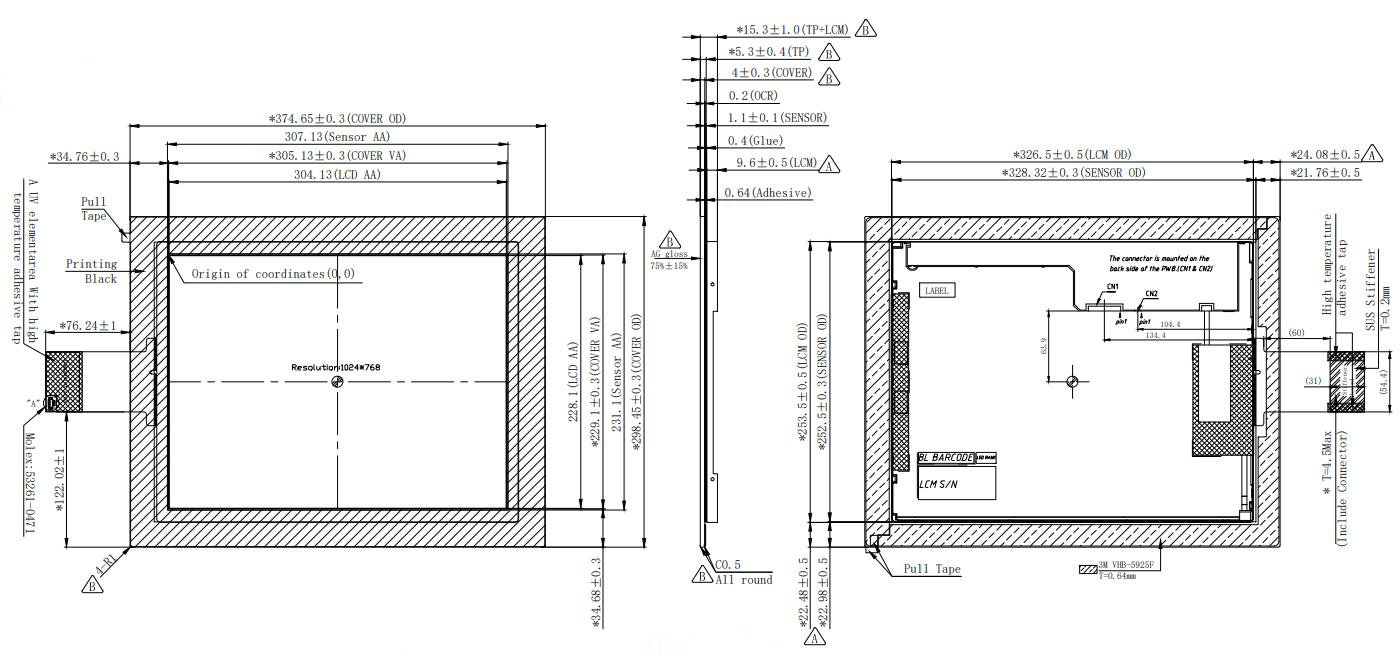

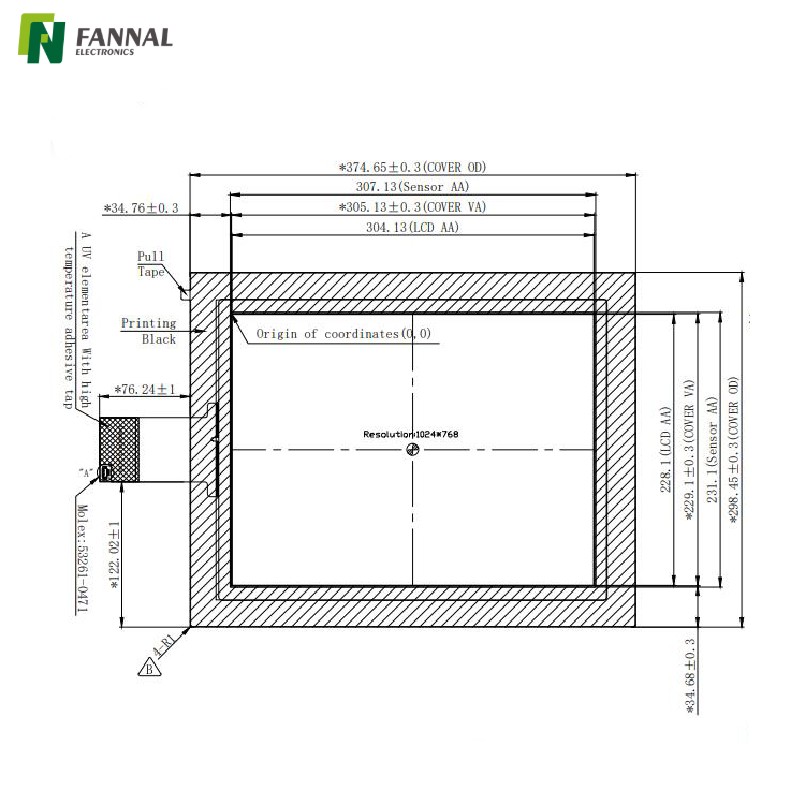

Drawing
Specifications
Structure | Materials | Remark |
Cover Glass | Strengthened glass | Thickness: 4.0mm ± 0.05mm |
Optical Clear Adhesive | OCR | Thickness: 0.175mm ± 0.05mm |
ITO Glass | ITO Glass | Double side ITO glass; Thickness: 1.1mm ± 0.05mm |
Item | Description | Unit |
Touch Module Size | 15 | inch |
Outer Dimension | 374.65 * 298.45 | mm |
View Area | 305.13 * 229.10 | mm |
Sensor Area | 328.32 * 252.50 | mm |
Cover Thickness | 4.0 | mm |
Number of Touch | 10 | - |
Input Type | USB | - |
Control Type | Microchip | - |
Applications
Industrial control panels and human-machine interfaces (HMI)
Embedded system touch interfaces
Medical and diagnostic equipment requiring touch input
Kiosks, point-of-sale (POS), and industrial automation terminals
Custom multi-touch interface projects
Customizations
• Available Sizes: Up to 65"
• Structure Options: G+G, G+F+F, designed for industrial and automotive applications
• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection
• Operating Temperature:
Industrial Grade: –20°C ~ +70°C
Automotive Grade: –30°C ~ +85°
• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards
• Material Options:
Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion
Optical Bonding | Size Range | Notes |
OCA | Up to 15.6” | Two fully automated production lines for high-volume manufacturing |
LOCA / OCR | Up to 32” | Excellent for high contrast and durability |
Silicone | Up to 32” | Ideal for rugged, large-size industrial applications |
About FANNAL
 | Well-Experienced: 15 years of experience in TFT Displays, AMOLED Displays, Touch Displays, Capacitive Touchscreens, and Touch Monitors manufacturing. |
| One-Stop Solution: Full in-house process for touch screen, display, and optical bonding |
| Global Service: Italy, Germany, France, Spain, India, Japan, Singapore, and more — timely local support. |
| Strong Background: Financially backed by SECO, a top European leader in embedded and display solutions. |
| Reliable Supply: Our long-term supplier network ensures you receive consistent quality and reliable delivery, even in high-demand seasons. |
| Quality Assurance: ISO 9001, ISO 14001, ISO 45001, ISO 13485 & IATF 16949 certified; REACH & RoHS compliant. |
Certificates
FAQ
Q1: Can this touch display be integrated with custom embedded systems?
A: Yes. The USB interface and standard mechanical dimensions allow integration with a wide range of embedded systems and industrial platforms.
Q2: Can additional touch features or coatings be customized?
A: Yes. FANNAL can provide optional coatings, connector types, and FPC lengths based on project requirements.
Q3: Are mounting accessories available?
A: Optional mounting brackets and cable harnesses are available to simplify installation.
Q4: How many touch points does this panel support?
A: Multi-touch input is supported; exact touch points depend on the controller configuration.
Q5: Is this touch panel suitable for continuous operation?
A: Yes. When properly integrated, it is designed for long-term use in industrial and embedded applications.
