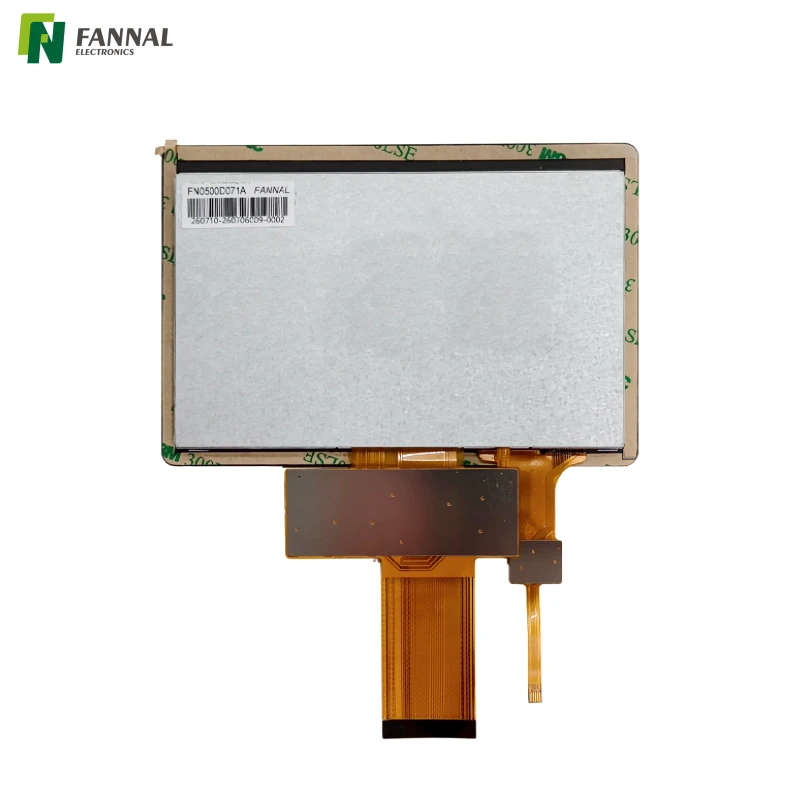

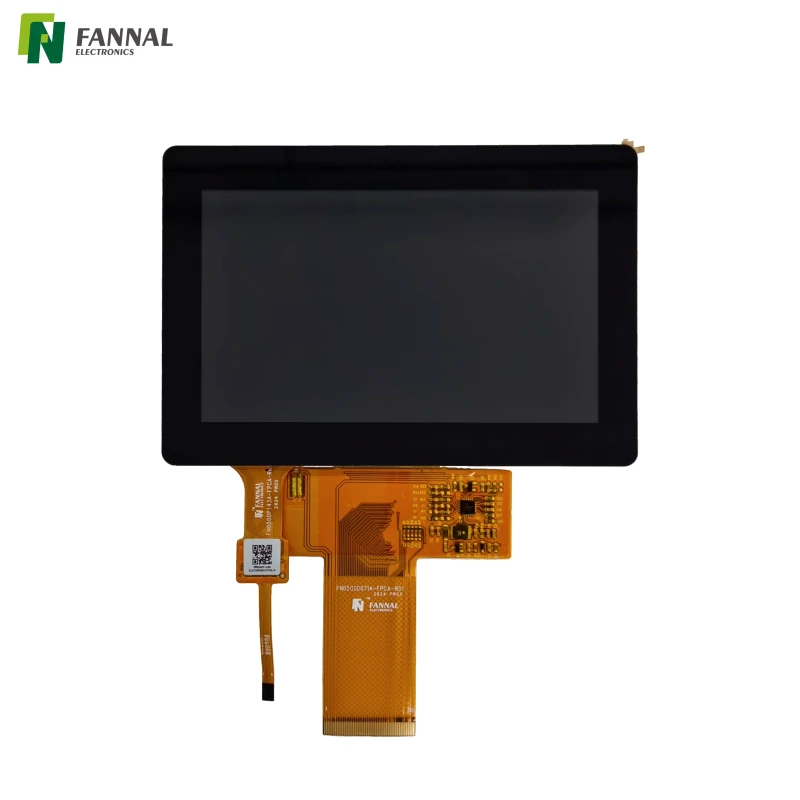

5 Inch 800×480 Touch Display | G+G, Air Bonding

Name: 5 Inch 800×480 Touch Display | G+G, Air Bonding
Brand: FANNAL
Rating: 5.0 (85 reviews)

5-inch 800×480 capacitive touch display with G+G construction, chemically strengthened 0.7 mm cover glass, 5-point IIC touch, and air bonding.

Model:
FN0500T143A
Brand:
FANNAL
Size(inch):
5
Cover OD (mm):
129.7*89.8*4.65
Display AA(mm):
108*64.8
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
TP VA (mm):
108.6*65.4
Structure:
G+G
Resolution:
800*480
Display Interface:
RGB 24bit
TP Interface:
IIC
Brightness(cd/m²):
400

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

The FANNAL FN0500T143A is a 5-inch capacitive touch display designed for embedded equipment using a conventional 800×480 landscape-format interface. Its G+G touch structure combines a 0.7 mm chemically strengthened cover glass with a 0.55 mm touch sensor, providing a durable front surface for everyday industrial and commercial equipment operation.

Unlike optically bonded modules, the FN0500T143A uses air bonding with double-sided adhesive tape. This construction offers an alternative for projects where the display assembly, mechanical stack-up, and integration requirements favor an air-bonded design. The module delivers 400 cd/m² typical luminance, supports five-point capacitive touch through an IIC interface, and uses an RGB 24-bit display interface.

With an operating temperature range of -20°C to +70°C and support for RoHS 2.0 and REACH requirements, the FN0500T143A is suitable for embedded HMI projects that need a compact touch display with a conventional resolution and defined mechanical and electrical specifications.

Features

800×480 Landscape Display Format

The 5-inch, 800×480 resolution supports conventional landscape-oriented interfaces, including control menus, equipment status screens, and graphical operating panels.

G+G Capacitive Touch Structure

The glass-on-glass construction combines a 0.7 mm cover glass with a 0.55 mm touch sensor. This structure provides a glass front surface for applications requiring an integrated capacitive touch interface.

Chemically Strengthened Cover Glass

The 0.7 mm cover glass undergoes chemical strengthening and has a specified surface hardness of at least 7H, supporting resistance to everyday surface wear and scratches.

Air Bonding with Double-Sided Adhesive Tape

The touch assembly uses double-sided adhesive tape rather than OCA optical bonding. This bonding approach gives equipment designers another option when selecting a display assembly to suit their mechanical integration requirements.

400 cd/m² Typical Luminance

The display provides 400 cd/m² typical luminance, suitable for many indoor equipment interfaces. Visibility in bright ambient conditions depends on the surrounding lighting, cover design, and viewing environment.

Five-Point Capacitive Touch

The Cypress touch controller supports up to five simultaneous touch points through an IIC interface, enabling multi-touch interaction in compatible host systems.

RGB 24-Bit Display Interface

The display uses an RGB 24-bit interface and a 3.3 V TFT power supply. The host system should be designed to match the module's interface and electrical requirements.

Wide Operating Temperature

The specified operating temperature range is -20°C to +70°C, with a storage range of -30°C to +80°C.

Defined Optical Specifications

The module specifies minimum light transmittance of 85% and minimum luminance uniformity of 80%, providing reference values for optical evaluation during system design.

Material Compliance

The module meets the stated RoHS 2.0 and REACH requirements.

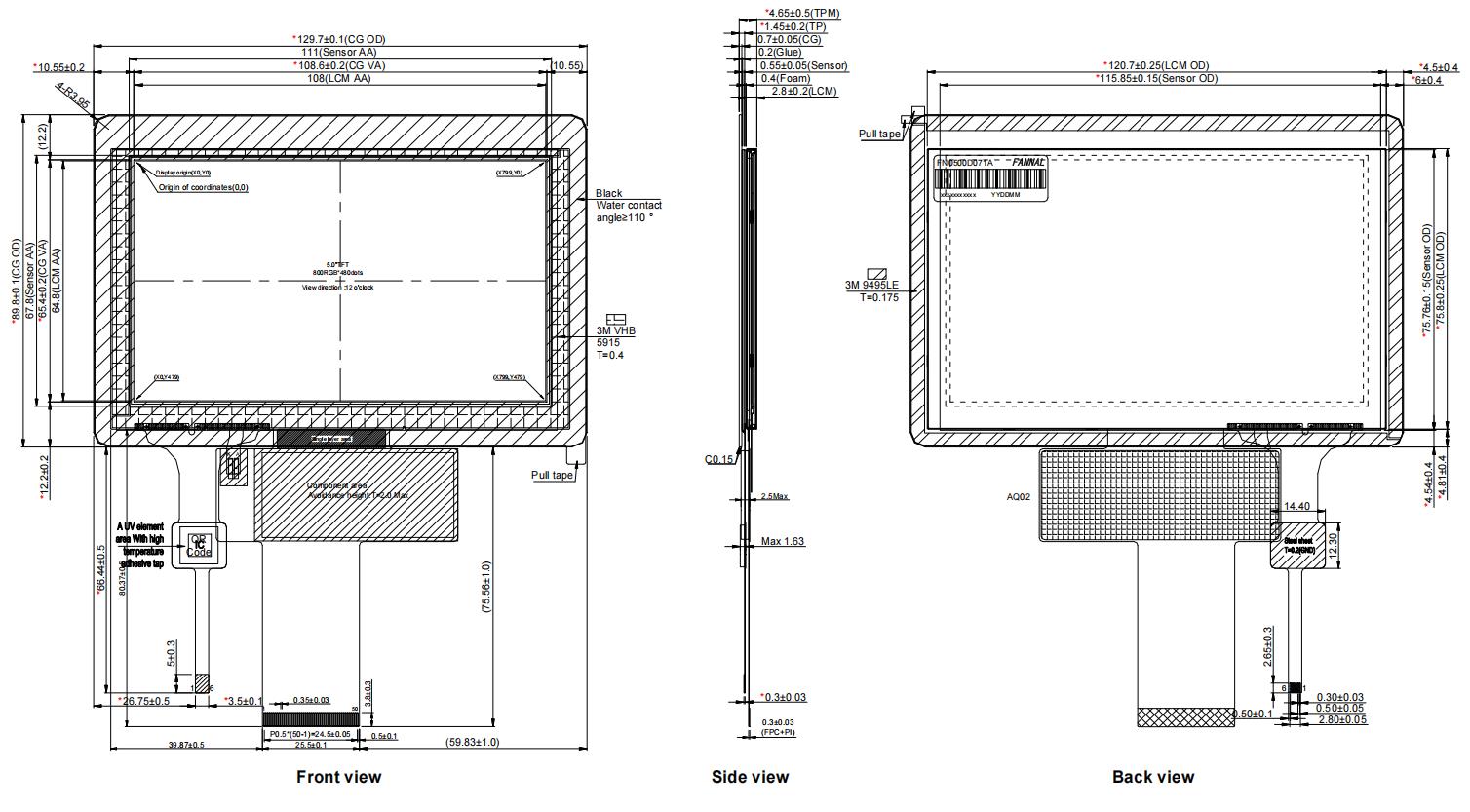

Drawing

Specifications

PARAMETER	DESCRIPTION
SIZE	5.0 INCH
RESOLUTION RATIO	800*480
TPM LUMINANCE	400 Typ. 310 Min
TFT INTERFACE	RGB 24bit
TFT DRIVER BRAND	ILI Technology (Ilitek)
TFT POWER SUPPLY	3.3V
SURFACE HARDNESS	7H Min
LIGHT TRANSMITTANCE	85% Min
UNIFORMITY	80% Min
STRCTURE	G+G
COVER THICKNESS	0.7
SENSOR THICKNESS	0.55
TOUCH INTERFACE	IIC
TOUCH CONTROLLER BRAND	Cypress
TOUCH POWER SUPPLY	3.3V
NO. OF TOUCH	5
CHANNELS OF SENSOR	23*14
UNMARKED TOLERANCE	±0.3/±1°
BONDING TYPE	AIR BONDING
BONDING MATERIAL	DOUBLE-SIDED TAPE
COVER ENHANCEMENT METHOD	CHEMICAL STRENGTHENING
ENVIRONMENTAL REQUIREMENTS	RoHS-2.0, REACH
OPERATION TEMPERATURE	-20 ~ +70
STORAGE TEMPERATURE	-30 ~ +80

Applications

Industrial Control Panels

For compact machine interfaces displaying operating status, control menus, and equipment parameters in a landscape layout.

Automation Equipment

For embedded HMIs that require a 5-inch touch display with a conventional 800×480 resolution and IIC touch communication.

Test and Measurement Instruments

For instrument interfaces that present readings, settings, and menu-based controls through a compact graphical display.

Commercial Equipment

For control terminals and equipment interfaces requiring integrated capacitive touch rather than a separate external input device.

Building and Facility Controls

For compatible indoor control interfaces used to display system status, settings, and operational information.

Customized Embedded HMI Projects

For projects requiring a defined cover-glass thickness, G+G touch structure, RGB display interface, and air-bonded assembly. Mechanical dimensions and host-board compatibility should be confirmed during design-in.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

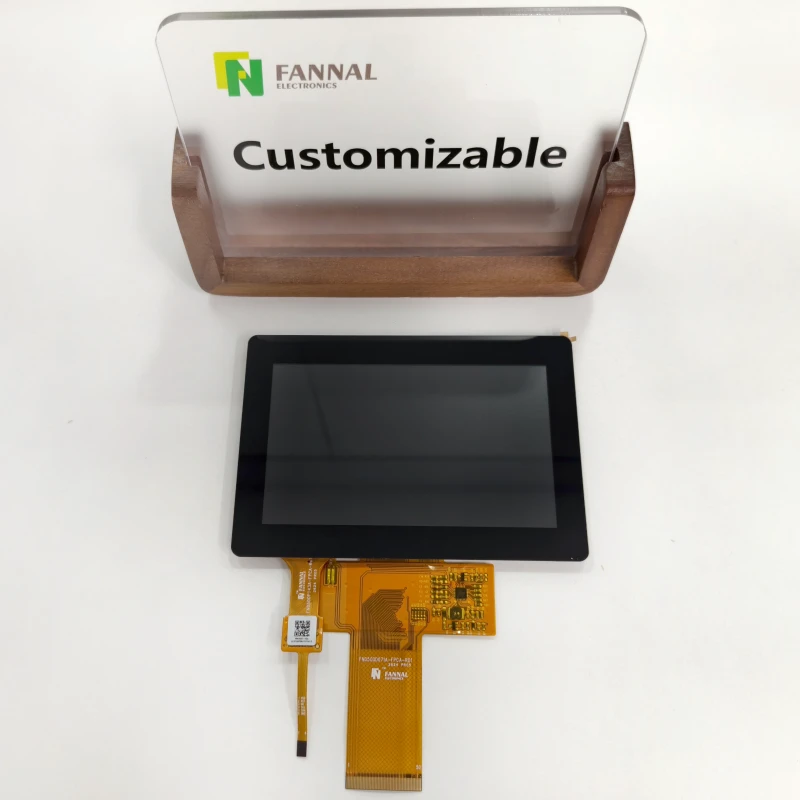

Customizations

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

1. What is the difference between air bonding and optical bonding?

The FN0500T143A uses air bonding with double-sided adhesive tape rather than OCA optical bonding. The suitable bonding method depends on the project's optical performance, mechanical structure, and environmental requirements.

2. What are the advantages of the G+G touch structure?

The G+G structure combines a 0.7 mm cover glass with a 0.55 mm touch sensor. The cover glass is chemically strengthened and has a specified surface hardness of at least 7H, making it suitable for applications requiring a durable glass touch surface.

3. Does the FN0500T143A support multi-touch?

Yes. It supports up to five simultaneous touch points through an IIC interface, using a Cypress touch controller.

4. What display interface and power supply does this module require?

The display uses an RGB 24-bit interface with a 3.3 V TFT power supply. The touch system also operates at 3.3 V and uses IIC communication. The host system must support both interfaces.

5. Is the FN0500T143A suitable for outdoor applications?

The display has a typical luminance of 400 cd/m² and a specified operating temperature range of -20°C to +70°C. It may suit many indoor applications, but outdoor readability depends on ambient light, reflections, cover design, and the complete equipment configuration.
