Home » Products » Touch Displays » 5 Inch Industrial Touch Display | 800×480 RGB TFT with PCAP Touch

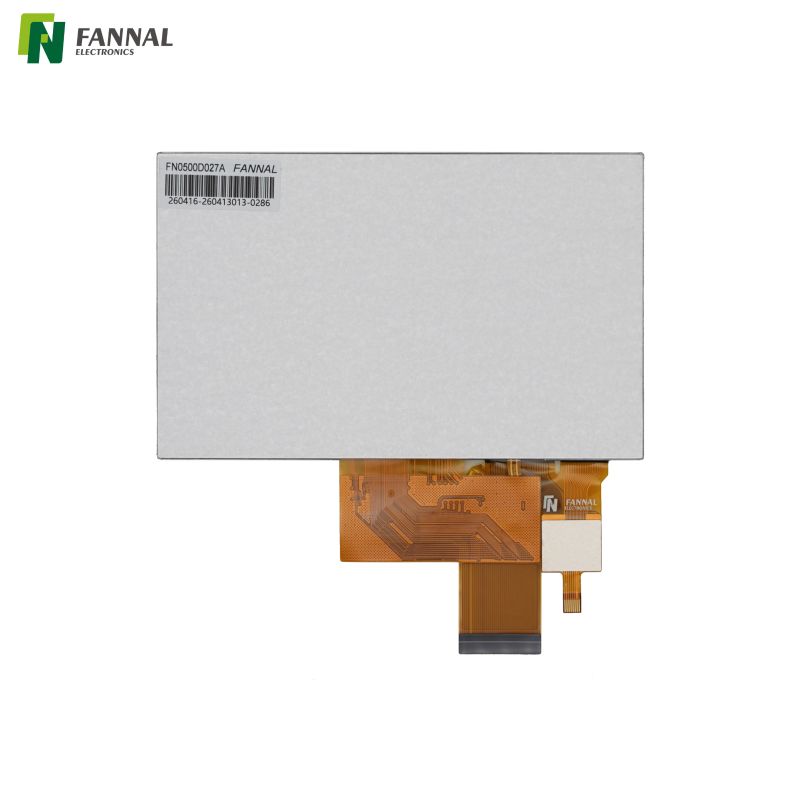

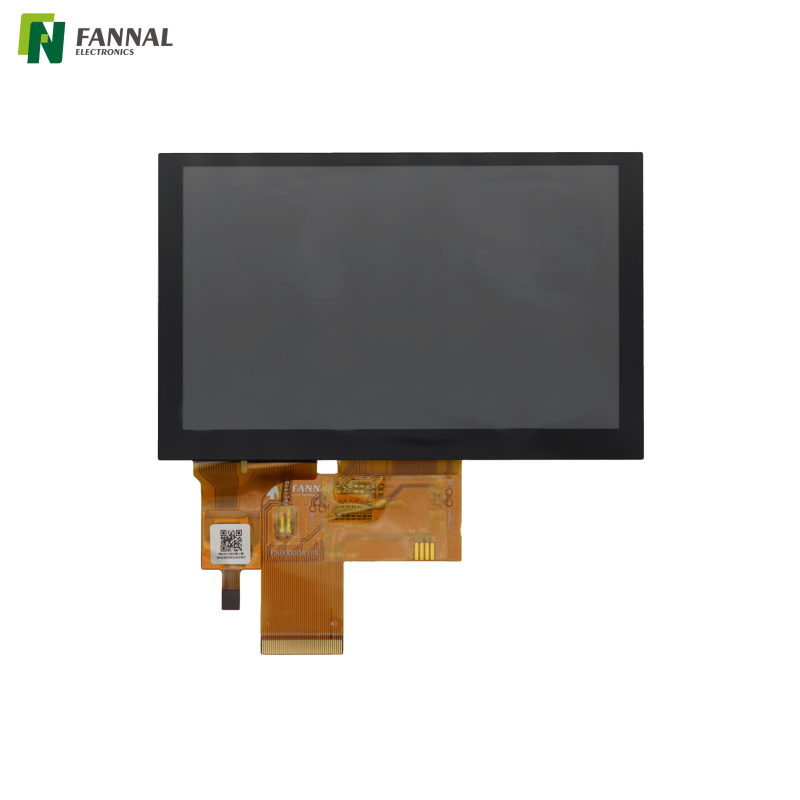

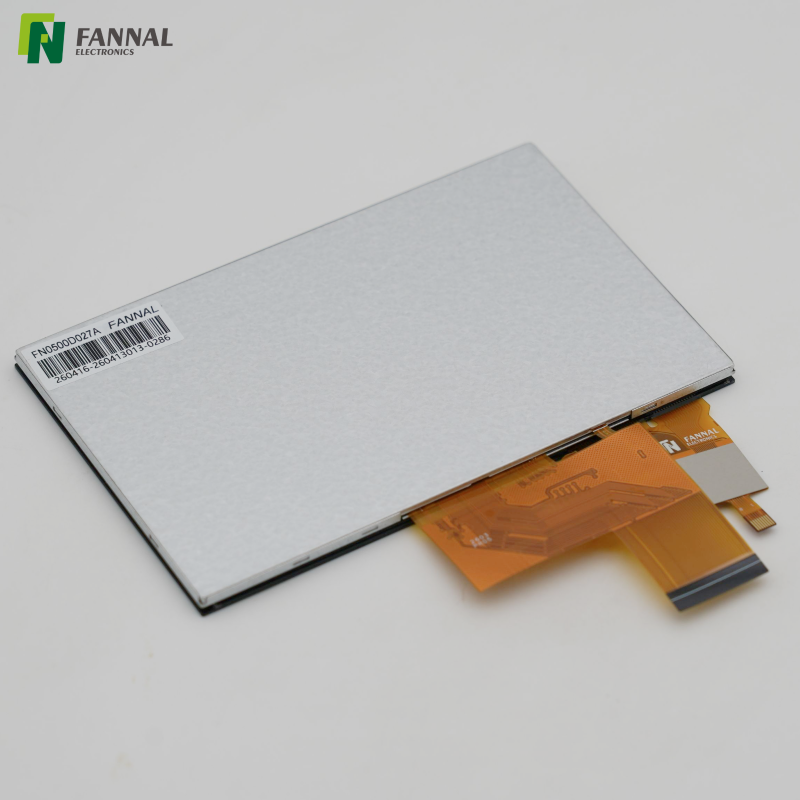

5 Inch Industrial Touch Display | 800×480 RGB TFT with PCAP Touch

Name: 5 Inch Industrial Touch Display | 800×480 RGB TFT with PCAP Touch
Brand: FANNAL
Rating: 5.0 (34 reviews)

This 5 inch touch display integrates an 800×480 RGB TFT panel with a G+G projected capacitive touchscreen and IIC interface. With up to 690 nits typical brightness and a -20°C to +70°C operating range, it is suitable for embedded HMI systems, portable devices, industrial control panels, and compact equipment applications.

Model:
FN050CGRGUR015B
Brand:
FANNAL
Size(inch):
5
Cover OD (mm):
76.3(H) x 120.7(V) x 4.93(T)
Display AA(mm):
64.8*108
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
TP VA (mm):
65.4(H) x 108.6(V)
Structure:
G+G
Resolution:
800x480
Display Interface:
RGB
TP Interface:
IIC
Brightness(cd/m²):
690

Quantity:
Availability:





Inquiry Add to Basket

5 Inch Industrial Touch Display

Product Features

Drawing & Specifications

Applications

Customizations

FAQ

Features

Compact 5 Inch Display for Embedded Systems

The small form factor makes the module suitable for handheld terminals, compact HMI devices, portable equipment, and space-constrained embedded systems.

High Brightness for Indoor and Semi-Outdoor Use

With 690 nits typical brightness, the display offers better visibility than standard consumer-grade modules, especially in environments with stronger ambient lighting.

G+G PCAP Touchscreen with IIC Interface

The glass-glass capacitive touch structure provides improved rigidity and durability compared to film-based touch designs. The IIC interface simplifies integration with many embedded controllers and ARM platforms.

Wide Operating Temperature Support

The module supports operation from -20°C to +70°C, making it more suitable for industrial and mobile equipment exposed to wider environmental temperature variation.

RGB Interface for Embedded Integration

The RGB TFT interface is still widely used in embedded systems requiring direct display control and relatively simple hardware architectures.

Chemically Strengthened Cover Glass

The 0.7 mm chemically strengthened cover lens with ≥6H surface hardness helps improve scratch resistance during long-term operation.

Air Bonding Structure

The module uses air bonding rather than optical bonding. This helps reduce module cost and can simplify servicing, although reflections may become more noticeable under direct sunlight conditions.

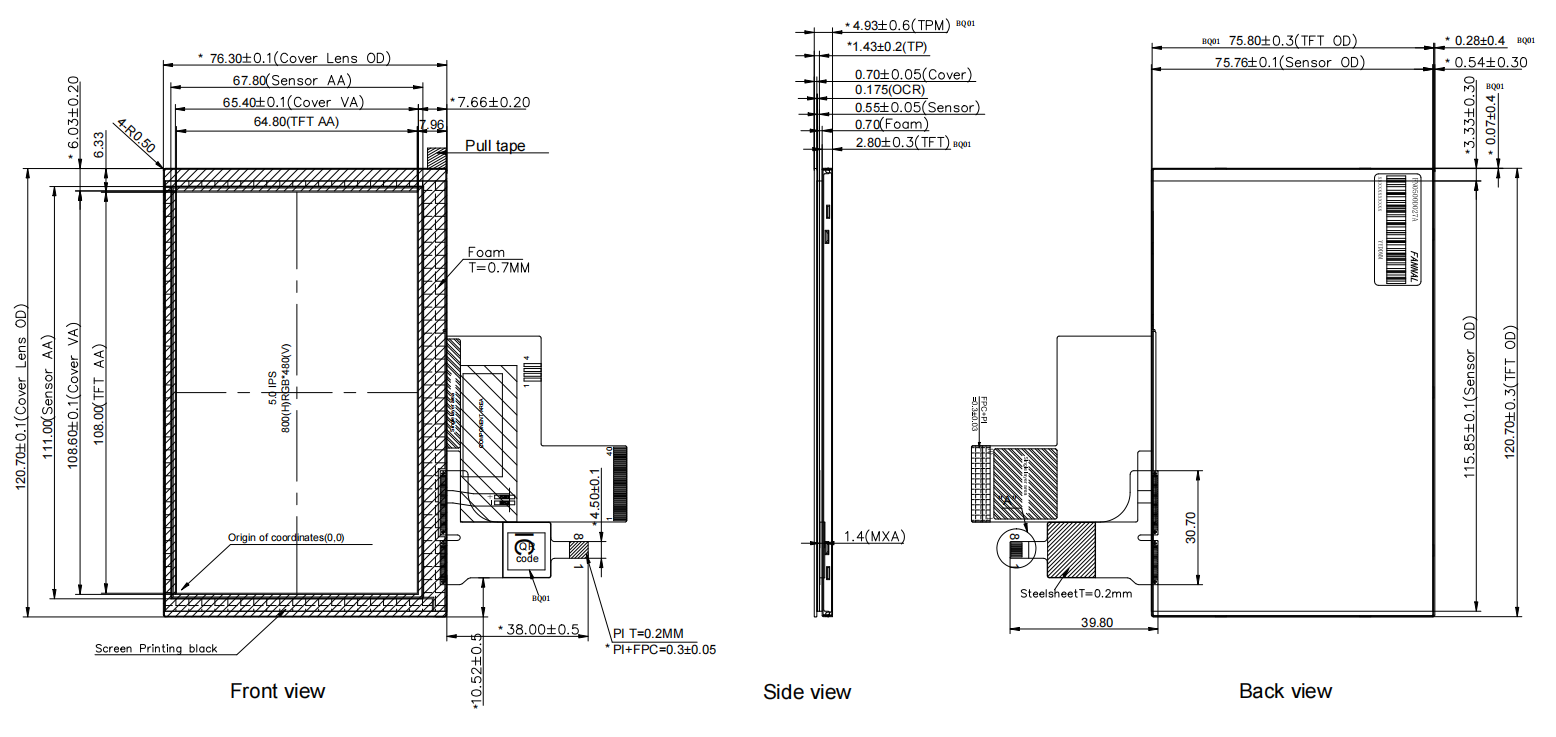

Drawing

Specifications

Item / Property	Specification / Requirement	Unit	Remark
Structure	G+G	-	-
Bonding Type	Air bonding	-	-
TP Active Size	5.0 (Diagonal)	Inch	-
TP Outline Size	76.3(H) x 120.7(V) x 4.93(T)	mm	-
View Area	65.4(H) x 108.6(V)	mm	-
Cover Lens Thickness	0.7 (Chemical strengthen)	mm	-
ITO glass Thickness	0.55	mm	-
Surface Hardness	≥6H	-	500g
Surface treatment	NC	-	-
Light / Touch Transmittance	82% Min	-	-
Touch Driver IC / Touch IC	CYTMA568-56LQI44BB	-	-
Touch Points / No. of Touch	5 (Desiccation)	-	-
Touch Mode	Finger	-	-
Touch Interface	IIC	-	-
IIC address	0x36	-	-
Operating Temperature	-20 ~ +70	°C	-
Storage Temperature	-30 ~ +80	°C	-
Humidity	10% ~ 90%	-	-
TFT part Number	C3005023492027A	Pcs	-
TFT interface	RGB	-	-
TFT resolution	800 * 480	-	-
TPM Surface Luminance / Brightness	550 (min.) / 690 (typ.)	cd/m^2	BQ01

Applications

Embedded HMI Systems

Suitable for industrial control interfaces, machine operation panels, and compact embedded terminals.

Handheld and Portable Devices

Applicable for portable testing equipment, field instruments, and battery-powered industrial devices requiring compact display integration.

Smart Control Panels

Can be integrated into smart home control systems, building management devices, and compact automation interfaces.

Industrial Portable Equipment

Useful for mobile diagnostic tools, handheld measurement systems, and utility service equipment operating across varying temperatures.

Transportation and Utility Devices

The wide operating temperature range makes the display suitable for transportation-related embedded equipment and field-installed electronic systems.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

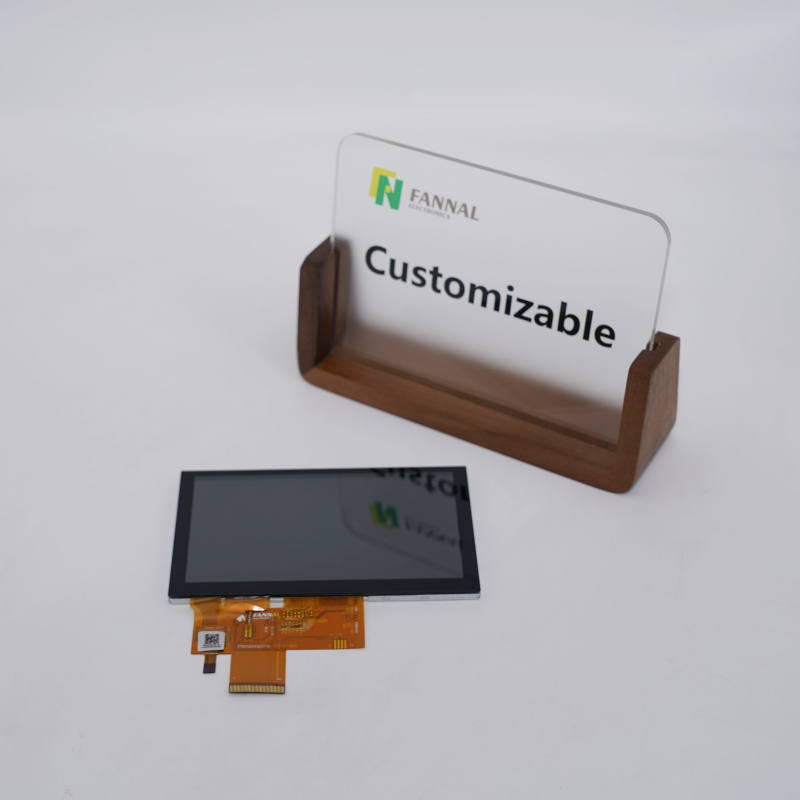

Customizations

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

Is this display suitable for outdoor use?

Partially. The 690 nits brightness helps improve readability in brighter environments, but because the module uses air bonding, direct sunlight reflections may still affect visibility.

Why is RGB still used in embedded displays?

RGB interfaces are still common in embedded systems because they provide relatively direct display control and are compatible with many MCU and embedded processor platforms.

What are the advantages of G+G touch structure?

G+G structures generally provide better surface rigidity, improved durability, and more stable long-term performance compared with thinner film-based touch structures.

Can this display operate in low-temperature environments?

Yes. The module supports operation down to -20°C, making it more suitable for industrial and portable equipment exposed to wider environmental conditions.

Why choose air bonding instead of optical bonding?

Air bonding helps reduce overall module cost and may simplify maintenance or replacement. Optical bonding usually offers better optical performance, especially for outdoor or high-humidity applications.
