5 Inch Capacitive Touch Panel | G+G, 7H, Wide Temperature

Name: 5 Inch Capacitive Touch Panel | G+G, 7H, Wide Temperature
Brand: FANNAL
Rating: 5.0 (70 reviews)

5-inch standalone capacitive touch panel with G+G construction, 5-point touch, 7H cover glass, IIC interface, and -30°C to +80°C operation.

Model:
FN0500P140A
Brand:
FANNAL
Size(inch):
5
Cover OD (mm):
119.7*75.2*1.6
Operation Temp(℃):
-30~80
Storage Temp(℃):
-30~80
TP VA (mm):
107.4*64.2
Structure:
G+G
TP Interface:
IIC

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

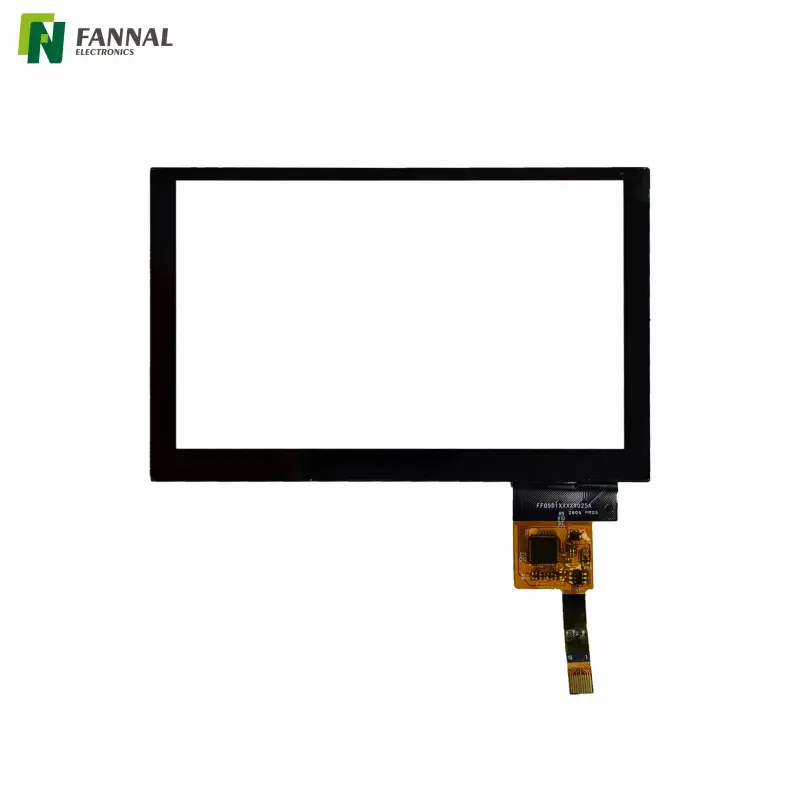

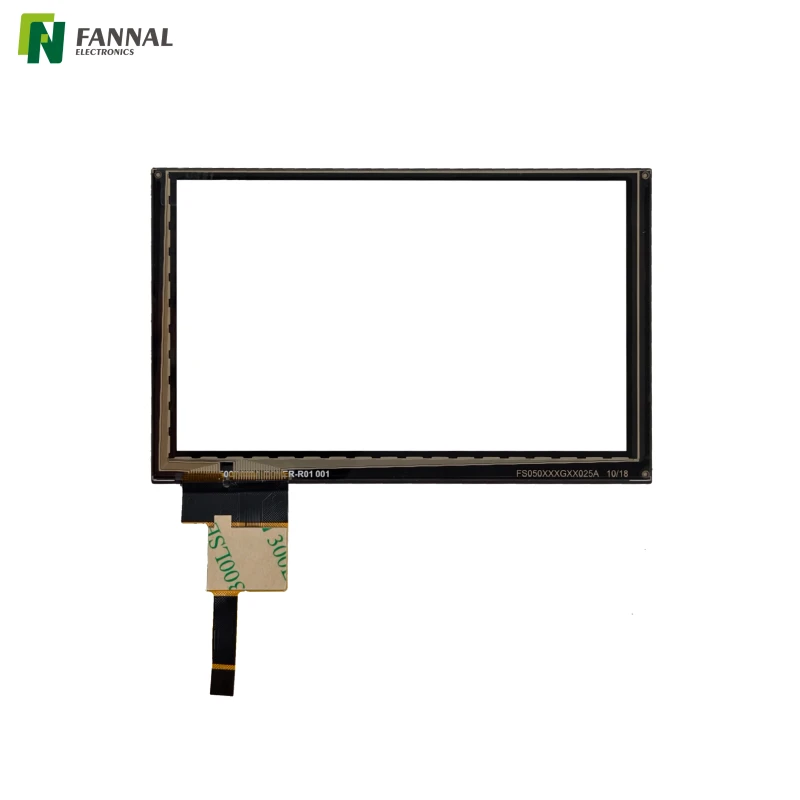

The FANNAL FN0500P140A is a 5-inch standalone capacitive touch panel designed for integration with compatible display modules and embedded systems. Its glass-on-glass (G+G) structure combines a 0.7 mm cover glass with a 0.7 mm touch sensor, supporting up to five simultaneous touch points through an IIC interface.

The chemically strengthened cover glass provides a minimum surface hardness of 7H and light transmittance of at least 85%. With a specified operating temperature range of -30°C to +80°C, this touch panel is suitable for equipment requiring a durable touch interface across a wide range of operating conditions. It can be evaluated for integration into customized display assemblies and application-specific control panels.

Features

5-Inch Standalone Touch Panel: Designed for integration with a compatible TFT display or custom display assembly; the TFT display is not included in this touch panel.
G+G Construction: Uses a 0.7 mm cover glass and 0.7 mm touch sensor for a glass-on-glass touch structure.
5-Point Capacitive Touch: Supports up to five simultaneous touch points for interactive control applications.
7H Minimum Surface Hardness: Chemically strengthened cover glass helps resist surface scratching during normal use.
85% Minimum Light Transmittance: Allows light to pass through the touch panel with limited optical loss.
IIC Touch Interface: Uses an Ilitek touch controller with a 3.3 V touch power supply.
Wide Operating Temperature: Specified for operation from -30°C to +80°C, with the same range specified for storage.
Compliance: Meets RoHS 2.0, REACH, and HF requirements.

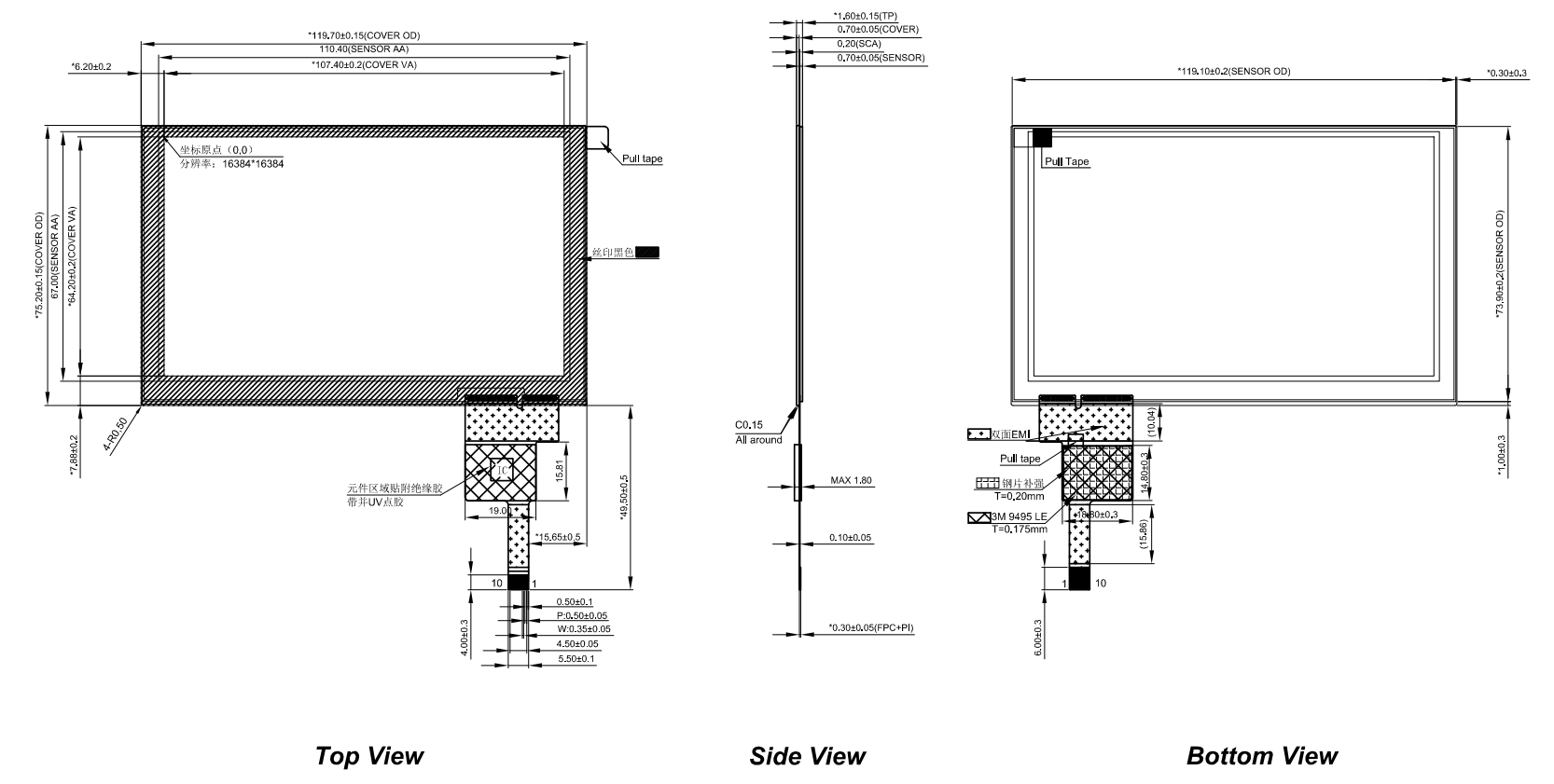

Drawing

Specifications

PARAMETER	DESCRIPTION
STRCTURE	G+G
COVER THICKNESS	0.7
SENSOR THICKNESS	0.7
TOUCH INTERFACE	IIC
TOUCH CONTROLLER BRAND	ILI Technology (Ilitek)
TOUCH POWER SUPPLY	3.3V
NO. OF TOUCH	5
LIGHT TRANSMITTANCE	85% MIN
COVER ENHANCEMENT METHOD	CHEMICAL STRENGTHENING
SURFACE HARDNESS	7H Min
CHANNELS OF SENSOR	TX11*RX18
ENVIRONMENTAL REQUIREMENTS	RoHS-2.0, REACH, HF
OPERATION TEMPERATURE	-30~+80
STORAGE TEMPERATURE	-30~+80
UNMARKED TOLERANCE	±0.3/±1°

Applications

Industrial Control Panels: Touch interfaces for machinery, automation equipment, and operator control systems.
Embedded HMI Systems: Standalone touch panels integrated with compatible TFT displays and embedded computing platforms.
Medical and Laboratory Equipment: User interfaces for equipment requiring touch-based operation, subject to the system's applicable regulatory and validation requirements.
Instrumentation: Interactive controls for measurement, monitoring, and testing equipment.
Outdoor and Wide-Temperature Equipment: Potentially suitable for systems operating across a wide temperature range, provided the complete assembly meets the application's environmental requirements.
Custom Display Assemblies: Integration into application-specific display and touch solutions with compatible mechanical dimensions and electrical interfaces.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

Customizations

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

1. Is the FN0500P140A a complete touch display?

No. The FN0500P140A is a standalone capacitive touch panel. It does not include a TFT display. A compatible display module and host system are required to build a complete touch display assembly.

2. What display modules can this 5-inch touch panel work with?

Compatibility depends on the display's active area, cover-glass dimensions, mechanical mounting, optical requirements, and host-system design. These parameters should be checked before integration.

3. Does the touch panel support multi-touch?

Yes. The panel supports up to five simultaneous touch points, allowing multiple touch inputs within the supported controller configuration.

4. What are the touch interface and power requirements?

The touch panel uses an IIC interface and a 3.3 V touch power supply. The host system must support compatible IIC communication and electrical levels.

5. Can this touch panel operate in extreme temperatures?

The specified operating and storage temperature ranges are both -30°C to +80°C. Actual system performance also depends on the display module, bonding materials, enclosure, and other integrated components.

6. Can FANNAL customize this touch panel for a specific application?
