5 Inch Industrial Touch Display | EMI Shielding, 990 nits

Name: 5 Inch Industrial Touch Display | EMI Shielding, 990 nits
Brand: FANNAL
Rating: 5.0 (57 reviews)

FN0500T133A is a 5-inch 720×1280 industrial touch display with 990 cd/m² typical luminance, MIPI interface, OCA optical bonding, and secondary shielding-film processing for application-specific integration.

Model:
FN0500T133A
Brand:
FANNAL
Size(inch):
5
Display AA(mm):
62.1*110.4
Sensor OD:
78.44*130.7
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
Structure:
FOG+LCM
Resolution:
720*1280
Display Interface:
MIPI
TP Interface:
IIC
Brightness(cd/m²):
990

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

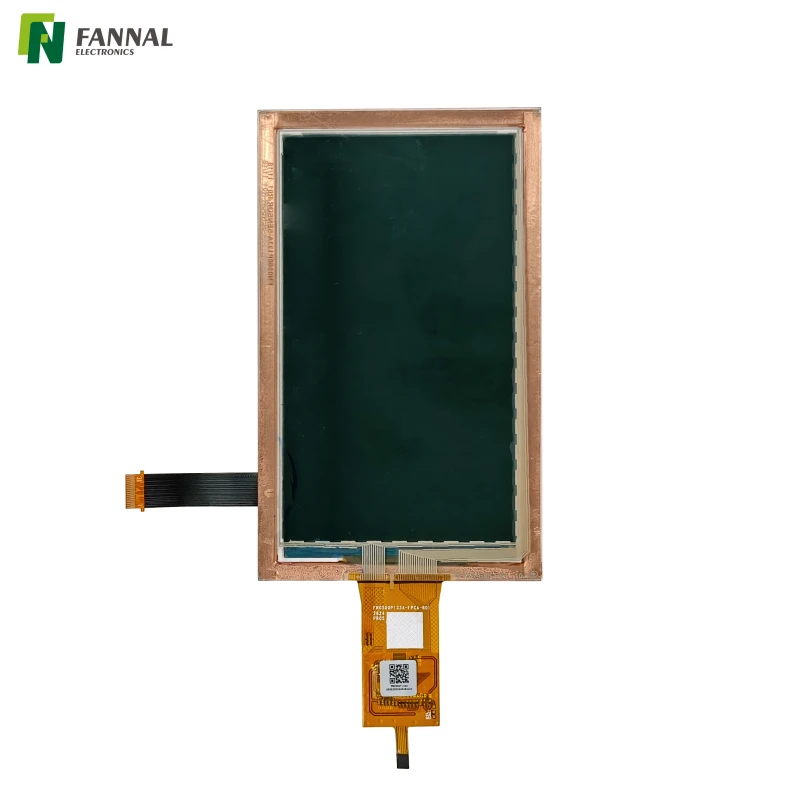

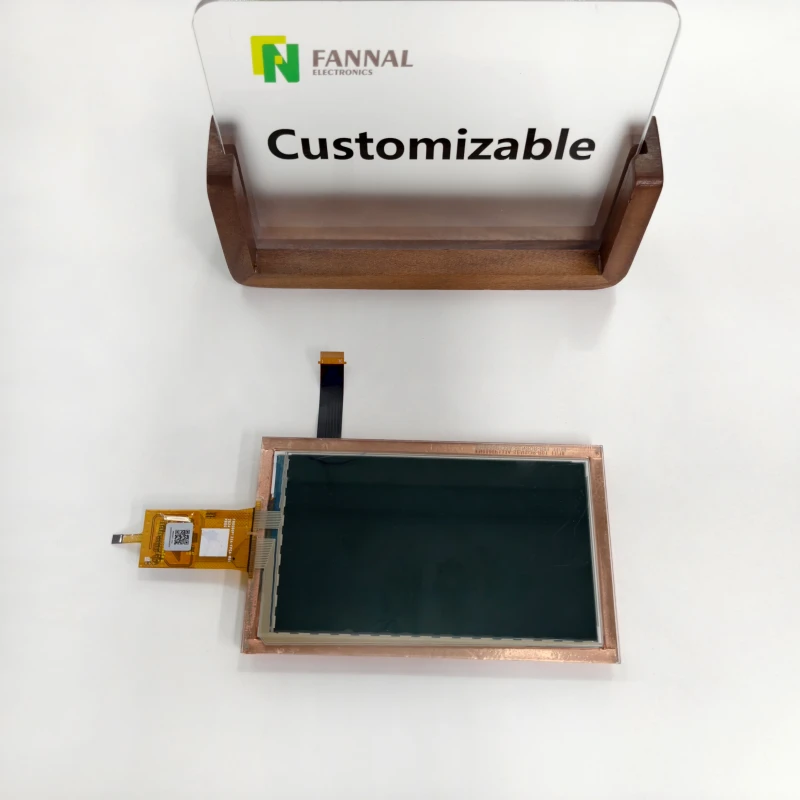

The FANNAL FN0500T133A is a 5-inch industrial touch display designed for embedded equipment requiring high brightness and application-specific EMI-related processing. With a 720×1280 resolution and 990 cd/m² typical luminance, it supports portrait-oriented interfaces in compact industrial systems.

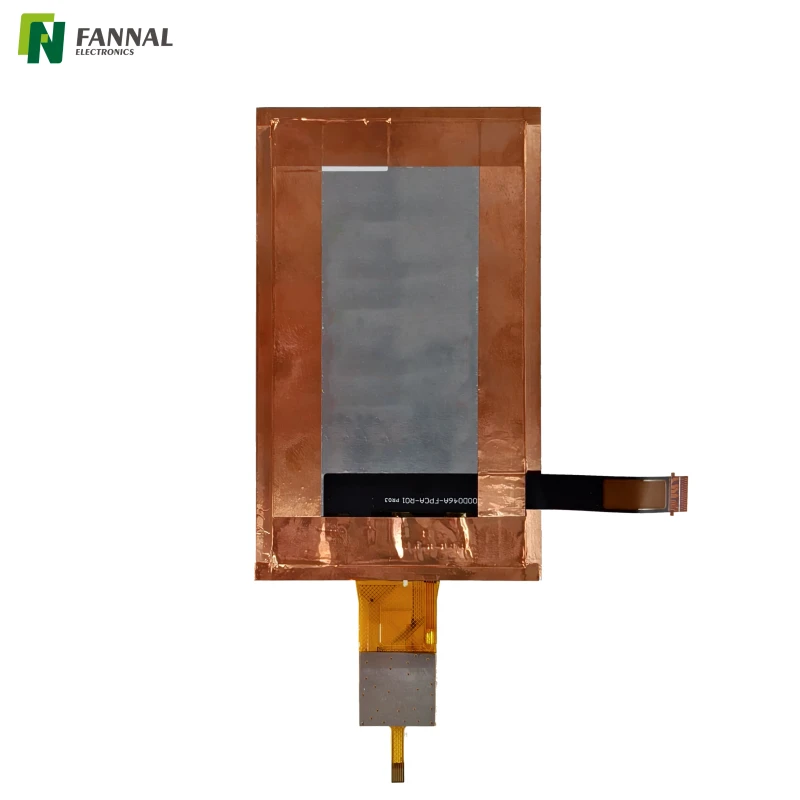

Beyond the display and capacitive touch assembly, this model incorporates secondary processing around the screen and frame to address project-specific electromagnetic interference (EMI) requirements. This additional processing allows the display assembly to be adapted to the host equipment's integration design, rather than relying solely on a standard display module.

The FN0500T133A combines OCA optical bonding, an FOG+LCM structure, a MIPI display interface, and five-point capacitive touch via IIC. Its operating temperature range is -20°C to +70°C. The shielding configuration and integration details can be reviewed against the equipment's mechanical design and EMC requirements.

Features

EMI-Related Secondary Processing: Additional processing around the screen and frame for applications with specific electromagnetic interference management requirements. The configuration can be reviewed according to the host equipment's design.
990 cd/m² Typical Brightness: Provides high luminance for industrial interfaces operating in environments with elevated ambient light. Actual visibility depends on ambient lighting, viewing angle, and cover design.
5-Inch Portrait Display: The 720×1280 resolution supports vertically oriented control interfaces, equipment status screens, and compact embedded HMIs.
MIPI Display Interface: Designed for host systems with a compatible MIPI display interface.
OCA Optical Bonding: Bonds the display assembly with optically clear adhesive to reduce the air gap and help minimize internal reflections.
FOG+LCM Structure: Combines the touch sensor and liquid crystal module in a compact assembly.
5-Point Capacitive Touch: Supports up to five simultaneous touch points through an IIC touch interface.
Separate Display and Touch Power Requirements: The TFT operates at 2.8V, while the touch system operates at 3.3V. Both requirements should be considered during host-board integration.
Wide Operating Temperature: Specified for operation from -20°C to +70°C and storage from -30°C to +80°C.
Material Compliance: RoHS 2.0 and REACH.

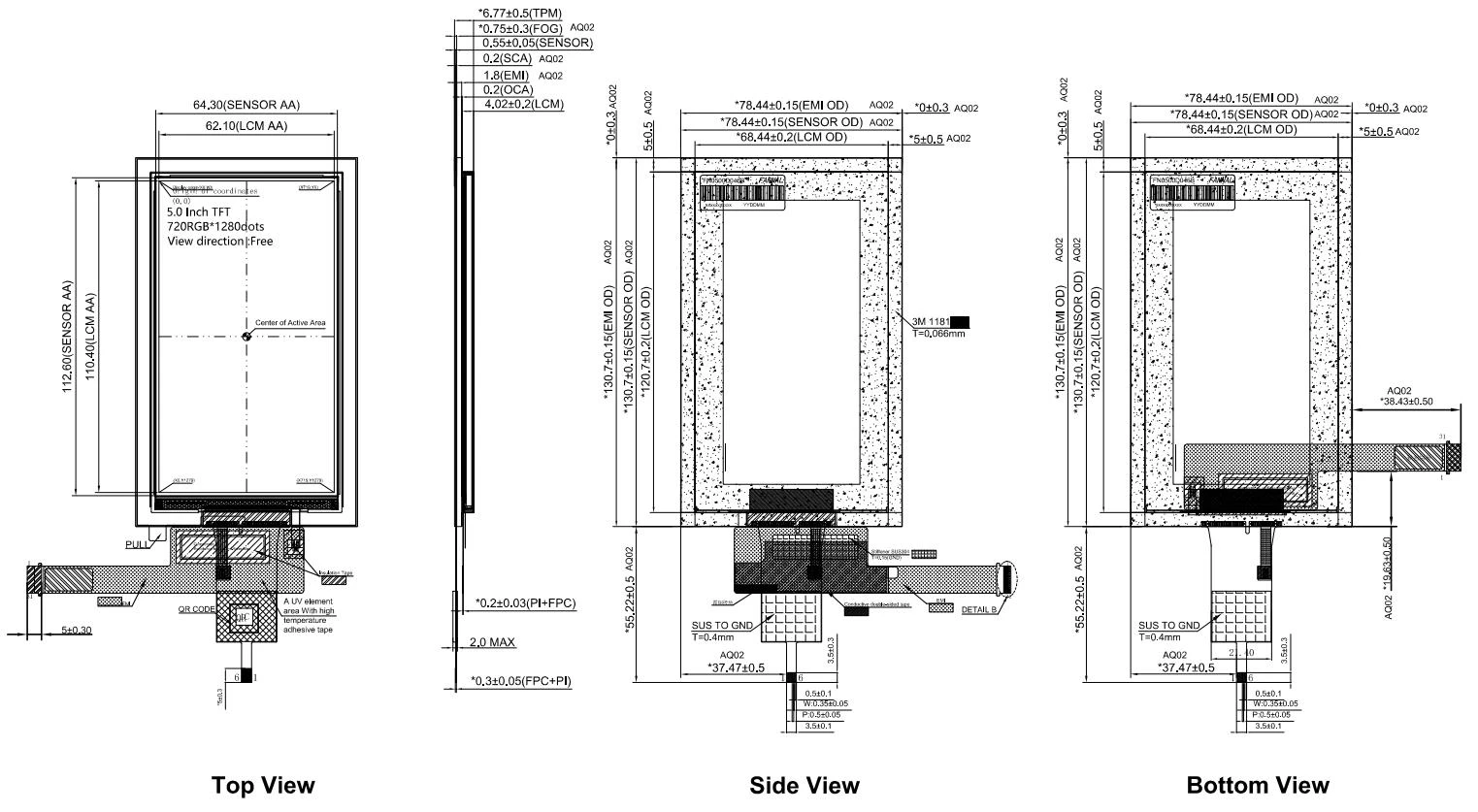

Drawing

Specifications

PARAMETER	DESCRIPTION
SIZE	5.0 INCH
RESOLUTION RATIO	720*1280
TPM LUMINANCE	990 Typ. 790 Min
TFT INTERFACE	MIPI
TFT DRIVER BRAND	ILI Technology (Ilitek)
TFT POWER SUPPLY	2.8V
SURFACE HARDNESS	7H Min
LIGHT TRANSMITTANCE	70% Min
UNIFORMITY	80% Min
STRCTURE	FOG+LCM
SENSOR THICKNESS	0.55
TOUCH INTERFACE	IIC
TOUCH CONTROLLER BRAND	Atmel (Microchip)
TOUCH POWER SUPPLY	3.3V
NO. OF TOUCH	5
CHANNELS OF SENSOR	RX16*TX9
UNMARKED TOLERANCE	±0.3/±1°
BONDING TYPE	OPTICAL BONDING
BONDING MATERIAL	OCA
COVER ENHANCEMENT METHOD	NA
ENVIRONMENTAL REQUIREMENTS	RoHS-2.0, REACH
OPERATION TEMPERATURE	-20~+70
STORAGE TEMPERATURE	-30~+80

Applications

Industrial Control Equipment: For embedded control panels where display integration and EMI considerations must be addressed together.
Industrial Automation Systems: For machine interfaces integrated into electrically complex equipment.
Electrical and Electronic Test Equipment: For compact instrument displays requiring application-specific mechanical and electrical integration.
Power and Energy Equipment: For monitoring and control interfaces where electromagnetic compatibility is a system-level design consideration.
Communication and Embedded Devices: For host systems using a compatible MIPI display interface and IIC touch connection.
Customized Industrial HMI Projects: For equipment requiring secondary processing around the display perimeter or frame to meet project-specific integration requirements.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

Customizations

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

1. What is the purpose of the EMI-related secondary processing?

The additional processing is intended for projects where electromagnetic interference management is an important consideration in display integration. Its effectiveness depends on the actual configuration, electrical continuity, grounding, enclosure design, and the complete system. Specific requirements should be confirmed during engineering review.

2. Does the secondary processing guarantee EMI compliance?

No. The presence of EMI-related processing alone does not establish a particular shielding effectiveness or guarantee that the complete equipment will meet an EMC standard. Verification should be based on the required criteria and testing of the integrated system.

3. Can the shielding configuration be customized?

The processing can be reviewed against the customer's mechanical drawings and integration requirements. Material, coverage, attachment method, grounding arrangement, and any validation criteria should be agreed upon during project evaluation.

4. What are the display and touch interfaces?

The display uses a MIPI interface and operates at 2.8V. The capacitive touch system uses IIC and operates at 3.3V. The host system must support the respective interface and electrical requirements.

5. Is this display suitable for industrial environments?

The module has a specified operating temperature range of -20°C to +70°C and typical luminance of 990 cd/m². Suitability for a specific installation also depends on factors such as vibration, humidity, dust, electrical noise, enclosure design, and the equipment's validation requirements.

6. Can FANNAL adapt the display assembly to a customer's equipment?

Yes. FANNAL can review project-specific display, touch, and secondary-processing requirements based on the application, mechanical drawings, interface specifications, and integration constraints. The feasible configuration and any required validation should be confirmed with the engineering team.
