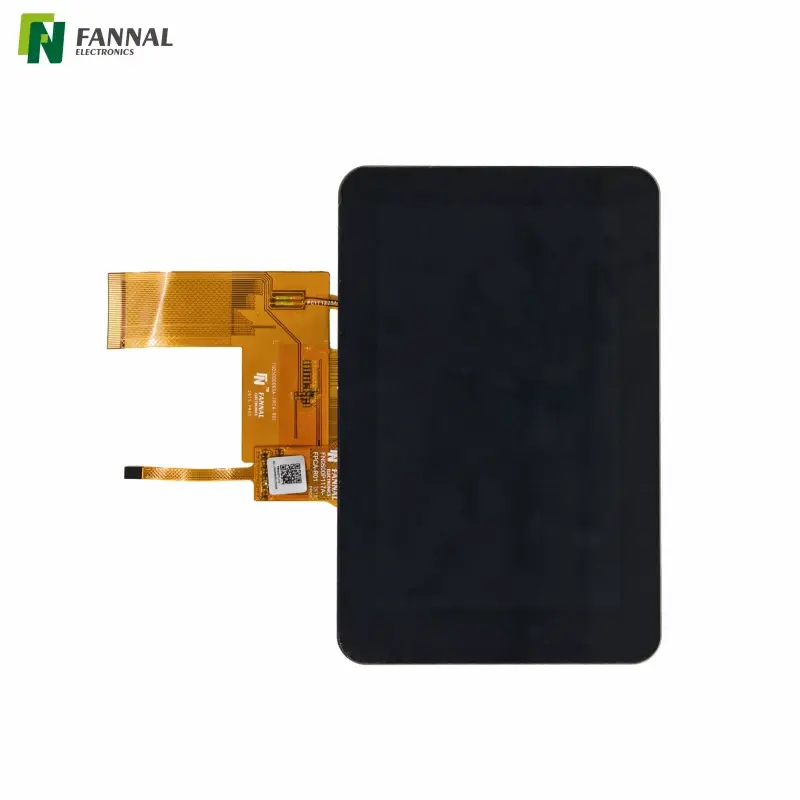

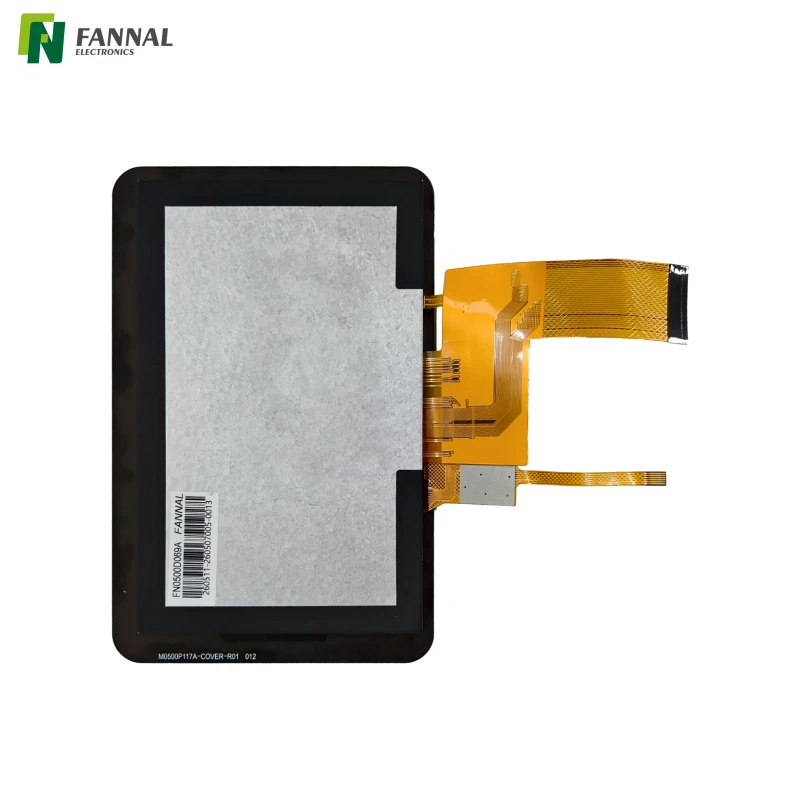

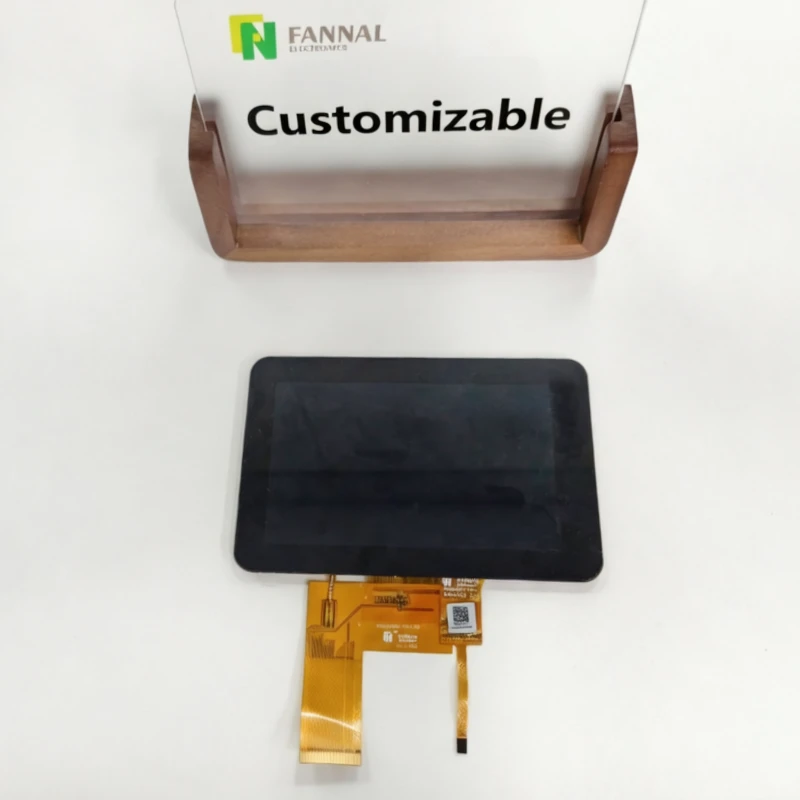

5 Inch Industrial Touch Display | Rounded Corners, OCA

Name: 5 Inch Industrial Touch Display | Rounded Corners, OCA
Brand: FANNAL
Rating: 5.0 (36 reviews)

FN0500T117A is a 5-inch 800×480 industrial touch display with rounded-corner cover glass, OCA optical bonding, 5-point touch, and -20°C to +70°C operation.

Model:
FN0500T117A
Brand:
FANNAL
Size(inch):
5
Cover OD (mm):
134.02*86.81*4.75
Display AA(mm):
108*64.8
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
TP VA (mm):
108.6*65.4
Structure:
G+G
Resolution:
800*480
Display Interface:
RGB 24bit
TP Interface:
IIC
Brightness(cd/m²):
420

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

The FANNAL FN0500T117A is a 5-inch industrial capacitive touch display featuring an 800×480 resolution, OCA optical bonding, and a rounded-corner cover glass design. Its G+G touch structure supports five-point multi-touch, while the RGB 24-bit display interface and IIC touch interface provide separate connections for display output and touch input.

Designed for embedded equipment and industrial control interfaces, this display combines a chemically strengthened 1.1 mm cover glass with a 0.55 mm touch sensor. The cover glass has a minimum surface hardness of 7H and minimum light transmittance of 85%. Its specified operating temperature range of -20°C to +70°C supports integration into equipment exposed to varying operating temperatures.

Features

Rounded-Corner Cover Glass: Four rounded corners provide a finished front-panel profile for equipment with rounded display openings.
5-Inch 800×480 Display: Compact format for industrial interfaces, equipment status screens, and embedded control panels.
OCA Optical Bonding: Bonds the display and touch assembly using optically clear adhesive, reducing the air gap and helping minimize internal reflections.
Industrial Operating Temperature: Supports operation from -20°C to +70°C, with a storage temperature range of -30°C to +80°C.
G+G Capacitive Touch: Combines a 1.1 mm cover glass with a 0.55 mm touch sensor.
5-Point Multi-Touch: Supports up to five simultaneous touch points for interactive equipment control.
RGB 24-Bit Display Interface: Supports full-color display output through an RGB interface.
IIC Touch Interface: Uses a Goodix touch controller with a 3.3 V touch power supply.
Chemically Strengthened Cover Glass: Provides a minimum surface hardness of 7H and minimum light transmittance of 85%.
RoHS Compliance: Meets the specified RoHS 2.0 environmental requirement.

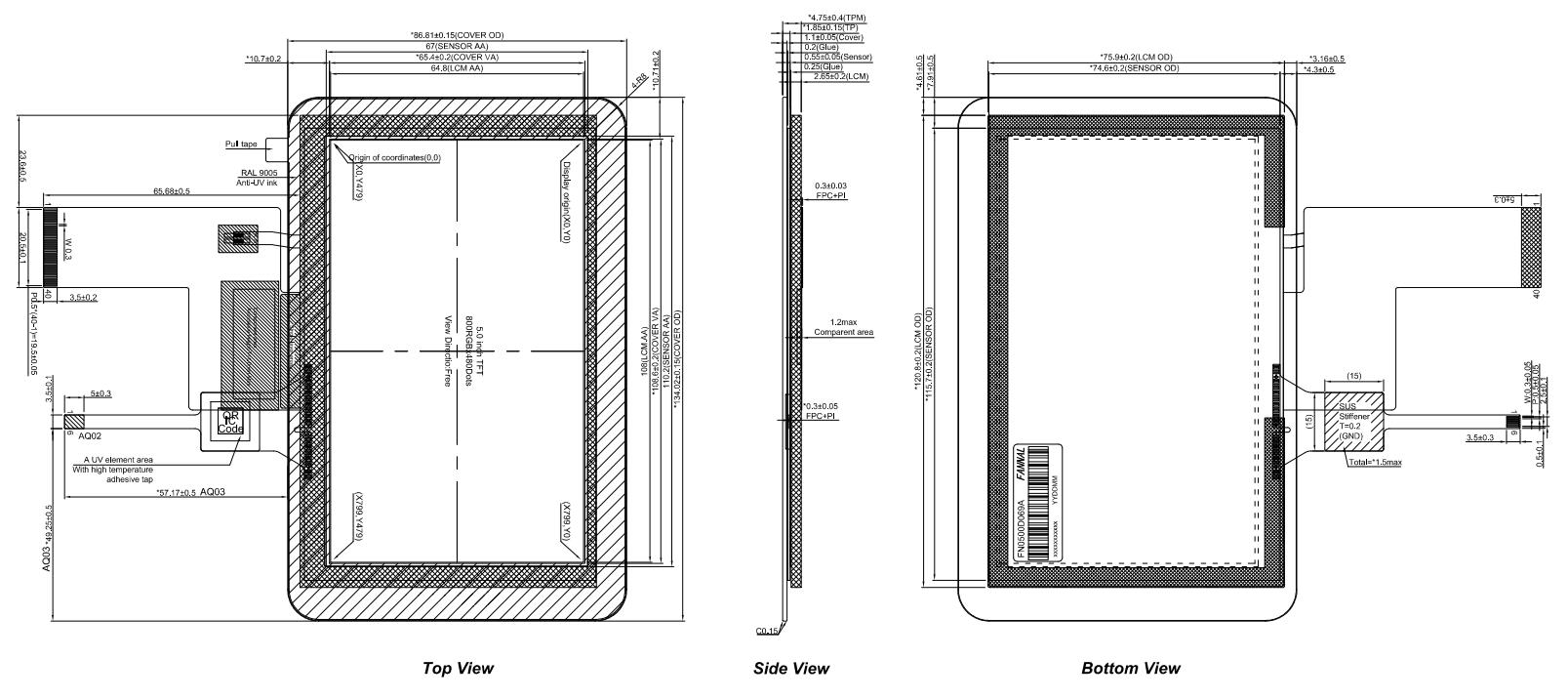

Drawing

Specifications

PARAMETER	DESCRIPTION
SIZE	5.0 INCH
RESOLUTION RATIO	800*480
LUMINANCE	420 Typ. 340 Min
TFT INTERFACE	RGB 24bit
TFT DRIVER BRAND	Sitronix
TFT POWER SUPPLY	3.3V
SURFACE HARDNESS	7H Min
LIGHT TRANSMITTANCE	85% Min
UNIFORMITY	80% Min
STRCTURE	G+G
COVER THICKNESS	1.1
SENSOR THICKNESS	0.55
TOUCH INTERFACE	IIC
TOUCH CONTROLLER BRAND	Goodix
TOUCH POWER SUPPLY	3.3V
NO. OF TOUCH	5
CHANNELS OF SENSOR	18*11
UNMARKED TOLERANCE	±0.3/±1°
BONDING TYPE	OPTICAL BONDING
BONDING MATERIAL	OCA
COVER ENHANCEMENT METHOD	CHEMICAL STRENGTHENING
ENVIRONMENTAL REQUIREMENTS	RoHS-2.0
OPERATION TEMPERATURE	-20~+70
STORAGE TEMPERATURE	-30~+80

Applications

Industrial HMI and Control Panels: Operator interfaces for machinery, automation equipment, and industrial control systems.
Embedded Industrial Equipment: Integrated display and touch interfaces for compact electronic devices and control units.
Instrumentation and Monitoring: Visual interfaces for measurement equipment, status monitoring, and test systems.
Vending and Self-Service Equipment: Touch-based user interfaces for product selection, settings, and equipment operation.
Transportation and Mobility Equipment: Compact control interfaces for vehicle-related or mobile equipment, subject to system-level environmental requirements.
Custom Industrial Display Assemblies: Projects requiring a 5-inch touch display with rounded-corner cover glass and OCA optical bonding.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

Customizations

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

1. What is the benefit of the rounded-corner cover glass design?

The rounded corners provide a finished front-panel profile that can suit enclosures with rounded display openings. The mechanical drawing should be checked to confirm that the corner geometry matches the intended housing.

2. Is the FN0500T117A suitable for industrial applications?

It is designed for integration into industrial and embedded equipment, with a specified operating temperature range of -20°C to +70°C. Suitability for a particular installation also depends on vibration, impact, moisture, dust, and other system-level requirements.

3. What are the display and touch interfaces?

The TFT display uses an RGB 24-bit interface, while the capacitive touch panel uses IIC communication. Both systems specify a 3.3 V power supply, but their host connections and electrical requirements must be checked separately.

4. Why is OCA optical bonding used in this touch display?

OCA optical bonding reduces the air gap between the display and touch assembly. This helps reduce internal reflections and improves optical integration compared with an air-gapped assembly.

5. Does this display support multi-touch?

Yes. The capacitive touch panel supports up to five simultaneous touch points and uses a Goodix touch controller.

6. Is this display suitable for direct sunlight?

The typical luminance is 420 cd/m². This may be suitable for indoor industrial equipment and controlled-light environments, but direct sunlight readability should not be assumed. Applications with strong ambient light may require a higher-brightness configuration.
