5.9-inch Industrial AMOLED Display

5.9-inch AMOLED Display

Model:
FN0590E001A
Operation Temp(℃):
-20~+70℃
Storage Temp(℃):
-40~+85℃
Resolution:
1080×2220
Direction:
ALL
Interface:
MIPI
Brightness(cd/m²):
400
Touch Screen:
Can be chosen

Quantity:
Availability:





Inquiry Add to Basket

Product Features

Product Drawing

Specification

Product Application

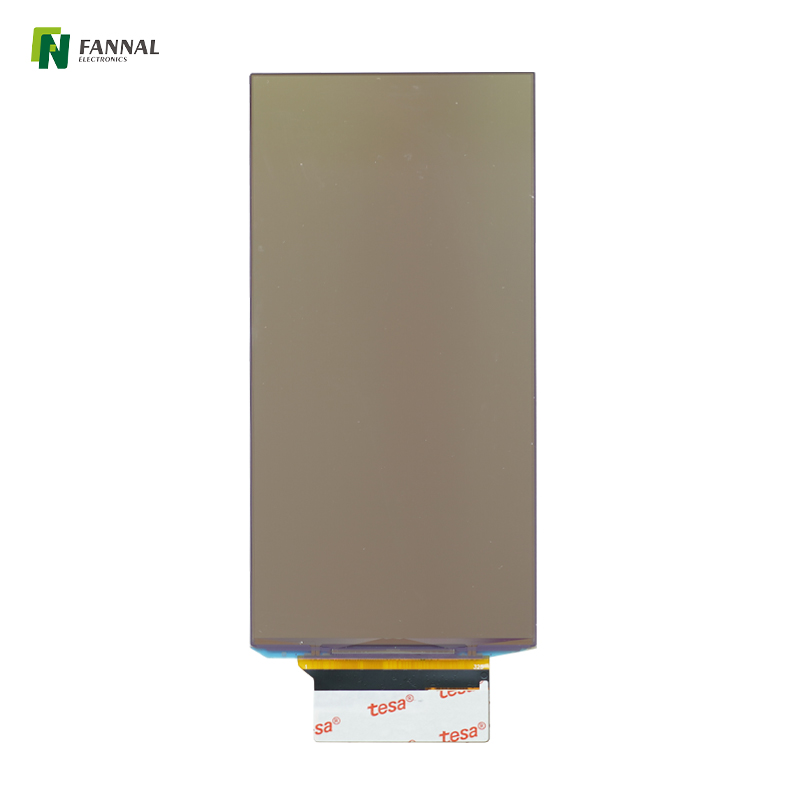

5.9-inch AMOLED display, 1080×2220, MIPI, 400cd/m²

This AMOLED display, featuring a 5.9-inch screen with a resolution of 1080×2220, offers a high brightness of 400cd/m² and utilizes the MIPI interface.

High-Resolution Display: With a pixel density of 1080×2220, this display ensures sharp and clear images, making it perfect for applications that require high-quality visuals.
AMOLED Technology: Utilizing Active Matrix Organic Light-Emitting Diode (AMOLED) technology, each pixel is self-emissive, allowing for deep blacks, vibrant colors, and a high contrast ratio. This makes the display highly efficient and visually appealing.
MIPI Interface: The display supports the Mobile Industry Processor Interface (MIPI), ensuring fast and reliable data transfer. This industry-standard interface allows seamless integration into mobile and handheld devices.

屏幕截图 2024-10-23 175621

General Specifications：

LCD size(inch):	5.9 (Diagonal)
Resolution:	1080(H)×2220(V)
Pixel Pitch:	30.35(H)x60.7(V)
Active Area(mm):	65.56(H)×134.75(V)
Module Size(mm):	67.716×140.654×0.84
Display type:	AMOLED
Interface:	MIPI
View Direction:	ALL
Power Supply:	3.3
Luminance(cd/m2):	400(Typ.)

Interface:

Pin No.	Symbol	I/O	Description
1	GND	P	Ground.
2	ELVSS	P	Negative power supply for panel.
3	D3N	I	MIPI DSI Negative differential data signal.
4	ELVSS	I	Negative power supply for panel.
5	D3P	I	MIPI DSI Positive differential data signal.
6	ELVSS	P	Negative power supply for panel.
7	GND	P	Ground.
8	NC	-	No connection.
9	D0N	I	MIPI DSI Negative differential data signal.
10	ELVDD	P	Positive power supply for panel.
11	D0P	I	MIPI DSI Positive differential data signal.
12	ELVDD	P	Positive power supply for panel.
13	GND	P	Ground.
14	ELVDD	P	Positive power supply for panel.
15	CLKN	I	MIPI DSI Negative clock signal.
16	AVDD	P	Signal analog voltage.
17	CLKN	I	MIPI DSI Positive clock signal.
18	VCI	P	Supply analog voltage.
19	GND	P	Ground.
20	VDDI	P	Power supply for I/O block provided from outside.
21	D1N	I	MIPI DSI Negative differential data signal.
22	NC	-	No connection.
23	D1P	I	MIPI DSI Positive differential data signal.
24	EL_CTRL	O	PMIC control signal.
25	GND	P	Ground.
26	EL_EN	O	PMIC enable signal.
27	D2N	I	MIPI DSI Negative differential data signal.
28	TE	O	Monitor pin of TE (Tearing Effect) logic signal.When this pad is not activated, this signal stays low.
29	D2P	I	MIPI DSI Positive differential data signal.
30	ERR_FG	O	Purpose on test for MIPI status.
31	GND	P	Ground.
32	RESX	P	Active low. This signal is used to reset the device and must be applied to initialize the chip properly.
33	NC	-	No connection.
34	GND	P	Ground.
35	NC	-	No Connection.
36	VTOP	P	External Voltage Input for OTP DataProgram.
37	NC	-	No Connection.
38	VDDI	P	Power supply for I/O block provided from outside.
39	GND	P	Ground.

Electrical Characteristics:

Parameter	Symbol:	Min.	Typ.	Max.	Unit
AMOLED Power positive	ELVDD	---	4.6	---	V
AMOLED Power negative	ELVSS	---	-2.5	---	V

Application

AMOLED displays are frequently employed across diverse applications, thanks to their rich colors, outstanding contrast ratios, and energy efficiency. Here are some key applications:
